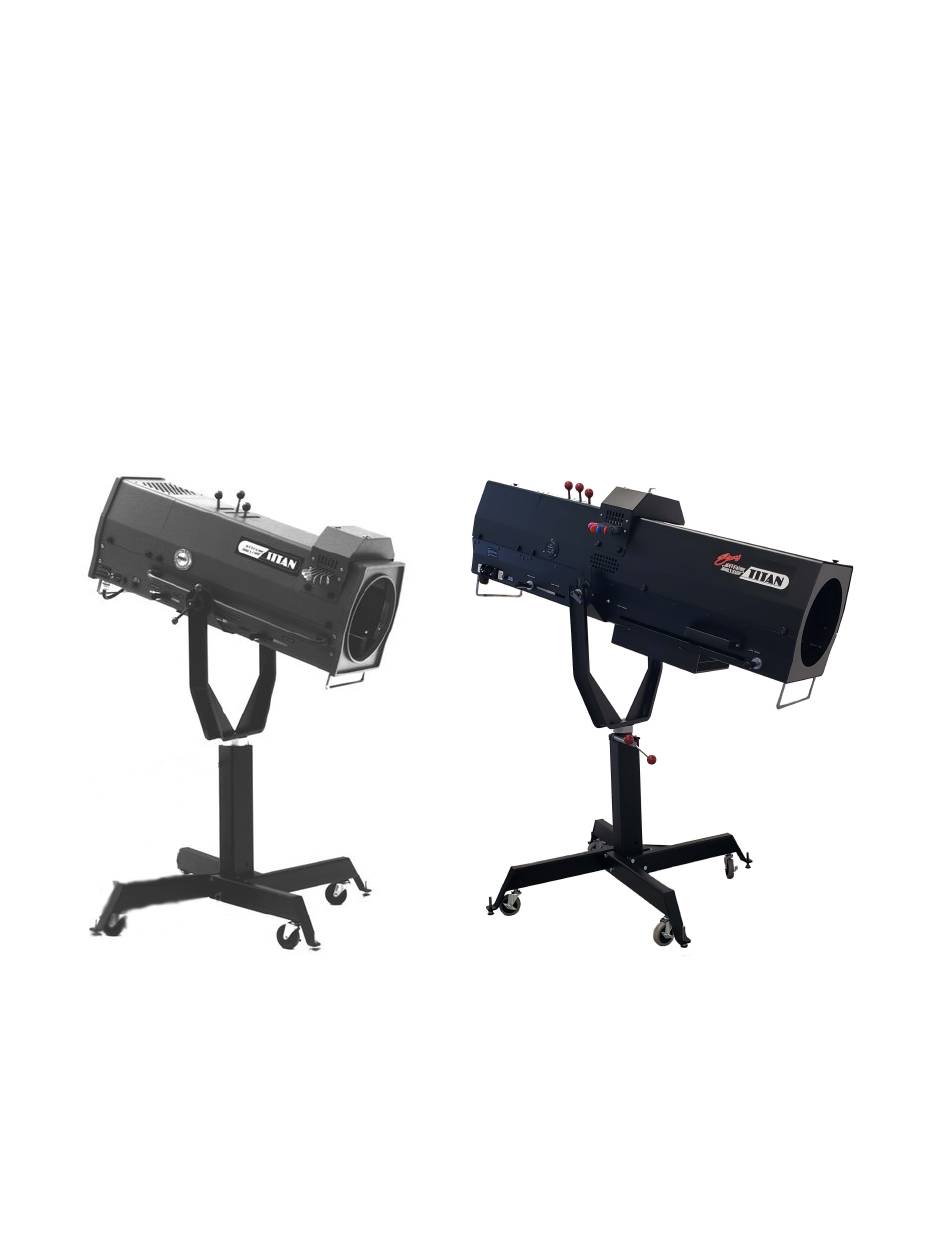

- Page 1 ULTRA ARC TITAN 1400 WATT FOLLOWSPOT USER MANUAL MODELS: LONG THROW – UAT-LT-208/240 SHORT THROW – UAT-ST-208/240 Strong Lighting 10533 Chandler Rd, Suite 101 La Vista, NE 68128 U.S.A. 402-506-9096 TEL www.strong.lighting...
-
Page 2: Table Of Contents
Strong Lighting ULTRA ARC TITAN USER MANUAL MODELS UAT-LT-208/240 & UAT-ST-208/240 June 2020 CONTENTS PAGE LIMITED WARRANTY........................2 CONTROL DESCRIPTIONS FOLLOW SPOT ........................3 INITIAL SET-UP AND OPERATION ....................4 LAMP INSTALLATION ........................6 LAMP POSITIONING DIAGRAM ......................6 FOLLOW SPOT OPERATION ......................7 OPTICAL SYSTEM OPERATION SET UP AND FOCUSING ..................7... -
Page 3: Limited Warranty
LIMITED WARRANTY Thank you for purchasing the Strong Lighting Ultra Arc Titan. The Strong Lighting Ultra Arc Titan is warranted against defects in material and workmanship for a period of one year from date of purchase from Strong Lighting. In case of difficulty, contact Strong Lighting or your dealer for repair or return instructions. -
Page 4: Control Descriptions
Ultra Arc Titan UAT-LT-208/240 & UAT-ST-208/240 User Manual CONTROL DESCRIPTION FOLLOW SPOT Controls power to fans and Lamp Switch 1. TWO POSITION MASTER SWITCH Down = Off Up = ON 2. FUSE 15 Amp 3AB Turns lamp on and off 3. -
Page 5: Initial Set-Up And Operation
Ultra Arc Titan UAT-LT-208/240 & UAT-ST-208/240 User Manual INITIAL SET-UP AND OPERATION 1. Unpack carefully and inspect for shipping damage. 2. Unfold the four Base Legs by removing the top bolt and nut from each leg. Will need 9/16 open end wrench and socket. Orient the legs with the leveling feet and casters facing down. - Page 6 Ultra Arc Titan UAT-LT-208/240 & UAT-ST-208/240 User Manual COLLAPSIBLE BASE ASSEMBLY INSTRUCTION DIAGRAM LOCK NUT MAIN B AS E T UB E B OT T OM T O P BASE LEG 1. Insert bolt through hole “A” on the main base tube. Position hole “A”...
-
Page 7: Lamp Installation
Ultra Arc Titan UAT-LT-208/240 & UAT-ST-208/240 User Manual LAMP INSTALLATION 1. Unplug unit from power source before attempting lamp installation. 2. Remove rear cover. Remove/loosen four thumbscrews on rear of cover, lift the rear cover straight up. 3. Open Rear Access Door. Remove HTI 1400 lamp (not supplied with the unit) from packing materials. -
Page 8: Followspot Operation
Ultra Arc Titan UAT-LT-208/240 & UAT-ST-208/240 User Manual FOLLOWSPOT OPERATION 1. Connect followspot to 208/240 volt power source. Turn MASTER switch to the "ON" position (fans will power on). Be sure all fans are operating properly before flipping LAMP switch to "ON" position. The lamp should strike and warm up to full output within two minutes. -
Page 9: Technical Data
Ultra Arc Titan UAT-LT-208/240 & UAT-ST-208/240 User Manual 3. The iris provides a 6 to 1 change in image diameter. It is controlled by the front handle, away to close and toward to open. The brightest spot is obtained with the iris open and the lenses adjusted for the largest spot desired. -
Page 10: Housing Removal And Lubrication
Ultra Arc Titan UAT-LT-208/240 & UAT-ST-208/240 User Manual II. HOUSING AND LUBRICATION 1. Disconnect unit from power source before attempting servicing. 2. Unscrew the three control knobs on top of unit and remove. 3. Unscrew the thumbscrews on the front and rear housing. 4. -
Page 11: Replacement Parts List
Ultra Arc Titan UAT-LT-208/240 & UAT-ST-208/240 User Manual Replacement Parts Price List: UAT-LT-208/240, UAT-ST-208/240... - Page 12 Ultra Arc Titan UAT-LT-208/240 & UAT-ST-208/240 User Manual...
- Page 13 Ultra Arc Titan UAT-LT-120/220 & UAT-ST-120/220 User Manual...
-
Page 14: Schematic
7132002 Black Blue S2-A LAMP On/Off Igniter 10375 1400W Ballast 10374 High Voltage Out Lamp 24VDC 9700232 (2) Strong Lighting Titan Long Throw Title 10533 Chandler Rd Suite 101 Size: Tabloid Num: 12047 Rev: La Vista, NE 68128 Date: 7/7/2020... - Page 15 CITY / STATE / ZIP TELEPHONE Please fold along the dotted lines and staple with return address on the outside as shown above. Thank you! Place Stamp Here Strong Lighting 10533 Chandler Rd, Suite 101 La Vista, NE 68128 ATTENTION: WARRANTY DEPARTMENT...
