Summary of Contents for Strong Lighting ULTRA ARC II Series

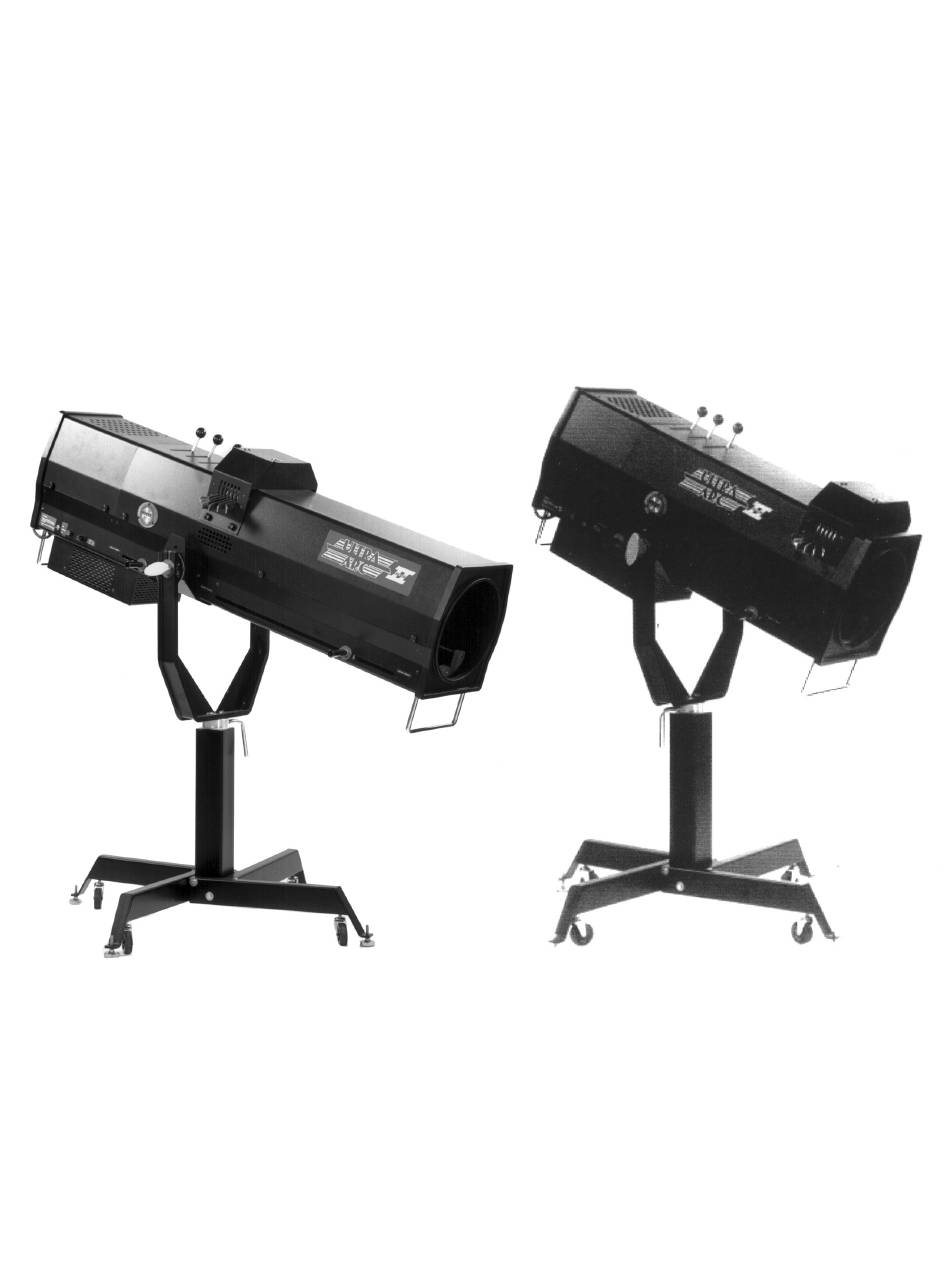

- Page 1 ULTRA ARC SERIES II HTI 400 WATT FOLLOWSPOT USER MANUAL MODELS: LONG THROW UA II-LT/120 SHORT THROW UA II-ST/120 Strong Lighting 10533 Chandler Rd, Suite 101 La Vista, NE 68128 U.S.A 402-506-9096 TEL www.phoebusmanufacturing.com...
-
Page 2: Table Of Contents
Strong Lighting ULTRA ARC SERIES II USER MANUAL MODELS UA II-LT/120 & UA II-ST/120 CONTENTS PAGE LIMITED WARRANTY ................................... 2 INITIAL SET-UP AND OPERATION ............................3 BASE ASSEMBLY AND SET UP INSTRUCTIONS ........................4 COLLAPSIBLE BASE ASSEMBLY INSTRUCTION DIAGRAM ..................... 4 CONTROL DESCRIPTION................................ -
Page 3: Limited Warranty
The Strong Lighting Ultra Arc Titan is warranteed against defects in material and workmanship for a pe- riod of one year from date of purchase from Strong Lighting. I case of difficulty, contact Strong Lighting of your dealer for repair or return instructions. Iris, dowser, and clipper are warranteed for six months under normal use. -
Page 4: Initial Set-Up And Operation
Ultra Arc Series II UA II-LT/120, UA II-ST/120 User Manual INITIAL SET-UP AND OPERATION Unpack carefully and inspect for shipping damage. Bolt the 4 base legs onto the 3 1/2" square tubing with the elevator brackets and caster holes facing down. (See Collapsible Base Assembly Instruction Diagram on page 4). Insert casters into legs. -
Page 5: Base Assembly And Set Up Instructions
Ultra Arc Series II UA II-LT/120, UA II-ST/120 User Manual BASE ASSEMBLY AND SET UP INSTRUCTIONS 1. Bolt the four base legs onto the 3-1/2" square tubing with elevator brackets and caster holes facing down. 2. Insert casters into legs. 3. -
Page 6: Control Description
Ultra Arc Series II UA II-LT/120, UA II-ST/120 User Manual CONTROL DESCRIPTION 1. POWER SWITCH Control power to ballast and fans. Down – Off Middle – Fans Only Up – Strike Lamp 2. FUSE 3AB 7 amp 3. HOUR METER Records operating time accumulated on lamp. -
Page 7: Instructions For The Auto Zoom
Ultra Arc Series II UA II-LT/120, UA II-ST/120 User Manual INSTRUCTIONS FOR THE AUTO ZOOM (if applicable) The Auto Zoom version of the Ultra Arc Series II automatically moves the rear lens when the front lens is moved to keep the light in focus to the image. It is intended for key lighting a moving per- former when the throw distance changes during a performance, such as ice shows, TV studios, etc. -
Page 8: Technical Data
7.3 amps. A ballast is used to operate the lamp from standard 120V, 50/60Hz power. Replacement lamps are available from Osram lamp distributors as well as from Strong Lighting. Lamp life is an average of 250 hours in normal use. The life depends on the burning time per start. -
Page 9: Lamp Positioning Diagram
Ultra Arc Series II UA II-LT/120, UA II-ST/120 User Manual strike within 20 seconds and warm up within a minute. Set the lenses for a narrow spot (long throw position). Observe the distribution of the light across the area illuminated. The brightest point should be in center. -
Page 10: Housing Removal And Lubrication
105 volts. C. If the above measures have not been successful, the ballast is probably defective. Call your distributor or Strong Lighting for further assistance. GEL INSTALLATION 1. Unscrew four thumbscrews on either side of the color boomerang. -
Page 11: Replacement Parts List
Ultra Arc Series II UA II-LT/120,UA II-LT/120 User Manual Replacement Parts Price List UA II-LT/120 UA II-LTZ/120 UA II-ST/120 UA II-STZ/120 UA II-LT/220 UA II-LTZ/220 UA II-ST/220 UA II-STZ/220 $50.00 minimum order. Prices subject to change without notice Stock Description List Stock Description List... - Page 12 Ultra Arc Series II UA II-LT/120,UA II-LT/120 User Manual Replacement Parts Price List UA II-LT/120 UA II-LTZ/120 UA II-ST/120 UA II-STZ/120 UA II-LT/220 UA II-LTZ/220 UA II-ST/220 UA II-STZ/220 $50.00 minimum order. Prices subject to change without notice Stock Description List Stock Description List...
- Page 13 Ultra Arc Series II UA II-LT/120,UA II-LT/120 User Manual Replacement Parts Price List UA II-LT/120 UA II-LTZ/120 UA II-ST/120 UA II-STZ/120 UA II-LT/220 UA II-LTZ/220 UA II-ST/220 UA II-STZ/220 $50.00 minimum order. Prices subject to change without notice Stock Description List Stock Description List...
-
Page 14: Warranty Card
CITY / STATE / ZIP TELEPHONE Please fold along the dotted lines and staple with return address on the outside as shown above. Thank you! Place Stamp Here Strong Lighting 10533 Chandler Rd, Suite 101 La Vista, NE 68128 ATTENTION: WARRANTY DEPARTMENT...
