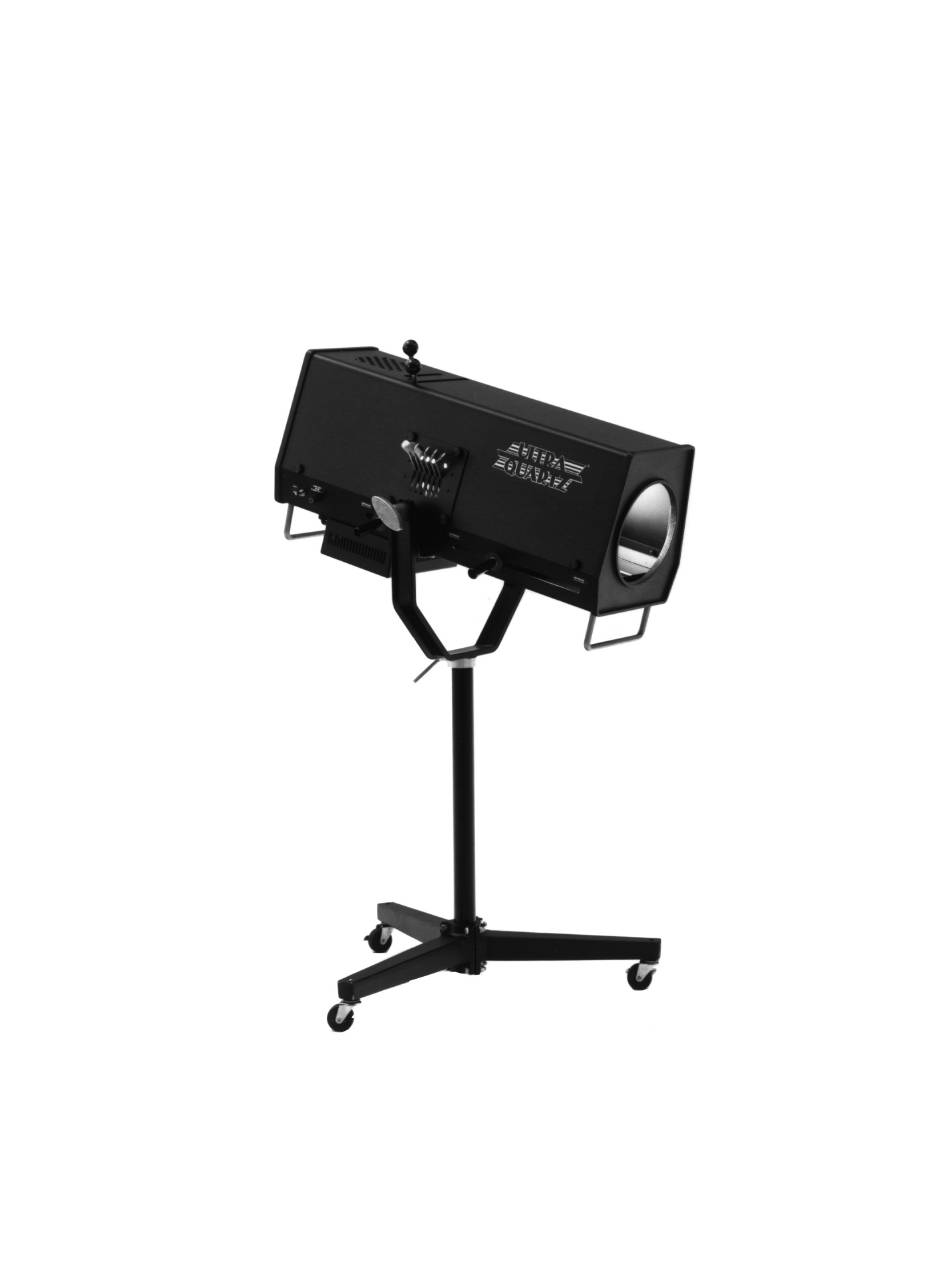

- Page 1 ULTRA QUARTZ FOLLOWSPOT USER MANUAL MODEL: UQ-120/82 Strong Lighting 10533 Chandler Rd, Suite 101 La Vista, NE 68128 U.S.A. 42-506-9096 TEL www.phoebusmanufacturing.com...
-
Page 2: Table Of Contents
ULTRA QUARTZ FOLLOWSPOT USER MANUAL UQ-120/82 March 2018 CONTENTS PAGE LIMITED WARRANTY......................2 CONTROL DESCRIPTION....................3 SPECIFICATIONS......................3 INITIAL SETUP AND OPERATION..................4 OPTICAL SYSTEM OPERATION I.SET UP AND FOCUSING...................4 II.BEAM CONTROL....................5 TECHNICAL DATA......................5 I. LAMP II. ELECTRICAL MAINTENANCE I. LAMP INSTALLATION..................5 II. LENS CLEANING....................5 III.COLOR GEL REPLACEMENT................6... -
Page 3: Limited Warranty
The Strong Lighting Ultra Quartz Model UQ-120/82 is guaranteed against defects in material and workmanship for a period of one year from date of purchase from Strong Lighting. In case of difficulty, contact Strong Lighting or your dealer for repair or return instructions. Iris and clipper are guaranteed for six months under normal use. -
Page 4: Control Description
Ultra Quartz UQ-120/82 User Manual CONTROL DESCRIPTION POWER SWITCH Controls power to diode and fan. FUSE 3AB 5AMP REAR LENS CONTROL Used to focus image. Turn handle clockwise to lock and counterclockwise to unlock. Slide handle to focus. TILT LOCK KNOB Friction lock for vertical tilt of unit. -
Page 5: Initial Setup And Operation
Ultra Quartz UQ-120/82 User Manual INITIAL SETUP AND OPERATION Unpack carefully and inspect for shipping damage. Insert 3 casters into the base legs. Position cast legs around end of 1-3/4" pipe. Secure with the hardware provided. Insert yoke tube into base. -
Page 6: Ii.beam Control
Ultra Quartz UQ-120/82 User Manual The clipper shapes the image to a strip or a rectangle of variable height. Move the middle control handle away to close and toward to open the clipper. The iris provides a 6 to 1 change in image diameter. It is controlled by the front handle, away to close and toward to open. -
Page 7: Iv.housing Removal And Lubrication
A. Unplug unit, remove housing. Check that the lamp connector is firmly seated in its socket. If so, the lamp may have reached the end of its life. Replace the lamp. B. If the above measures have not been successful, call your distributor or Strong Lighting for further help. -
Page 8: Parts Layout & Description
Ultra Quartz UQ-120/82 User Manual PARTS LAYOUT 1 a. 1 b. 1 c. 1 d. 1 e. 1 f. 1 g. 1 h. 1 i. 1 j. 1 k. 1 L. 1 m. 1 n. 1 o. 1 p. 1 q. - Page 9 Ultra Quartz UQ-120/82 User Manual LAYOUT DESCRIPTION CHASSIS INTERNAL COMPONENTS AND BASE 1a.. Rear Bulkhead 2a. A.C. Line Cord 1b. Spare Lamp Holder 2b. No/Off Switch 1c. Fan Motor w/Blade 2c. Switch Guard 1d. Fan Motor Bracket 2d. Fuse Holder 1e.
-
Page 10: Replacement Parts List
Ultra Quartz UQ-120/82 User Manual Replacement Parts Price List Stock Description List Stock Description List External Parts Electrical Parts 4000 Chassis 149.00 4200 Rectifier 28.00 4001 Housing 140.00 4201 Rectifier Thermal Kit 3.00 4002 Front Bulkhead 132.00 4202 ENX Lamp 39.00... - Page 11 Ultra Quartz UQ-120/82 User Manual Replacement Parts Price List Stock Description List Stock Description List Color Boom Parts Optical 4400 Boom Cover Plate 33.00 4500 Front Lens 181.00 4401 Boom Bracket Left 18.00 4501 Rear Lens 169.00 4402 Boom Bracket Right 18.00...
-
Page 12: Warranty Card
Ultra Quartz UQ-120/82 User Manual WARRANTY CARD MODEL NUMBER SERIAL NUMBER DATE OF PURCHASE PLACE OF PURCHASE (DEALER NAME) USER’S NAME COMPANY NAME STREET ADDRESS CITY STATE TELEPHONE EMAIL Please fold along the dotted lines and staple with return address on the outside as shown above.
