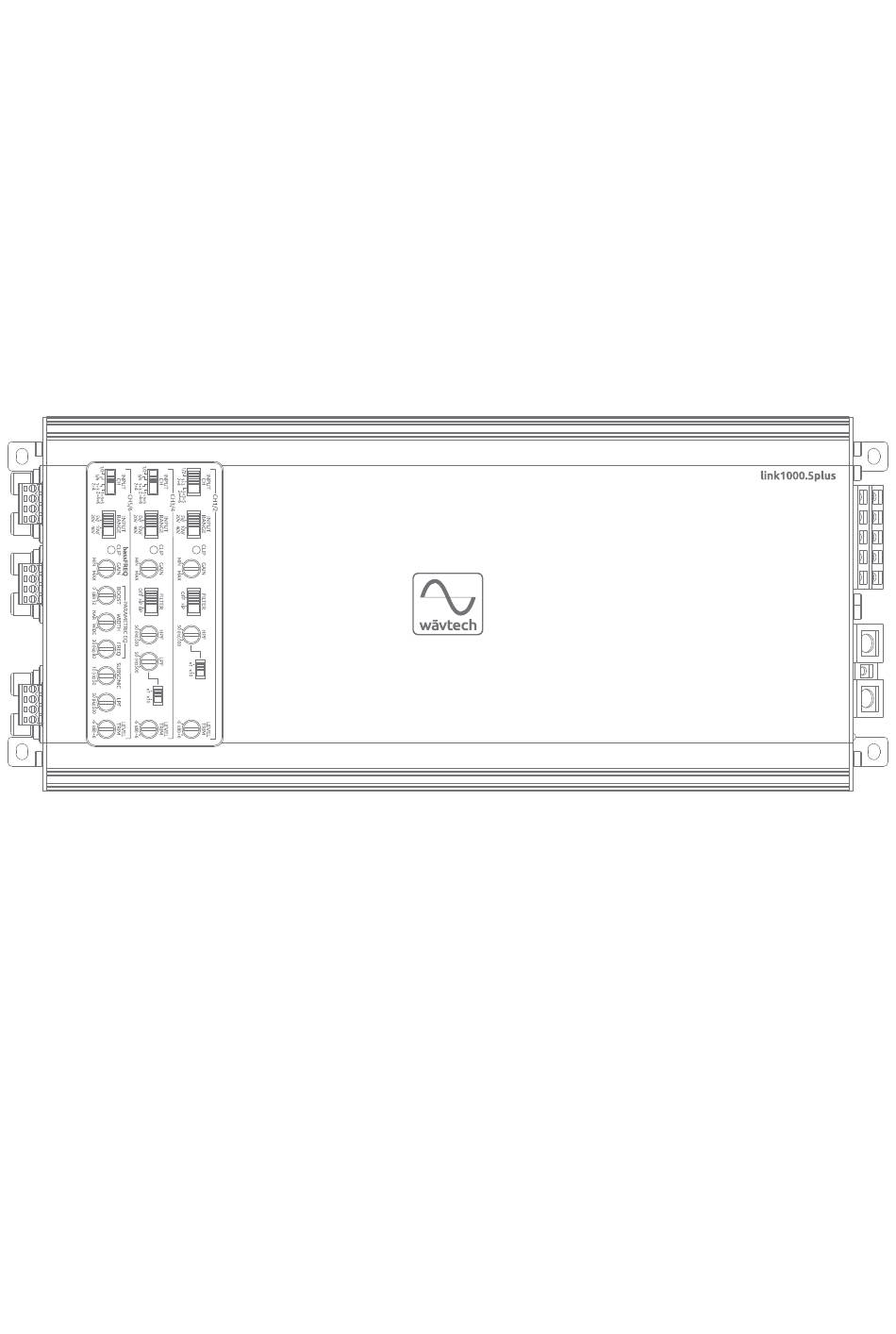

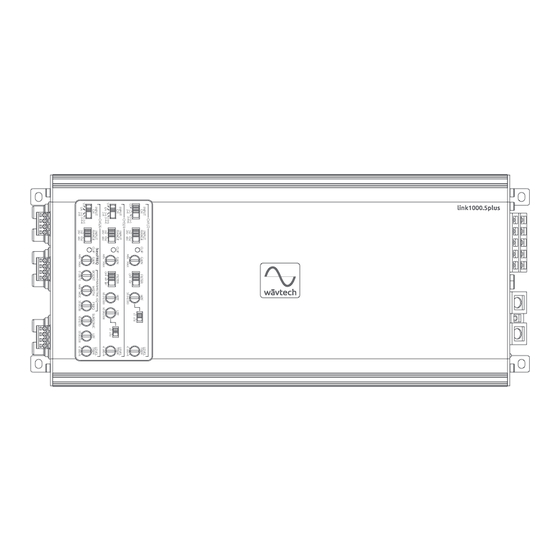

- Page 1 1000W RMS 5-Channel Amplifier Owner’s Manual www.wavtech-usa.com...
- Page 2 This symbol means important instructions. WARNING Failure to heed them can result in serious injury or death. This symbol means important instructions. CAUTION Failure to heed them can result in injury or property damages. WARNING • DO NOT DRIVE WHILE DISTRACTED. Any function that requires your prolonged attention should not be performed while driving.
- Page 3 Introduction Welcome to Wāvtech, exceptional mobile audio products for audiophiles. Our products are engineered from the ground up to provide a truly remarkable listening experience with superior performance, sound quality and reliability. Built for the professional installer, our innovative features enable maximum application coverage with ultimate system flexibility.
-
Page 4: Top Panel Controls
CH3/4 to direct (3/4) to preserve fading and set CH5/6 to sum (1+3/2+4) or direct (5/6) for sub. Example: An aftermarket radio with 3-preouts (6ch output) is connected to the link1000.5plus via RCA interconnects and drives a 5-channel front/rear speaker and subwoofer system, so all input select switches are set to direct. - Page 5 CH5/6 CH1/2 INPUT CH INPUT CH CH3/4 INPUT CH Direct Input Sensitivity Range: Two input sensitivity ranges are provided for each channel pair to optimize source volume range while minimizing the gain required to achieve full power output for best signal-to-noise.
-
Page 6: System Wiring
• Subsonic Filter Frequency: This adjustment sets the -3dB cut-off point ( ) for CH5/6 (Sub) below which all frequencies are filtered out at -24dB/oct. Very low frequencies can waste amplifier power and damage subwoofers. This adjustment is especially important for ported enclosures to prevent over-excursion below the tuning frequency. -
Page 7: Specifications
Specifications link1000.5plus 4Ω 75W x 4 + 300W x 1 RMS, 14.4.V, Power Output 2Ω 125W x 4 + 500W x 1 <1%THD+N 4Ω BTL Main, 2Ω Sub 250W x 2 + 500W x 1 S/N Ratio 1W, A-wtd Main / Sub... - Page 8 Warranty & Service Care Wāvtech warrants this product to be free from defects in material and workmanship for a period of one (1) year when purchased from an authorized Wāvtech retailer within the United States. This warranty will be extended to a period of two (2) years when the installation is performed by an authorized Wāvtech retailer.
