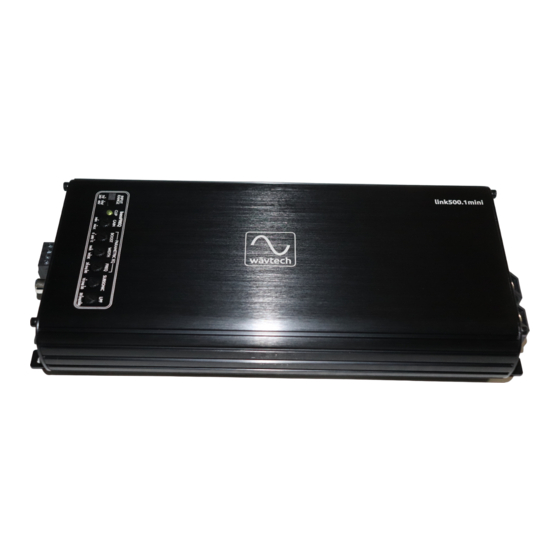

- Page 1 500W RMS Mono Amplifier Owner’s Manual www.wavtech-usa.com...
- Page 2 This symbol means important instructions. WARNING Failure to heed them can result in serious injury or death. This symbol means important instructions. CAUTION Failure to heed them can result in injury or property damages. WARNING • DO NOT DRIVE WHILE DISTRACTED. Any function that requires your prolonged attention should not be performed while driving.
- Page 3 Introduction Welcome to Wāvtech, exceptional mobile audio products for audiophiles. Our products are engineered from the ground up to provide a truly remarkable listening experience with superior performance, sound quality and reliability. Built for the professional installer, our innovative features enable maximum application coverage with ultimate system flexibility. Whether retaining the factory receiver or utilizing an aftermarket source, our solutions are simply the best available for unlimited sound system upgrades.
- Page 4 Top Panel Controls Ž PARAMETRIC EQ CLIP GAIN BOOST WIDTH FREQ SUBSONIC Œ Input Sensitivity Range: Two input Œ ‘ ’ “ sensitivity ranges are provided for each channel pair to optimize source volume 10V/ MIN MAX NAR WIDE (dB) (Hz)
- Page 5 18in (45cm) from the positive battery terminal. The link500.1mini requires a 50A external in-line fuse (not included) and a minimum power wire gauge of 8AWG. Do not install the fuse until all other system connections have been made.
- Page 6 RCA Input Wiring: Speaker Level Input Wiring: CH1(L) CH2(R) CH1(L) CH2(R) DETECT LOAD LOAD DETECT LOAD LOAD CH1(L) CH2(R) CH1(L) CH2(R) RCA IN RCA IN UNBAL UNBAL CH1/2 CH1/2 Note: Always connect stereo sources to both CH1(L) and CH2(R) inputs to retain full music content. If only one source channel is available, use an RCA y-adapter or jumper wires to connect it to both CH1 and CH2 inputs, otherwise signal level will be reduced by half and require increasing the gain to achieve full power output.
- Page 7 Specifications link500.1mini 4Ω 300W RMS x 1 14.4V, Power Output <1%THD+N 2Ω 500W RMS x 1 S/N Ratio 1W, 100Hz, A-wtd -78dBA Max Flat (+0/-1dB) 15Hz - 400Hz Frequency Response Extended (+0/-3dB) 10Hz - 500Hz RCA Input 20KΩ Input Impedance Spk Level Input 20KΩ...
- Page 8 Warranty & Service Care Wāvtech warrants this product to be free from defects in material and workmanship for a period of one (1) year when purchased from an authorized Wāvtech retailer within the United States. This warranty will be extended to a period of two (2) years when the installation is performed by an authorized Wāvtech retailer.
