Summary of Contents for Wavtech link300.4mini

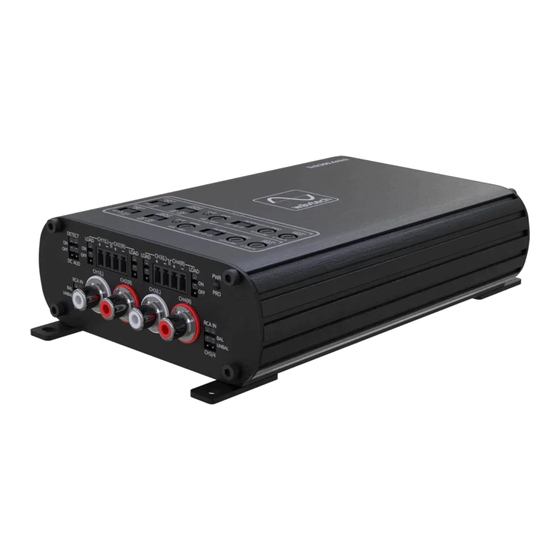

- Page 1 300W RMS 4-Channel Amplifier Owner’s Manual www.wavtech-usa.com...
- Page 2 This symbol means important instructions. WARNING Failure to heed them can result in serious injury or death. This symbol means important instructions. CAUTION Failure to heed them can result in injury or property damages. WARNING • DO NOT DRIVE WHILE DISTRACTED. Any function that requires your prolonged attention should not be performed while driving.
- Page 3 Introduction Welcome to Wāvtech, exceptional mobile audio products for audiophiles. Our products are engineered from the ground up to provide a truly remarkable listening experience with superior performance, sound quality and reliability. Built for the professional installer, our innovative features enable maximum application coverage with ultimate system flexibility. Whether retaining the factory receiver or utilizing an aftermarket source, our solutions are simply the best available for unlimited sound system upgrades.
-
Page 4: Top Panel Controls
(1+3/2+4) for full-range output to the main speakers, while CH3/4 would be set to direct (3/4) to pass only the factory woofer signal to drive the subwoofer: CH3/4 CH1/2 Factory 2-way link300.4mini INPUT CH INPUT CH Input Output... -
Page 5: System Wiring
18in (45cm) from the positive battery terminal. The link300.4mini requires a 40A external in-line fuse (not included) and a minimum power wire gauge of 8AWG. Do not install the fuse until all other system connections have been made. - Page 6 RCA Input Wiring: Speaker Level Input Wiring: Note: For a 2-channel source, connect to CH1/2 inputs and select copy (1/2) with CH3/4's INPUT CH switch. If separate gain control is desired for CH3/4, use RCA y-adapters or jumper wires to connect CH1/2 to CH3/4's inputs externally and select direct (3/4) with CH3/4's INPUT CH switch.
-
Page 7: Specifications
Specifications link300.4mini 4Ω 50W RMS x 4 14.4V, Power Output 2Ω 75W RMS x 4 <1%THD+N 4Ω BTL 150W RMS x 2 S/N Ratio 1W, 1kHz, A-wtd -80dBA Max Flat (+0/-1dB) <10Hz to >30KHz Frequency Response Extended (+0/-3dB) <10Hz to >45KHz RCA Input 20KΩ... - Page 8 Warranty & Service Care Wāvtech warrants this product to be free from defects in material and workmanship for a period of one (1) year when purchased from an authorized Wāvtech retailer within the United States. This warranty will be extended to a period of two (2) years when the installation is performed by an authorized Wāvtech retailer.
