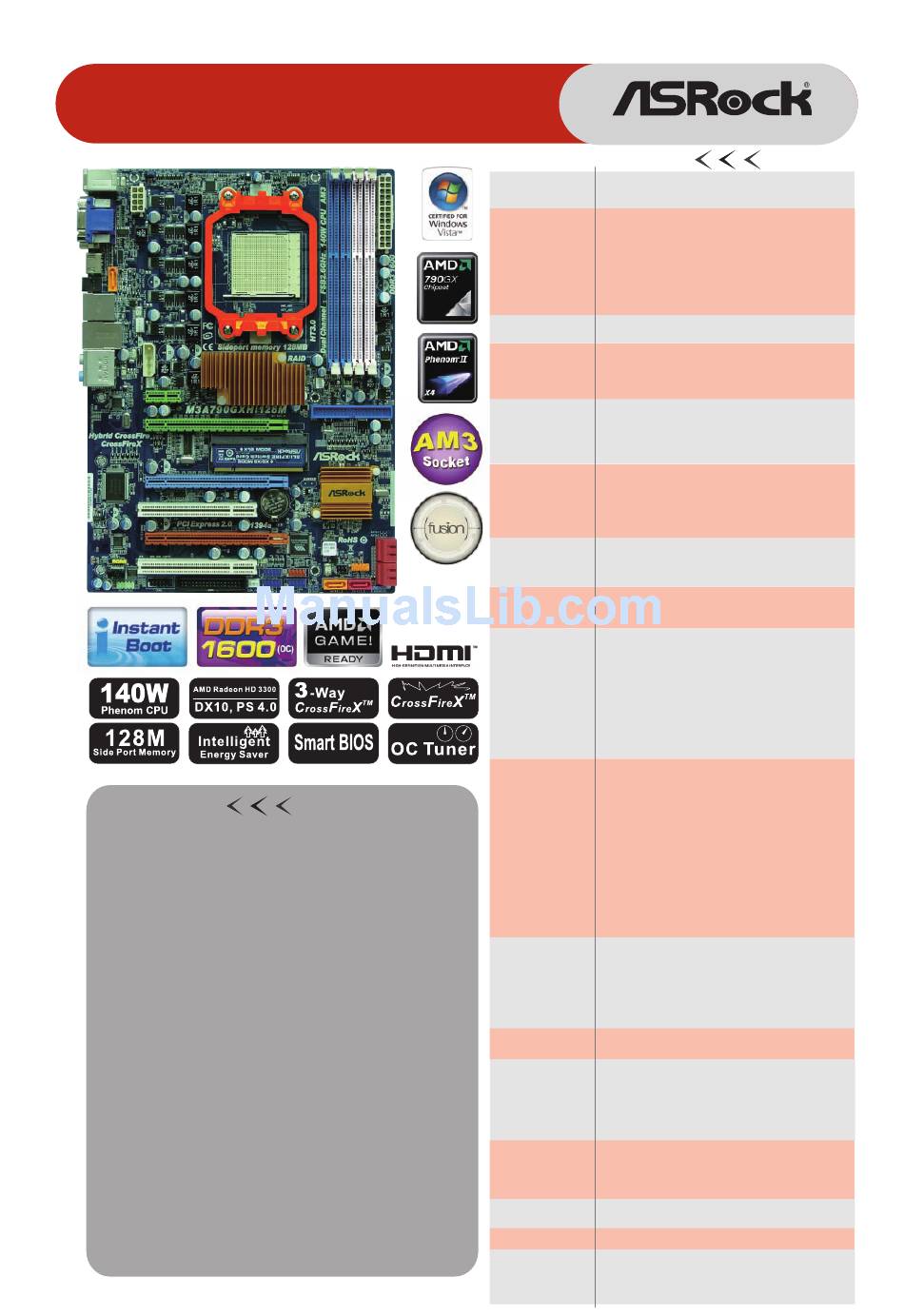

M3A790GXH/128M
AMD 790GX + SB750 Chipsets
Product Brief
- AM3 Socket
- Supports CPU up to 140W
- Supports AMD OverDrive™ with ACC
feature (Advanced Clock Calibration)
- Dual Channel DDR3 1600 (OC)
- Integrated AMD Radeon HD 3300 graphics,
DX10 class iGPU, Pixel Shader 4.0, Max.
shared memory 512MB
- Supports 3-Way CrossFireX
ATI
TM
CrossFireX
TM
- Integrated 128MB side port memory for
iGPU (DDR3 1333)
- Three VGA Output options: D-Sub, DVI-D
and HDMI
- Supports ASRock Instant Boot, Smart BIOS,
ASRock OC Tuner, Intelligent Energy Saver
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
TM
,
and Hybrid CrossFireX
www.as rock.com

Detail Specification

- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
Platform
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
- Support for Socket AM3 processors: AMD Phenom
X3 and Athlon II X4 / X3 / X2 processors (except 920 / 940)
- Supports CPU up to 140W
- Supports AMD OverDrive™ with ACC feature (Advanced
Clock Calibration)
- AMD LIVE!
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset
- Northbridge: AMD 790GX
- Southbridge: AMD SB750
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 1600(OC)/1333/1066/800 non-ECC,
un-buffered memory
- Max. capacity of system memory: 16GB
- 3 x PCI Express 2.0 x16 slots (green @ x16 mode, blue @ x8
Expansion Slot
mode, orange @ x4 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI
CrossFireX
- Integrated AMD Radeon HD 3300 graphics
Graphics
- DX10 class iGPU, Pixel Shader 4.0
- Max. shared memory 512MB
- Integrated 128MB side port memory for iGPU (DDR3 1333)
- Three VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDCP function
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
Audio
- 7.1 CH Windows
Content Protection
- DAC with 110dB dynamic range (ALC890 Audio Codec)
- DTS (Digital Theater Systems) support
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
I/O Panel
Rear Panel I/O
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x IEEE 1394 Port
- 1 x eSATAII Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass /
Line in / Front Speaker / Microphone
Connector
- 6 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 5, RAID 10 and JBOD), NCQ, AHCI and "Hot
Plug" functions
- 1 x eSATAII 3.0 Gb/s connector (shared with 1 SATAII port)
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x IEEE 1394 header
- 1 x HDMI_SPDIF header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- SLI/XFire power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, NB Voltage Multi-adjustment
- Supports Smart BIOS
- Drivers, Utilities, AntiVirus Software (Trial Version), AMD
Support CD
OverDrive
TM
- ASRock OC Tuner
Unique Feature
- Intelligent Energy Saver
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS
- Microsoft
TM
Vista
Certifications
- FCC, CE, WHQL
- 1 x ASRock SLI/XFire Switch Card
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 4 x SATA data cables (optional)
- 1 x SATA 1 to 1 power cable (optional)
TM
Ready
TM
CrossFireX
TM
, Hybrid CrossFireX
TM
TM
®
Vista™ Premium Level HD Audio with
TM
Utility, AMD Live! Explorer, AMD Fusion
®
Windows
®
XP / XP Media Center / XP 64-bit /
TM
/ Vista
64-bit compliant
TM
II X4 /
and 3-Way
