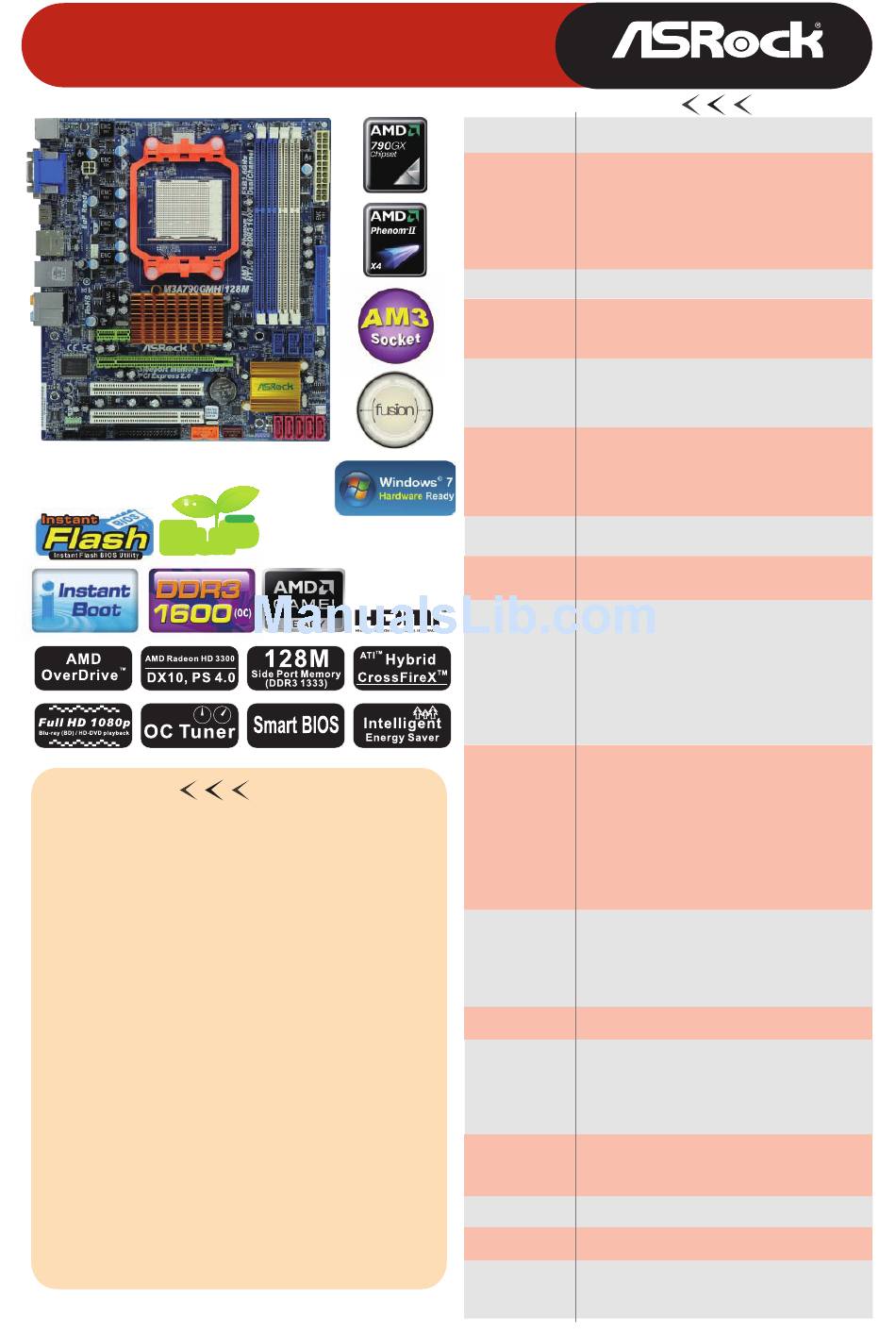

ASROCK M3A790GMH/128M Brochure

M3A790GMH/128M
AMD 790GX + SB750 Chipsets
EuP EuP
Product Brief
- AM3 Socket
- Supports AMD OverDrive™ with ACC feature
(Advanced Clock Calibration)
- Dual Channel DDR3 1600 (OC)
- Integrated AMD Radeon HD 3300 graphics,
DX10 class iGPU, Pixel Shader 4.0, Max.
shared memory 512MB
- Built-in 128MB DDR3 1333(OC)/1200MHz
SidePort Memory
- Supports ATI™ Hybrid CrossFireX™
- Three VGA Output options: D-Sub, DVI-D
and HDMI
- EuP Ready
- Supports ASRock Instant Boot, Instant Flash,
Smart BIOS, ASRock OC Tuner, Intelligent
Energy Saver
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
Ready
ww w.a s ro ck. c o m
Detail Specification
Platform - Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
- Solid Capacitor for CPU power
CPU
- Support for Socket AM3 processors: AMD Phenom
X4 / X3 / X2 (except 920 / 940) and Athlon II X4 / X3 / X2
processors
- Supports AMD OverDrive™ with ACC feature (Advanced
Clock Calibration)
- AMD LIVE!
TM
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset
- Northbridge: AMD 790GX
- Southbridge: AMD SB750
- Dual Channel DDR3 memory technology
Memory
- 4 x DDR3 DIMM slots
- Supports DDR3 1600(OC)/1333/1066/800 non-ECC,
un-buffered memory
- Max. capacity of system memory: 16GB
- 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
Expansion Slot
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI
- Integrated AMD Radeon HD 3300 graphics
Graphics
- DX10 class iGPU, Pixel Shader 4.0
- Max. shared memory 512MB
- Built-in 128MB DDR3 1333(OC)/1200MHz SidePort Memory
- Three VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDCP function
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
Audio
- 7.1 CH Windows
ALC888 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Rear Panel I/O I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x IEEE 1394 Port
- 1 x eSATAII Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
Connector
- 5 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 5, RAID 10 and JBOD), NCQ, AHCI and
"Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x IEEE 1394 header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
BIOS Feature
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- VCCM, NB Voltage Multi-adjustment
- Supports Smart BIOS
- Drivers, Utilities, AntiVirus Software (Trial Version), AMD
Support CD
OverDrive
TM
- ASRock OC Tuner
Unique Feature
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS
- Microsoft Windows
®
Vista / Vista
TM
Certifications
- FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- ATA 133 cable
- 2 x SATA data cables (optional)
Ready
Hybrid CrossFireX
TM TM
Vista™ Premium Level HD Audio (Realtek
®
Utility, AMD Live! Explorer, AMD Fusion
XP / XP Media Center / XP 64-bit /
®
64-bit compliant
TM
II
TM
