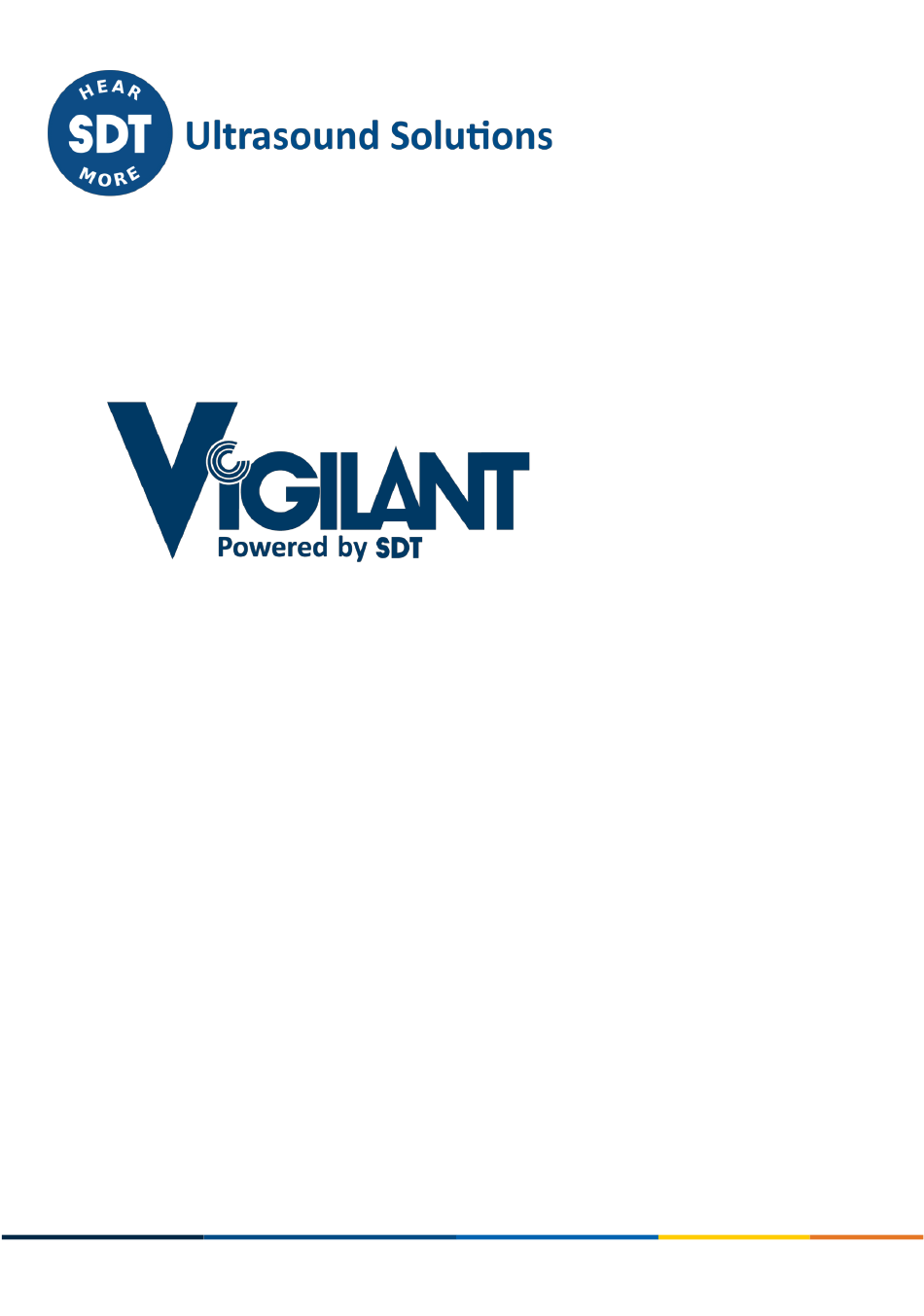

Quick start Guide
Version 4 – 2024
© SDT International. All rights reserved. Specifications are subject to change without notice.
SDT International sa-nv • Bd de l'Humanité 415 • B-1190 Brussels (Belgium) • Tel: +32(0)2 332 32 25 • info@sdtultrasound.com
SDT North America • 7677 County Road 2, Cobourg, ON K9A 0X4 (Canada) • Phone: 1-800-667-5325 | 1-905-377-1313 • hearmore@sdtultrasound.com
www.sdtultrasound.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SDT International VIGILANT
Summary of Contents for SDT International VIGILANT
- Page 1 © SDT International. All rights reserved. Specifications are subject to change without notice. SDT International sa-nv • Bd de l’Humanité 415 • B-1190 Brussels (Belgium) • Tel: +32(0)2 332 32 25 • info@sdtultrasound.com SDT North America • 7677 County Road 2, Cobourg, ON K9A 0X4 (Canada) • Phone: 1-800-667-5325 | 1-905-377-1313 • hearmore@sdtultrasound.com...
-
Page 2: Table Of Contents
DC.VGL.DESC.002--04--Quick start guide Table of Contents Table of Contents ............................. 2 Introduction ............................. 3 Product essentials ............................ 4 Packing list ............................... 4 Power and sensor wiring.......................... 4 Starting up the device ..........................4 Network configuration ..........................5 6.1. LAN ..................................5 6.2. -
Page 3: Introduction
DC.VGL.DESC.002--04--Quick start guide 1. Introduction VIGILANT is a suitable alternative for the permanent monitoring of installations or for the temporary monitoring of critical machines, allowing online monitoring with a quick and flexible installation. It is composed of a main unit mounted in a rugged plastic carrying case with external connectors. The mobility case includes an internal modem for wireless communications (Wi-Fi-2.4GHz/4G/WAN-LAN). -
Page 4: Product Essentials
4. Power and sensor wiring As described in the specifications, VIGILANT must be powered by a nominal 24 V DC power supply. The Mobility Case includes an external power converter to adapt the AC power mains to the required DC level. -
Page 5: Network Configuration
To facilitate a seamless connection, your PC (acting as the client) must be on the same network subnet as the VIGILANT system. In the standard factory settings (SDT), you should adjust your client device’s network settings to align with those of the system. -
Page 6: Wifi Connection (Mobility Case Only)
DC.VGL.DESC.002--04--Quick start guide On Windows, press + R to open the run box, type ncpa.cpl + to open the network connection tool. Identify the corresponding network interface (Ethernet 2 in this example). Users can also access the tool at Control Panel/Network and Internet/Network Connections. Right click on it, select Properties then double click on Internet Protocol Version 4 (TCP/IPv4). - Page 7 Plug the Wi-Fi antenna provided in the package into the corresponding connector of the router; • On the Client PC, scan and connect to the following WIFI access point: SSID: VIGILANT Encryption: WPA2-PSK WIFI PASS: MQUdWNOm The PC will automatically obtain an IP address in the LAN network.
-
Page 8: Wan Connection
WAN connection By default, the external Ethernet connector of the Mobility Case is connected to the WAN interface of the router. Therefore, VIGILANT connected in the LAN cannot be directly accessed via this Ethernet connection. Refer to Section 6.2 for detailed instructions on how to access the router’s configuration page. Adjust the WAN settings according to your specific needs: •... -
Page 9: Mobile Connection (Access Point In Wi-Fi Required For The Initial Settings)
DC.VGL.DESC.002--04--Quick start guide If the router’s WAN interface is used as a LAN port, VIGILANT should be directly accessible at either 10.8.2.150 or 192.168.0.150, depending on your setup. Based on the previous section, the user can still configure the network interface, as follows: When using DHCP mode, ensure there is a DHCP server on the network to assign IP addresses automatically. - Page 10 DC.VGL.DESC.002--04--Quick start guide To do so, follow these steps: • Open the mobile case or the steel enclosure to access the RUT 240/241 Teltonika module; • Remove the module from the Din rail then eject the SIM holder with a paper clip. Insert the SIM card according to the picture below: •...
- Page 11 DC.VGL.DESC.002--04--Quick start guide • Go to Status/Overview then check if the Widget “INTERNAL MODEM” reads “Connected”. If not, please enable the mobile network interface in Network/interfaces/General; • In Services/Cloud Solutions/RMS, select Enable, press register, then connect to RMS. The router (SN and MAC address) must be registered to the RMS service to enable the Remote Management System.
-
Page 12: Configuration Of The Main Unit
Assuming a correct network configuration, the web browser will show the login screen: Enter the username and password and click on “Sign in”. By default, VIGILANT comes with a default password. It is recommended to change the default password and to create new users and... -
Page 13: Support And Contact Details
8. Support and contact details VIGILANT has a reset button available next to the power connector. If necessary, press it for 5 seconds or more, and you will reset the equipment to factory settings. Please note that after restoring the settings, the IP address will become the following, and will not be compatible with the modem’s logic... - Page 14 DC.VGL.DESC.002--04--Quick start guide CMA 2024/05/08 Clarification of network parameters CMA 2023/01/30 Major changes in network settings CMA 2022/11/07 New rear panel CMA 2021/06/24 Original version Ver. Editor Nature of modification Verified 14/14...
