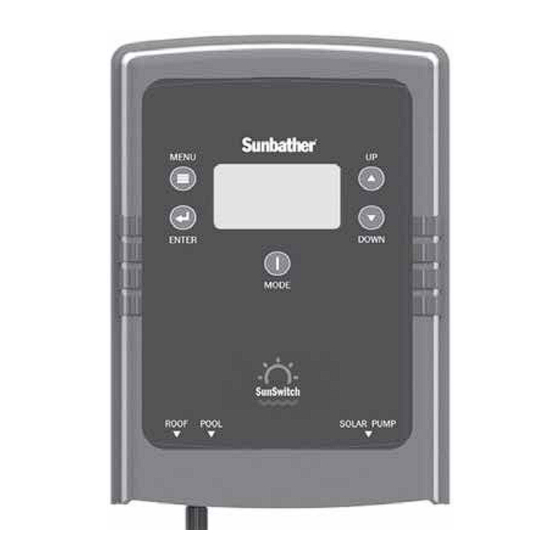

Solar Heating Controller
Models: SunSwitch SunSwitch Plus
FOR YOUR SAFETY – This product should be installed and serviced by a contractor who is licensed and qualified in pool equipment in accordance with the latest applicable version
of AS/NZS 3000, along with any other applicable local or council codes/standards. Before installing this product, read and follow all warning notices and instructions that accompany
this product. Failure to follow warning notices and instructions may result in property damage, personal injury, or death. Improper installation and/or operation may void the warranty.
Improper installation and/or operation can create unwanted hazards which may cause serious injury, property damage, or death.
ATTENTION INSTALLER – This manual contains important information about the installation, operation and safe use of this product. This information should be
given to the owner/operator of this equipment.
Installation and Operation Manual
WARNING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for fluidra Sunbather SunSwitch
Summary of Contents for fluidra Sunbather SunSwitch

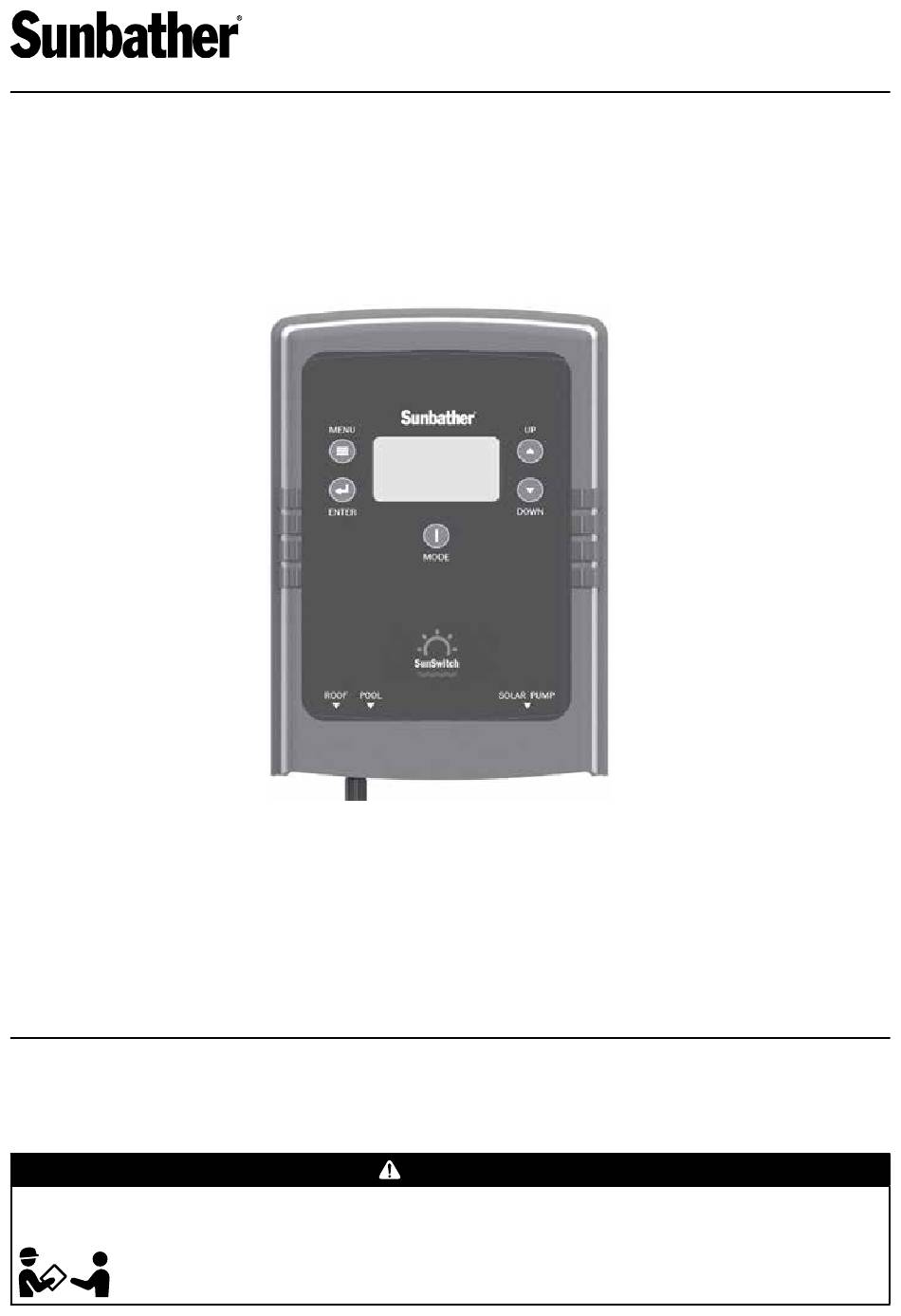

- Page 1 Installation and Operation Manual Solar Heating Controller Models: SunSwitch SunSwitch Plus WARNING FOR YOUR SAFETY – This product should be installed and serviced by a contractor who is licensed and qualified in pool equipment in accordance with the latest applicable version of AS/NZS 3000, along with any other applicable local or council codes/standards.
-
Page 2: Table Of Contents
Sunbather Solar Heating Controller | Installation & Operation Manual ® Table of Contents Section 1. Important Safety Instructions ..3 Section 4. Controller Setup .......7 User Interface ..........7 Section 2. Introduction ........4 Configuration ..........8 System Overview ..........4 Error and Info Messages ......10 Kit Contents ..........4 Pairing with the SunSwitch Plus App ..10 Section 3. -
Page 3: Section 1. Important Safety Instructions
Sunbather Solar Heating Controller | Installation & Operation Manual ® Section 1. Important Safety Instructions READ AND FOLLOW ALL INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: WARNING FOR YOUR SAFETY – This product should only be installed and serviced by an electrician or professional pool technician. The information and processes in this manual must be followed exactly. -
Page 4: Section 2. Introduction
System Overview controller with wired water and roof sensors or a SunSwitch Plus controller, which comes with Thank you for choosing the Sunbather SunSwitch a wired water sensor and a wireless roof sensor. Solar Heating Controller. This guide will walk you If any components are missing or incorrect, please... -
Page 5: Section 3. Installation
Sunbather Solar Heating Controller | Installation & Operation Manual ® Section 3. Installation Position of Components for SunSwitch IMPORTANT The roof sensor cable is 20m long, ensure you mount the control box within this range for easy sensor cable connection Pool Solar Roof Collector Rubber Roof Mat Holding... -
Page 6: Position Of Components For Sunswitch Plus
Sunbather Solar Heating Controller | Installation & Operation Manual ® 3. Installing the Roof Temperature Sensor: Pump and Sensor attachment locations Find a suitable position on the roof with access to direct sunlight and close proximity to the solar collector for accurate readings. •... -
Page 7: Section 4. Controller Setup
Sunbather Solar Heating Controller | Installation & Operation Manual ® Installing SunSwitch Plus • Prior to installing the roof module, it is advisable to place it in the sun for a few minutes to 1. Selecting a Location: activate operation. Once active you can pair •... -
Page 8: Configuration
Sunbather Solar Heating Controller | Installation & Operation Manual ® 4.1.1 Button Actions • MANUAL – A Manual Mode, either Off (STOPPED) or On (RUNNING) has been NOTE: If the display backlight is off, your first press of selected by the User. any button will turn the backlight on, but not be actioned. - Page 9 Sunbather Solar Heating Controller | Installation & Operation Manual ® 4.2.2 Adjusting the Clock 4.2.6 Setting the Winter Flush Time Selecting CLK enters the Real Time Clock setup Selecting FLU enters the Winter Flush time sub- sub-menu. From here you can set/adjust the hours, menu.
-
Page 10: Error And Info Messages
Use the UP and DOWN buttons to navigate through the sub-menu options. 1. Press the Plus button. 4k7 > 10k > 4k7… NOTE: Older Sunbather SunSwitch controllers use a 4k7 thermistor. AstralPool controllers use a 10k thermistor. 4.2.11 Setting the Desired Pool Water Set‑Temperature... - Page 11 Sunbather Solar Heating Controller | Installation & Operation Manual ® 2. Power cycle the device to put into 5. Enter the device name of your choice. pairing mode. The device is now in pairing mode. 3. Press the card. 6. The device now appears in the list of paired units. 4.
- Page 12 Sunbather Pool Heating & Covers 2174 Frankston-Flinders Road Hastings, Vic 3915 03 5979 5777 A Fluidra Brand ©2024 ZODIAC is a registered trademark of Zodiac International S.A.S., used under license. This document is subject to change without notice. H0818000_REVC...
