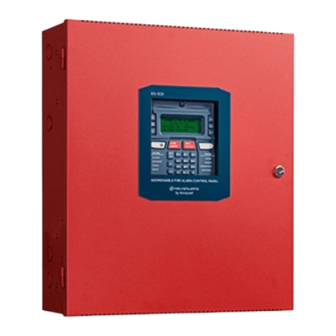

Honeywell Fire-Lite Alarms ES-200XI Manual

Addressable fire alarm control panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Addressable Fire Alarm Control Panel
ES-200X
ES-200XC
ES-200XI
Manual
Document LS10131-000FL-E Rev: F
5/23/2022 ECN:00009520

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fire-Lite Alarms ES-200XI and is the answer not in the manual?

Questions and answers

Related Manuals for Honeywell Fire-Lite Alarms ES-200XI

Summary of Contents for Honeywell Fire-Lite Alarms ES-200XI

  • Page 1 Addressable Fire Alarm Control Panel ES-200X ES-200XC ES-200XI Manual Document LS10131-000FL-E Rev: F 5/23/2022 ECN:00009520...
  • Page 2 Fire Alarm & Emergency Communication System Limitations While a life safety system may lower insurance rates, it is not a substitute for life and property insurance! An automatic fire alarm system—typically made up of smoke year by a qualified fire protection specialist. Heat detectors are detectors, heat detectors, manual pull stations, audible warning designed to protect property, not life.
  • Page 3 Inc.Farenhyt™ is a trademark; and Flexput®, Honeywell®, JumpStart®, Silent Knight® and SWIFT® are registered trademarks of Honeywell International Inc.Flexput®, Honeywell®, JumpStart®, and SWIFT® are registered trademarks of Honeywell International Inc.Triga™ is a trademark of TRIGA Life Safety Systems, LLC. Flexput®, Honeywell®, JumpStart®, and SWIFT® are registered trademarks of Honeywell International Inc. Microsoft® and Windows® are registered trademarks of the Microsoft Corporation.
  • Page 4 • Your suggestion for how to correct/improve documentation Send email messages to: FireSystems.TechPubs@honeywell.com Please note this email address is for documentation feedback only. If you have any technical issues, please contact Technical Services. This symbol (shown left) on the product(s) and / or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

  • Page 5: Table Of Contents

    Table of Contents Section 1: Product Description ............................13 1.1: Features and Options .......................................13 1.2: Specifications........................................14 1.3: Controls and Indicators....................................16 1.4: Components ........................................16 1.4.1: Intelligent Addressable Detectors.................................17 1.4.2: Intelligent Addressable Modules ................................17 1.4.3: Addressable Device Accessories ................................17 End-of-Line Resistor Assembly................................17 Power Supervision Relay..................................17 EOL-C(R/W) Mounting Plate.................................17 1.5: Optional Modules ......................................17...
  • Page 6 Table of Contents ANN-BUS Wiring ....................................33 ANN-BUS Device Addressing ................................36 ANN-80 Remote Fire Annunciator.................................36 ANN-100 Remote Fire Annunciator...............................38 ANN-S/PG Serial/Parallel Interface Module............................39 ANN-I/O LED Driver Module ................................41 ANN-LED Annunciator Module ................................43 ANN-RLY Annunciator Module ................................45 2.8.5: Printer ........................................46 Printer Configuration ....................................46 2.8.6: ECC-FFT Firefighter Telephone ................................47 2.8.7: W-GATE(A) Wireless Gateway................................47 2.9: Automatic Audio Panel Control..................................47...
  • Page 7 Table of Contents 3.5.7: Communicator ......................................85 Communicator Installed..................................85 POTS Settings......................................85 IP Settings .......................................86 Primary and Secondary Communication Paths ............................87 Trouble Report Limit (Dialer Runaway Prevention) ..........................90 Report Style ......................................90 Event Codes ......................................90 3.5.8: Annunciators......................................93 ANN-BUS Setup....................................93 ANN-BUS Options ....................................100 3.5.9: Password Change....................................102 Invalid Password....................................102 Incorrect Password/Timeout .................................102 3.5.10: Clear Program....................................103...
  • Page 8 Table of Contents 4.24.3: Trouble Reminder .....................................118 4.24.4: Timers .......................................119 4.24.5: NACs ........................................119 4.24.6: Relays .......................................119 4.24.7: Program Check ....................................119 4.24.8: History ......................................120 4.24.9: Annunciators.....................................120 4.24.10: Communicator ....................................120 4.24.11: Print.........................................121 Chamber Value .....................................122 Drift Compensation....................................122 Maintenance Alert....................................122 4.24.12: Time-Date .......................................123 4.24.13: Battery Charger....................................123 4.24.14: 4XTM Supervision ..................................123 4.24.15: Remote Sync....................................123...
  • Page 9 Table of Contents Appendix G: Central Station Points..........................155 Appendix H: NFPA Requirements..........................157 Appendix I: Open/Short/Ground Trip Values ......................158 Appendix J: Canadian Applications ..........................159 Index ....................................162 Slide-in Labels ................................167 ES-200X and ES-200XC Fire Alarm Control Panels Operating Instructions ............169 ES-200X Series Manual —...
  • Page 10 It is imperative that the installer understand the requirements of the Authority Having Jurisdiction (AHJ) and be familiar with the standards set forth by the following regulatory agencies: • Underwriters Laboratories/Underwriters Laboratories Canada • National Fire Protection Association Before proceeding, the installer should be familiar with the following documents. NFPA Standards NFPA 72 National Fire Alarm Code NFPA 70 National Electrical Code...
  • Page 11 250V ES50- PCA REV ES200- PCA REV ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...
  • Page 12 Peripheral Devices and Their Documents: ANN Audio Control for ECC-50/100 Doc. #LS10001-000FL-E ANN-RLY ANN-S/PG ANN-100 ANN-I/O Relay Card ANN-80 Printer Driver LCD Text Annunciator ANN-(R)LED LED Driver Doc. #53033 LCD Text Annunciator Doc. #151417 Doc. #LS10205-000FL-E LED Display Doc. #151416 Doc.

  • Page 13: Section 1: Product Description

    Section 1: Product Description The Fire-Lite ES-200X is an addressable FACP (Fire Alarm Control Panel) with a pre-installed communicator card that is compact, cost effective, intelligent, and has an extensive list of powerful features.The combination of Fire-Lite’s newer series devices and legacy 300 Series devices, along with the ES-200X FACP, offer the latest in fire protection technology.

  • Page 14: Specifications

    Product Description Specifications • Fully programmable from local keypad • Optional FS-Tools programming utility for local or remote Upload/Download of programming and data (available for download from www.firelite.com) • Compatible with Fire-Lite’s devices in LiteSpeed and CLIP mode (refer to SLC Wiring Manual for a list of compatible addressable devices) •...
  • Page 15 Specifications Product Description Resettable or Nonresettable Special Application Power (24 VDC Nominal) - TB11, Terminals 5 (+) & 6 (-) Factory-set as resettable, suitable for powering four-wire smoke detectors Class B wiring only Maximum ripple voltage: 20 mV Total DC current available is up to 1.0 amp (see Figure 1.1) Power-limited circuit Refer to the Device Compatibility Document for listed compatible devices Note: Refer to the programming section to configure power as resettable/non-resettable.

  • Page 16: Controls And Indicators

    Product Description Controls and Indicators 1.3 Controls and Indicators LCD Display The FACP uses an 80-character (4 lines X 20 characters) high viewing angle LCD display. The display includes a long life LED backlight that remains illuminated. If AC power is lost and the system is not in alarm, the LED SYSTEM NORMAL backlight will turn off to conserve batteries.

  • Page 17: 1: Intelligent Addressable Detectors

    Optional Modules Product Description ® • Dialing the Central Station(s) number: default is Touch-Tone , programmable to rotary • For tone burst or touchtone type formats: discern proper Ack and Kissoff tone(s). The frequency and time duration of the tone(s) varies with the transmission format.

  • Page 18: Accessories

    Product Description Accessories 4XTMF Transmitter Module The 4XTMF provides a supervised output for local energy municipal box transmitter, alarm and trouble reverse polarity. It includes a disable switch and disable trouble LED. A jumper on the module is used to select an option which allows the reverse polarity circuit to open with a system trouble condition if no alarm condition exists.

  • Page 19: Chg-120F Battery Charger

    Accessories Product Description CHG-120F Battery Charger The CHG-120F is capable of charging up to 120 AH lead-acid batteries with the ES-200X FACP. The FACP battery charger must be dis- abled, through user programming, when using the CHG-120F. The batteries and charger can be housed in the BB-55F battery box which can be mounted up to 20 feet away from the control panel.

  • Page 20: Ann-Led Annunciator Module

    Before connecting the control panel to the public switched telephone network, the installation of two RJ31X jacks is necessary. If trouble is experienced with this equipment, for repair or warranty information, please contact: Manufacturer: Honeywell International, Inc. One Fire-Lite Place Northford, CT 06472...

  • Page 21: 3: For Canadian Applications

    Telephone Requirements and Warnings Product Description Two separate phone lines are required. Do not connect both telephone interfaces to the same telephone line. The control panel must be connected to the public switched telephone network upstream (as first device) of any private telephone system at the protected premises.

  • Page 22: Section 2: Installation

    Section 2: Installation The cabinet may be either semi-flush or surface mounted. The cabinet mounts using two key slots and two 0.250” (6.35 mm) diameter holes located in the backbox. The key slots are located at the top of the backbox and the two securing holes at the bottom. Carefully unpack the system and check for shipping damage.
  • Page 23 Mounting the Backbox Installation Semi-Flush Mounting Do not recess box more Hinge Slot for optional than 3.875” into wall to Dress Panel avoid covering venting holes on top of box. Mounting slots for optional Trim Ring Semi-flush mounting hole Hinge Slot for optional Dress Panel Figure 2.2 ES-200X Cabinet Mounting ES-200X Series Manual —...
  • Page 24 Installation Mounting the Backbox 5.207” (13.23cm) 16.822” (42.73 cm) 6.537” (16.6cm) Width Depth Height 19.26” (48.92 cm) Right Side Left Side Bottom Figure 2.3 Cabinet Dimensions An optional Trim Ring (P/N TR-CE-) is also available for semi-flush mount installations. ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...

  • Page 25: Power

    Power Installation 2.2 Power WARNING: RISK OF EQUIPMENT DAMAGE AND PERSONAL INJURY SEVERAL DIFFERENT SOURCES OF POWER CAN BE CONNECTED TO THIS PANEL. DISCONNECT ALL SOURCES OF POWER BEFORE SERVICING. THE PANEL AND ASSOCIATED EQUIPMENT MAY BE DAMAGED BY REMOVING AND/OR INSERTING CARDS, MODULES OR INTERCONNECTING CABLES WHILE THIS UNIT IS ENERGIZED.

  • Page 26: 3: Special Application Dc Power Output Connection

    Installation Relays 2.2.3 Special Application DC Power Output Connection All Special Application DC power outputs are power-limited (refer to “UL Power-limited Wiring Requirements” on page 29). Power-limited Resettable or Non-resettable Power Power-limited Non-resettable or Resettable Power 1.0 amperes max., 24 VDC nominal filtered, programmable 1.0 amperes max., 24 VDC nominal filtered, non- resettable or non-resettable power can be drawn from TB11 resettable or resettable power is programmable.

  • Page 27: 1: Class B Nac Wiring

    Notification Appliance Circuits Installation 2.4.1 Class B NAC Wiring 4 Class B Notification Appliance Circuits, supervised and power-limited - 4.7 kΩ, ½ watt P/N:71252 UL listed NAC 3 NAC 1 NAC 4 NAC 2 Polarized Bells Polarized Bells Polarized Strobes Polarized Strobes Polarized Horns Polarized Horns...

  • Page 28: Remote Synchronization Output

    Installation Remote Synchronization Output 2.5 Remote Synchronization Output Synchronization is a feature that controls the activation of notification appliances in such a way that all devices will turn on and off at exactly the same time. This is particularly critical when activating strobes which must be synchronized to avoid random activation and a potential hazard to individuals.

  • Page 29: Ul Power-Limited Wiring Requirements

    UL Power-limited Wiring Requirements Installation 2.6 UL Power-limited Wiring Requirements Power-limited and nonpower-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” (6.35 mm) away from any nonpower-limited circuit wiring and nonpower-limited circuit wiring must enter and exit the cabinet through different knockouts and/or conduits.

  • Page 30: Ipots-Com Communicator

    There are two configurable dip switches on the IPOTS-COM communicator. Switches • SW2: 6-position dip switch- FUTURE USE- No configuration necessary. • SW3: 2-position dip switch- Factory Settings- Do not change unless instructed to do so by Honeywell. ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...

  • Page 31: Optional Module Installation

    Optional Module Installation Installation 2.8 Optional Module Installation WARNING: RISK OF ELECTRIC SHOCK AND EQUIPMENT DAMAGE DISCONNECT ALL SOURCES OF POWER (AC AND DC) BEFORE INSTALLING OR REMOVING ANY MODULES OR WIRING. 2.8.1 CELL-CAB-FL/CELL-MOD The CELL-CAB-FL/CELL-MOD offers an optional GSM communicator card for central station reporting. It mounts in its own plastic or metal enclosure.
  • Page 32 Installation Optional Module Installation Remote Station Service (NFPA 72 Remote Station Fire Alarm Systems) - Intended for connection to a polarity reversal circuit or a Remote Station receiving unit having compatible ratings: Maximum load for each circuit: 10 mA Reverse polarity output voltage: 24 VDC Remote Alarm and Remote Trouble wiring can leave the building Before installing the module, place the disconnect switch to the right (disconnect) position to prevent accidental activation of the municipal box.

  • Page 33: 4: Ann-Bus Annunciators/Modules

    Optional Module Installation Installation Standoff ALRM TRBL SUPV RMT SYNC NAC1 RTN- OUT- OUT+ RTN+ J12 & J13 Connectors Jumper JS3 Standoff 4XTMF FACP main circuit board Figure 2.16 4XTMF Connectors to ES-200X Connectors NOTE: When a 4XTMF is installed, enable supervision in panel programming. Jumper JS3 on the FACP main circuit board can be used to configure the FACP supervisory relay for operation with the 4XTMF module.
  • Page 34 Installation Optional Module Installation In general, the wire length is limited by resistance, but for heavier wire gauges, capacitance is the limiting factor. Maximum length can never be more than 6,000 feet (1,800 m), regardless of gauge used. The following formulas were used to generate the wire distances: 2.0 Volts Maximum Resistance (Ohms) Total Worst Case Current Draw (amps)
  • Page 35 Optional Module Installation Installation Figure 2.18 illustrates the wiring between the FACP’s Secondary ANN-BUS and ANN-BUS devices. ANN-BUS and power wiring are supervised and power-limited 4 3 2 1 ANN-BUS Device Secondary 24 VDC ANN-BUS nonresettable ES-200X Figure 2.18 Secondary ANN-BUS wiring to ANN-BUS Device Powering Both ANN-BUS Circuits Simultaneously ...

  • Page 36: Ann-Bus Device Addressing

    Installation Optional Module Installation ANN-BUS Device Addressing Each ANN-BUS device requires a unique address (ID Number) in order to communicate with the FACP. A 5-position DIP switch on each device is used to set this address. The address set for these devices must also be programmed at the FACP for the specific device (refer to the programming section titled “ANN-BUS Setup”...
  • Page 37 Optional Module Installation Installation Mounting  The ANN-80 can be surface or semi-flush mounted to a single, double or 4” square electrical box. Select and remove the appropriate knock- out(s), pull the necessary wires through the knockouts and mount the annunciator in or on the wall depending on the type of installation desired.

  • Page 38: Remote Fire Annunciator

    Installation Optional Module Installation After all connections are made, remove extra wire from inside of annunciator by dressing it neatly through wire channel, with any excess wire pushed back through hole into electrical box ANN-BUS and power wiring are supervised and power-limited 4 3 2 1 ANN-BUS Device Primary...

  • Page 39: Ann-S/Pg Serial/Parallel Interface Module

    Optional Module Installation Installation Programming  Following installation and wiring of the ANN-100 LCD annunciator to the FACP, the annunciator must be added to the system via FACP programming. Refer to the programming section titled “ANN-BUS Setup” on page 93 in this manual for detailed programming information. Trouble Response ...
  • Page 40 Installation Optional Module Installation Setting Printer Options  Refer to the documentation supplied with the PRN-7 printer for instructions on using the printer menu controls. Set the printer options (under the menu area) as shown in the following table: Option Setting Option Setting...

  • Page 41: Ann-I/O Led Driver Module

    Optional Module Installation Installation ANN-I/O LED Driver Module ANN-I/O Board Layout  Figure 2.22 illustrates the ANN-I/O board showing locations of screw terminals for connection to the FACP, pin connectors for connecting LEDs and the DIP switch for selecting the ANN-BUS ID number. LED Out LED Out LED Out...
  • Page 42 Installation Optional Module Installation ANN-I/O Connection to FACP  The ANN-I/O connects to the FACP via the ANN-BUS as illustrated in Figure 2.23. After the ANN-I/O is connected to the panel, it must be added to the system via FACP programming. Refer to the section titled “ANN-I/O Options” on page 94. 20 21 LED Out LED Out...

  • Page 43: Ann-Led Annunciator Module

    Optional Module Installation Installation Pin # LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8 Cathode LED9 LEDs LED10 LED Power Anode no connection Pin # LED11 LED12 LED13 LED14 LED15 LED16 LED17 LED18 Cathode LED19 LEDs LED20 Anode LED Power no connection Figure 2.24 ANN-I/O LED Wiring ANN-LED Annunciator Module...
  • Page 44 Installation Optional Module Installation Specifications  • Max. ANN-BUS Voltage: 24 VDC • Max. Current: Alarm: 68 mA Standby: 28 mA • Operating Temperature: 32°F to 120°F (0°C to 49°C) • For indoor use in a dry location only Mounting/Installation ...

  • Page 45: Ann-Rly Annunciator Module

    Optional Module Installation Installation ANN-RLY Annunciator Module Specifications  • Operating Voltage: 24 VDC • Max. Current: Alarm: 75 mA Standby: 15 mA • Operating Temperature: 32°F to 120°F (0°C to 49°C) • For indoor use in a dry location only Mounting/Installation ...

  • Page 46: 5: Printer

    Installation Optional Module Installation ANN-RLY Board Layout and Connection to FACP  Figure 2.29 illustrates the ANN-RLY board showing locations of screw terminals for connection to the FACP and the DIP switches for selecting the ANN-BUS ID number. ANN-BUS (ID#) Address DIP switch 1 2 3 4 5 6 7 8 ANN-BUS and power wiring are...

  • Page 47: 6: Ecc-Fft Firefighter Telephone

    Automatic Audio Panel Control Installation 2.8.6 ECC-FFT Firefighter Telephone The ECC-FFT connects from TB11 (non-resettable aux power) on the FACP to the DC Power input on the ECC-FFT board. ECC-FFT ES-200X Figure 2.30 ECC-FFT Connections 2.8.7 W-GATE(A) Wireless Gateway The W-GATE(A) connects to the FACP’s SLC connection at TB10. The W-GATE(A) can be powered by either the SLC or an external 24 VDC power source.
  • Page 48 Installation Automatic Audio Panel Control Connect the ECC-50/100 panel’s FACP Data Bus at TB13 to TB9 on the ES-200X FACP. ECC-50/100 to other ANN devices ES-200X Figure 2.32 FACP Connection to ECC-50/100 Series Audio Panel The only connection between the FACP and ACC-25/50ZS Series audio panel is a pair of communication wires connected between the A(+)/B(-) terminals on TB9 of the FACP and TB1 terminals 2 &...

  • Page 49: Section 3: Programming

    Section 3: Programming NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION AND OTHER INVOLVED PARTIES This product incorporates field-programmable software. In order for the product to comply with the requirements in the Standard for Control Units and Accessories for Fire Alarm Systems, UL 864, Equipment for Fire Signal Receiving Centers and Systems: ULC-S559, and Standard for Control Units for Fire Alarm Systems: ULC-S527, certain programming features or options must be limited to specific values or not used at all as indicated below: Permitted in UL864/...

  • Page 50: User Programming

    Programming User Programming 3.1 User Programming The ES-200X is completely field programmable and requires no special software skills. While programming the ES-200X, the fire protection capabilities of the control panel are enabled. Site-specific programming may be accomplished in any of the following ways: •...

  • Page 51: 1: Administrator Role

    Users and Passwords Programming 3.4.1 Administrator Role Password Change-Administrator The factory set password must be changed to clear the Password Fault from the panel. Pressing the Enter key on home screen will cause the following screen to be displayed: 1=READ STATUS MODE 2=LOGIN Press 2 to login to the panel.

  • Page 52: Password Change- User

    Programming Users and Passwords A flashing cursor will appear in the center of the display. Enter the default password, 00000000. Then, enter a new, valid eight digit password in the second line. Once the last digit is entered, the following screen will be displayed: MODIFY ADMIN 1 VERIFY PASSWORD NEW:...

  • Page 53: Assign Role

    Users and Passwords Programming Select 1 to enable the User account. Each press of the 1 key will toggle the screen between Enabled Yes and Enabled No. Press 3 to assign a password. Note that if a user is disabled at any time, the password will need to be reassigned. MODIFY USER X ENTER PASSWORDS ADMIN X:...

  • Page 54: 2: User Role

    Programming Master Programming Level The following screen will appear when the password is entered: ADMIN X ACCOUNT 1=MODIFY ACCOUNTS 2=VIEW CYBER SEC LOG 3=NOT USED Select 1 to modify an account. MODIFY ACCOUNTS 1=ADMINISTRATORS 2=USERS 3=NOT USED Select 2 to modify a User account. MODIFY USER 1=USER 1 2=USER 2...

  • Page 55: 1=Autoprogram

    Master Programming Level Programming Select the appropriate User login ID: LOGIN FOR USER X ENTER PASSWORD Enter the User’s Master level password. Only a user with master level programming rights can access panel programming. The following screen will appear: MASTER MENU 1=PROGRAMMING MODE 2=FS-TOOL UP/DWNLOAD 3=USB UP/DOWNLOAD...

  • Page 56: 2: Point Program

    Programming Master Programming Level 3.5.2 Point Program The Point Program option allows the programmer to add a new addressable device to the SLC loop, delete an PROGRAMMING existing device from the loop or change the programming for an existing device. Pressing 2, while viewing Pro- 1=AUTOPROGRAM 2=POINT PROGRAM gramming Screen #1, will select the Point Program option and display the following screens:...
  • Page 57 Master Programming Level Programming Delete Detector  Pressing 2 in the Detector Screen will display the Delete Detector Screen which allows the programmer to DETECTOR delete a specific detector: 1=ADD 2=DELETE DELETE DETECTOR 3=EDIT Detector Screen ENTER DETECTOR# Delete Detector Screen A flashing cursor will appear in the position of the first asterisk to the left.
  • Page 58 Programming Master Programming Level ZNNN - represents the first of five possible software zones that the detector is assigned to (NNN = the three digit zone number from 000 - 099) V or * - indicates whether or not alarm verification is enabled (V = alarm verification enabled and * = alarm verification disabled) W or * - indicates whether or not walktest is enabled (W = walktest enabled and * = walktest disabled) X or * - indicates whether or not the detector is wireless (X = wireless detector and * = wired detector) 1D017 - represents the Loop, Device type and Device address (1=SLC Loop, D=Detector and 017=Detector Address 017)
  • Page 59 Master Programming Level Programming Fire/CO response is programmable (Alarm, Supv, or None) User-Defined-12 same as previous (Fire/CO) Photo/CO response is programmable (Alarm, Supv, or None) User-Defined-13 same as previous (Photo/CO) While viewing either Detector Type screen, select the type of detector being programmed by pressing the corresponding keypad number key. The display will return to Edit Detector Screen #2 and indicate the selection next to the Type option.
  • Page 60 Programming Master Programming Level Program an output, such as a control module, for Pre-signal activation by assigning zone Z98 to it. This control module may be connected to a signaling device used to indicate a Pre-signal condition (do not use a Notification Appliance Circuit for this purpose) Enable zones Z001 and Special Purpose Zone Pre-signal 98 and set the Pre-signal delay timer to some value With the preceding program settings, when the detector with address 005 is activated, zone Z98 will cause its associated control module to activate immediately, sounding the connected signaling device to indicate the Pre-signal condition.
  • Page 61 Master Programming Level Programming • Temporal 4 - ½ Second On, ½ Second Off, ½ Second On, ½ Second Off, ½ Second On, ½ Second Off, ½ Second On, 1½ Seconds Off The sounder base volume has two settings: Low or High. Press 1 while viewing Sounder Base Screen #2 until SOUNDER BASE the display reads Low or High as desired.

  • Page 62: Module Programming

    Programming Master Programming Level Pressing 2 while viewing the Noun/Adjective Screen will cause the following screen(s) to be displayed. Note 1=STANDARD ADJECTIVE that the keypad down arrow key must be pressed to see all the Noun screens. Press the number corresponding to 2=STANDARD NOUN 3=CUSTOM ADJECTIVE the noun that is to be used as a descriptor for the location of the detector currently being programmed.
  • Page 63 Master Programming Level Programming When the last digit is keyed-in, the following screen will be displayed: ADD MODULE 1=CON 3=MON 2=CON:WL 4=MON:WL Add Module Screen #2 Pressing 1 for Control Module, 2 for Wireless Control Module, 3 for Monitor Module, or 4 for Wireless Monitor Module will cause the fol- lowing screen to be displayed: ADD MODULE MODULE#...
  • Page 64 Programming Master Programming Level If the selected address has been added to programming and a module (such as a monitor module) with the selected address is physically installed on the SLC and is communicating with the control panel, the following screen will be displayed: NORMAL MONITOR <ADJ><NOUN>...
  • Page 65 Master Programming Level Programming User-Defined-2 same as previous (Waterflow) Monitor Fire Alarm User-Defined-3 same as previous (Monitor) Future not used Future not used Smoke-Conventional Fire Alarm User-Defined-5 same as previous (Smoke-Conventional) Heat Conventional Fire Alarm User-Defined-6 same as previous (Heat-Detector) Medic Alert General Purpose Signaling, latching User-Defined-7...
  • Page 66 Programming Master Programming Level Wireless The Wireless selection will update automatically if the system recognizes a wireless device. If the module is wireless, the display reads Wire- less Yes. If the module is wired, the display will read Wireless No. Fore more information on the SWIFT wireless network, refer to the SWIFT manual, #LS10036-000FL-E.
  • Page 67 Master Programming Level Programming Pressing 2 while viewing the Noun/Adjective Screen will cause the following screen(s) to be displayed. Note 1=STANDARD ADJECTIVE that the keypad down arrow key must be pressed to see all the Noun screens. Press the number corresponding to 2=STANDARD NOUN 3=CUSTOM ADJECTIVE the noun that is to be used as a descriptor for the location of the monitor module currently being programmed.
  • Page 68 Programming Master Programming Level ZNNN - represents the first of five possible software zones that the module is assigned to (NNN = the three digit zone number from 000 - 099) 1M002 - represents the Loop, Device type and Device address (1 = SLC Loop, M=Module and 002 = Module Address 02) To change the programming for the displayed module, press the keypad down arrow key to view the following Edit Control screens: EDIT CONTROL EDIT CONTROL...
  • Page 69 Master Programming Level Programming Zone Assignment A maximum of five zones can be programmed to each addressable control module. Pressing 2 while viewing Edit Control Screen #3 displays the following screen: ZONE ASSIGNMENT Z000 Zone Assignment Screen Note that Z*** represents the Zone Number(s) corresponding to this device. The factory default for an unprogrammed device is Z000 for general alarm zone.

  • Page 70: 3=Zone Setup

    Programming Master Programming Level Description The Description selection allows the programmer to enter additional information about the control module cur- EDIT CONTROL rently being programmed. This information will be displayed as part of the device label on the display. Pressing 1=ADJECTIVE/NOUN 2=DESCRIPTION 2 while viewing Edit Control Screen #4 will cause the following screen to be displayed:...

  • Page 71: Disable

    Master Programming Level Programming Disable Pressing 2 for Disable, while viewing Zone Setup Screen #1, displays the following: ZONE SETUP 1=ENABLE ZONE TO DISABLE 2=DISABLE 3=SPECIAL PURPOSE Zone Setup Screen #1 Disable Screen This screen allows the programmer to disable zones, one at a time. A flashing cursor appears next to the Z, prompting the programmer to enter a three digit zone number (001 - 099).

  • Page 72: Zones Enabled

    Programming Master Programming Level This display will show all of the zones that have been programmed into the control panel. Note that an up and/or down arrow may appear in the upper right corner of the display, indicating that additional screens of zone information exists. Press the up or down arrow keys to view the additional zones.

  • Page 73: Zones Available

    Master Programming Level Programming To program a waterflow circuit as nonsilenceable, refer to “System Setup” on page 74. NOTE: Zone Types are only relevant for Central Station reporting. Changing a zone type will only change how it is reported to the Central Station.

  • Page 74: 5: System Setup

    Programming Master Programming Level 3.5.5 System Setup System Setup allows the programmer to configure the following control panel features: • Function Keys: This feature allows the user to rapidly enable/disable various fire panel inputs and outputs during scheduled maintenance. • Banner: This option allows the user to change the top two lines of the LCD display from the blank factory default readout to a user defined readout when the control panel is in Normal condition.

  • Page 75: Banner

    Master Programming Level Programming Pressing 2 key while viewing the Function Keys Screen #1 allows the user to select individual zones that the Function Key will control. Pressing 3 assigns all zones to the selected Function Key. Each function key can be assigned to control any of the 4 onboard NAC circuits on the ES-200X. By pressing the 2 key while viewing the Function Keys Screen #2 the following screen displays, allowing the user to select the desired NAC circuit(s).
  • Page 76 Programming Master Programming Level Time  To change the time, press 1 while viewing the Time-Date Screen. The following screen will be displayed: ENTER TIME 10:00 AM 1=AM 2=PM Time Screen A flashing cursor is located toward the top left of the display. Below the cursor is the current time. To change the time, enter the two-digit hours followed by the two-digit minutes.

  • Page 77: Timers

    Master Programming Level Programming Timers Timer delays for PAS, Pre-signal and waterflow activation can be programmed by pressing 1 while viewing SYSTEM SETUP System Setup Screen #2. The following screen will be displayed: 1=TIMERS 2=NAC TIMERS 3=RELAYS TIMERS TIMERS System Setup Screen #2 1=IN SUITE SIL.
  • Page 78 Programming Master Programming Level Pressing 2 while viewing AC Loss Delay Screen #1 will display the following: AC LOSS DELAY RANGE 00-23 AC Loss Delay Screen #2 A flashing cursor will appear in the lower left corner of the display. Type the two digit AC loss reporting delay in hours (00 to 23 hour delay). When the second digit is entered, the display will return to AC Loss Delay Screen #1.

  • Page 79: Nac (Notification Appliance Circuit)

    Master Programming Level Programming Suite Resound (Canadian Mode Only)  The Suite Resound feature is only available when the FACP is in Canadian mode of operation. When enabled, TIMER this feature will resound all outputs and NACs that were silenced by the In Suite Silence timer (if there is an 1=IN SUITE SIL.
  • Page 80 Programming Master Programming Level Blank None Silenceable  Pressing 3 while viewing NAC Screen #1 will cause the display to change to Silenceable No. This will prevent the selected main circuit board NAC from being silenced by pressing the Alarm Silence key or by the Auto Silence feature. Each press of the 3 key will cause the dis- play to toggle between Silenceable Yes and Silenceable No.
  • Page 81 Master Programming Level Programming If, after the programmed time of 3 or 5 minutes, the Acknowledge switch has not been pressed, all NACs presently in 1st stage activation will go to 2nd stage activation. If an F2 switch has been pressed, the Alarm LED will turn from flashing to steady. Any NACs currently in 1st stage activation will remain in 1st stage.

  • Page 82: Relays

    Programming Master Programming Level MNS Active  The MNS Active feature, when enabled, allows the selected NAC to activate when an MNS Event occurs and NAC # the FACP receives a message from the ECC-50/100. The selected NAC will activate regardless of zone map- 1=SYNC TYPE 2=MNS OVERRIDE ping.

  • Page 83: Waterflow Silenceable

    Master Programming Level Programming Special Zone 95 CO Active Special Zone 94 In Suite Silence Control Module Auto Silence Timer In Suite Silence Timer In Suite Resound Timer Programmable NAC Silence Inhibit ANN-Bus annunciator keys enable • Control modules are no longer associated with the auto silence setting for NAC 1. •...

  • Page 84: Language

    Programming Master Programming Level Language The language option is used to change the text on the panel display to either English or French. Pressing the 3 SYSTEM SETUP key will cause the display to offer a choice of 1=English and 2=French. 1=AUX POWER 2=TROUBLE REM 24HR...

  • Page 85: 7: Communicator

    Master Programming Level Programming Pressing 1 while viewing the Erase History Screen will erase all events from the History file. During this process, the display will read as fol- lows: ERASING HISTORY PLEASE WAIT Erase History Wait Screen After the History file has been erased, the display will return to the History Screen. 3.5.7 Communicator The communicator settings allow the user to configure the settings for the pre-installed IPOTS-COM and PROGRAMMING...

  • Page 86: Ip Settings

    Programming Master Programming Level Supervised Phone Line The Supervised Phone Line feature allows the user to disable the supervision of Phone Lines when using an POTS LINE X alternate means of secondary transmission path. The factory default setting is Phone Line (X) supervised. 1=ENABLED 2=TYPE Supervision must be set to Yes if the selected transmission path is POTS.

  • Page 87: Primary And Secondary Communication Paths

    Master Programming Level Programming  In the event that the Communicator needs to be replaced, the device will need to be re-registered with Alarm- IP SETTINGS Net. AlarmNet will issue a PIN to be entered into the panel for verification. Pressing 3 on the IP Settings screen 1=DHCP ENABLED 2=STATIC SETTINGS will display the following.
  • Page 88 Programming Master Programming Level Enable To enable the phone line, press 1 while viewing the POTS Line (X) Screen #1 to change the display to Enabled Yes. Each press of the 1 key will cause the display to toggle between Enabled Yes and Enabled No. NOTE: For UL applications: when POTS is used as the primary communication path, the use of POTS as the secondary transmission path is only allowed with approval of the local AHJ.
  • Page 89 Master Programming Level Programming Use the 24 Hour Test Time screen to program the time that the Communicator will transmit the 24 Hour Test to the Central Station. A flash- ing cursor will appear in the lower left corner of the screen. Enter a four digit number representing the test time using military time (0000 = midnight and 2359 = 11:59PM).

  • Page 90: Trouble Report Limit (Dialer Runaway Prevention)

    Programming Master Programming Level Enter the City ID, Central Station ID, and Account Code all provided by the monitoring station. Supervision Settings Pressing 1 while viewing Ethernet Options Screen #2 will cause the display to toggle between the 4 supervi- CELLULAR OPTIONS sion setting options.
  • Page 91 Master Programming Level Programming Pressing the down arrow key allows viewing of all Events associated with the selected Communication Format. Pressing the number corre- sponding to the event displayed in each screen will display its default event code which can be customized by the programmer. For example, pressing 1 for Pull Station will display the following screen which allows the Event Code to be changed from the default value.
  • Page 92 Programming Master Programming Level TAMPER Zone Point MON-USER-DEF-11 Zone Point MON SUPERVISORY Zone Point MON-USER-DEF-12 Zone Point MON SUPERV AUTO Zone Point MON-USER-DEF-13 Zone Point HVAC OVRRIDE Zone Point POWER MON Zone Point MON-USER-DEF-14 Zone Point TROUBLE MON POINT_FAULT code will always be transmitted MON-USER-DEF-15 POINT_FAULT code will always be transmitted PROCESS MON...

  • Page 93: 8: Annunciators

    Master Programming Level Programming PRI ANN CLASS A REMOTE SYNC DIS NAC 1 DISABLE NAC 2 DISABLE NAC 3 DISABLE NAC 4 DISABLE MEMORY FAULT CHARGER FAULT OPTION CARD 1 FAULT REMOTE SYNC FAULT ZONE DISABLE PWRMOD24 FAULT AUX 1 CLASS A FAUL ANN-BUS COMM FAULT DISPLAY COMM FAULT NO_DEVICES_INSTLLD...
  • Page 94 Programming Master Programming Level Modules Installed  If an ANN-BUS module is installed, press 2 for Modules Installed to select ANN-BUS addresses for the mod- ANN XXX ule(s). The only difference between the two programming screens are the addresses. The Primary Bus module 1=ENABLED 2=MODULES INSTALLED addresses will have a prefix of “1-”...
  • Page 95 Master Programming Level Programming ANN-I/O Zone Option If Zone is selected as the module option, the first ten LEDs on the first ANN-I/O module will display the system status information. The remaining 30 LEDs on the first module and 40 LEDs on the remaining modules will display the active/alarm status of each zone in the Zone Range programmed for that particular module.
  • Page 96 Programming Master Programming Level ANN-I/O Point Option If Point is selected as the module option, the first ten LEDs on the first ANN-I/O module will display the system status information. The remaining 30 LEDs on the first module and 40 LEDs on each additional module will display the active/alarm status of each point in the Point Range programmed for that particular module.
  • Page 97 Master Programming Level Programming ANN-LED Options Pressing 2 for Module Options while viewing the (XXX) ANN-BUS Address Screen when the ANN-LED ANN XXX option is selected, will display the following screen: 1=ENABLED 2=MODULES INSTALLED 3=AUTO-CONFIGURE ANN-LED - ADDR X-1 ANN-LED - ADDR X-1 ANN-LED - ADDR X-1 ANN XXX Screen #2 1=POINT/ZONE...
  • Page 98 Programming Master Programming Level ANN-LED Zone Option - Alarm, Trouble and Supervisory If Zone is selected as the module option, and the module is programmed to annunciate alarms, troubles and supervisories, the first ten LEDs on the first ANN-LED module will display the system status information. The remaining 30 LEDs on the first module and the last 30 LEDs on the remaining modules will display the alarm, trouble and supervisory status for each of the ten zones in the Zone Range pro- grammed for that particular module.
  • Page 99 Master Programming Level Programming Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Point 031 Point 032 Point 033 Point 034 Point 035 Active/Alarm Active/Alarm Active/Alarm Active/Alarm Active/Alarm Point 036 Point 037 Point 038 Point 039...

  • Page 100: Ann-Bus Options

    Programming Master Programming Level ANN-RLY Options Pressing 2 for Module Options while viewing the ANN-BUS Address Screen when the ANN-RLY option is ANN XXX 1=ENABLED selected, will cause the following screen to be displayed: 2=MODULES INSTALLED 3=AUTO-CONFIGURE ANN-RLY - ADDR. X-1 ANN XXX Screen #2 1=RLY 1 ZONE 000...
  • Page 101 Master Programming Level Programming ANN-S/PG (Print) Options  The Print option allows the programmer to configure the optional printer. Pressing 1 while viewing the ANN- XXX ANN-BUS BUS screen will display the following screens: 1=ANN-S/PG OPTIONS 2=ANN-LED OPTIONS 3=ANN-80/100 OPTIONS ANN-S/PG OPTIONS ANN-S/PG OPTIONS ANN-S/PG OPTIONS...

  • Page 102: 9: Password Change

    Programming Master Programming Level The Acknowledge Button Enable (ACK BTN ENABLE) option allows the programmer to select whether the Ack/Step button on any installed ANN-80 or ANN-100 annunciator will function normally or always be ignored. Pressing 3 while viewing the ANN-80/100 Options Screen #1 causes the display to toggle between Ack Btn Enable Yes (Ack/Step button functions normally) and Ack Btn Enable No (Ack/Step button never functions).

  • Page 103: 10: Clear Program

    Master Programming Level Programming 3.5.10 Clear Program Pressing 2 while viewing Programming Screen #4, will select the Clear Program option. This will cause the PROGRAMMING LCD to display the following screen: 1=PASSWORD CHANGE 2=CLEAR PROGRAM 3=PROGRAM CHECK CLEAR PROGRAM 1=WHOLE SYSTEM Programming Screen #4 2=ALL POINTS Clear Program Screen...

  • Page 104: Maintenance Programming Level

    Programming Maintenance Programming Level 3.6 Maintenance Programming Level To access Maintenance Programming mode, press the Enter key. The LCD will display the following: 1=READ STATUS MODE 2=PROGRAMMING MODE 3=FSTOOL UP/DOWNLOAD 4=USB UP/DOWNLOAD To enter the Maintenance Programming mode, press 2. The display will read as follows: PROGRAMMING ENTER PASSWORD When the Maintenance level password (default 11111111) is entered, the following screen will appear:...

  • Page 105: 3=Program Check

    Maintenance Programming Level Programming The History feature allows the operator to view control panel events which have been stored in a history file in memory and erase the con- tents of the history file Pressing 1 while viewing the History screen will cause the following screen to be displayed: HISTORY 1=VIEW ALL 2=VIEW ALARMS...

  • Page 106: 4: Walktest

    Programming Maintenance Programming Level 3.6.4 Walktest To perform a walktest, press 1 while viewing Maintenance Screen #2. The following screen will be displayed: PROGRAMMING 1=WALKTEST WALKTEST 2=SYSTEM 1=SILENT 3=ZONE SETUP 2=AUDIBLE Maintenance Screen #2 3=VIEW RESULT Walktest Screen The operator can press 1 to perform a silent walktest or 2 to perform an audible walktest. Pressing 1 or 2 will cause the control panel to enter Walktest Mode and will display the following screen: UNIT IN WALKTEST 1=VIEW WALKTEST LOG...

  • Page 107: 6: Zone Setup

    Maintenance Programming Level Programming Pressing 1 while viewing NAC Screen #1 will cause the display to change to NAC1 Yes. This will allow the selected main circuit board NAC to activate its devices. Each press of the 1 key will cause the display to toggle between NAC1 Yes and NAC1 No. The same action is per- formed for the other 3 NAC circuits by selecting the number of the desired output circuit.
  • Page 108 Programming Maintenance Programming Level Pressing 2 while viewing Zone Setup screen will display the following screen: ZONE TO DISABLE Disable Screen A flashing cursor appears to the right of the Z. To disable a zone, enter the three digit zone number (000 - 099). After the second digit is entered, the zone will be disabled and the cursor will return to the original position.

  • Page 109: Section 4: Operating Instructions

    Section 4: Operating Instructions 4.1 Panel Control Buttons 4.1.1 Acknowledge The first press of the Acknowledge key silences the piezo sounder, changes flashing LEDs to steady, and also changes the status field on the LCD display from capital letters to small letters. When the piezo is silenced, an acknowledge message is sent to the printer and the history file.

  • Page 110: Normal Operation

    Operating Instructions Normal Operation Disabled This is a yellow LED that flashes to indicate that a zone, NAC, detector or module has been temporarily disabled in programming by the user. Maintenance This is a yellow LED that flashes to indicate that a smoke detector requires cleaning or replacement due to an invalid chamber reading or excessive drift.

  • Page 111: Alarm Operation

    Alarm Operation Operating Instructions <NOUN>; refers to the user programmed noun descriptor from library list resident in the control panel or custom entry via PC. • Third line in display: INVREP indicates an invalid reply from the addressable device. Other possible troubles include: –...

  • Page 112: Co Alarm Operation

    Operating Instructions CO Alarm Operation Time; the current time in this example is 10:00A which represents 10:00 AM Date; the current month, day and year in this example is 01 for January, 08 for the 8th day of the month and 16 for the year 2016 Device Address;...

  • Page 113: Process Monitor Operation

    Process Monitor Operation Operating Instructions Note that, like alarms, supervisory signals latch (except when programmed for supervisory autoresettable) and can be assigned to software zones. Supervisory alarms do not cause resound as do other alarm conditions. Open circuits in supervisory wiring are processed by the con- trol panel the same way as other trouble conditions.

  • Page 114: Mass Notification Operation

    Operating Instructions Mass Notification Operation 4.11 Mass Notification Operation The FACP may be installed with an ECC-50/100 audio system to provide mass notification operation. The FACP must control the ECC- 50/100 via the ANN-BUS. Refer to “Automatic Audio Panel Control” on page 47 for details and wiring information. Some mass notification installations may require that the activation of the audio system results in an override of an active fire notification at the FACP.

  • Page 115: Time Functions: Real-Time Clock

    Time Functions: Real-Time Clock Operating Instructions 4.17 Time Functions: Real-Time Clock The ES-200X includes a crystal-based clock that provides time of day, date and day of week. Time is displayed as 12 or 24 hour time with month/day/year and is stored in RAM. Daylight savings time change-over is programmable and automatic. If both AC and battery are lost, the time must be reset.

  • Page 116: Special System Timers

    Operating Instructions Special System Timers second alarm occurring anytime during either time delay will cause immediate activation of all associated outputs PAS operation requires the approval of the local Authority Having Jurisdiction. Note that the PAS BYPASS monitor type code, when activated, will inhibit the PAS capability until the PAS BYPASS monitor is deactivated. While PAS is inhibited, signaling devices will immediately place the control panel into alarm.

  • Page 117: Walktest

    Walktest Operating Instructions 4.23 Walktest Walktest is a feature which allows one person to test the fire alarm system. An audible walktest will momentarily sound the Notification Appliance Circuits in the building and store the walktest information in a file at the panel. A silent walktest will not sound the NACs but will store the walktest information in a file which can be viewed at the panel.

  • Page 118: 2=Zones

    Operating Instructions Read Status Entering the three digit detector address will cause the control panel to display the current status of the selected device. For example, if a detector with address 001 on the SLC loop is entered, a display similar to the following will appear: NORMAL SMOKE(PHOTO) NORTH CLASSROOM Z005...

  • Page 119: 4: Timers

    Read Status Operating Instructions 4.24.4 Timers Pressing 2 while viewing Read Status Screen #2 will cause the following Timer screens to be displayed: TIMERS TIMERS PAS DELAY AC LOSS DELAY PRE SIGNAL CON MOD DLY WATERFLOW These screens will indicate the delay time, in seconds, for each of the first three and last possible delay options. The AC Loss Delay time is displayed in hours.

  • Page 120: 8: History

    Operating Instructions Read Status 4.24.8 History Pressing 3 while viewing Read Status Screen #3 will display the following screen: HISTORY 1=VIEW ALL 2=VIEW ALARMS 3=VIEW OTHER EVENTS The operator can view all events which have been stored in the history file, only alarms or other events, such as troubles or supervisories, by pressing the corresponding number key.

  • Page 121: 11: Print

    Read Status Operating Instructions Pressing 2 for POTS Settings while viewing Communicator Screen #1 will display settings for the telephone portion of the Communicator. POTS SETTINGS 1=LINE 1 2=LINE 2 3=GAINS Pressing 1 or 2 will display whether each phone line is enabled Yes or disabled No, whether the phone type is touchtone or rotary, and whether the phone line is being supervised Yes or No.

  • Page 122: Chamber Value

    Operating Instructions Read Status Pressing 1 while viewing Print Screen #2 allows the user to print the detector data for each addressable smoke detector connected to the sys- tem. A printout, similar to the following example, will be generated if an optional printer is connected to the FACP. DEVICE # DEVICE TYPE % DRIFT COMP...

  • Page 123: 12: Time-Date

    Read Status Operating Instructions Figure 4.1 illustrates a graphic representation of the maintenance levels: DIRTY Maintenance Urgent Maintenance Alert Acceptable Range Low Chamber Reading VALUE Figure 4.1 Diagram of Maintenance Levels Pressing 2 while viewing Print Screen #2 allows the user to print the Communicator’s settings. Refer to “Com- PRINT municator”...

  • Page 124: Section 5: Central Station Communications - Pots Transmission

    Section 5: Central Station Communications - POTS Transmission The control panel transmits zone and system status reports to Central Stations via the public switched telephone network. Two supervised telephone line connections are made to interface the control panel to the telephone lines. Two optional 7 foot telephone cords are available for this purpose and can be purchased separately.
  • Page 125 Transmittal Priorities Central Station Communications - POTS Transmission Red LEDs are provided on the circuit board to identify which telephone line is activated. Also, a green LED labeled Kissoff will turn on whenever the control panel has successfully transmitted reports to the Central Station. The Kissoff LED may turn on several times during communications with a Central Station.

  • Page 126: Section 6: Fs-Tools Upload/Download

    Section 6: FS-Tools Upload/Download Important! The FACP will automatically reset 2 minutes after completion of a user program download via the FS-Tools programming util- ity. To prevent program corruption, the operator must wait until this panel reset occurs before performing any panel operations. The control panel may be programmed or interrogated off-site via an Ethernet connection or locally using a USB cable.

  • Page 127: 1: Security Features

    Transferring a Program FS-Tools Upload/Download There cannot be any active communications ongoing with a Central Station receiver All active events must be successfully 'kissed-off' by the Central Station(s). The communicator must be in a standby state with no new information waiting to be transmitted to a Central Station 6.2.1 Security Features Upload and download with the control panel have been carefully designed to include key security features to ensure proper functionality.

  • Page 128: Section 7: Usb Upload/Download

    Section 7: USB Upload/Download Important! The FACP will automatically reset 2 minutes after completion of a user program download. To prevent program corruption, the operator must wait until this panel reset occurs before performing any panel operations. CAUTION: After successfully downloading a program, make certain to perform the following steps: Print out all programmed data via Print Mode or manually view programmed entries and compare to intended program data Test all affected panel operations Immediately correct any problems found...
  • Page 129 USB Upload/Download USB Upload/Download Pressing 2 for Yes will cause the following screen to be displayed: USB UP/DOWNLOAD SYSTEM CONFIGURATION TRANSFER IN PROCESS PLEASE WAIT An error message will display if there is no USB drive inserted in the FACP or if there is no existing configuration saved on the USB drive. While this screen is displayed, local programming downloads are allowed.

  • Page 130: Section 8: Firmware Upgrade

    Section 8: Firmware Upgrade In order to supply the latest features and functionality in fire alarm and life safety technology to our customers, we make frequent upgrades to the embedded software in our products. To ensure that you are installing and programming the latest features, we strongly recommend that you download the most current version of software for each product from www.firelite.com prior to commissioning any system.

  • Page 131: Section 9: Power Supply Calculations

    Section 9: Power Supply Calculations 9.1 Overview This section contains instructions and tables for calculating power supply currents in alarm and standby conditions. This is a four-step pro- cess, consisting of the following: Calculating the total amount of AC branch circuit current required to operate the system Calculating the worst-case system current load on the control panel, when primary (AC) power is applied, to assure that the limit of the its internal power supply will not be exceeded.
  • Page 132 Power Supply Calculations Calculating the System Current Load Calculation Column 1 Calculation Column 2 Calculation Column 3 Device Type Primary (AC) Power Source Secondary (Battery) Power Source Secondary (Battery) Power Source Fire Alarm Current (amps) Fire Alarm Current (amps) Standby Current (amps) X[current draw]= Total X [current draw]=...

  • Page 133: Calculating The Battery Size

    Calculating the Battery Size Power Supply Calculations 9.4 Calculating the Battery Size Use Table 9.4 to calculate the total Standby and Alarm load in ampere hours (AH). This total load determines the battery size (in AH), required to support the system upon loss of primary (AC) power. Complete Table 9.4 as follows: Enter the totals from Table 9.3 on page 132, Calculation Columns 2 and 3 where shown Enter the NFPA Standby and Alarm times (refer to ‘NFPA Requirements’...

  • Page 134: Appendix A: Software Zones

    Appendix A: Software Zones A.1 Correlations Setup and configuration of an addressable system is different than a conventional system. In a conventional system, assignment of input devices (smoke detectors, pull stations, heat detectors, etc.) to zones is accomplished through wiring. The wiring is direct from clearly marked panel terminals to any device assigned to a particular zone.
  • Page 135 Correlations Software Zones Correlation of Input and Output Zones Input Devices Zones Output Devices smoke control smoke control ZONE monitor control monitor control control monitor control smoke ZONE control smoke smoke control smoke ZONE smoke control monitor ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...
  • Page 136 Software Zones Correlations The zone correlations which are shown graphically above are also presented in Table A.1 on page 136 and Table A.2 on page 137. DETECTOR ZONE ASSIGNMENT Address Device Type Zone Number ADJ/NOUN Address Device Type Zone Number ADJ/NOUN smoke FIRST HALL...
  • Page 137 Correlations Software Zones MONITOR/CONTROL MODULE ZONE ASSIGNMENT Address Device Type Zone Number ADJ/NOUN Address Device Type Zone Number ADJ/NOUN monitor monitor 1, 2 monitor 1, 2 monitor control control control control control 1, 2, 3 control Table A.2 Module Programming Sheet Example ES-200X Series Manual —...
  • Page 138 Software Zones Correlations DETECTOR ZONE ASSIGNMENT Address Device Type Zone Number ADJ/NOUN Address Device Type Zone Number ADJ/NOUN Table A.3 Blank Detector Programming Sheet ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...
  • Page 139 Correlations Software Zones MONITOR/CONTROL MODULE ZONE ASSIGNMENT Address Device Type Zone Number ADJ/NOUN Address Device Type Zone Number ADJ/NOUN Table A.4 Blank Module Programming Sheet ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...
  • Page 140 Notes ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...

  • Page 141: Appendix B: Default Programming

    Appendix B: Default Programming The following table provides a list of the programming options and their factory default settings. Program Option Factory Default Program Option Factory Default Detector Programming Not Installed Aux Power Class A Detector Type Smoke-Photo Aux Power Resettable Detector Verification Aux Power 2 Resettable Detector Walktest...

  • Page 142: Appendix C: Nfpa Standard-Specific Requirements

    Appendix C: NFPA Standard-Specific Requirements The ES-200X has been designed for use in commercial, industrial, and institutional applications and meets the requirements for service under the National Fire Protection Association (NFPA) Standards outlined in this Appendix. The minimum system components required for compliance with the appropriate NFPA standard are listed below: ES-200X Control Panel Contains the main control board, cabinet (backbox and door), main power supply transformer and power supply.
  • Page 143 NFPA Standard-Specific Requirements NFPA 72 Remote Station Protective Signaling System Notes: Enable 4XTMF supervision in FACP System Setup programming. Refer to page 84 for more information. Refer to “4XTMF Transmitter Module Installation” on page 31 for detailed information. RS82 Remote Station Receiver UL listed. Refer to Instruction Manual for Remote Station Receiver Model RS82.
  • Page 144 NFPA Standard-Specific Requirements NFPA 72 Proprietary Protective Signaling Systems ES-200X Addressable Fire Control Panel ES-200X Main Board Form-C Alarm contact programmed to activate on General Alarm. Form-C Trouble contact which will automatically activate on any Trouble condition. Form-C relay contact programmed to activate on Supervisory condition.

  • Page 145: C.1: Mbt-1 Municipal Box Trip - Silenceable

    MBT-1 Municipal Box Trip - Silenceable NFPA Standard-Specific Requirements C.1 MBT-1 Municipal Box Trip - Silenceable The following figure illustrates the connection of the MBT-1 (Municipal Box Trip) between the FACP and a Local Energy Municipal Box. The use of an addressable control module programmed for General Alarm and Silenceable allows silencing of the Municipal Box without resetting the panel or box.

  • Page 146: Appendix D: Wire Requirements

    Appendix D: Wire Requirements T-tapping of the SLC loop wiring is allowed for 2-wire (Class B) configurations. The total resistance of any branch cannot exceed 40 ohms. The total wire length of all branches cannot exceed 10,000 feet (3,000 m). Connecting external system accessories to the ES-200X main circuits must be carefully considered to ensure proper operation.

  • Page 147: D.1: Nac Wiring

    NAC Wiring Wire Requirements D.1 NAC Wiring The following table lists NAC wiring requirements for the FACP. CLASS-B CLASS-A Max. Max. allowable wire pair length Max. allowable wire pair length allowable NAC Load (feet) (feet) total loop (Amps) resistance AWG 12 AWG 14 AWG 16 AWG 18...

  • Page 148: Appendix E: Hvac Control

    Appendix E: HVAC Control The FACP can be programmed to shut down a building’s HVAC fans in the event of a fire. The fans cannot be restarted until the fire alarm condition has been cleared and the FACP has been reset to a normal (non-alarm) condition. IMPORTANT! This HVAC feature is not to be used for smoke control.

  • Page 149: E.2: Monitor Module Operation

    Monitor Module Operation HVAC Control E.2 Monitor Module Operation E.2.1 HVAC RESTART The HVAC RESTART type code can be assigned to any addressable monitor module for the purpose of resetting (deactivating) the HVAC SHUTDN control module and turning the fans back on. The HVAC RESTART monitor module acts globally throughout the FACP system and therefore is not programmed to a particular software zone.

  • Page 150: Appendix F: Ademco Contact Id Format Event Code Descriptions

    Appendix F: Ademco Contact ID Format Event Code Descriptions This appendix describes the various Event Codes and their messages which are available for the Ademco Contact ID Format. F.1 Transmission Format Between DACT and Receiver The transmission string for the Ademco Contact ID Format is as follows: where SSSS 18 QXYZ GG CCC SSSS...
  • Page 151 Ademco Contact ID Typical Printout Ademco Contact ID Format Event Code Descriptions EVENT CODE CLASSIFICATIONS ALARMS SUPERVISORY TROUBLES OPEN/CLOSE DISABLES/BY TEST/MISC. REMOTE ACCESS PASSES Medical Fire System Open/Close System Test Fire Sounder/Relay Remote Access Sounder/Relay Panic System Peripheral Access Control System Peripheral Burglary Communication...
  • Page 152 Ademco Contact ID Format Event Code Descriptions Ademco Contact ID Typical Printout EVENT MESSAGE 24-Hour Non-Burglary - 150 and 160 150 24-Hour Non-Burg ALARM - 24-Hr. Non-Burg - # 151 Gas detected ALARM - Gas Detected - # 152 Refrigeration ALARM - Refrigeration - # 153 Loss of heat ALARM - Heating System - #...
  • Page 153 Ademco Contact ID Typical Printout Ademco Contact ID Format Event Code Descriptions EVENT MESSAGE Communication Troubles - 350 and 360 350 Communication TROUBLE - Communication Trouble 351 Telco 1 fault TROUBLE - Phone Line #1 352 Telco 2 fault TROUBLE - Phone Line #2 353 Long range radio transmitter fault TROUBLE - Radio Transmitter 354 Fail to communicate...
  • Page 154 Ademco Contact ID Format Event Code Descriptions Ademco Contact ID Typical Printout EVENT MESSAGE 527 Bell 4 disable DISABLE - Bell/Siren - #4 System Peripheral Disables - 530 and 540 Communication Disables - 550 and 560 551 Dialer disabled DISABLE - Dialer Disable 552 Radio transmitter disabled DISABLE - Radio Disable Bypasses - 570...

  • Page 155: Appendix G: Central Station Points

    Appendix G: Central Station Points The control panel transmits Central Station Reports in a numerical format which indicates the FACP addressable device address that is reporting. The following table indicates the Central Station Report (CS Report) number that will be transmitted and the addressable device address it represents.
  • Page 156 Central Station Points Module Module Module Module Report Address Report Address Report Address Report Address Table G.2 Addressable MODULES ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...

  • Page 157: Appendix H: Nfpa Requirements

    Appendix H: NFPA Requirements The following is the minimum configuration to meet the NFPA requirements. Process Module Local Proprietary Management ES-200X ES-200XC IPOTS-COM (pre-installed communicator) 4XTMF DP-ES-R BB-55F ANN-LED ANN-80 ANN-100 ANN-S/PG ANN-I/O ANN-RLED ANN-RLY Where Y = Yes, N = No, and O = Optional Non-Emergency Not available on the ES-200XI One of the indicated modules is required when the IPOTS-COM is not employed.

  • Page 158: Appendix I: Open/Short/Ground Trip Values

    Appendix I: Open/Short/Ground Trip Values Table I.1 lists the earth fault resistance detection for each applicable terminal on the FACP. Output Circuit Terminal Trip Resistance (in ohms) Remote Sync 360K Remote Sync 330K NAC 1-2 360K NAC 1-2 320K ANN Bus 270K ANN Bus 265K...

  • Page 159: Appendix J: Canadian Applications

    ANN-LED metal conduit (adjacent to FACP) ANN-LED FACP ANN-100 ANN-I/O FIRE SYSTEM ACTIVE SYSTEM CALL CONTROL ANN-S/PG ® by Honeywell optional ANN-RLY ECC-50/100 audio system Figure J.1 FACP Minimum Configuration - Single ANN-LED ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...
  • Page 160 ANN-S/PG ANN-RLY When using an audio system, 7 ANN-LEDs can be used. FIRE SYSTEM ACTIVE SYSTEM CALL CONTROL ® by Honeywell optional ECC-50/100 audio system Figure J.2 FACP Maximum Configuration - Eight ANN-LEDs ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...
  • Page 161 Canadian Applications Notes: 1. The CRF-300 and the MMF-300 must be mapped to the same zone TB12- which is programmed for supervisory SLC Loop operation. Output 2. No other device can be mapped to that supervisory zone. MMF-300* 3. Wire gauge must be 18AWG minimum.

  • Page 162: Index

    Index Numerics ANN-SB80KIT mounting kit 37 NAC wiring 27 annunciator guidelines 19 class B 24 hour test time 88 annunciator module 14 NAC wiring 27 24VDC power 74 annunciators 19 Classic Loop Interface Protocol 73 4XTMF module 142 Audio Command Center 14 CLIP mode coil resistance 31 audio panel control 47...
  • Page 163 Index programming 56 features 13 Disabled 110 screen display 57 fire alarm control panel Fire Alarm 109 type 58 see also FACP 13 Ground 109 verification 59 firefighter telephone 47 Maintenance 110 wireless 60 firmware upgrade 130 see also Indicators 16 detector data 114 form-C relay 26 Supervisory 109...
  • Page 164 Index options 74 PAS BYPASS 116 programming power 13 PAS timer 77 annunciators 93 see also notification appliance circuit 13 password 13 autoprogramming 50 change 51 exiting 50 silence inhibit 81 invalid 53 factory default 141 silenceable 80 maintenance level 2 104 manual 50 synchronized 115 password change...
  • Page 165 Index secondary ANN- Bus 15 see also strobe synchronization 13 selection 66 secondary communication path 87 synchronized signals 115 waterflow secondary power requirements 133 and silenceable circuits 80 nonsilenceable 72 secret code 127 system silenceable 73 security features 127 maintenance level 106 waterflow delay timer 77 sensitivity 114 system point 117...
  • Page 166 ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...

  • Page 167: Slide-In Labels

    Slide-in Labels Carefully cut along the outside of each label. Identify Function (F1-F4) keys as desired and slide the labels into the keypad. Starting at the center of the keypad next to the Function Keys, slide each label into the groove towards the outer edge. Function Keys F1 and F3 are not programmable in Canadian applications.
  • Page 168 ES-200X Series Manual — P/N LS10131-000FL-E:F 5/23/2022...

  • Page 169: 200X And Es-200Xc Fire Alarm Control Panels Operating Instructions

    ES-200X and ES-200XC Fire Alarm Control Panels Operating Instructions NORMAL - Only AC POWER is illuminated green. PANEL KEY - The key to open the panel can be found at the following All other indicators are off. LCD display will read SYSTEM NORMAL. location: ________________________________________________________ WHEN AUDIBLE DEVICES ARE SOUNDING -...
  • Page 171 Manufacturer Warranties and Limitation of Liability Manufacturer Warranties. Subject to the limitations set forth herein, Manufacturer warrants that the Products manufactured by it in its Northford, Connecticut facility and sold by it to its authorized Distributors shall be free, under normal use and service, from defects in material and workmanship for a period of thirty six months (36) months from the date of manufacture (effective Jan.
  • Page 172 One Fire-Lite Place, Northford, CT 06472-1601 USA USA - Phone: (203) 484-7161 Canada - Phone: (905) 856-8733 www.firelite.com...
