Summary of Contents for hi-fortune P16H

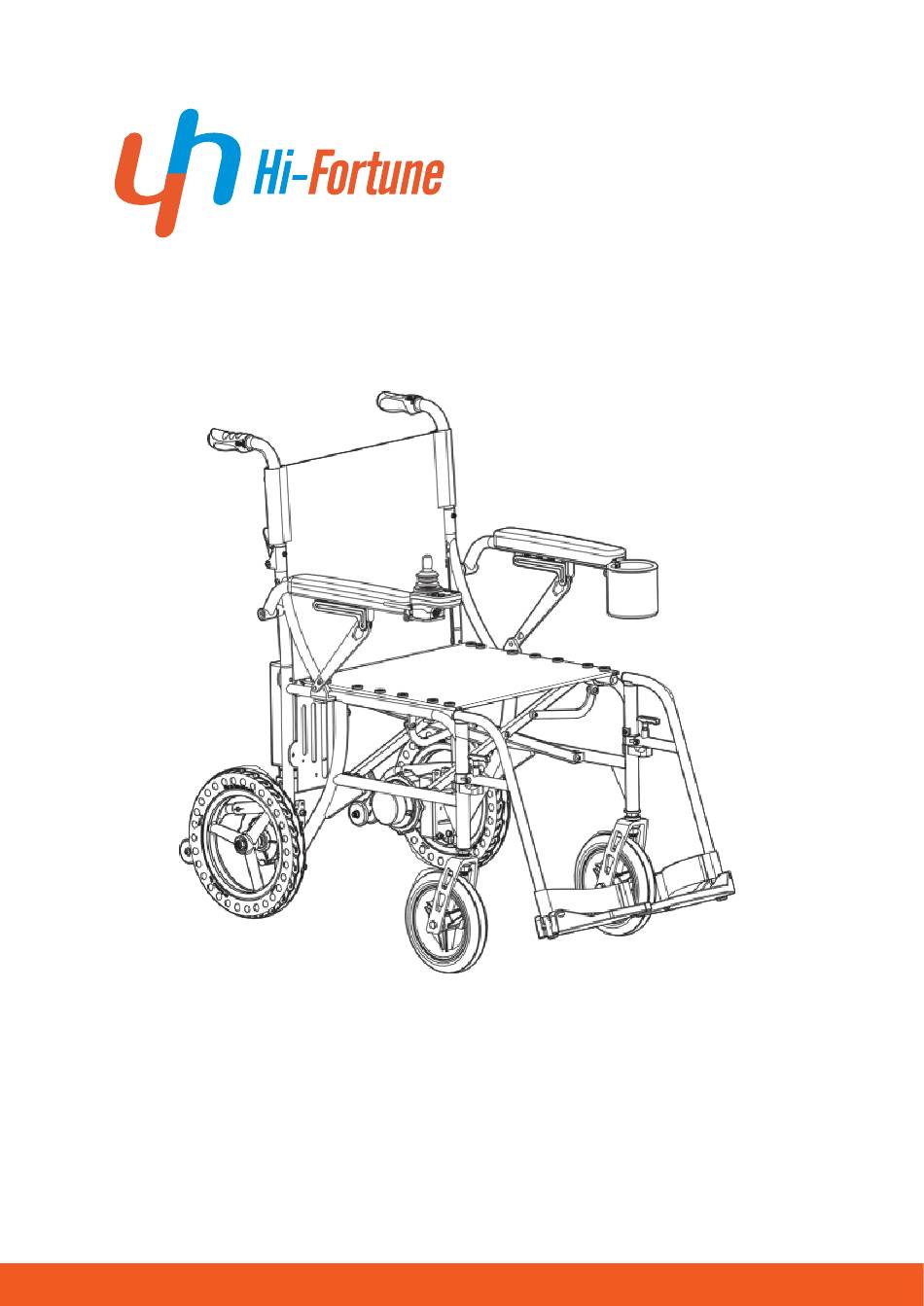

- Page 1 USER'S MANUAL ATTENTION: Please read the contend of this manual before operating your Electrical Power Wheelchair...
-
Page 2: Table Of Contents
CONTENTS USER'S GUIDELINES SAFETY NOTICE PRODUCT INTRODUCTION ASSEMBLY AND DISASSEMBLY OPERATION BATTERY AND CHARGER DAILY CHECKING & MAINTENANCE WARRANTY BASIC TROUBLESHOOTING TRANSPORTATION AND STORAGE... -
Page 3: User's Guidelines
1. USER'S GUIDELINES This product is designed and produced by Kunshan Hi-Fortune Health Products Co., Ltd. This user’s manual is part of the product,please ensure it accompanies every product sold and it is read thoroughly and understood before operating or driving the powerchair. -
Page 4: Safety Notice
2 SAFETY NOTICE There are clearly packed accessories in the package,make sure that you understand these parts and they are present. If any part is unclear, contact your authorised distributor. ■ Wheelchair x 1 ■ Legrest x 2 ■ Anti-tip wheel x 2 ■... - Page 5 2 SAFETY NOTICE Note: When using your power chair on streets or footpaths, local laws and regulations apply. GENERAL SAFETY–WARNINGS FOR SAFE USE ! This complete user’s manual should be read and fully understood before using and driving the MANDATORY powerchair.
- Page 6 2 SAFETY NOTICE 2.4 INTENDED USE This powerchair incorporates Hi-Fortune own designs and can be used in confined spaces both indoors and outdoors by the occupant and it is intended to comfortably transport adult people only excluding goods but user’s weight and dimensions should be limited in 125kg(275 lbs) loading.Nei- ther should it be used by people obviously suffering from physical or mental limitations that render them incapable of safely handling the powerchair in traffic.
- Page 7 2 SAFETY NOTICE POSSIBLE SOURCES OF RADIATION INCLUDE: Portable receiver and transmitter installations (receiver and transmitter with fixed antenna mounted directly on the transmitting unit) Transmitting and receiving sets ● Cell phones or "walkie talkie" ● portable TV, radio and navigation devices ●...
-
Page 8: Product Introduction
3 PRODUCT INTRODUCTION 3.1 Power Chair has main assemblies including side frames, cross frame, wheels,seat,armrest assembly, motors and controller. 3.1.1 The powerchair can be easily dismantled without tools which enables it to be stored in the boot of a vehicle or stored neatly in an indoor location. The detachable battery pack allows convenient charging wherever necessary, 3.1.2 Degree of protection IPX4. - Page 9 3.3 CIRCUIT DIAGRAM The left motor The right motor MOTOR MOTOR RIGHT LEFT BATTERY Battery pack Joystick 3.4 SPECIFICATION Model P16H/HP358EA User weight ≦125kg ≦275LBS Overall dimension 1060x600x900mm 42"x23.6"x35.5" Folded dimension 790x370x740mm 31"x14.5"x29" Front wheel 2*8” PU solid wheel 2*12” Magnesium hub,PU solid wheels...
-
Page 10: Assembly And Disassembly
4. ASSEMBLY AND DISASSEMBLY 4.1 JOYSTICK AND CUP HOLDER ASSEMBLY/ DISASSEMBLY Joystick Quick release handle Insert the joystick or cup holder bracket into Thumbscrew nut the armrest and tighten the thumbscrew, Cup holder then latch the quick release handle. Quick release handle 4.2 MANUAL FREEWHEEL LEVER Put the manual freewheel lever on neutral... - Page 11 4. ASSEMBLY AND DISASSEMBLY 4.3 BATTEY ASSEMBLY/DISASSEMBLY Battery holder 4.3.1 Disassembly:Lift the battery box until it is depart from the battery holder 4.4.2 Assembly: Install the battery box into Securement pin the battery holder by sliding it into the rear of the frame behind the back until the securement pin clicks into place.
- Page 12 4. ASSEMBLY AND DISASSEMBLY Spring knob 4.6 FOLDING AND UNFOLDING seat frame 4.6.1 Unfolding your powerchair 4.6.1.1 Hold the handle bar and lift up until the spring knob's popup to ensure backrest is folded properly. 4.6.1.2 Hold the both side of seat frame and pull hard, one hand on the seat frame Handle bar and the other one to press down the seat.
- Page 13 4. ASSEMBLY AND DISASSEMBLY 4.6.4 ADJUSTING FOOTPLATE Please check that the foot plate height 4.6.4.1 Hex key Footplate above the ground is more than (5 cm) 2 inches, adjust two sides of the plates to keep them with same height. Nut Washer Bolt 4.6.4.2 The foot plaste can be adjusted in 3 steps using the included tools.
- Page 14 4. ASSEMBLY AND DISASSEMBLY 4.7 FOLDING YOUR POWERCHAIR 4.7.2 Legrest disassembly Lift the spring pin upwards as indicated by the red arrow and rotate it outwards, legrest shall be removed. ① Spring pin ② 4.7.3 Folding the power chair 4.7.3.1 Hold both ends of the seat sling, lift up the seat sling from the middle.
- Page 15 4. ASSEMBLY AND DISASSEMBLY 4.8 CUSHION AND BACKREST ASSEM- BLY AND DISASSEMBLY There are velcro on backrest and 4.8.1.1 cushion,both can be assembled or disas- sembled quickly as the figures. Velcro...
-
Page 16: Operation
5.OPERATION 5.0 OPERATION – DRIVING THE POWERCHAIR 5.1 JOYSTICK CONTROLLER 1. Slow Speed Button 5. Horn Button 2. On/off Button High Speed Button 3. Battery Gauge 7. Joystick Controller 4. Speed Indicator SLOW SPEED BUTTON: Press to slow the speed. 2. - Page 17 5.OPERATION 5.2 BEFOR SITTING ON YOUR POWERCHAIR ● Make sure the battery box switch is in the ‘On’ position. ● Make sure the Freewheel levers are in the ‘Drive’ position (see 4.2 Manual Freewheel levers). ● Make sure that the battery is fully charged. ●...
-
Page 18: Battery And Charger
6. BATTERY AND CHARGER 6.1 GENERAL INFORMATON & INSTRUCTIONS ON CHARGING Your powerchair requires a lithium battery that is sealed and maintenance free. The bat- tery is recharged by the supplied off-board charging system. ● Fully charge your powerchair’s battery for at least 10 to 12 hours prior to using it for the first time. - Page 19 WARNING! Risk of explosion and destruction of batteries if the wrong battery charger is used. Only ever use the battery charger supplied with your vehicle, or a charger that has been approved by Hi-Fortune. WARNING! Do not use or store the battery near sources of heat such as a fire or heater.
- Page 20 6. BATTERY AND CHARGER WARNING! Risk of short circuit and electric shock if the battery charger has been damaged. Never use the charger if it has been dropped or damaged. WARNING! Risk of electric shock and damage to the batteries-Never attempt to recharge the batteries by attaching cables directly to the battery terminals.
-
Page 21: Daily Checking & Maintenance
● Your powerchair has a unique identification number which is located at several different locatiions on the chassis and the battery box. This unique number will enable your authorized supplier to confirm with Hi-fortune if necessary, the age of your powerchair and when it was purchased. -
Page 22: Warranty
All figures, measurements and capacities shown in this manual are approximate and do not constitute specifications. Important This warranty is void if the original powerchair serial number tag is removed or altered. To validate the warranty this form must be filled in online (where applicable) or posted to Hi-Fortune. - Page 23 8 WARRANTY 8.5 NOTICES TO CONSUMER There are no other express warranties. To the extent permitted by law, any implied warranty (including a warranty of merchantability or fitness for a particular purpose) is limited to: 1. One (1) year from the day of purchase. 2..
-
Page 24: Basic Troubleshooting
9 BASIC TROUBLESHOOTING (PG Controller) 9.1 FLASH CODE TROUBLE SHOOTING Fault Codes If a system trip occurs, you can find out what has happened by counting the number of flashes on the Joystick Module BDI. Below is a list of self-help actions. Try to use this list before you contact your service agent. Go to the number in the list which matches the number of flashes on the BDI and follow the instructions. - Page 25 9 BASIC TROUBLESHOOTING (MICON Controller) 9.1 FLASH CODE TROUBLE SHOOTING Fault Codes If a system trip occurs, you can find out what has happened by counting the number of flashes on the Joystick Module BDI. Below is a list of self-help actions. Try to use this list before you contact your service agent. Go to the number in the list which matches the number of flashes on the BDI and follow the instructions.
- Page 26 9 BASIC TROUBLESHOOTING 9.2 This table is only a guide to aid you in getting your powerchair operating, should you have any problems. If you are unable to get your powerchair operating, please contact your wheelchair dealer. Symptom Possible Solution Powerchair does not move.
-
Page 27: Transportation And Storage
/ 23° F-104° F； b) Relative humidity：≤85% c) Atmospheric pressure range: 86kPa～106kPa; Manufacturer information: Kunshan Hi-Fortune Health Products Co., Ltd No.625 Juxiang Road zhangpu town , Kunshan City Jiangsu Province, China TEL:+86 512 55195100. FAX: +86 512 55199300...
