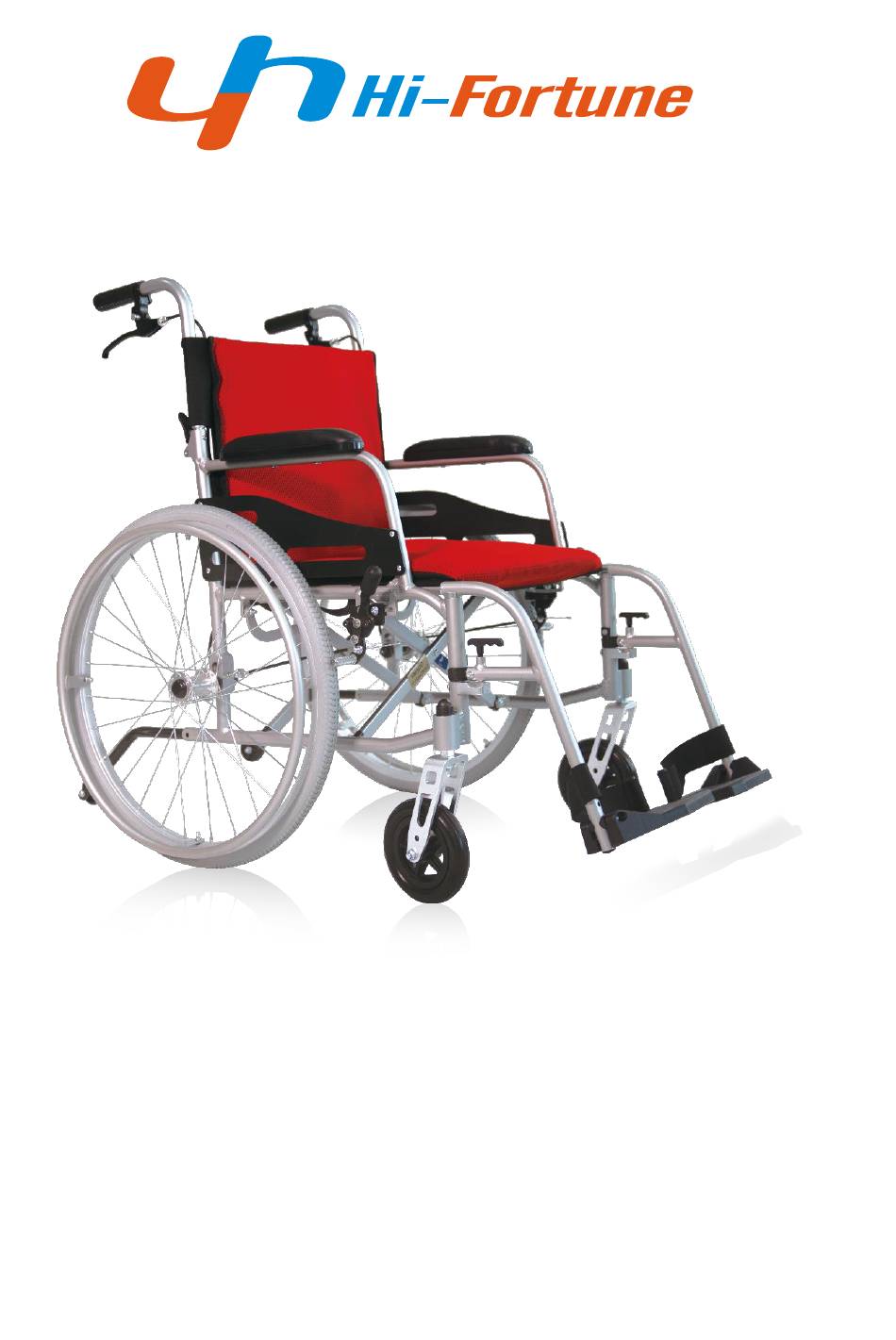

- Page 1 INSTRUCTION MANUAL Before operating the wheelchair, please read the manual and keep it for future reference Date: 2022-06-16 REV: V.02 No.HM303D-SM-010 KunShan Hi-Fortune Health Products Co.,Ltd www.hi-fortune.net...
-
Page 2: Table Of Contents
6.4 Reusing ........................... 25 6.5 End of use ........................25 7. Warranty ..........................25 7.1 Repair and replacement.................... 25 7.2 Maintenance parts and period................25 7.3 Maintenance records ....................26 8. Transportation and storage ....................26 8.1 Transportation and storage ..................26 www.hi-fortune.net... -
Page 3: Preface
Hope the product can bring more convenience to your life.At the same time, we also look forward to your valuable suggestions on the quality and after-sales service of our wheelchairs. You can give us feedback by email, call or visiting our website( http://www.hi-fortune.net). Please keep the following information. www.hi-fortune.net... -
Page 4: Dos And Don'ts
Prohibit: It is strictly forbidden for the user to modify the wheelchair without the consent of the technician.Unauthorized modifications can lead to accidents. Prohibit: Please do not stick your body out during driving, otherwise it will affect the www.hi-fortune.net... - Page 5 1 inch. Please keep your feet on plates during running. Mandatory: When going up the steps, the caregiver should step on the anti-tipping of the wheelchair, hold the handle with both hands to press down, then push the wheelchair forward to go up the steps. www.hi-fortune.net...
-
Page 6: Intended Use

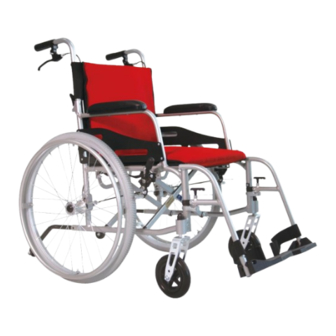

The wheelchair is composed of frame, armrest, seat, wheel, footrest. 3.2.1 Parts 1. Backrest 2. Hand grip 3. Brake lever 4. Arm pad 5. Rear wheel（5-1tire,5-2.hand rim, 5-3 spokes） 6. Anti-tipping 7. Brake 8. Front wheel 9. Foot plate 10. Seat 11. Footrest 12. Fold switch www.hi-fortune.net... -
Page 7: Technical Specifications
3.3 Technical specifications HM303D HM303DF Model 44.3×26.7×36.4 44.3×26.7×36.4 Overall dimension(L×W×H)(inch) Folded width (inch) 13.4 13.4 Folded height (inch) 27.5 27.5 Seat width (inch) 17.3 17.3 Seat depth (inch) 16.1 16.1 Seat surface height at front edge (inch) 17.7 17.7 Armrest height (inch) Distance between armrests (inch) 16.9... -
Page 8: Installation And Adjustment
Pay attention, when unfolding, do not pull the armrest hard to avoid damage to various parts. When pressing down on the seat cushion, do not hold your fingers on the seat tube to avoid pinching your fingers. www.hi-fortune.net... -
Page 9: Unfolding And Folding The Backrest
4.2 Unfolding and folding the backrest 4.2.1 Unfolding Hold the handle and lift up until the pin pops out. Please make sure this spring pin pops out Caution: Be careful not to pinch your hands. www.hi-fortune.net... -
Page 10: Assembling And Removing The Footrests
4.3.1.1 Insert the footrest shaft into the tube from the side. 4.3.1.2 Rotate the footrest inward until the pull pin is fully seated in the hole, you will hear a "click". 1. Footrest shaft 2. Tube 3. Pin 4. Hole 5. Pull pin www.hi-fortune.net... - Page 11 4.3.3.1 Please check that the foot plate height above the ground is more than 2 inches, adjust two sides of the plates to keep them with same height. 4.3.3.2 The foot plate can be adjusted in 3 steps using the included tools. Footplate Hex key Washer Bolt www.hi-fortune.net...
-
Page 12: Assembling And Removing The Anti-Tipping
(①)pops out from the hole of the frame, that is, the installation is complete. Spring pin Tube of anti- tipping 4.4.2 Removing First press the spring pin(①) into the tube of frame, then pull the anti-tipping out of the frame. Spring pin Tube of anti- tipping www.hi-fortune.net... -
Page 13: Assembling And Removing The Rear Wheels
Please install the ②24 " rear wheel on The upper hole with ①quick-released axis, while " the corresponding 8 front casters need to be installed on the upper hole of front fork. www.hi-fortune.net... - Page 14 Please install the ②24 " rear wheel on the hole upper with ①quick-released axis, while " the corresponding 8 front casters need to be installed on the upper hole of front fork. www.hi-fortune.net...
-
Page 15: Assembling And Removing The Seat And Backrest Cushion
4.8 lift back the armrest（303DF） 4.8.1 Press the armrest latch to release the armrest. 4.8.2 Lift the armrest back. 4.8.3 It is the same operation for the other side of armrest. ARMREST LATCH www.hi-fortune.net... -
Page 16: Use
5.1.4 When there is a groove on the road, Please cross the groove at a right angle to the direction of the groove. If the groove is too wide and too deep, please don't cross it yourself. www.hi-fortune.net... -
Page 17: Nursing Instructions
5.2.4 When there is a groove on the road, please cross the groove at a right angle to the direction of the groove. 5.3 Braking by user 5.3.1 Sitting in the wheelchair, holding the both sides of brake handle. Pull back to brake, the opposite direction is to release the brake. Locke Unlocke www.hi-fortune.net... -
Page 18: Braking By Other Person
5.5.1.9 Push the hand rim with your right hand to turn to the left. Push the hand rim with your left hand to turn to right. 5.5.1.10 Practice braking. 5.5.1.11 Practice to sit in the wheelchair and go off the wheelchair. www.hi-fortune.net... -
Page 19: Moving The User In And Off The Wheelchair
5.6.5 For users with strong physical strength, it is possible to directly sit in the wheelchair and go off the wheelchair by themselves. Caution: If necessary, please get in and out of the wheelchair with assistance. Caution: When getting in and out of the wheelchair, please keep the brakes locked to avoid to fall over. www.hi-fortune.net... -
Page 20: Setting Up Your Chair
Given the size and weight of the box, we recommend two people work on unboxing this item. Step #1. Open the top of the box. Step #2. Carefully tip the box over on it’s side. Step #3. Carefully remove the protective packing material and remove all the contents of the box. www.hi-fortune.net... - Page 21 1. Lift up the back handles Before Unfolding the chair. 2. Pull down the footrest. 3. Unfold your chair by pressing down on the outside seat rails. Step #8. Attendant Hand Brakes for the companion pushing the user from behind www.hi-fortune.net...
- Page 22 Step #10. your chair should be fully open Step #11. Slip on the seat and back and secure it with the Velcro underneath the upholstery Step #12. You are ready to use your chair! www.hi-fortune.net...
- Page 23 Available Accessories #1. Optional carry bag for Travel & Storage purposes #2 Anti Tippers (recommended upgrade) #3. Seat & Back Upholstery Available colors: Blue and Grey www.hi-fortune.net...
-
Page 24: Maintenance
Check whether the front and rear wheels are worn, if any wear, contact the dealer for replacement in time. Check the rotation of the front and rear wheels. Check the bearings of front and rear wheel. C. Annual inspection. The annual inspection is the same as above. www.hi-fortune.net... -
Page 25: Reusing
7.2 Maintenance parts and period From the date of manufacture Repair the main frame within 3 years. Consumable items (such as tires, grips, seats, back cushions, etc.) are not covered under warranty. Under normal circumstances, consumers are responsible for the losses. www.hi-fortune.net... -
Page 26: Maintenance Records
8. Transportation and storage 8.1 Transportation and storage a）Ambient temperature range：-13℉—104℉； b) Relative humidity：≤80%; c) Atmospheric pressure range: 80kPa～105kPa; d) Can be transported in general transportation. www.hi-fortune.net... - Page 27 www.hi-fortune.net...
- Page 28 Hi-Fortune Health Products Co., Ltd. Add ：No.625, Juxiang Rd, Zhangpu Town, Kunshan City, Jiangsu CHINA Tel ：+86-512-55195100 Ext ：+86-512-55199300 Pc ：215321 http：//www.hi-fortune.net www.hi-fortune.net...
Need help?
Do you have a question about the HM303D and is the answer not in the manual?
Questions and answers

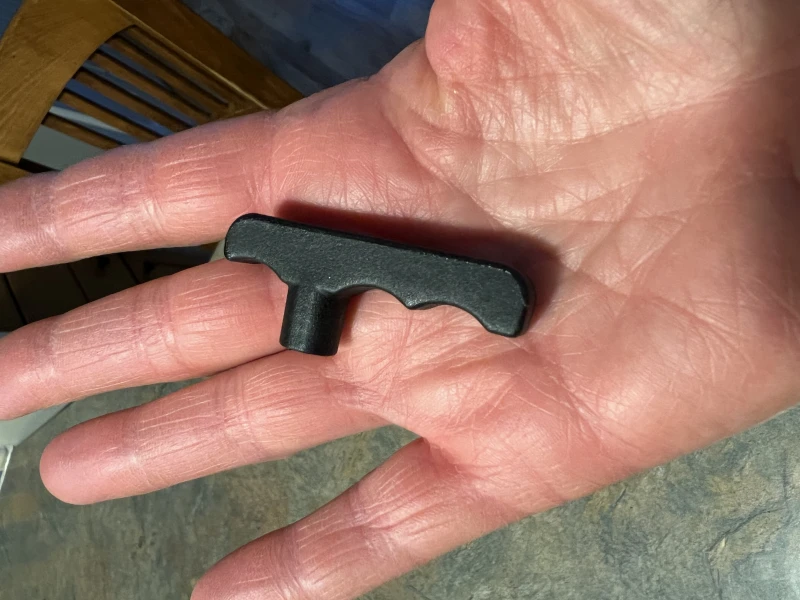

I would like to replace the little handle that enables me to pull up and then swing the foot rest. I lost one of them. How can I buy a replacement part?
