Summary of Contents for hi-fortune HM303D

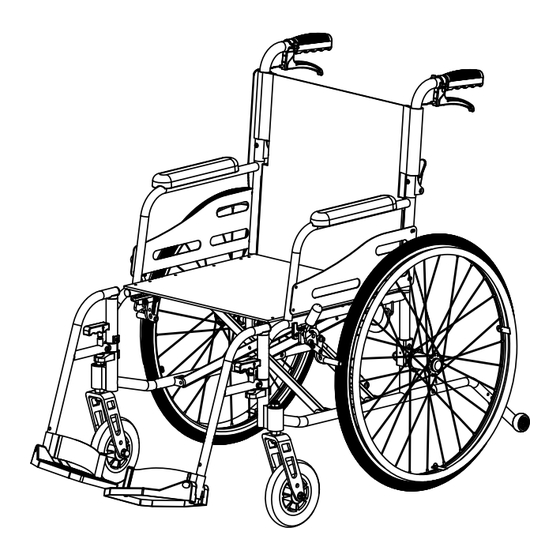

- Page 1 Wheel chair service@hi-fortune.net HM303D Owner's Manual ATTENTION: Please read the content of your owner's manual before operating your Wheel chair.
- Page 2 G U I D E L I N E WARNING! An authorized Hi-fortune Provider or a qualified technician must perform the initial setup of this wheelchair and must perform all of the procedures in this manual. The symbols below are used throughout this owner's manual and on the wheelchair to identify warnings and important information.
-
Page 3: Table Of Contents
C O N T E N T S I. INTRODUCTION …………………………………………………………………………………4 II. SAFETY…………………………………………………………………………………… ………5 III.YOUR WHEELCHAIR……………………………………………………………………………13 IV.OPERATION METHOD…………………………………………………………………………16 V. CARE AND MAINTENANCE…………………………………………………………………19 VI.WARRANTY………………………………………………………………………………………22 APPENDIX I - SPECIFICATIONS………………………………………………………………23 www.hi-fortune.net... -
Page 4: Introduction
Hi-Fortune to enhance or preserve the safe use of this product. -
Page 5: Safety
Disposal and recycling - Contact your authorized Hi-Fortune Provider for information on proper disposal and recycling of your Hi-Fortune product and its packaging. ... - Page 6 Pre-Ride Safety Check Get to know the feel of your wheelchair and its capabilities. Hi-fortune recommends that you perform a safety check before each use to make sure your wheelchair operates smoothly and safely. Before riding, you should be trained in the safe use of this wheelchair by your authorized Hi-fortune Provider.
- Page 7 MANDATORY! Stay within the specified weight capacity of your wheelchair. Exceeding the weight capacity voids your warranty. Hi-Fortune will not be held responsible for injuries and/or property damage resulting from failure to observe weight limitations.
- Page 8 Hi-Fortune Provider. NOTE: Hi-Fortune does not recommend that you remain parked on an incline for a long period of time as your wheel- chair may slide or the the manual wheel lock may become disengaged after extended use.
- Page 9 Your wheelchair is designed to provide optimum stability under normal driving conditions—dry, level surfaces composed of concrete, blacktop, or asphalt. However, Hi-fortune recognizes that there will be times when you will encounter other surface types. For this reason, your wheelchair is designed to perform admirably on packed soil, grass, and gravel.
- Page 10 WARNING! Not all lift systems/elevation products are rated for use with an occupied mobility device. Hi-Fortune recommends that you do not remain seated in your wheelchair when it is being used in connection with any type of lift system/elevation product unless: ■...
- Page 11 WARNING! Do not operate your wheelchair while you are under the influence of alcohol, as this may impair your ability to operate your wheelchair in a safe manner. WARNING! Hi-Fortune strongly recommends that you do not smoke cigarettes while seated in your wheelchair, although the wheelchair has passed the necessary testing requirements for cigarette smoking.
- Page 12 ■ Drive right-angled when crossing the groove and not clip the tires in the groove. ■ No sudden braking to avoid tumbling down. ■ Be careful when driving and parking on the ramp. ■ Be careful of the car and pedestrian when driving at night and rainy day. www.hi-fortune.net...
-
Page 13: Iii.your Wheelchair
W H E E L C H A I R THE HM303 Our wheelchair is for in-door use according to wheelchair standard. The HM303 is a rear-wheel drive wheelchair designed to operate both indoors and outdoors on smooth surface Figure 4. Wheelchair www.hi-fortune.net... - Page 14 Figure 6. Figure 7. Assembling and removal of legrest: Lift the handle upwards as indicated by the yellow arrow and rotate it outwards, legrest shall be removed. And the converse is to assemble the legrest. See figure8. Figure 8. www.hi-fortune.net...
- Page 15 Hold the hand with one hand and press the folding button with the other one.See figure 10. Figure 9. Figure 10. To change the drive wheel height: 1. Remove the drive wheel. Press the quick-release button and pull the drive wheel off of the wheelchair. See figure 11. Figure 11. Quick Release Drive Wheel www.hi-fortune.net...
-
Page 16: Iv.operation Method
Squeeze the hand brake if drive with external incentive and also relieve the brake if in the other in the other direction. See figure12. Hand brake is still using Stop the wheelchair by squeeze the hand brakes, and relieve the wheelchair when loose the hand brakes. figure13. Figure 12. Figure 13 Footplates www.hi-fortune.net... - Page 17 ■ Drive right-angled when crossing the groove. Do not cross the groove on your own if it is too big. ■ Do drive aslant instead of turning right-angled once encountering with a road with barbed wires. www.hi-fortune.net...
- Page 18 People who push the wheelchair lean forward when Going uphill and keep the same posture to go back- ward when downhill. ■ Cross the groove at right angles. ■ Do drive aslant instead of turning right - angled once encountering with a road with barbed wires. www.hi-fortune.net...
-
Page 19: Care And Maintenance
Your HM303 requires routine maintenance checks. You can perform some of these checks, but others require assistance from your authorized Hi-fortune Provider. Preventive maintenance is very important. If you follow the maintenance checks in this section as scheduled, you can help ensure that your wheelchair gives you years of trouble free operation. - Page 20 Do not use either of the manual wheel locks to stop the wheelchair while driving it. This can cause your wheelchair to become unstable and tip. Weekly Checks Check for proper tire inflation. If a tire does not hold air, see your authorized Hi-fortune Provider for replacement of the tube. ...
- Page 21 If you have pneumatic tires and you have a flat tire, you can replace the tube. If your wheelchair is equipped with a solid tire insert, then you must replace the entire wheel assembly. Replacement tires, tubes, and wheel assemblies are readily available through your authorized Hi-Fortune Provider. ...
-
Page 22: Vi.warranty
VI . W A R R A N T Y Hi-fortune warrants this product, so far as the same is of its own manufacture, to be free of defects in material and workmanship, when used by the purchaser under normal conditions, for (1) year after pur- chase. -
Page 23: Appendix I - Specifications
A P P E N D I X I – S P E C I F I C A T I O N S HM303D SPECIFICATIONS l l a 1137mm l l a l l a l l a ” 6 Rear wheel：...
