Aiphone RY-3DL Specifications

RY-3DL
Selective Door Release Adaptor for IE-2AD, MY-2CD and KB Video
DESCRIPTION:

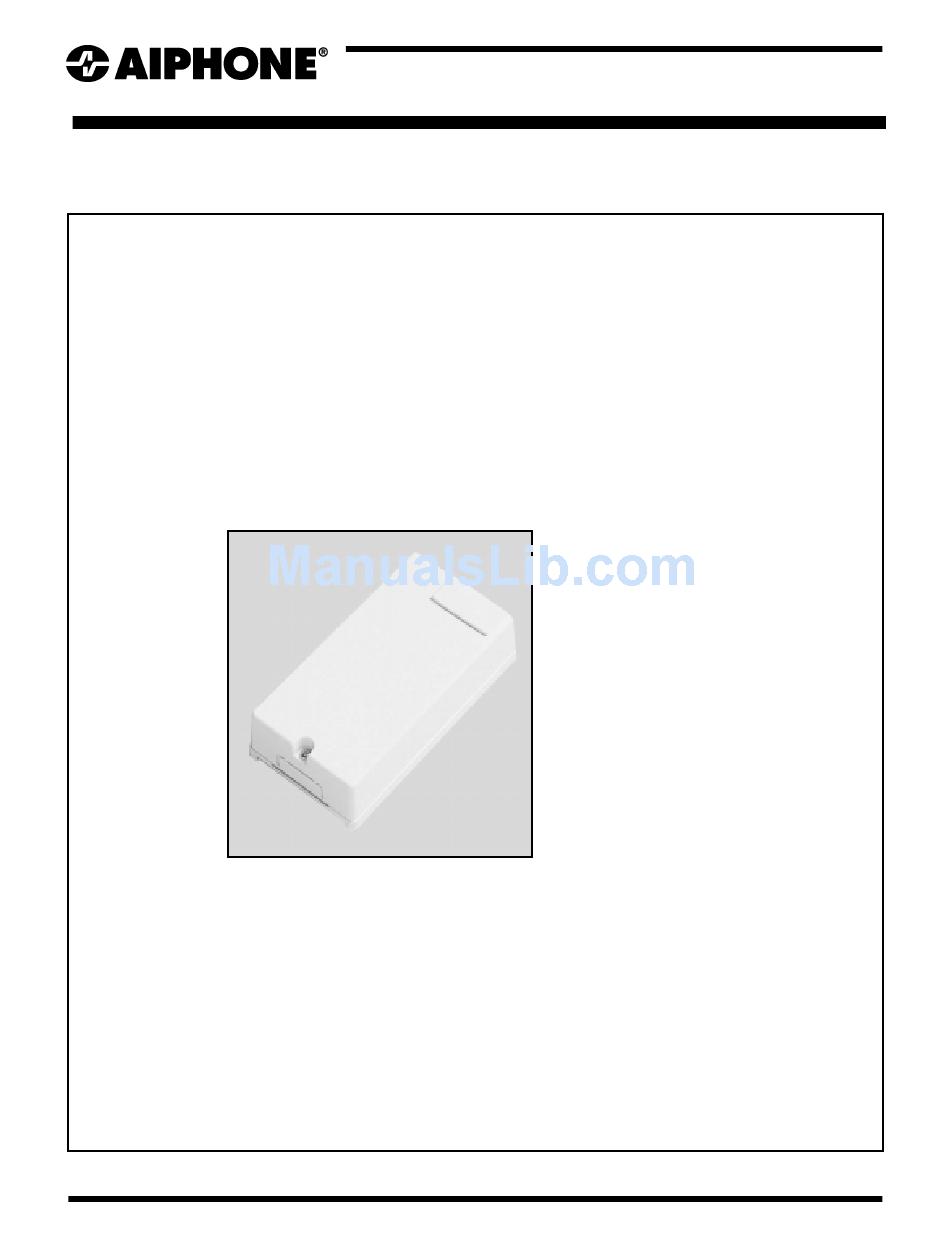

The RY-3DL provides selective door release
capability with the IE-2AD Audio Door Entry
system, the MY-2CD PanTilt Video Entry system
or the KB-3MRD Tilt Color Video system.
When communication is established to a door
station, the single door release button on the
intercom will activate the door release
mechanism associated with that door. The
adaptor can be installed with the power supplies
for the system.
RY-3DL
SPECIFICATIONS:
Power: 12-24V DC. Use PS-12C with IE-2AD; PS-18C with MY-2CD or PS-24E with KB series.
Relay Contacts: Normally Open output. 0.6A at 125V AC; 2A at 30V DC
Wiring: 4 wires from IE-2AD to RY-3DL. Use Aiphone #812202(x2) or #812206
5 wires from MY-2CD to RY-3DL. Use Aiphone #841806
6 wires from KB-3MRD to RY-3DL. Use Aiphone #841806
2 wires to each door strike. Use Aiphone #812202
Wiring Distance: Max. 165' from main unit with 22AWG.
Mounting: Wall mount, 1-gang box or ring
Dimensions: 5-1/2"H x 3"W x 1-1/2"D
Aiphone Communication Systems • 1700 130th Ave. N.E. • Bellevue, WA 98005
(425) 455-0510 • FAX: (425) 455-0071 • (800) 692-0200 • www.aiphone.com
Accessories
FEATURES:
• Selective door release with one button
• Door release contacts release the door where
communication is established
• Both Normally Open and Normally Closed contacts
• Works with three different systems:
- IE-2AD Audio-only system
- MY-2CD Black & White, PanTilt Video Sentry
- KB-3MRD Color Tilt Video Sentry
SOME APPLICATIONS:
Multiple door entry applications for a variety
of applications:
• Offices
• Homes
• Hotel and Motel entries
• Medical offices
• Secured departments within a
commercial or institutional facility
• Gated entries
