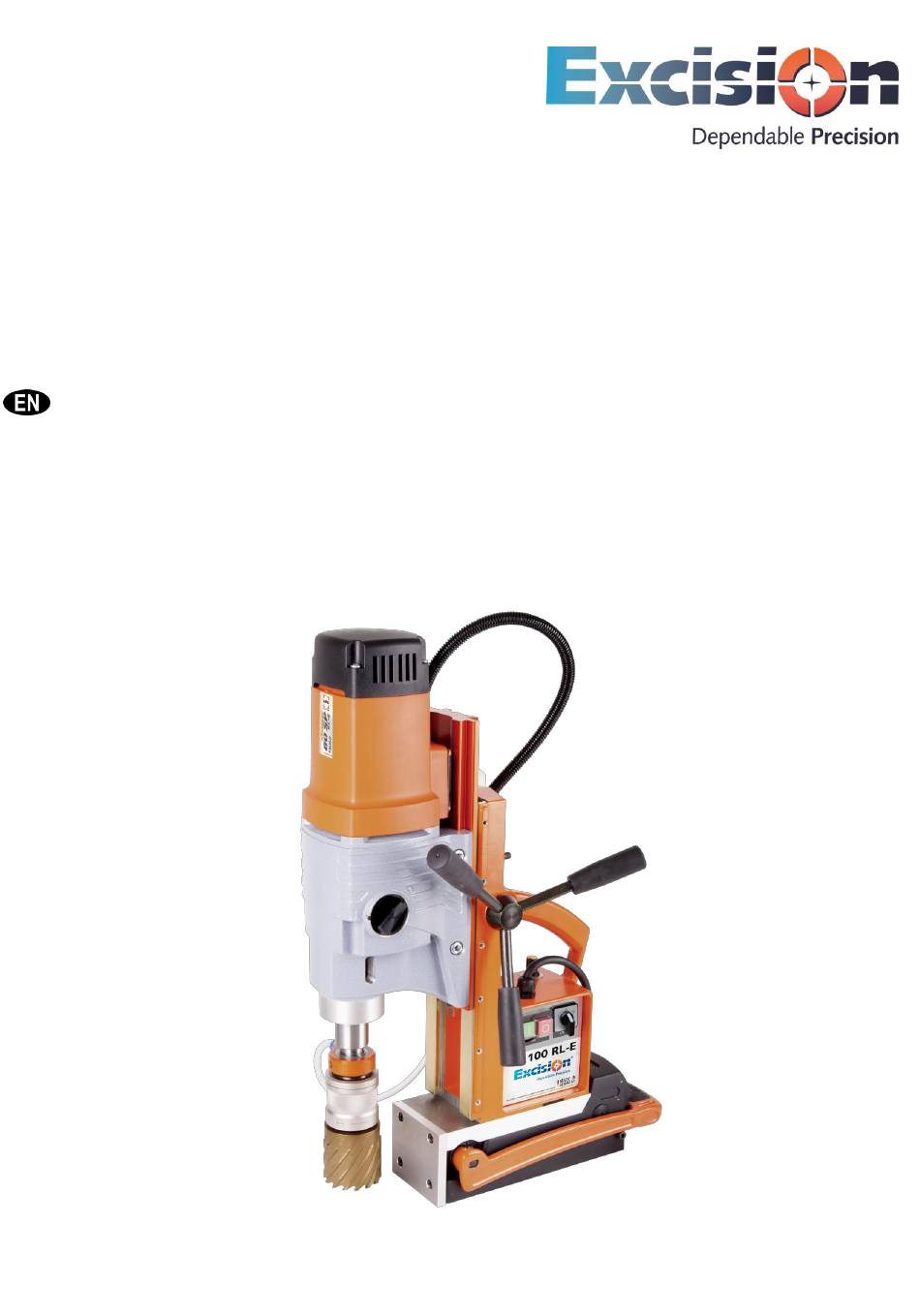

- Page 1 Operation manual Excision Magnex 100 RL-E Metal Core Drilling Machine Prod.-No. 18628...
-
Page 2: Table Of Contents
Explosion drawing and spare-parts list Before use read and save these instructions! Dear customer, Thank you for purchasing an EXCISION product. Read these operation instructions closely before using your device for the first time and keep them for later reference. Safety Instructions During work with this machine, improper handling and/or poor maintenance may result in significant danger which could lead to the machine´s destruction and serious accidents with considerable injuries. -
Page 3: Safety Instructions
It may only be used in a dry environment which is protected from the weather. The machine may be used horizontally, vertically or overhead. Technical Data Prod.-no. and designation: 18628 MAGNEX 100 RL-E Power consumption: 1800 Watt On-load speed:... -
Page 4: Proper Use, Technical Data, Available Accessories
Available Accessories Transport Case (Prod.-no.: 18633) Safety Belt (Prod.-no.: 189490501) Coolant Unit (Prod.-no.: 189412029) Allen Wrench 2,5 mm DIN911-2,5 Quick-change Adapter MT 3 incl. internal Allen Wrench 4,0 mm DIN911-4 cooling (Prod.-no.: 18651) Allen Wrench 6,0 mm DIN911-6 ... -
Page 5: Description
Description The magnetic core drilling machine can be attached to ferromagnetic work pieces using the installed mechanically switchable permanent magnet. For this purpose, the magnetic lever must be pressed downwards and the safety tab must latch into place correctly. The motor can be turned on and off using the large switch on the side. A self- adjusting linear guide which the motor is attached to, can be vertically adjusted using the rotary handle. -
Page 6: Start-Up
Start-up You have received a completely assembled magnetic core drilling machine and detailed operation manual. Please check the condition of the machine on receipt for any transport damage, and make sure the delivery is complete. Otherwise contact the manufacturer immediately. Read the operation manual before using the device for the first time! 1. -
Page 7: Protection
Special Information On Handling Switchable Permanent Magnets The magnetic surface is located on the underside of the magnetic core drilling machine and generates the magnetic holding force through magnetic flux when activated. The magnet can be activated independently from the mains voltage by pressing the lever down. -
Page 8: Working With Annular Cutters (Weldon Shank), Working With Twist Drills
Working With Annular Cutters (Weldon Shank) Mount the tool holder MT 3 in arbor. Push the ejector pin (center pin) through the head of the annular cutter. Mount the ROTABEST rotary cutter according to drawing. The setscrew must be positioned in the center of the lateral flat side of the Weldon shank. -
Page 9: Tapping
Tapping With the quick-change tapping adapter, there is the possibility to tap threads from M3 up to M 30. Insert the quick-change tapping adapter (1) in the arbor of the machine. Make sure it fits in tightly. Mount the tap (3) in the tap insert (2). ... -
Page 11: Cleaning And Care, Maintenance And Repair
Cleaning And Care Pull plug prior to cleaning to avoid injuries by unintentionally switching motor on. Clean the outside of the motor with dry compressed air. Check connecting power cords for damages. Clean and grease sliding surfaces regularly. Should lateral play arise by wear of the linear guide, this can be corrected by adjusting the laterally positioned set screws (F) - page 15-. -
Page 12: Ce Declaration Of Conformity
EC Declaration of conformity Alfra GmbH 2. Industriestr. 10 68766 Hockenheim hereby declare that the metal core drilling machine EXCISION MAGNEX 100 RL-E corresponds with the following directives: Machinery Directive: 2006/42/EC Low Voltage Directive: 2014/35/EU Electro-magnetic compatibility (EMC): 2014/30/EU RoHs Directive: 2011/65/EU... -
Page 13: Explosion Drawing And Spare-Parts List
Spare Parts... - Page 14 Pos. Stck. Art.-Nr. Description 189414515 housing 189412052 slide 189414522 magnetic base 189414129 blind bolt 189501056 pinion shaft 189501073 rack 189601074 spoke 189412057 brass guide rail, 189412056 brass guide rail, 189414287 switch plate 189501076 motor fixing part 189601101 flange piece 189501078 Slide plate (safety 189414523...
- Page 15 189412054 spring steel sheet 189414516 left / right switch 189412069 cable fixture 189490607 lacing cord DIN911-6 hexagon wrench key 189612023 pre-set potentiometer 189491702 knob 189491703 Cover for knob 189491704 scale inductive proximity 189414517 switch resilient pressure 189301080 piece DIN913- set screw M5x12-45H...
- Page 16 Spare Parts Motor...
- Page 17 Pos. Stk Art.Nr. Description 189852119 armature, compl. 230 V 189852119.110 armature, compl. 110 V deep groove ball 189622011 bearing 189622013 bearing cap 189813081 fan shroud 189852120 field, compl. 230 V 189852120.110 field, compl. 110 V 189622005 carbon brush holder 189622012 carbon brush 230V 189622012.110 carbon brush 110V anti-interference...
- Page 18 189601023B pressure washer 189813066 o-ring 189852123 gear shift knob spring-loaded thrust 189813068 189813069 o-ring 189813070 CIRCLIP 189852124 power wire 189852125 resistance wire 189813072 filling part 189852126 carbon brush wire 189852127 carbon brush wire 189852128 pressure washer 189852129 ring magnet...
