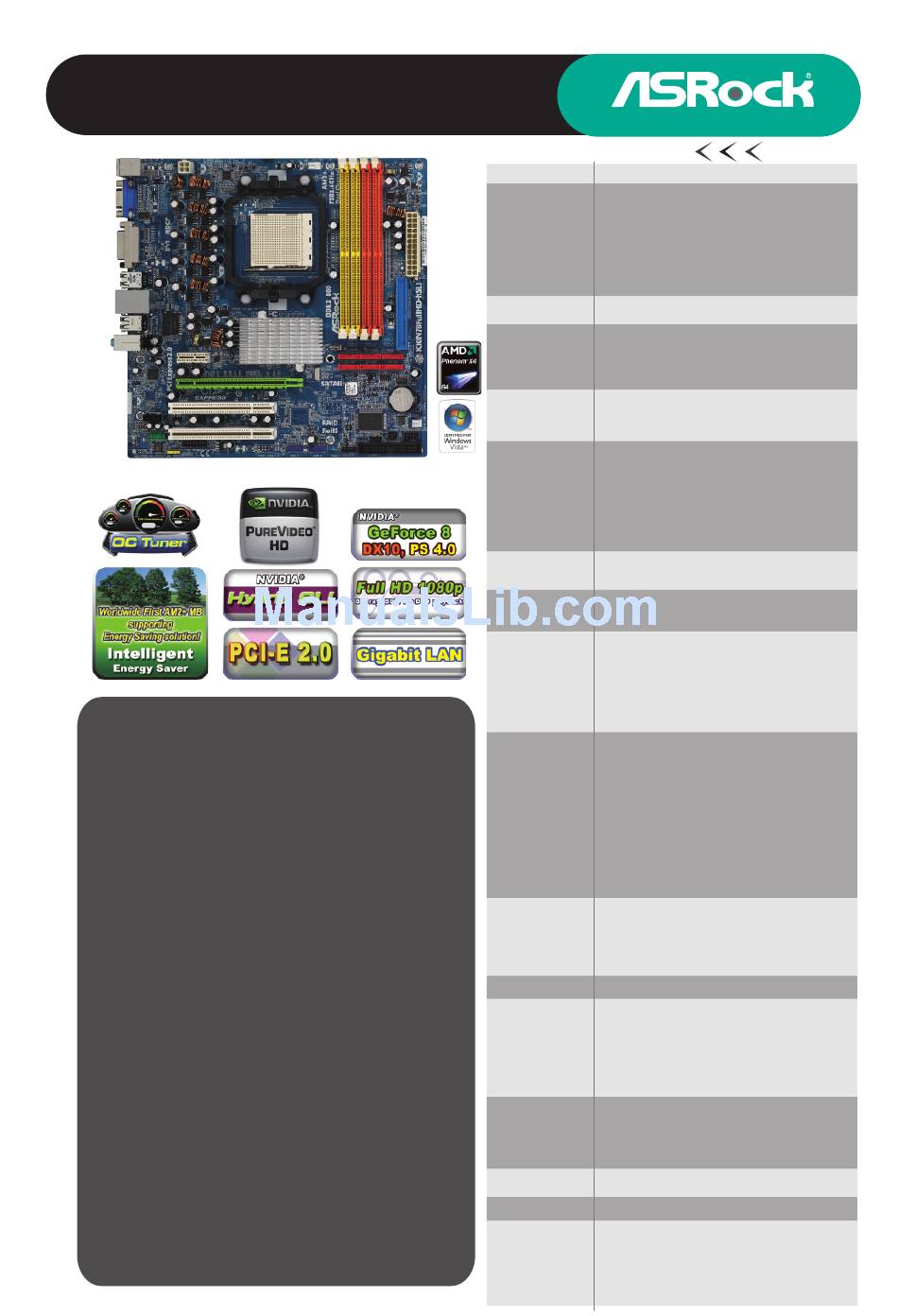

ASROCK K10N78FULLHD-HSLI R3.0 Brochure

K10N78FullHD-hSLI R3.0
NVIDIA ® GeForce 8200 Chipset
Product Brief
- Support for Socket AM2+ / AM2 processors:
Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core /
Athlon 64 / Sempron processor
- FSB 2600 MHz (5.2 GT/s)
- Supports Dual Channel DDR2 1066*
533 with AM2 CPU, with 4 DIMM slots, maximum capacity up to 8GB
- Integrated NVIDIA GeForce 8200,
®
shared memory 512MB
- Supports NVIDIA Hybrid SLI
® TM
- 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
- 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1,
RAID 5, JBOD), NCQ, AHCI and Hot Plug functions
- Supports Gigabit LAN 10/100/1000 Mb/s
- Dual VGA Output: Support DVI-D
display controllers
- Supports HDCP function with DVI-D port, to enjoy better quality with
High Definition HDCP Encryption contents
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
- NVIDIA PureVideo HD Ready
® TM
- Chipset embedded HDMI Audio which supports HDMI signal through
DVI-D port by using DVI to HDMI adapter (not bundled)
- 1 x WiFi/E header
- Supports ASRock OC Tuner, Intelligent Energy Saver
*Whether 1066MHz memory speed is supported depends on the AM2+ CPU you adopt.
If you want to adopt DDR2 1066 memory module on this motherboard, please refer to
the memory support list on our website for the compatible memory modules.
ASRock website http://www.asrock.com
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
AMD Phenom FX /
TM
with AM2+ CPU , and DDR2 800/667/
DX10 VGA, Pixel Shader 4.0, Max.
and D-Sub ports by independent
with DVI-D port
www.asrock.com
Detail Specification
Platform
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
CPU
- Support for Socket AM2+ / AM2 processors: AMD
Phenom TM FX / Phenom / Athlon 64 FX / Athlon 64 X2
Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron
processor
- AMD LIVE! TM
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset
- NVIDIA ® GeForce 8200
- Dual Channel DDR2 memory technology
Memory
- 4 x DDR2 DIMM slots
- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered
memory
- Max. capacity of system memory: 8GB

Expansion Slot

- 1 x PCI Express 2.0 x16 slot (green @ x16 mode)
- 1 x PCI Express x1 slot
- 2 x PCI slots
- Supports NVIDIA
Graphics
- Integrated NVIDIA
- DX10 VGA, Pixel Shader 4.0
- Max. shared memory 512MB
- Dual VGA Output: support DVI-D and D-Sub ports by
independent display controllers
- Supports HDCP function with DVI-D port
- Supports 1080p Blu-ray (BD) / HD-DVD playback with
DVI-D port
- NVIDIA ® PureVideo
Audio
- 5.1 CH Windows
(Realtek ALC662 Audio Codec)
- Chipset embedded HDMI Audio
- Gigabit LAN 10/100/1000 Mb/s
LAN
- Giga PHY RTL8211B
- Supports Wake-On-LAN
Rear Panel I/O
ASRock 6CH_DVI I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector
- 6 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID
0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and
"Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x DeskExpress Hot Plug Detection header
- 1 x COM Port header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x WiFi/E header

BIOS Feature

- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
- ASRock OC Tuner
Unique Feature
- Intelligent Energy Saver
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to
boost memory performance up to 12.5%
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS - Microsoft ® Windows
Vista TM / Vista
Certifications
- FCC, CE, WHQL
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- Floppy/ATA 133 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x HDMI_SPDIF cable (optional)
Ready
® Hybrid SLI TM
® GeForce8 Series
TM HD Ready
® Vista TM Premium Level HD Audio
® XP / XP Media Center / XP 64-bit /
TM 64-bit compliant
