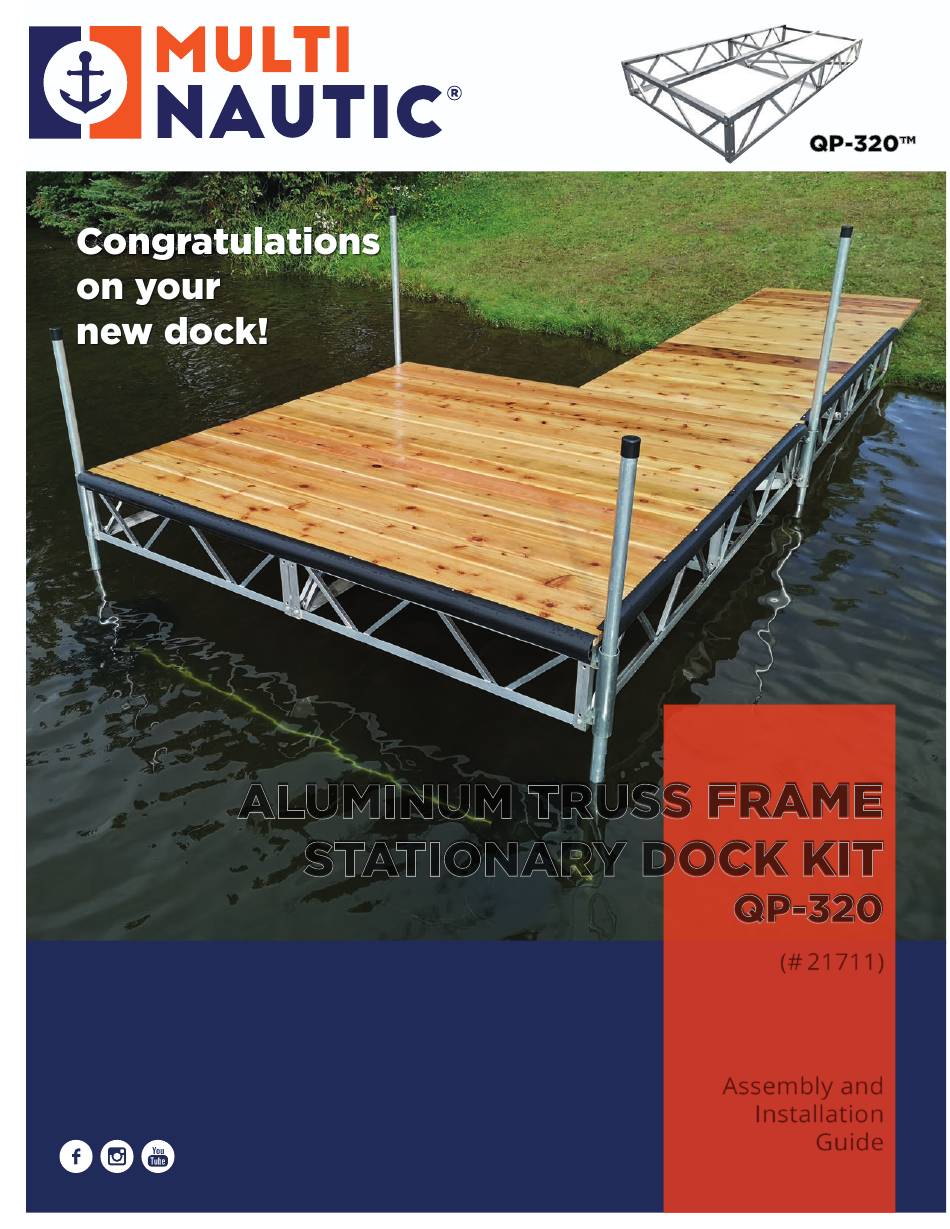

ALUMINUM TRUSS FRAME
This booklet will guide you through the steps you need to take to complete this project.
Please read the instructions carefully to ensure that the assembly is carried out correctly
and safely. To do so, please respect the following:
>
Make sure that all bolts and nuts are bolted properly.
>
Do not modify this dock system beyond the recommendations described in this manual.
The warranty will be void if altered or repaired.
>
Wear appropriate protective equipment when assembling.
>
Keep children and pets away while assembling your dock.
>
The load capacity of this structure is limited to 4 persons or 1000 lbs (454 kg).
ASSEMBLE - ENJOY - SHARE
Toll-free line : 1-800-585-1237
STATIONARY DOCK KIT
l
info@multinautic.com
QP-320
(# 21711)
Assembly and
Installation
Guide
Advertisement
Related Manuals for Multi Nautic QP-320
Summary of Contents for Multi Nautic QP-320
- Page 1 ALUMINUM TRUSS FRAME STATIONARY DOCK KIT QP-320 This booklet will guide you through the steps you need to take to complete this project. (# 21711) Please read the instructions carefully to ensure that the assembly is carried out correctly and safely. To do so, please respect the following: >...
-
Page 3: Installation
You can add 24 in. wheel assemblies. The QP-320 dock system features an axle that connects the wheels on each side and allows for installation under the dock, freeing up space around the dock for swimming or small boat docking. - Page 4 PLANNING End Pieces Plan your dock installation according to the possibilities shown in the diagrams below. Post Whether end-to-end ( ), L-shaped ( ) or parallel ( ), each configuration has its own particularities. > A straight line assembly requires posts every 16'. However, it is possible to add some if needed.
- Page 5 STRUCTURE Multinautic QP-320 Before starting the assembly, refer to the PLANNING page since different structural parts will need to be combined depending on your choice of configuration. Lay out the parts to be assembled on the floor to visualize the steps to follow. Screw the nuts by hand to start and once the assembly of all the docks is completed according to the final...
- Page 6 CEDAR DECKING As shown on page 2, Multinautic® offers a pre-configured cedar decking kit . If you nº21183 prefer to purchase the wood to be installed yourself, here are the components needed to build it and the steps to follow for a 4' x 8' dock section. To facilitate handling, you will assemble the decking in 2 panels.
- Page 7 POLYMER DECKING As mentioned on page 2, you can install Polymer Panels on this QP-320TM dock model. Your structure has a Central Support, but to install Polymer Panels, you will need to add two Supports to reinforce them. Here is how to install them and the panels that need to be supported every 12 in.
-
Page 8: Limited Warranty
Suggestions of complementary products for your QP-320™ Stationary Dock See the exclusive elements of this dock system on page 2 Complete set of 24" plastic wheels for > Reinforced P-Shape Bumper, 8 ft. black > 15062 docks up to 4' wide.
