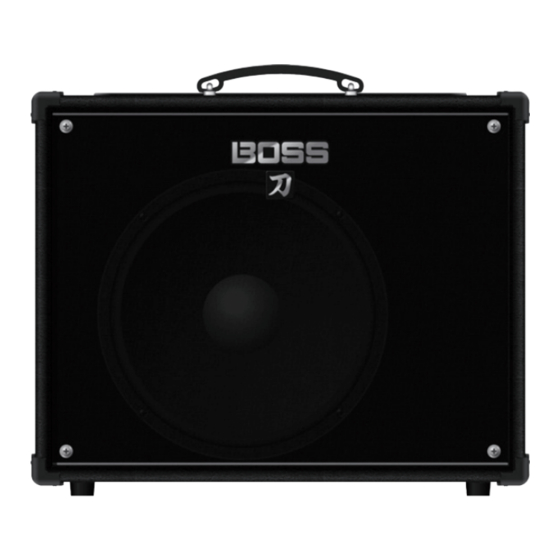

Boss KATANA-50 Startup Manual

Boss KATANA-50 Startup Manual

Guitar amplifier
Hide thumbs Also See for KATANA-50:

Advertisement

Quick Links

Startup Guide
Kurzanleitung
Guide de démarrage
Guida Rapida
Guía de inicio
Guia de inicialização
Startgids
KATANA-50 (KTN-50 3)
Output Power
50 W
Speaker
30 cm (12 inches) x 1
470 (W) x 238 (D) x 398 (H) mm
Dimensions
18-9/16 (W) x 9-3/8 (D) x 15-11/16 (H) inches
11.6 kg
Weight
25 lbs 10 oz
Accessories
Owner's Manual, Power cord
Footswitch: FS-5L, FS-6, FS-7
Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Options (sold
separately)
Bluetooth®
Amplifier Stand: BAS-1
KATANA-50 EX (KTN50 3EX)
Output Power
50 W
Speaker
30 cm (12 inches) x 1
470 (W) x 238 (D) x 398 (H) mm
Dimensions
18-9/16 (W) x 9-3/8 (D) x 15-11/16 (H) inches
11.7 kg
Weight
25 lbs 13 oz
Accessories
Owner's Manual, Power cord, GA-FC sticker
Footswitch: FS-5L, FS-6, FS-7
Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Options (sold
GA FOOT CONTROLLER (GA-FC, GA-FC EX)
separately)
Bluetooth®
Amplifier Stand: BAS-1
KATANA-100 (KTN-100 3)
Output Power
100 W
Speaker
30 cm (12 inches) x 1
530 (W) x 248 (D) x 484 (H) mm
Dimensions
20-7/8 (W) x 9-13/16 (D) x 17-1/2 (H) inches
14.8 kg
Weight
32 lbs 11 oz
Accessories
Owner's Manual, Power cord, GA-FC sticker
Footswitch: FS-5L, FS-6, FS-7
Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Options (sold
GA FOOT CONTROLLER (GA-FC, GA-FC EX)
separately)
Bluetooth®
Amplifier Stand: BAS-1
KATANA-100/212 (KTN-212 3)
Output Power
100 W
Speaker
30 cm (12 inches) x 2
670 (W) x 248 (D) x 484 (H) mm
Dimensions
26-7/16 (W) x 9-13/16 (D) x 19-1/16 (H) inches
19.8 kg
Weight
43 lbs 11 oz
Accessories
Owner's Manual, Power cord, GA-FC sticker
Footswitch: FS-5L, FS-6, FS-7
Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Options (sold
GA FOOT CONTROLLER (GA-FC, GA-FC EX)
separately)
Bluetooth®
Amplifier Stand: BAS-1
Audio MIDI Dual Adaptor: Model BT-DUAL
Audio MIDI Dual Adaptor: Model BT-DUAL
Audio MIDI Dual Adaptor: Model BT-DUAL
Audio MIDI Dual Adaptor: Model BT-DUAL
KATANA-HEAD (KTN-HEAD 3)
30 W (Using internal speaker)
Rated Power Output
100 W (Using external speaker)
Speaker
12 cm (5 inches) x 1
470 (W) x 228 (D) x 215 (H) mm
Dimensions
18-9/16 (W) x 9 (D) x 8-1/2 (H) inches
8.8 kg
Weight
19 lbs 7 oz
Accessories
Owner's Manual, Power cord, GA-FC sticker
Footswitch: FS-5L, FS-6, FS-7
Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Options (sold
separately)
GA FOOT CONTROLLER (GA-FC, GA-FC EX)
Bluetooth®
Audio MIDI Dual Adaptor: Model BT-DUAL
KATANA-Artist (KTN-ART 3)
Output Power
100 W
Speaker
30 cm (12 inches) x 1
630 (W) x 248 (D) x 515 (H) mm
Dimensions
24-13/16 (W) x 9-13/16 (D) x 20-5/16 (H) inches
19 kg
Weight
41 lbs 15 oz
Accessories
Owner's Manual, Power cord, GA-FC sticker
Footswitch: FS-5L, FS-6, FS-7
Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Options (sold
GA FOOT CONTROLLER (GA-FC, GA-FC EX)
separately)
Bluetooth®
Audio MIDI Dual Adaptor: Model BT-DUAL
Amplifier Stand: BAS-1
KATANA-Artist HEAD (KTN-ART3HD)
Output Power
100 W
Speaker
631 (W) x 246 (D) x 296 (H) mm
Dimensions
24-27/32 (W) x 9-11/16 (D) x 11-21/32 (H) inches
12.4 kg
Weight
27 lbs 5.4 oz
Accessories
Owner's Manual, Power cord, GA-FC sticker
Footswitch: FS-5L, FS-6, FS-7
Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Options (sold
separately)
GA FOOT CONTROLLER (GA-FC, GA-FC EX)
Bluetooth®
Audio MIDI Dual Adaptor: Model BT-DUAL
* This document explains the specifications of the product at the time that
the document was issued. For the latest information, refer to the Roland
website.
Guitar Amplifier
KATANA-50
KATANA-50 EX
KATANA-100
KATANA-100/212
KATANA-HEAD
KATANA-Artist
KATANA-Artist HEAD
