Summary of Contents for OPTRONIC JETCAM 40 PRO

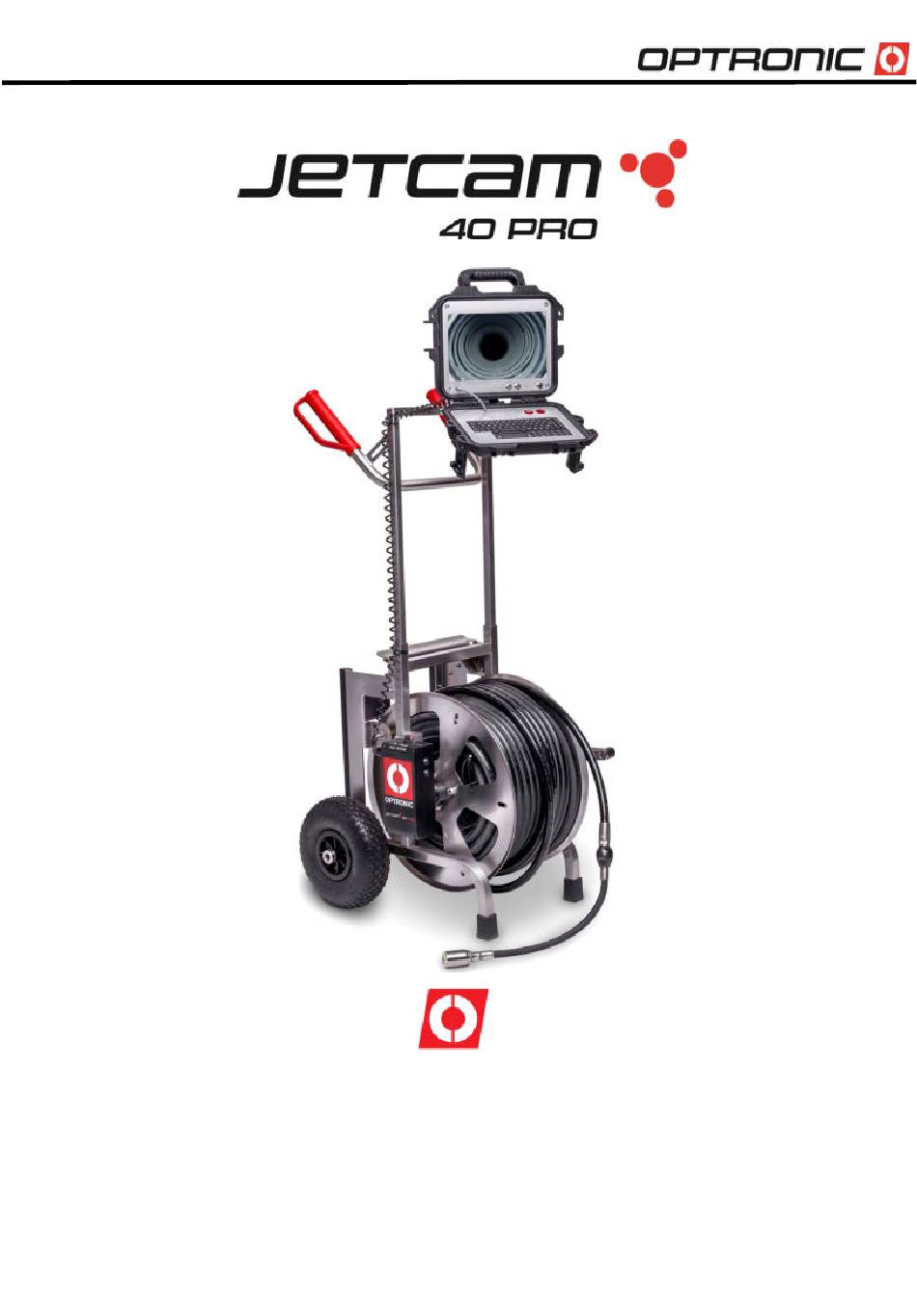

  • Page 1 Operating Instructions Optronic GmbH. Industriestraße 36 D-87448 Waltenhofen Tel: +49 (0) 831 - 28885 E-Mail: contact@optronic.de www.optronic.de Page 1...
  • Page 2: Table Of Contents

    Contents: Preface Page 3 Warnings Page 4 Quality characteristic Page 4 Component description Page 5-6 Data sheet Page 7-10 Instructions for usw Page 11 Required equipment Page 12 Preparation Page 12+ 13 Commissioning Page 14 Cleaning/inspection using the JetCam Page 15 How do I steer with the JetCam Page 16 Maintenance + care...
  • Page 3: Preface

    Preface: Please read through these instructions for use carefully. It contains valuable instructions on correct use of the JetCam, but also tips for effec- tive operation. We wish you all the best when using it. Team OPTRONIC Page 3...
  • Page 4: Warnings

    Components of the JetCam, such as camera head, impact guard, steering piece, high-pressure hose may have minimal scratch marks when being delivered. These marks are the result of our end test. The JetCam 40 PRO has been tested extensively and can therefore be used for its intended purpose.
  • Page 5: Component Description

    Component description: 10,1<- Monitor with video and data recording Reel with safety catches HP hose 60m available in 3/8< and 1/2< Light regulation Reel stopper Meter counter optional: Location Pneumatic tires 6 jetts cleaning nozzle Camera head Steering part Page 5...
  • Page 6 Manometer 1/2< BSP water connection Crank handle Ball valve Page 6...
  • Page 7: Data Sheet

    Fact sheet: Reel with: 1/2< connection with BSP female thread Ball valve Reel brake with guide holes Hand crank for winding the hose Pneumatic tires for easy transport Slide rails for easy loading and unloading Protection class IP64 Control unit with: Light control Battery display Standard meter counter...
  • Page 8 Steering part screwable (all) comprising: Lateral steering nozzle 1.3 mm M4 Length approx. 35 cm Throughput approx. 40-60 l/min at 100-150 bar Completely pre-assembled Plug-in system on the camera head side Without camera head 6-jet cleaning nozzle 6 jets (6 x 1,1 mm for 3/8" or 6 x 1.2 mm for 1/2< hoses HP hose Surface hardened highly abrasion-resistant high-pressure hose, preassembled elec- tical equipment...
  • Page 9 Battery pack: Voltage: 11,1V DC Charging voltage: 15V DC Output: 5200 mAh (for appr. 2,5 operating hours) Charging time min. 5 hours Possible hazards Lithium-Ion batteries are sealed gas tight and are harmless as long as they are used and handled in line with the manufacturer regulations. Warning Never use battery chargers that are not intended for the battery type! Do not short-circuit.
  • Page 10: Instructions For Usw

    Instructions for use: Instructions for use: The JetCam has been optimally designed for your tasks in diameters from: 50 to max. 300 mm. The JetCam may only be operated with fresh water. Page 10...
  • Page 11: Required Equipment

    Required equipment: Please make sure that the following are available at the operating location: • a jetter, where the output corresponds approximately to: 40 - 60 litre / min. 100 - 150 bar for JetCam with 3/8" hose 60 - 80 litre / min. 100 - 150 bar for JetCam with 1/2" hose 2 open-ended spanners, 27mm for connecting the high-pressure hose of the jet- •...
  • Page 12 Preparatory measures: On the camera Make sure that the camera head is cleaned. To ensure for a clear view as long aspossible, the sapphire glass and the macrolon must be cleaned before or after being used each time. Changing the camera head Changing the camera head KK32 JC 4.0 Former model...
  • Page 13: Preparation Page 12

    Water side: Connect the hp-hose of the jetter with 1/2= BSP external thread to the JetCam • (two 27 mm open-ended spanners are required for this purpose) Make sure that the ball valve is completely opened. • Ball valve open Ball valve closed Clean steering nozzle and nozzle nozzle inserts.
  • Page 14: Commissioning

    Commissioning: Pull out the reel trolley completely • Set the monitor to the viewing position and also switch on • Take the camera head out of the holder • Unlock the stopper on the reel • • Position the camera at the start of the pipe Set the meter counter: Press the top button ->...
  • Page 15: Cleaning/Inspection Using The Jetcam

    Working with JetCam: To avoid water damage or water leaking in an uncontrolled manner, the camera • head along with steering part must be completely inserted into the pipe to be inspected. Before the system is supplied with pressurised water, hold the hose tight in or- •...
  • Page 16: How Do I Steer With The Jetcam

    How do I steer a JetCam The steering nozzle steers the camera head, e.g. into branches. The camera head always moves in the pipe in the direction shown on the screen above (12 o'clock) By turning the hose in the desired direction, the camera head is directed through the canal Elbows If this should be a problem, the steering nozzle may be...
  • Page 17: Maintenance + Care

    Maintenance and care: Clean nozzles (e.g. piercing): Steering nozzle: To clean the steering nozzle, the nozzle insert must always be dismantled, otherwise the cause of the blockage will be led back into the interior and cause a blockage again. Jet: You also need to dismantle the other nozzle inserts to clean them Now remove dirt from the removed nozzle insert using the enclosed nozzle cleaning set (->...
  • Page 18: Forwarding Jetting Nozzle

    Working with accessories / optional Forward jet: Assembly Remove the M6x5 threaded pin and there, screw on the front jet nozzle. Caution: The forward jet may only be tightened using an 8 mm open-ended spanner (do not tighten hand-tight). Keep the grub screw removed in a safe place. You will need it again if you want to work without the front jet nozzle.
  • Page 19: Locating Transmitter

    Working with accessories/options: electronic Locating transmitter The locating transmitter 512 Hz is switchable. The location switch is located on the control box. If the locating transmitter is switched on, the image switches off. As soon as the locating switch is switched off again, the image appears again. Monitor 10,1“: Display Display size 25,65cm (10,1<)
  • Page 20 Component description: Peli-Case Ball joint USB-Port Keyboard Mouse Page 20...
  • Page 21 Menu navigation Video Video Photo stop start Take a photo The main menu appears when you press any key on the mouse or keyboard. Video/ start Break/ continue - Video/ stop -> s. Data type in -> s. Overlay -> s. photo ->...
  • Page 22 Data type in In Comments menu, static or dynamic comments can be displayed in the image during recording, short comments about damage, comments about branches, etc. Under the Setup menu item you can choose how long the display appears in the video.
  • Page 23 Overlay: In the Overlay menu item, static entries such as geographical data, company name, location/date etc. can be selected, which are displayed for the entire inspection. Page 23...
  • Page 24 Search In the Search menu item, projects, videos and images can be searched for, selected and played by project name and/or date. Page 24...
  • Page 25 Backup USB-Port Using the available USB port, backups or data exports can be carried out for further use. Page 25...
  • Page 26 Setup All settings can be made in the Setup menu item. • Date Format • Time format • Language • Resolution • Overlay position Page 26...
  • Page 27: Declaration Of Conformity

    Page 27...
  • Page 28: Space For Your Own Notes

    Space for your own notes: Page 28...
