Ankersmid Sampling
User Manual

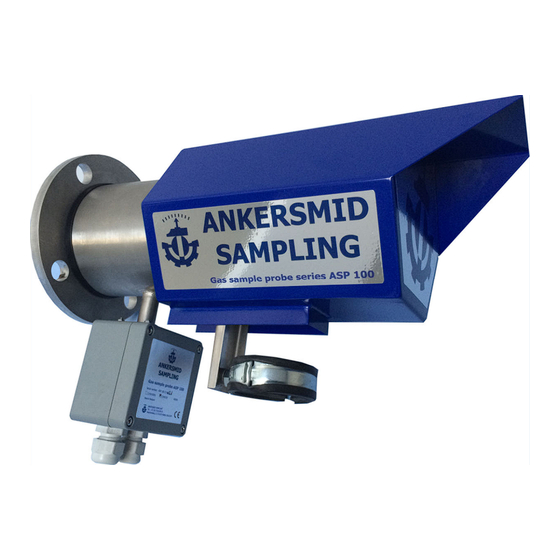

Gas sample probes Series ASP
Ankersmid Sampling BVBA
Neerlandweg 21
2610 Wilrijk
Belgium
Version ASP 1xx
Instruction Manual ASP 100 Edition 05/2017
www.ankersmidsampling.com
info@ankersmidsampling.com
Page 1 of 14
© Reproduction of this document or its content
is not allowed without permission of Ankersmid.
Technical Details Subject to Change
Advertisement
Table of Contents
Related Manuals for Ankersmid Sampling ASP Series
Summary of Contents for Ankersmid Sampling ASP Series

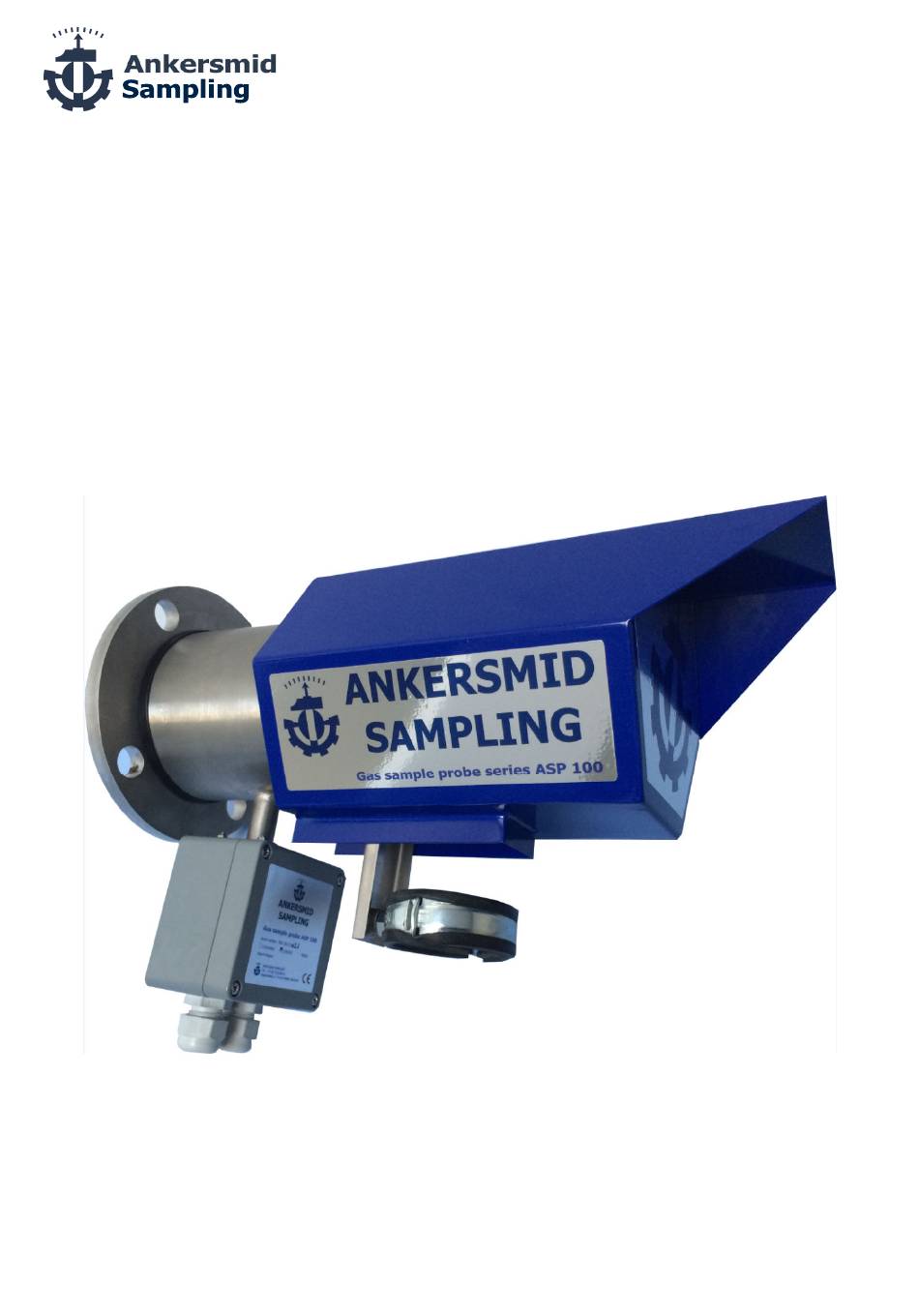

- Page 1 Ankersmid Sampling User Manual Gas sample probes Series ASP Version ASP 1xx Ankersmid Sampling BVBA Instruction Manual ASP 100 Edition 05/2017 © Reproduction of this document or its content Neerlandweg 21 www.ankersmidsampling.com is not allowed without permission of Ankersmid. 2610 Wilrijk info@ankersmidsampling.com...
-
Page 2: Table Of Contents
A. List of illustrations Figure 1 Standard flow chart of a gas sampling line ……….……………………………… Figure 2 Electrical connection ……………………………..……….……………………………… Ankersmid Sampling BVBA Instruction Manual ASP 100 Edition 05/2017 © Reproduction of this document or its content Neerlandweg 21 www.ankersmidsampling.com is not allowed without permission of Ankersmid. -
Page 3: Used Terms And Signal Indications
EC recommendation 73/23 EEC and the recommendation of electromagnetic compatibility 89/336 EEC. Declaration of conformity EU Declaration of conformity is available at Ankersmid Sampling. Ankersmid Sampling BVBA Instruction Manual ASP 100 Edition 05/2017 © Reproduction of this document or its content Neerlandweg 21 www.ankersmidsampling.com... -
Page 4: Safety Instructions
• Installation, maintenance, monitoring and repairs can be done by authorised personnel. IMPORTANT: This equipment is, in its standard version, not suitable for Ex-applications! Ankersmid Sampling BVBA Instruction Manual ASP 100 Edition 05/2017 © Reproduction of this document or its content Neerlandweg 21 www.ankersmidsampling.com... -
Page 5: Warranty
Consumables are only covered by this warranty in case of production defaults. F. Introduction The Ankersmid Sampling probes are designed, manufactured and assembled in Belgium. The Ankersmid Sampling probes are suitable for continuous gas sampling in difficult processes with gases of high or low dust content, different temperatures and extreme humidity. -
Page 6: Description
Always refer the device’s serial number when making enquiries and ordering spare or replacement parts. The Ankersmid Sampling electrically-heated sample lines can be connected to the sample probe series ASP for transporting gas to the gas sample conditioning systems or gas coolers. - Page 7 Heated sample line Gas cooler Peristaltic pump for condensate removal Figure 1 Standard flow chart of a gas sampling line Ankersmid Sampling BVBA Instruction Manual ASP 100 Edition 05/2017 © Reproduction of this document or its content Neerlandweg 21 www.ankersmidsampling.com is not allowed without permission of Ankersmid.
-
Page 8: Technical Data
Approx. 360 x 150 x 260mm (l x w x h) Dimensions with weather protection shield Weight Approx. 11 kg Ankersmid Sampling BVBA Instruction Manual ASP 100 Edition 05/2017 © Reproduction of this document or its content Neerlandweg 21 www.ankersmidsampling.com is not allowed without permission of Ankersmid. -
Page 9: Versions, Options, Consumable And Spare Parts
Extension tube for sample probes ASP, length: 2m, with internal volume displacer. AET 201 ® Connection thread: G 3/4"i and G 3/4"o. Temperature: max. 900°C. Material: Hastelloy C Ankersmid Sampling BVBA Instruction Manual ASP 100 Edition 05/2017 © Reproduction of this document or its content Neerlandweg 21 www.ankersmidsampling.com... - Page 10 , connection: G 3/4", length: 2m, max. temperature: 900°C ® AST 434 Tube Hastelloy C , connection G 3/4", length: 2,5m, max. temperature: 850°C Ankersmid Sampling BVBA Instruction Manual ASP 100 Edition 05/2017 © Reproduction of this document or its content Neerlandweg 21 www.ankersmidsampling.com is not allowed without permission of Ankersmid.
-
Page 11: Dimensions & Design
The goods and the delivery note should be compared. If any difference is noted please contact your Ankersmid Sampling contact person. The delivery should be checked for any transport damage. If any anomaly is noted, please contact the transport insurer immediately notifying of the damage. -
Page 12: Preparation For Installation
The ASP probes is designed to be used especially in stationary standard applications. The correct selection of the sample point and a proper installation is recommended. When used and properly installed in the prescript area ANKERSMID SAMPLING guarantees a long time of maintenance free and satisfaction use. -
Page 13: Getting Started
WARNING! Aggressive condensate is possible. Wear protective glasses, gloves and proper protective clothing! High surface temperatures! Ankersmid Sampling BVBA Instruction Manual ASP 100 Edition 05/2017 © Reproduction of this document or its content Neerlandweg 21 www.ankersmidsampling.com is not allowed without permission of Ankersmid. -
Page 14: Shutting Down
Before removing the power cable, the probe should be flushed with inert gas or air in order to avoid condensation of aggressive components from the process gas. Ankersmid Sampling BVBA Instruction Manual ASP 100 Edition 05/2017 © Reproduction of this document or its content Neerlandweg 21 www.ankersmidsampling.com...
