Ankersmid Sampling
User Manual

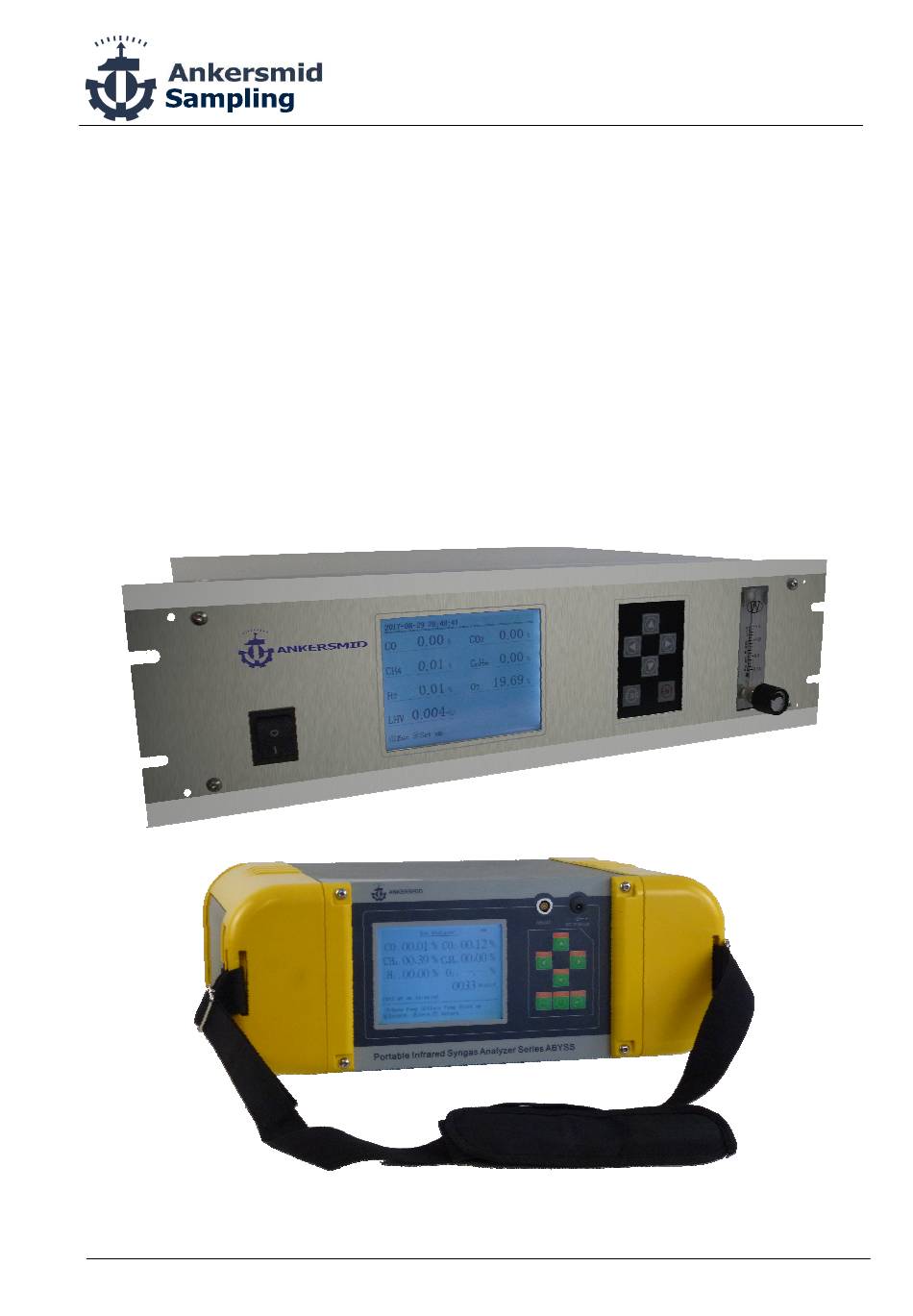

ABYSS Infrared Gas Analyzer
Generation with modular Sensors
Ankersmid Sampling
Manual ABYSS Biogas Analyzer 01/2018
Neerlandweg 21
2610 Wilrijk/Belgium
for Biogas
www.ankersmidsampling.com
info@ankersmidsampling.com
(since 2017)
© Reproduction of this document or its content is not
allowed without permission of Ankersmid.
Technical Details Subject to Change.
Page 1 of 45
