Ankersmid Sampling
User Manual

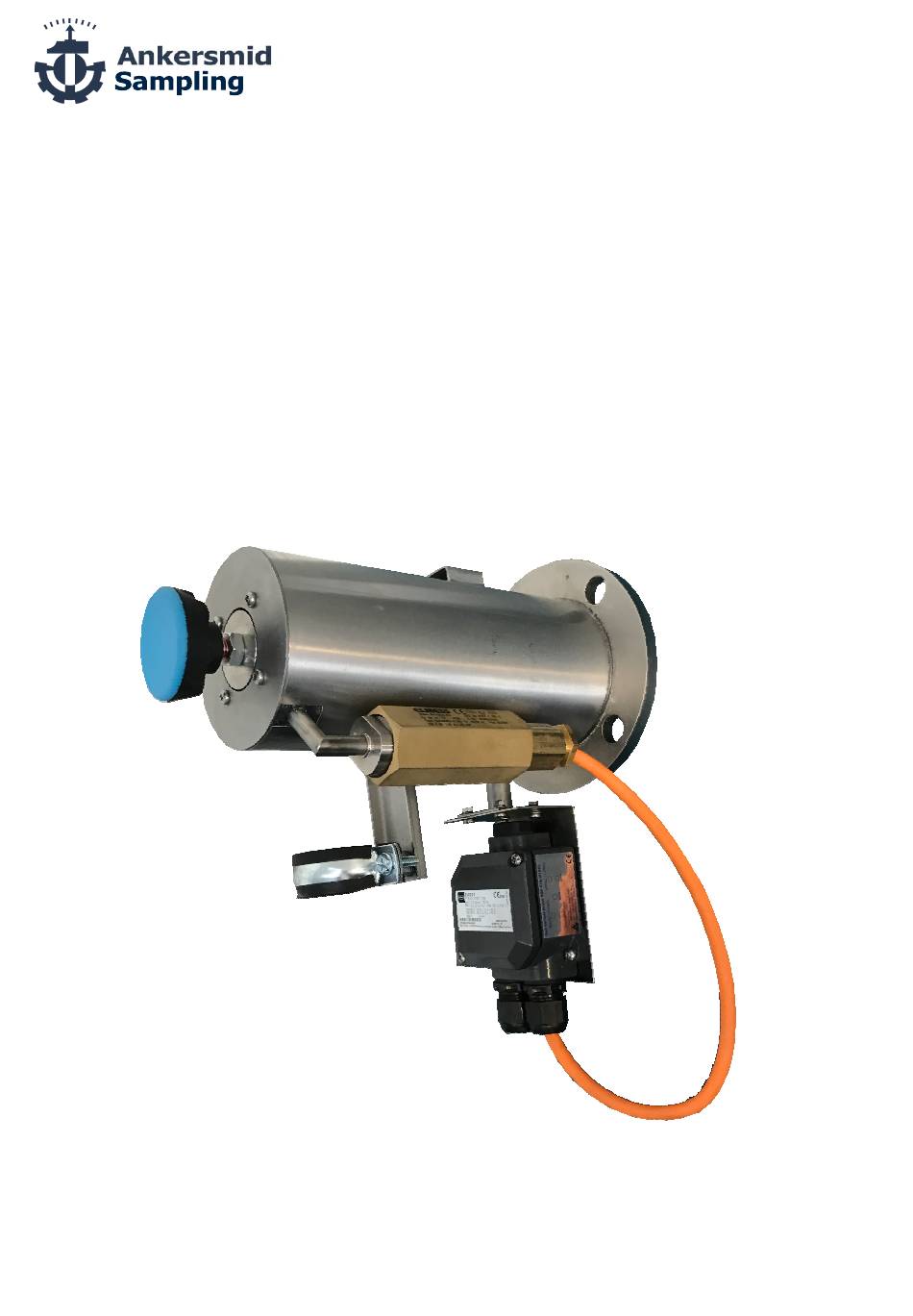

Gas sample probes Series ASP
according to ATEX Zone 1 & 2
Ankersmid Sampling
Neerlandweg 21
2610 Wilrijk
Belgium
Version ASP 630Ex
Instruction Manual ASP630Ex (05/2017)
www.ankersmidsampling.com
info@ankersmidsampling.com
Page 1 of 15
© Reproduction of this document or its content is
not allowed without permission of Ankersmid.
Technical Details Subject to Change
Advertisement
Table of Contents
Related Manuals for Ankersmid Sampling ASP Series
Summary of Contents for Ankersmid Sampling ASP Series
- Page 1 Ankersmid Sampling User Manual Gas sample probes Series ASP Version ASP 630Ex according to ATEX Zone 1 & 2 Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com not allowed without permission of Ankersmid.
-
Page 2: Table Of Contents
Sample probe type ASP 618/619Ex drawing……………………………………… Figure 3 Junction box ………………………………………………………………………………… Figure 4 Connection sticker ………………………………………………………………………… Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com not allowed without permission of Ankersmid. -
Page 3: Used Terms And Signal Indications
EC recommendation 73/23 EEC and the recommendation of electromagnetic compatibility 89/336 EEC. Declaration of conformity EU Declaration of conformity is available at Ankersmid Sampling. Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com... -
Page 4: Safety Instructions
E II 2 G Ex e ia IIC T6, T5 Gb Cable glands for electrical box: Certification: IMQ 08 ATEX 012X II 2G/D Ex e II T3 Ex tD A21 Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com not allowed without permission of Ankersmid. -
Page 5: Warranty
F. Introduction The Ankersmid Sampling probes are designed, manufactured and assembled in Belgium. The Ankersmid Sampling probes are used for continuous gas sampling in difficult processes with gases of high or low dust content, different temperatures and extreme humidity. Due to the possibility of use in high dust environments, the probe can be equipped with different kind of filters, pre-filters and blow back (or back-flush) function. -
Page 6: Description
Ankersmid Sampling in Belgium. The sample probe version ASP 630Ex is used for continuous extraction of explosive gases (Ex-zone 1 & 2) from dust load, high temperature and/or humid processes. The probes can be mounted in Ex-zone 1 & 2. The probes have sealing’s made of Viton. - Page 7 Heated sample line Gas cooler Peristaltic pump for condensate removal Figure 1 Standard flow chart of a gas sampling line Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com not allowed without permission of Ankersmid.
-
Page 8: Technical Data
±6 kg MAXIMUM SURFACE TEMPERATURE OF THE GAS SAMPLE PROBE Max. process medium temperature [°C] Max. surface temperature [°C] Temperature class Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com not allowed without permission of Ankersmid. -
Page 9: Versions, Options, Consumable And Spare Parts
ASP 090 Front o-ring for ASP 1xx/APP1xx filter holder, material: Viton ® ASP 091 Back o-ring for ASP 1xx/APP1xx filter holder, material: Viton Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com not allowed without permission of Ankersmid. -
Page 10: Dimensions & Design
Mechanical connection Probe flange DN65PN6b, SS316 Sample tube ¾”f NPT Sample outlet ¼”f NPT Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com not allowed without permission of Ankersmid. 2610 Wilrijk info@ankersmidsampling.com... -
Page 11: Receipt & Storage Of Goods
The goods and the delivery note should be compared. If any difference is noted please contact your Ankersmid Sampling contact person. The delivery should be checked for any transport damage. If any anomaly is noted, please contact the transport insurer immediately notifying of the damage. -
Page 12: Preparation For Installation
The ASP probes should only be used in stationary conditions and with correct selection of the sample point and proper installation. When used and properly installed in the prescript area ANKERSMID SAMPLING guarantee a long time of maintenance free and satisfaction use. M.1 Mechanical connection Open the toggle fastener on the top of the cap than remove the cap. - Page 13 A potential equalisation terminal of type of protection Ex e is available on the exterior of each casing, to which the heating cable must be connected with the external potential equalisation source. Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com...
-
Page 14: Getting Started
15min until operating temperature is reached. The sample gas can now be extracted via the probe after this minimum heating-up time. Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com... -
Page 15: Maintenance
The back-flushing pressure may not exceed 6 bar. Ankersmid Sampling Instruction Manual ASP630Ex (05/2017) © Reproduction of this document or its content is Neerlandweg 21 www.ankersmidsampling.com... - Page 17 Type Examination Certificate (Page 1) 12 Type Examination Certificate (Page 1) 8102604300 Junction box S-BA-8102-03-en-16/04/2008 8102/2...
