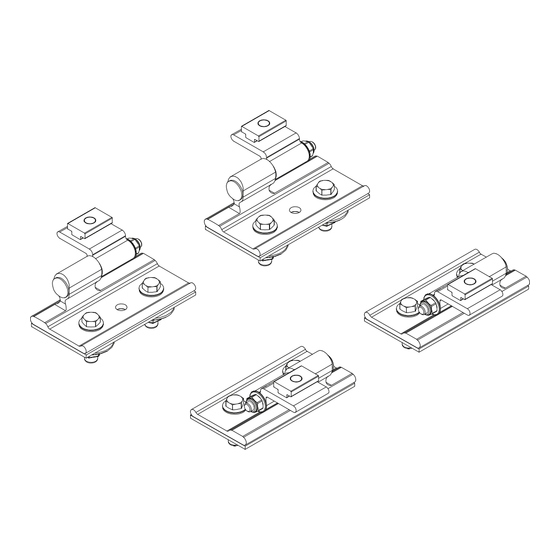

- Page 2 MPK-0007 OVERVIEW Mounting brackets shown in position for illustrative purposes only. Mounting brackets must be located in Cap manufacturer’s designated locations. 1—Mounting Brackets .......... (Qty 4) M8 x 45MM HEX HEAD BOLT (x2) INTERNAL TOOTH LOCK WASHER (x1) M6 CHANNEL T INSERT (x1) SEALING WASHER (x2) CHANNEL CONNECTOR (x1) M8 x 95MM HEX HEAD BOLT (x1)
- Page 3 MPK-0007 Set mountings into pre-drilled holes as shown. MOUNTING BRACKETS F r o R i g R e a Bolt Sealing Washer Mounting Bracket Foam Pad Rubber Washer Rear Front Fender Washer Locknut Nut Cap F r o R e a F r o R e a Torque nuts to 90 in-lbs...
- Page 4 USAM-MPK0007-US01 Rev-A 0718...
