Transparent Locker Assembly Guide
1.
(heck material received against the packing list. First check the number of packages received and then
check the contents of each package.
2. (heck material received for damage. If damage has occurred. secure a "damage not at ion" from the carrier.
3. Identify each part as it is unpacked and put like parts together as close as possible to the working area
in which they are to be assembled.
4. Be careful to use the correct hardware as specified in the assembly instructions.
5. Items with suffix (xxl are available options.
IN THE INTEREST OF SAFETY. ALL LOCKERS MUST BE SECURELY ANCHORED TO THE FLOOR AND/OR WALL.
FOR SAFETY.HANDLE ALL COMPONENTS CAREFULLY AND WEAR WORK-GLOVES WHEN ASSEMBLING LOCKERS.
StoreMoreStore.com | 855-786-7667 | sales@storemorestore.com
SMS-05-V39-USVP
1 WIDE
6 TIER
FRONT VIEW
General Instructions
CAUTION
INST ALL ALL UNITS PLUMB AND TIGHTEN ALL HARDWARE SE(UREL Y
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

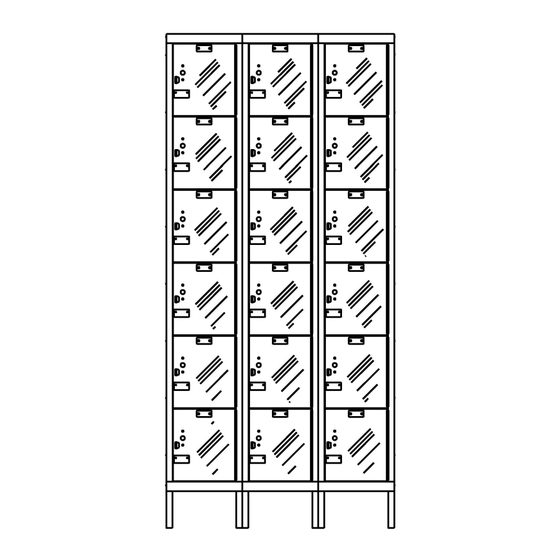

3 WIDE
6 TIER
FRONT VIEW
