STOREMORESTORE SMS-03-V90-SSG-PH Assembly Manual

Pharmacy Cabinets Assembly Guide

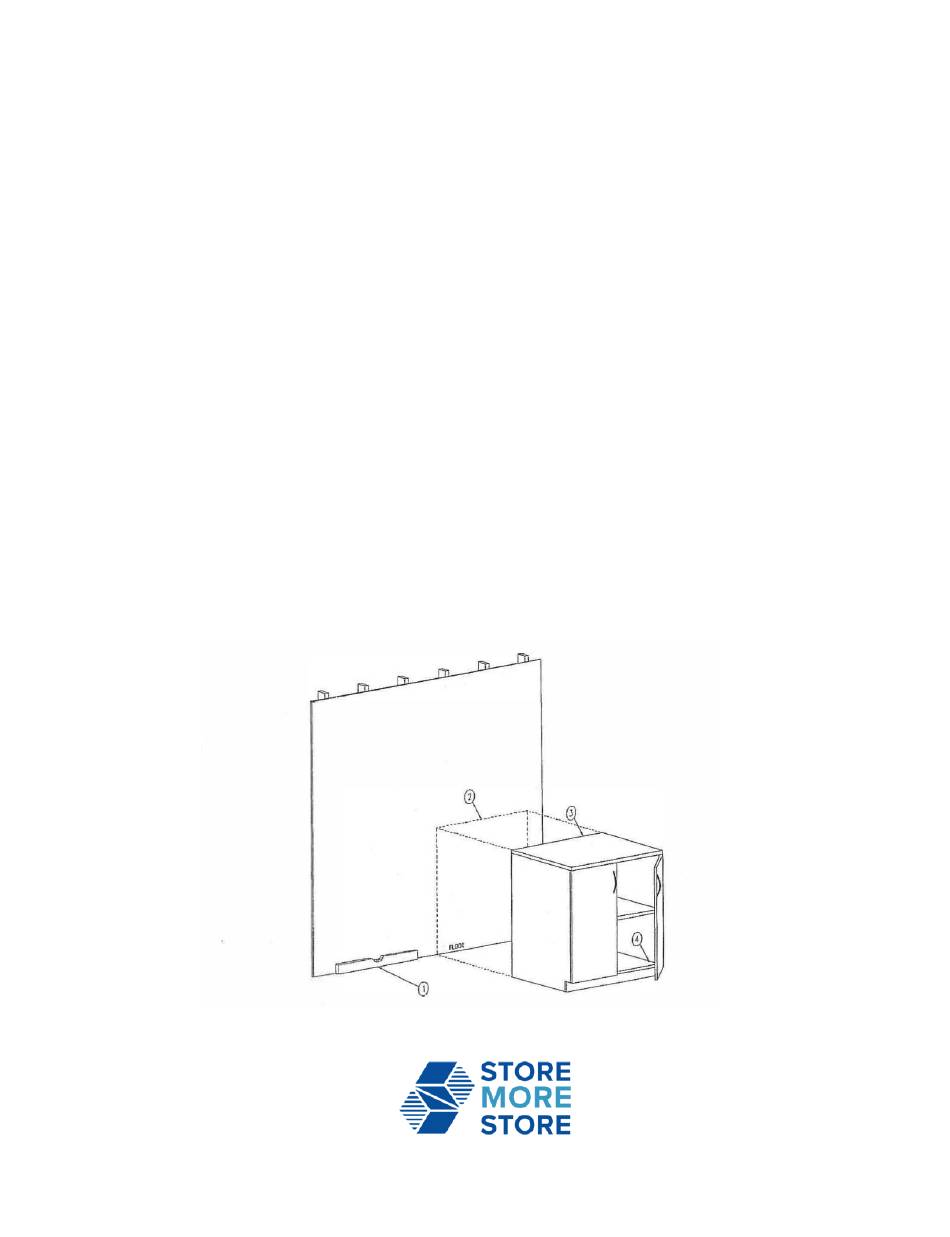

(I) Using a level, find the highest point on the floor of the cabinet run.
(2) Layout the cabinet ( s) Iocation(s) on the wall using vertical lines to mark the
outside of the cabinet(s).
(3) Strut the installation with the base cabinet that will be located on the highest point
on the floor.
(4) Using a level, level the cabinet by making the proper adjustments needed to the
levelers with a 5/32" (4mm) allen wrench through the 19/32" (15nnn) diaineter
pre-drilled holes located in the cabinet base.
( 5) After the first cabinet is in place and leveled, install the next cabinet. Adjust the
levelers where the side panels match the saine height of the previously installed
cabinet, leaving no gaps between.
StoreMoreStore.com | 855-786-7667 | sales@storemorestore.com
SMS-03-V90-SSG-PH
