Summary of Contents for Biostar J4125NHU

  • Page 1 Uputstvo za upotrebu (EN) BIOSTAR J4125NHU matična ploča Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike, potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji. Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike i konkurentne cene proizvoda.
  • Page 2: Fcc Information And Copyright

    FCC Information and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3: Table Of Contents

    Table Of Contents FCC Information and Copyright ������������������������������������������������������������������������������� 1 Chapter 1: Introduction ������������������������������������������������������������������������������������������� 3 1.1 Before You Start ........................3 1.2 Package Checklist ........................ 3 1.3 Specifications ........................4 1.4 Rear Panel Connectors ......................5 1.5 Motherboard Layout ......................6 Chapter 2: Hardware installation �����������������������������������������������������������������������������...
  • Page 4: Chapter 1: Introduction

    J4025NHU | J4125NHU Chapter 1: Introduction 1�1 Before You Start Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below: •  Prepare a dry and stable working environment with sufficient lighting.
  • Page 5: Specifications

    1x TPM Header (Optional) Form Factor Mini-ITX Form Factor, 170 mm x 170 mm Windows 10(64bit) / Windows 11(64bit) OS Support * Biostar reserves the right to add or remove support for any OS with or without notice. 4 | Chapter 1: Introduction...
  • Page 6: Rear Panel Connectors

    J4025NHU | J4125NHU 1�4 Rear Panel Connectors Note »  » VGA, HDMI ports only work with an Intel® integrated Graphics Processor. »  » Maximum resolution  VGA: 1920 x 1200 @60Hz  HDMI: 4096x 2160 @30Hz, compliant with HDMI 1.4 »  » When using the front HD audio jack and plug in the headset, the rear sound will be automatically  Disabled. »  » The mainboard supports two onboard display outputs at same time and the display output  configuration can be selected in Intel graphics driver utility. The 2/ 4/ 5.1/ 7.1-channel configuration Audio Port 2-channel 4-channel 5.1 channel 7.1 channel Blue (Rear Panel)

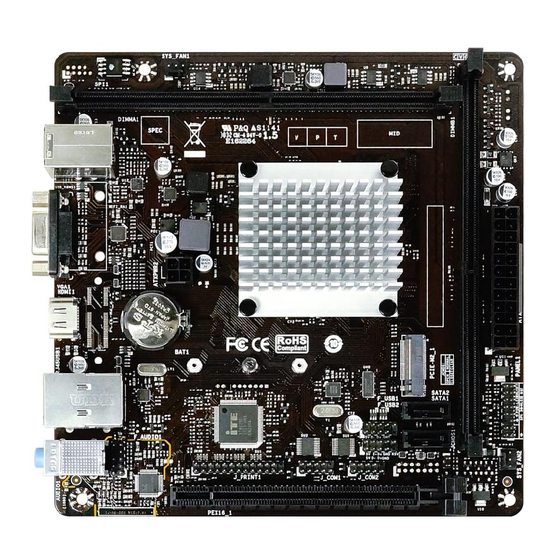

  • Page 7: Motherboard Layout

    1.5 Motherboard Layout Note »  »  represents the 1st pin. »  » The PCIE-M2_2 slot/ TPM header is optional. 6 | Chapter 1: Introduction...
  • Page 8: Chapter 2: Hardware Installation

    J4025NHU | J4125NHU Chapter 2: Hardware installation 2.1 Connect Cooling Fans These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. SYS_FAN1/2: System Fan Header Pin Assignment Ground...
  • Page 9 Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot. Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips snap back in place and the DIMM is properly seated.
  • Page 10: Expansion Slots

    J4025NHU | J4125NHU 2.3 Expansion Slots PEX16_1: PCI-Express Gen2 x16 Slot •  PCI-Express 2.0 compliant. •  Theoretical maximum bandwidth using two slots simultaneously is 8GB/s for each slot, a total of 16GB/s. PCIE-M2_1: M.2 (Key M) Slot •  The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD module, please place the screw and hex pillar to correct position.
  • Page 11 Install an Expansion Card You can install your expansion card by following steps: •  Read the related expansion card’s instruction document before install the expansion card into the computer. •  Remove your computer’s chassis cover, screws and slot bracket from the computer. • ...
  • Page 12: Jumper & Switch Setting

    J4025NHU | J4125NHU 2.4 Jumper & Switch Setting The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”. Pin opened Pin closed...
  • Page 13: Headers & Connectors

    2.5 Headers & Connectors ATXPWR1: ATX Power Source Connector For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector. Assignment Assignment +3.3V +3.3V -12V +3.3V Ground...
  • Page 14 J4025NHU | J4125NHU TPM1: Trusted Platform Module Header (Optional) This header allows you to store cryptographic keys that protect information. Assignment Pin Assignment F_LAD0 F_LAD1 F_LAD2 C_PCICLK_TPM F_LAD3 F_FRAME# 10 NC F_SERIRQ 12 S_PCIRST#_TBD F_CLKRUN 14 +3VSB SATA1/ 2: Serial ATA Connectors These connectors connect to SATA hard disk drives via SATA cables.
  • Page 15: Chapter 3: Uefi Bios & Software

    The BIOS can be updated using either of the following utilities: •  BIOSTAR BIO-Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
  • Page 16 J4025NHU | J4125NHU 6. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click “Yes” to start updating BIOS. 7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the <Y> key to restart system.
  • Page 17 F_AUDIO1: Front Panel Audio Header This header allows user to connect the chassis-mount front panel audio I/O which supports HD and AC’97 audio standards. HD Audio AC’97 Assignment Pin Assignment Mic Left in Mic In Ground Ground Mic Right in Mic Power GPIO Audio Power...
  • Page 18 Then, the BIOS Update is completed. BIOS Update Utility (through a BIOS file) 1. Installing BIOS Update Utility from the DVD Driver. 2. Download the proper BIOS from http://www.biostar.com.tw/ 3. Launch BIOS Update Utility and click the “Update BIOS” button on the main screen.
  • Page 19 5. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on “Open”. It will take several minutes, please be patient. 6. After the BIOS Update process is finished, click on “OK” to reboot the system. 7.
  • Page 20: Software

    J4025NHU | J4125NHU 3.3 Software Installing Software 1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled. 2. Select Software Installation, and then click on the respective software title.
  • Page 21: Chapter 4: Useful Help

    Chapter 4: Useful help 4�1 Driver Installation After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance. You will see the following window after you insert the DVD The setup guide will auto detect your motherboard and operating system.
  • Page 22: Ami Bios Beep Code

    J4025NHU | J4125NHU 4.2 AMI BIOS Beep Code Boot Block Beep Codes Number of Beeps Description Continuing Memory sizing error or Memory module not found POST BIOS Beep Codes Number of Beeps Description Success booting. Display memory error (system video adapter) 4�3 AMI BIOS post code...
  • Page 23 Code Description South Bridge DXE initialization is started South Bridge DXE SMM initialization is started South Bridge devices initialization South Bridge DXE Initialization (South Bridge module specific) ACPI module initialization Boot Device Selection (BDS) phase is started Driver connecting is started PCI Bus initialization is started PCI Bus Hot Plug Controller Initialization PCI Bus Enumeration...
  • Page 24: Troubleshooting

    J4025NHU | J4125NHU 4�4 Troubleshooting Probable Solution 1. There is no power in the system. Power LED does 1. Make sure power cable is securely plugged in. not shine; the fan of the power supply does not work 2. Replace cable.
  • Page 25: Appendix: Specifications In Other Languages

    ® ® Intel Celeron J4025 processor : J4025NHU ‫ﻗﺎﻋﺪة وﺣﺪة اﻟﻤﻌﺎﻟﺠﺔ اﻟﻤﺮآﺰﻳﺔ‬ ® ® Intel Celeron J4125 processor : J4125NHU DDR4-1866/2133/2400 ‫. ار‬ ‫دي‬ ‫ﺗﺪﻋﻢ ﻗﻨﺎة ﻣﺰدوﺟﺔ دي‬ ‫ﺟﻴﺠﺎﺑﺎﻳﺖ ذاآﺮة‬ ‫، ﺗﺘﺤﻤﻞ آﺤﺪ أﻗﺼﻰ‬ DIMM ‫ﻓﺘﺤﺎت اﻟﺬاآﺮة اﻟﻤﺰدوﺟﺔ‬ DDR4 ‫. ار‬...
  • Page 26: German

    1x Header für klares CMOS 1x TPM-Header (wahlweise) Formfaktor Mini-ITX Formfaktor, 170 mm x 170 mm Windows 10(64bit) OS-Unterstützung * Biostar reserves the right to add or remove support for any OS with or without notice. APPENDIX: Specifications in Other Languages | 25...
  • Page 27: Russian

    1 контакт микросхемы Clear CMOS 1 контакт TPM (необязательный) Конструктив Форм-фактор Mini-ITX, 170мм x 170 мм Windows 10(64bit) Поддержка ОС * Biostar оставляет за собой право добавлять или удалять поддержку любой ОС, с уведомлением или без. 26 | APPENDIX: Specifications in Other Languages...
  • Page 28: Spanish

    Factor de Forma Factor de Forma Mini-ITX, 170 mm x 170 mm Windows 10(64bit) Soporte OS * Biostar reserva su derecho de añadir o retirar el soporte para cada OS con o sin notificación. APPENDIX: Specifications in Other Languages | 27...
  • Page 29: Thai

    สนั บ สนุ น OS Biostar ขอสงวนสิ ท ธิ ์ ใ นการเพิ ่ ม หรื อ ถอดการสนั บ สนุ น สำ า หรั บ ระบบปฏิ บ ั ต ิ ก าร OS ต่ า งๆ โดยไม่ ต ้ อ งแจ้ ง ให้ ท ราบล่ ว งหน้ า...
  • Page 30 Ovaj dokument je originalno proizveden i objavljen od strane proizvođača, brenda Biostar, i preuzet je sa njihove zvanične stranice. S obzirom na ovu činjenicu, Tehnoteka ističe da ne preuzima odgovornost za tačnost, celovitost ili pouzdanost informacija, podataka, mišljenja, saveta ili izjava sadržanih u ovom dokumentu.
