BUSH FURNITURE SET037SG Assembly Manual
  1. Manuals
  2. Brands
  3. BUSH FURNITURE Manuals
  4. Indoor Furnishing
  5. SET037SG
  6. Assembly manual

BUSH FURNITURE SET037SG Assembly Manual

Nightstand
Hide thumbs

Advertisement

Quick Links

Download this manual

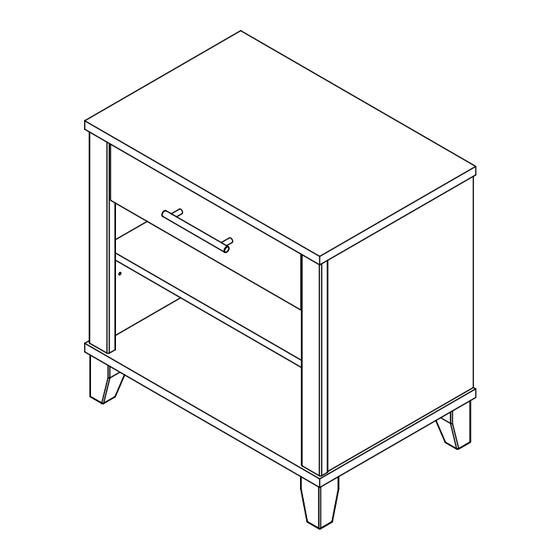

Nightstand
Lot Code #
Instruction Sheet Number A183837C
Keep manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SET037SG and is the answer not in the manual?

Questions and answers

Related Manuals for BUSH FURNITURE SET037SG

Summary of Contents for BUSH FURNITURE SET037SG

  • Page 1 Nightstand Lot Code # Instruction Sheet Number A183837C Keep manual for future reference.
  • Page 2 Get Ready to Assemble A183837C...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Warning Don't Why it's important Serious injury • • Assemble following all instructions Do not move unit when Improper assembly, may occur.
  • Page 4 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Pourquoi c'est Avertissement À faire À ne pas faire important Peut • • Assembler en suivant toutes les Ne pas déplacer le meuble Un assemblage, entraîner des instructions et en utilisant toutes les...
  • Page 5 Get to know your Boards A183837C Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 6 Get to know your Fasteners A183837C Fasteners are shown actual size. H128624 [ 4 ] [ 4 ] H150333 (Black) #8 x .5" #8 x 1-1/2" [ 4 ] H146988 [ 12 ] H28917 (Silver) #6 x 1/2" Euro 13/14mm [ 8 ] H103801 [ 4 ]...
  • Page 7 Get to know your Hardware A183837C Hardware not to scale. [ 4 ] H23604 [ 2 ] H100445 Shelf Pin DWR Bracket 14" Slide Mount [ 1 ] Z89893 [ 4 ] Foot 14" Slide Mount [ 1 ] Z89894 [ 1 ] 14"...
  • Page 8 Build Drawer STEP A183837C [ 4 ] H146988 [ 2 ] H100445 Euro 13/14mm DWR Bracket H128624 [ 4 ] (Black) #8 x .5" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 9 Build Drawer STEP A183837C [ 4 ] H150333 #8 x 1-1/2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 10 Build Drawer STEP A183837C [ 6 ] H28917 14" Slide Runner (Silver) #6 x 1/2" [ 1 ] Z89895 [ 1 ] Handle 14" Slide Runner [ 2 ] H23480 [ 1 ] Z89896 #8-32 x 7/8" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 11 Assemble Panels STEP A183837C 14" Slide Mount [ 3 ] H28917 [ 1 ] Z89893 (Silver) #6 x 1/2" [ 2 ] H38169 [ 2 ] H23370 Wood Dowel 8 x 30 #10 x 1-1/4" Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 12 Assemble Panels STEP A183837C 14" Slide Mount [ 3 ] H28917 [ 1 ] Z89894 (Silver) #6 x 1/2" [ 2 ] H38169 [ 2 ] H23370 Wood Dowel 8 x 30 #10 x 1-1/4" Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 13 Assemble Panels STEP A183837C [ 4 ] H38169 Wood Dowel 8 x 30 Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 14 Prepare Panel STEP A183837C [ 4 ] [ 8 ] H103801 #10 x 5/8" Foot [ 4 ] H143460 #12 x 4" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 15 Assemble Panels STEP A183837C [ 2 ] H23491 #10 x 2" Finished edge Borde acabado Bord fini Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 16 Assemble Panels STEP A183837C [ 2 ] H23491 #10 x 2" Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 17 Assemble Panels STEP A183837C [ 4 ] H191173 25mm Quiklock Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 18 Assemble Panels STEP A183837C Team Lift [ 20 ] H34174 1/16" Nail 19mm 1/16" Safety glasses Gafas de seguridad Lunettes de protection Grain to inside Grano para el interior Grain de l'intérieur Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 19 Insert Drawer STEP A183837C Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 20 Drawer Adjustment STEP A183837C DRAWER FRONT VIEW REQUIRED TOOL: PHILLIPS SCREWDRIVER HERRAMIENTA REQUERIDA: DESTORNILLADOR PHILLIPS OUTIL REQUIS: TOURNEVIS CRUCIFORME 1. LOOSEN SCREWS. 2. ADJUST DRAWER FRONTS. 3. TIGHTEN SCREWS. 1. Afloje los tornillos 2. Ajustar frentes de cajón 3. Apriete los tornillos 1.
  • Page 21 Insert Adjustable Shelf STEP A183837C [ 4 ] H23604 Shelf Pin Finished edge Borde acabado Bord fini Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 22 Maximum Loading and Cleaning STEP A183837C Gently clean surfaces with a damp sponge eraser. Maximum Weight: 25 Lbs. Peso Máximo: 25 Libras Poids Maximum: 11.3 kilogramme Maximum Weight: 5 Lbs. Peso Máximo: 5 Libras Poids Maximum: 2.2 kilogramme Maximum Weight: 15 Lbs. Peso Máximo: 15 Libras Poids Maximum: 6.8 kilogramme Congratulations! You are all done.

  • Page 23: Parts List

    PARTS LIST A183837C STS119AG STS119SG STS119PG LABEL PART NUMBER LABEL PART NUMBER LABEL PART NUMBER W196182 W191065 W206616 W196183 W191345 W206617 W191346 W196184 W206618 W196185 W183833 W206619 W196186 W183834 W206620 W196187 W183832 W206621 W196188 W200198 W206622 W196189 W183835 W206623 W184207US W184207US W184207US W107108...
