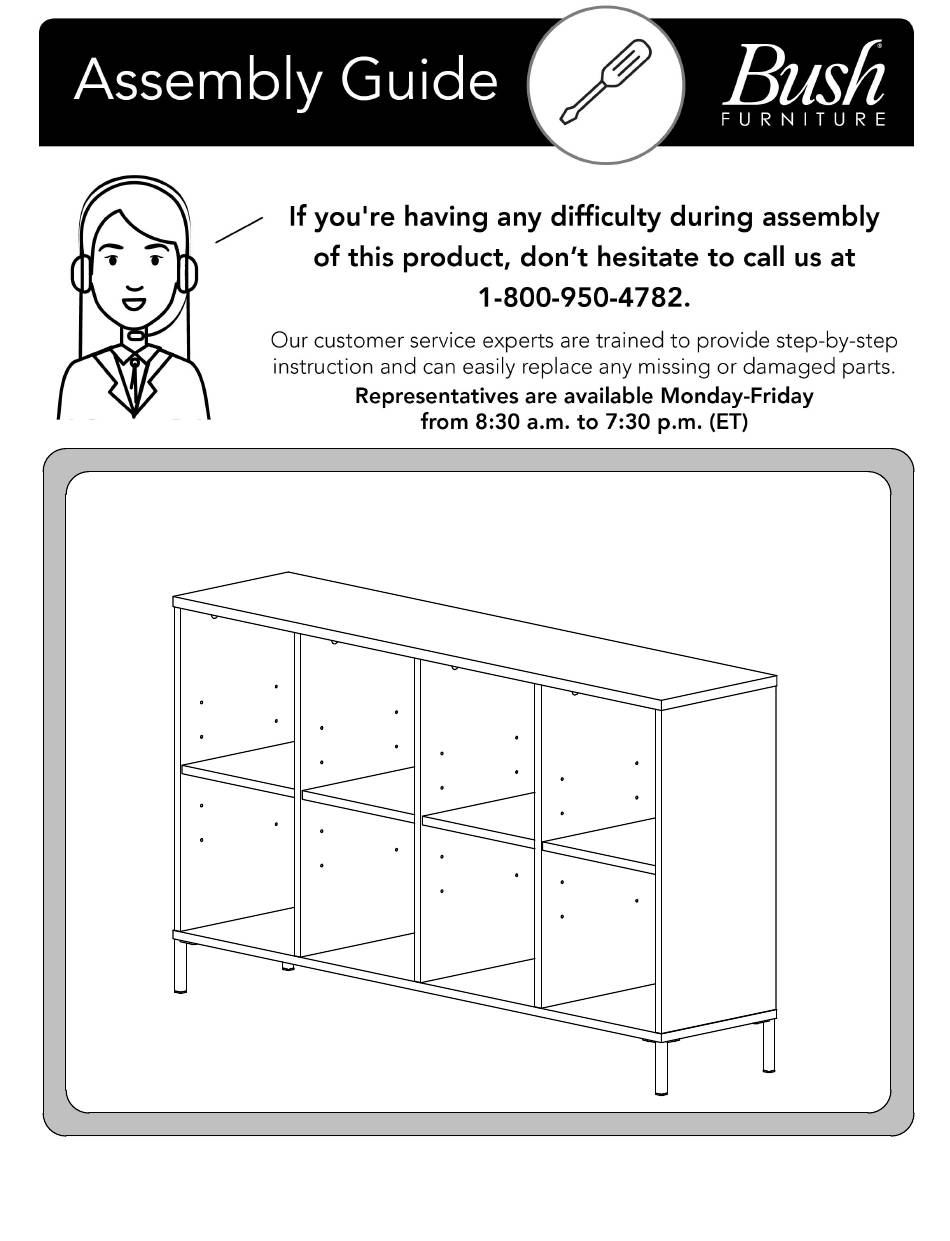

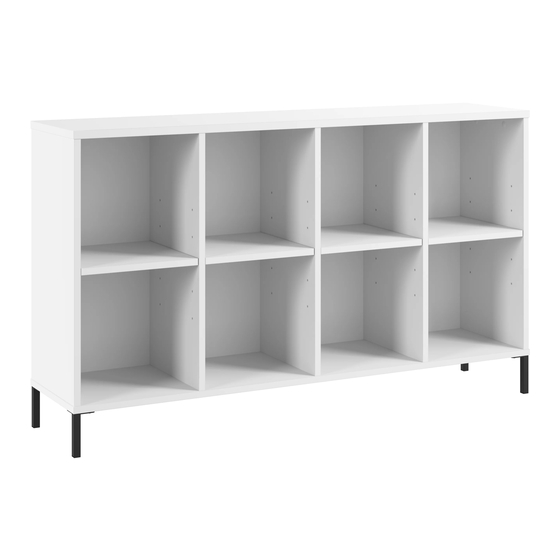

- Page 1 8 Cube Bookcase Lot Code # Instruction Sheet Number A219163 Keep manual for future reference.
- Page 2 Get Ready to Assemble A219163...
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Why it's Warning Don't important Serious • • Assemble following all instructions using all Do not move unit when Improper injury may indicated parts and hardware provided. - Page 4 IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Pourquoi c'est Avertissement À faire À ne pas faire important Peut • • Assembler en suivant toutes les instructions et Ne pas déplacer le meuble Un assemblage, entraîner des...
- Page 5 Get to know your Boards A219163 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 6 Get to know your Fasteners A219163 Fasteners are shown actual size. [ 6 ] H171556 [ 4 ] H72988 KD Bolt Quickfit TL4 [ 10 ] [ 12 ] H181468US H23119 (Black) #10 x 5/8" KD Cam3000 [ 10 ] H23491 H218834 [ 4 ]...
- Page 7 Get to know your Hardware A219163 Hardware not to scale. [ 16 ] H126396 [ 16 ] H23604 Shelf Pin Shelf Pin Sleeve [ 10 ] [ 4 ] Cover Cap Foot TIPOVER RESTRAINT HARDWARE SUGERENCIA SOBRE HARDWARE DE RETENCIÓN MATÉRIEL DE RETENUE SUR LE SUPPORT [ 2 ] [ 1 ]...
- Page 8 STEP A219163 Prepare Panel [ 4 ] [ 6 ] H72988 H171556 KD Bolt Quickfit TL4 H171556 Raw edge Orilla sin acabado Côté brut Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 9 STEP A219163 Attach Panels [10 ] H181468US KD Cam3000 190° Minimum [ 10 ] Cover Cap Raw edge Orilla sin acabado Côté brut Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 10 STEP A219163 Prepare Panel H218834 [ 4 ] [ 12 ] H23119 [ 4 ] M5 x 35mm (Black) #10 x 5/8" Foot Flip panel over Voltear el panel Retournez le panneau Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 11 STEP A219163 Attach Panel Team Lift [ 10 ] H23491 (Black) #10 x 2" Raw edge Orilla sin acabado Côté brut Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 12 STEP A219163 Attach Panel [ 47 ] H34174 Nail 19mm Grain to inside Grano para el interior Grain de l'intérieur Safety glasses Gafas de seguridad Lunettes de protection 1/16" Raw edge Raw edge Orilla sin acabado Orilla sin acabado Côté brut Côté...
-
Page 13: Wall Attachment
STEP A219163 Wall Attachment Secure unit to the wall with a tip-over restraint. Unidad de seguro a la pared con un sistema de retención de un vuelco. Fixer l'unité au mur avec un dispositif de retenue renversement. 1. Place unit in desired location. 2. - Page 14 STEP A219163 Wall Attachment WALL STUD ATTACHMENT Drill 1/8" hole 2" deep at mark on wall. Taladro 1/8 "agujero 2" de profundidad en la marca en la pared. Percer 1/8 "trou de 2" de profondeur à la marque sur le mur. [ 1 ] H181412 [ 1 ]...
- Page 15 STEP A219163 Wall Attachment [ 1 ] H107572 [ 1 ] H181412 #8 x 1-1/2" Connecting Plate Drill 1/8" hole 1" deep at mark on unit. Taladro 1/8 "agujero de 1" de profundidad en la marca de la unidad. Percer 1/8 "trou 1" de profondeur à la marque sur l'unité. [ 1 ] H181411 Nylon Cable Tie...
- Page 16 STEP A219163 Insert Shelves [ 16 ] [ 16 ] H126396 H23604 Shelf Pin Shelf Pin Sleeve Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
- Page 17 STEP A219163 Maximum Loading & Cleaning Gently clean surfaces with a damp sponge eraser. Maximum Weight: 200 Lbs. Peso Máximo: 200 Libras Poids Maximum: 90.7 kilogramme Maximum Weight: 25 Lbs. Peso Máximo: 25 Libras Poids Maximum: 11.3 kilogramme Maximum Weight: 25 Lbs. Peso Máximo: 25 Libras Poids Maximum: 11.3 kilogramme Congratulations! You are all done.
-
Page 18: Parts List
PARTS LIST A219163 ESB150BL ESB150WH LABEL CODE PART NUMBER LABEL CODE PART NUMBER W219135 W219139 W219119 W219155 W219120 W219156 W219124 W219129 W219138 W219142 W219128 W219123 W219141 W219137 Q217907 [ 4 ] Q218672 [ 4 ] Foot Foot [ 10 ] H73619 [ 10 ] H73621...
