Kramer NT-52P Quick Start Manual

NT-52P Quick Start Guide
This guide helps you install and use your NT-52P for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
NT-52P Ethernet Gateway
1 Power supply (12V DC)

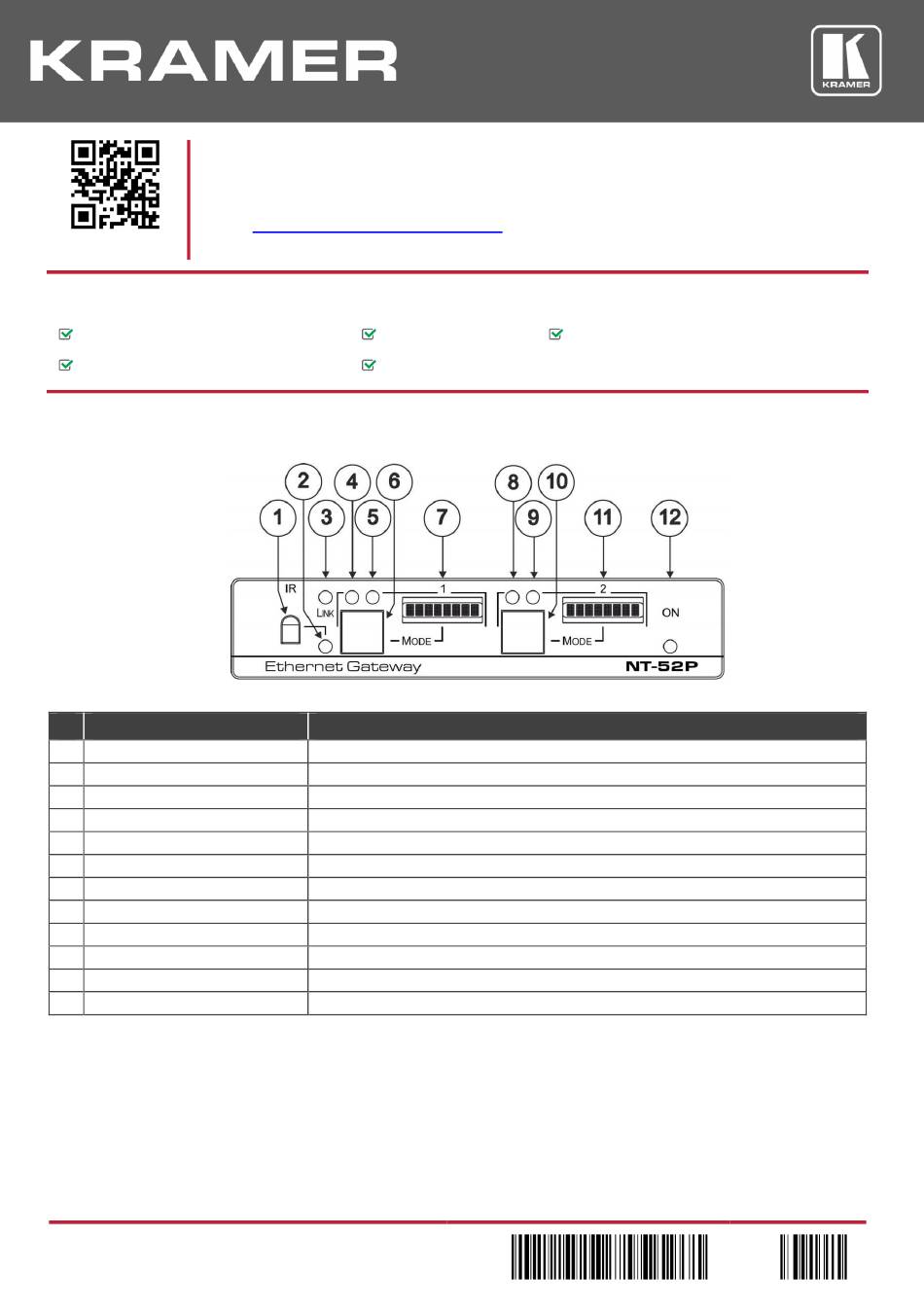

Step 2: Get to know your NT-52P
# Feature
1 IR Sensor
2 IR LED
3 LINK LED
4 Port 1 Blue LED
5 Port 1 White LED
6 Port 1 MODE Button
7 Port 1 MODE LCD Display
8 Port 2 Blue LED
9 Port 2 White LED
10 Port 2 MODE Button
11 Port 2 MODE LCD Display
12 ON LED
NT-52P Quick Start (P/N: 2900-300586QS REV 1)
www.kramerav.com/downloads/NT-52P
4 Rubber feet
1 Quick start guide
Function
Sensor for IR learning
Lights blue to indicate IR activity
Lights blue to indicate Ethernet link activity
Port 1 activity left indication. For functionality, see the function table
Port 1 activity right indication. For functionality, see the function table
Press to cycle through and select Port 1 mode function
Displays selected Port 1 mode function: RS-232, RS-232 Cross, RS-485, Relay, IR, GPIO
Port 2 activity left indication. For functionality, see the function table
Port 2 activity right indication. For functionality, see the function table
Press to cycle through and select Port 2 function
Displays selected Port 2 mode function: RS-232, RS-232 Cross, RS-485, Relay, IR, GPIO
Lights green when unit power is on
to download the latest user manual and check if firmware
1 Bracket set
P/N: 2 9 0 0 - 3 0 0 5 8 6 QS Rev: 1
