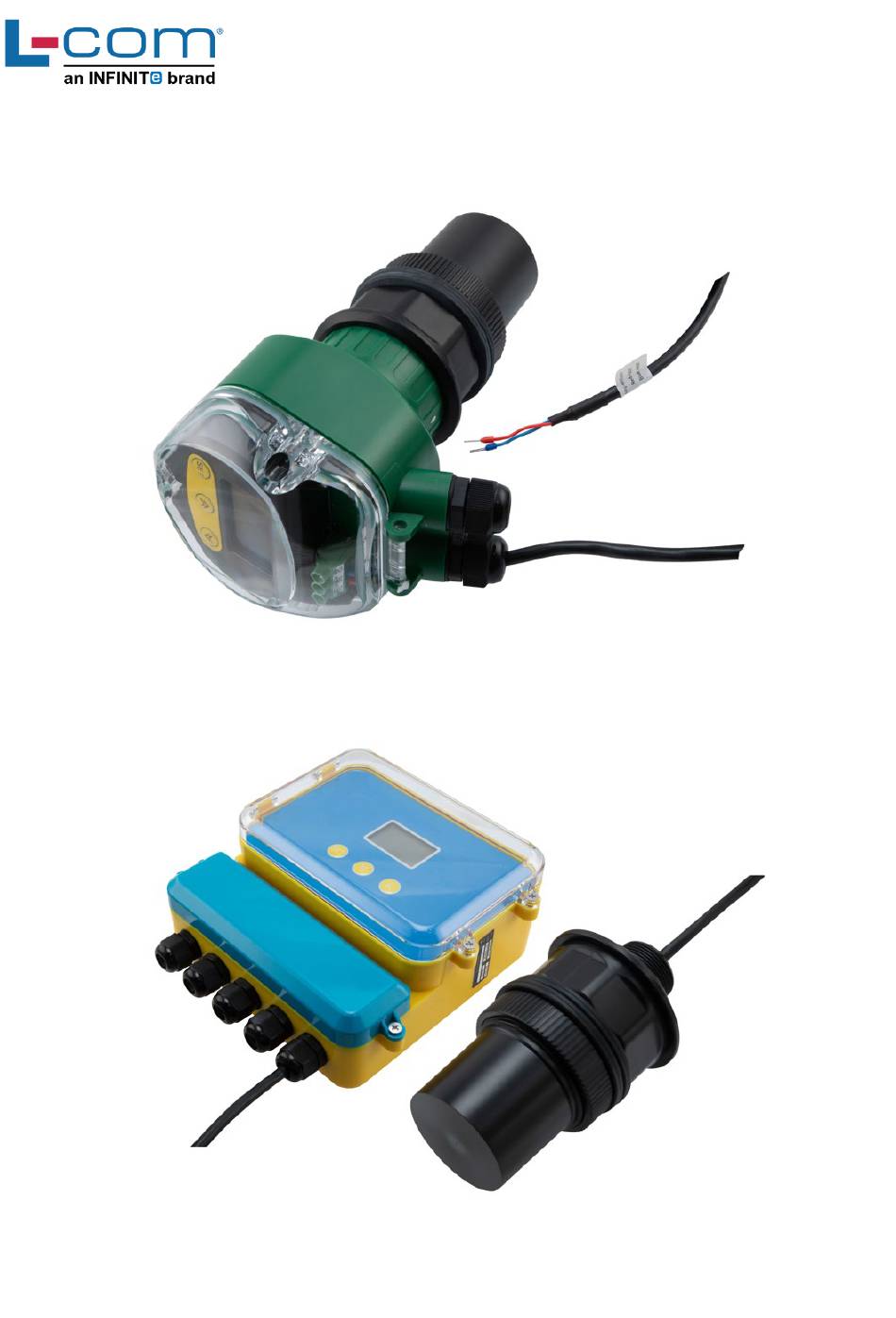

- Page 1 Ultrasonic Level Sensor Operating Instructions and Settings for Part Numbers LLUSCS01-520x and LLUSCS02-530x LLUSCS01 Integrated Ultrasonic Level Sensor LLUSCS02 Ultrasonic Level Sensor & External Gauge...
-
Page 2: Panel Description
PANEL DESCRIPTION There are three buttons on the panel, via which the meter can be adjusted. The measured values are displayed on the LCD screen after the adjustment. Button Buttons • Enter menu item • Move cursor Confirm menu item Choose menu item •... - Page 3 ② Under material level measuring mode, the positions of reference zero-point, maximum of measuring range and minimum of measuring range are as shown in Fig. 1.2. Fig. 1.1 Diagram of Distance Measurement Fig. 1.2 Diagram of Material Measurement Level Minimum of measuring range: it is the value of distance between the reference plane to the position, which is positive when the minimum of measuring range is above the reference plane and negative when the minimum of measuring range is below the reference plane.
- Page 4 MAIN TECHNICAL INDICATORS Function Separate Type Integrated Type Measuring range 5m, 10m, 5m, 10m, Measurement accuracy 0.5% 0.5% Resolution ratio 3mm or 0.1% (whichever is greater) 3mm or 0.1% (whichever is greater) Display English LCD English LCD 4-line system 4~20mA/ 510Ω load Analog output 2-line system, 4~20mA/ 250Ω...
- Page 5 Selecting measuring range Measuring range is decided by the range of ultrasonic probe which is subject to the site working environment, object to be measured and temperature, etc. Decide the measuring range needed based on the table below: Attenuation Attenuation Liquid Surface Magnification of Measuring Range Multiple...
- Page 6 The calculation method of signal attenuation is to add all signal attenuation amounts if there are several conditions on site. With little feedstock 5...10dB With little steam 5...20dB Temperature difference between probe and medium surface ≤40ºC 5...10dB Total minimum: 15dB, maximum: 40dB Under such circumstances, if the actual maximum measuring range is 5m, ultrasonic level meter with measuring range of 50m should be selected for the measurement.
- Page 7 LIQUID MEASUREMENT Flat-Top Tank Normally, the flat-top tank comes with a short connecting pipe with a datum plane that forms the undersurface of the flange. If the connecting pipe length is ≤60mm, inner diameter is ≥100mm and inner wall is smooth and free of burr and bulges, the measurement can be carried out if the emitting surface of installed probe is 3cm below the flange undersurface.
- Page 8 Probe installation on nipple joint Similarly, the other type of sensor can be installed via top hoisting thread and the dimensions of hoisting thread include M30×1.5, M32×1.5 and M38 ×1.5. Hoisting thread connection at the separate type probe top Arch Tank Top For arch tank, it’s better not to install the meter in the middle of the tank top.
- Page 9 Installation on flange – arch tank top For most arch tanks, the length of connecting pipe plus flange on the top is 150-180mm. But the part below the probe thread of ultrasonic level meter is not long enough (elongated probe is available for customization to make sure the probe emitting surface is below the connecting pipe bottom).
-
Page 10: Flange Installation
As the open container has no focusing effect, the sensor can be installed in the middle of the container. Installation on open container – with support at the top middle part Draining Well and Common Well Normally, the wellhole and wellhead of drainage well are narrow, and the well wall is uneven, which makes it difficult to conduct ultrasonic measurement. - Page 11 Integrated-type sensor installed on container flange Separate-type sensor installed on container flange Installation via Nipple Joint During installation via nipple joint, the probe must be exposed for at least 2cm above the connecting pipe bottom. Integrated-type sensor – installation via nipple joint...
-
Page 12: Doorframe Installation
Doorframe Installation Doorframe installation is ideal for the open container and the axis of connecting pipe must be aligned to the container opening or perpendicular to the medium surface. Integrated-type sensor – doorframe installation During installation for material piles in open air, several meters are required for measurement. The meters can be fixed on the hoist frame and sensor probe should be aligned to a medium surface. - Page 13 Connecting pipe cannot be soaked in the viscous medium If the medium is non-adhesive, the extended connecting pipe can be soaked in it for a long time (as long as the pipe is not corroded by the liquid and no impurities come in contact with its inner wall). In this way, measurement can be more accurate. The inner diameter of connecting pipe should be as great as possible and the inclined cut must be smooth.
- Page 14 Extending the connecting pipe for solid measurement Measurement of solid medium is different from that of liquid. The conical extended connecting pipe with an angle of 25°~30° should be used. Extended connecting pipe for solid medium measurement Devices and installation in the container ★...
- Page 15 The devices in the container such as pipe and support will affect the measurement. For accuracy of measuring points, it must be ensured that no other devices are within the diffusion range of ultrasonic wave signal. Barrier in the container - pipe The sensor should not be installed in or above the charging feedstock flow and it should be kept at a distance from the feed inlet.
-
Page 16: Common Installation Errors
Barriers at the pool bottom – reflect with a deflector If there is strong eddy or vortex in the container, such as eddy caused by the stirrer or strong chemical reactions, the measurement can be difficult. The ideal method is to install the sensor probe in the waveguide or by-pass pipe for measurement. Great fluctuation at medium surface –... - Page 17 ② Incorrect installation direction of the sensor If the sensor is not aligned to the medium surface, the measuring signal will be weakened. To ensure the best measurement effect, the axis of sensor should be aligned to the surface, i.e., perpendicular to the surface of measured interface. Sensor probe should be perpendicular to medium surface ③...
-
Page 18: Electric Wiring Diagram
ELECTRIC WIRING DIAGRAM ★ Prompt: make sure the connecting cable between the probe and meter body of separate-type ultrasonic level meter is long enough in advance. Connection with other cable for extension on site is prohibited as it will affect the signal transmission quality and strength. ★... - Page 19 WIRING METHOD OF RELAY OUTPUT Wiring Diagram of Integrated Type: ◆Enhanced integrated type with four-wire system Electric Wiring Diagram of Enhanced Integrated Type with Four-wire System 24VDC Power Supply Wiring Diagram of Four-wire System...
- Page 20 220VAC Power Supply Wiring Diagram of Four-wire System ◆Enhanced integrated type with two-wire system Electric Wiring Diagram of Two-wire System Wiring Diagram of Two-wire System Ampere Meter Diagram of Two-wire System...
- Page 21 ◆Explosion-proof integrated type with four-wire system Electric Wiring Diagram of Explosion-proof Integrated Type with Four-wire System 24VDC Power Supply Wiring Diagram of Four-wire System 20VAC Power Supply Wiring Diagram of Four-Wire Sys...
- Page 22 ◆Explosion-proof integrated type with two-wire system 24VDC Electric Wiring Diagram of Explosion-proof Integrated Type with Two-wire System Wiring Diagram of Explosion-proof Connection of Explosion-proof Integrated Type with Two-wire System Integrated Type with and Ampere Meter SETTINGS Introduction of Interface of Operation Mode Two working modes - operating and setting modes - are provided for this series of ultrasonic level meter.
- Page 23 Menu Interface & Operating Instructions: • The menu modes include expert setting mode and simple setting mode. • See the homepage for menu query table of simple setting mode. • See the appendix for menu query table of expert setting mode. •...
- Page 24 Descriptions： Unlock: unlock, and all parameters of the menu can be changed randomly. All-lock: the changes can be made only after entering password. ★ If the parameters are locked, press SET and enter in the unlocking interface for parameter locking: ◆...
- Page 25 Safe Level (Safe material level): there are four optional items, i.e., remaining, minimum value, maximum value and setting value. Remaining: the display value is the final measured value before wave loss, and the current is the corresponding value. Minimum: the display value is 4mA after wave loss, and the current 4mA. Maximum: the display value is 20mA after wave loss, and the current 20mA.
- Page 26 ◆ "5 Algorithm Select (Set probe)" (do not modify this parameter) Algorithm Select (Select algorithm): there are seven options, including special environment 1, special environment 2, special environment 3, special environment 4, special environment 5, special environment 6, and special environment 7. ◆...
- Page 28 ◆ "7 Calibration (Parameter correction)" (do not modify this parameter) Carry out correction of range, sound velocity, current output, and reference level. 1. Range Adjust (Range correction): after input of the actual value, the system will correct the range automatically. Factory default is the measured value.
- Page 29 ◆ "9 Reset options" Factory reset: Yes: restore factory settings so that setting error can be resolved. No: exit. Factory default is No. System reset: Yes: restore system settings. No: exit. Factory default is No. (Do not modify this item.) FAULTS AND HANDLING If all wirings are normal through inspection in case of a fault and the ultrasonic level meter is grounded, you can keep pressing "▲", then press "SET"...
- Page 30 Ultrasonic Level Meter MODBUS Communication Protocol Version V1.4 MODBUS—RTU communication protocol The hardware is adopted with RS-485, master-slave half-duplex communication, that is, the host calls the slave address, and the slave answers. Data frame: 10 digits, 1 start bit, 8 data bits and 1 stop bit, without verification. Baud rate: 2400, 4800, 9600 and 19200 (9600 by default).
- Page 31 When the slave machine does not receive correctly, it will send back following values: Low-order byte of Error information High-order byte of CRC code code CRC code The first byte, ADR: address code of slave machine (=001~254) The first byte 86H: function code of writing error of register number The third byte information code: See the table of information code The fourth and fifth bytes: CRC16 verification from byte 1 to byte 3 6、...
- Page 32 6、 Register Definition Table: (Note: Register address coding adopts hexadecimal system.) Register Description Read Only Register address Description Read Only address Distance/Level Analog output instantaneous value 0000 instantaneous value (2 bytes √ 0001 √ (2 bytes MSB first) MSB first) Instantaneous temperature 0002 √...
- Page 33 REMARKS: It is indicated by 2 bytes, MSB: (Note: floating-point numbers are rounded by 100 and expressed in hexadecimal) The returned distance or level value is expressed in cm. ◆ Example: The current instrument address is 1. Send: 01 03 00 00 00 01 84 0A Return: 01 03 02 b9 88 The two red bytes indicate that the current measurement is 0.16 m (0x0010) Notes:...
