Summary of Contents for ALIGATOR Watch AMOLED AW09

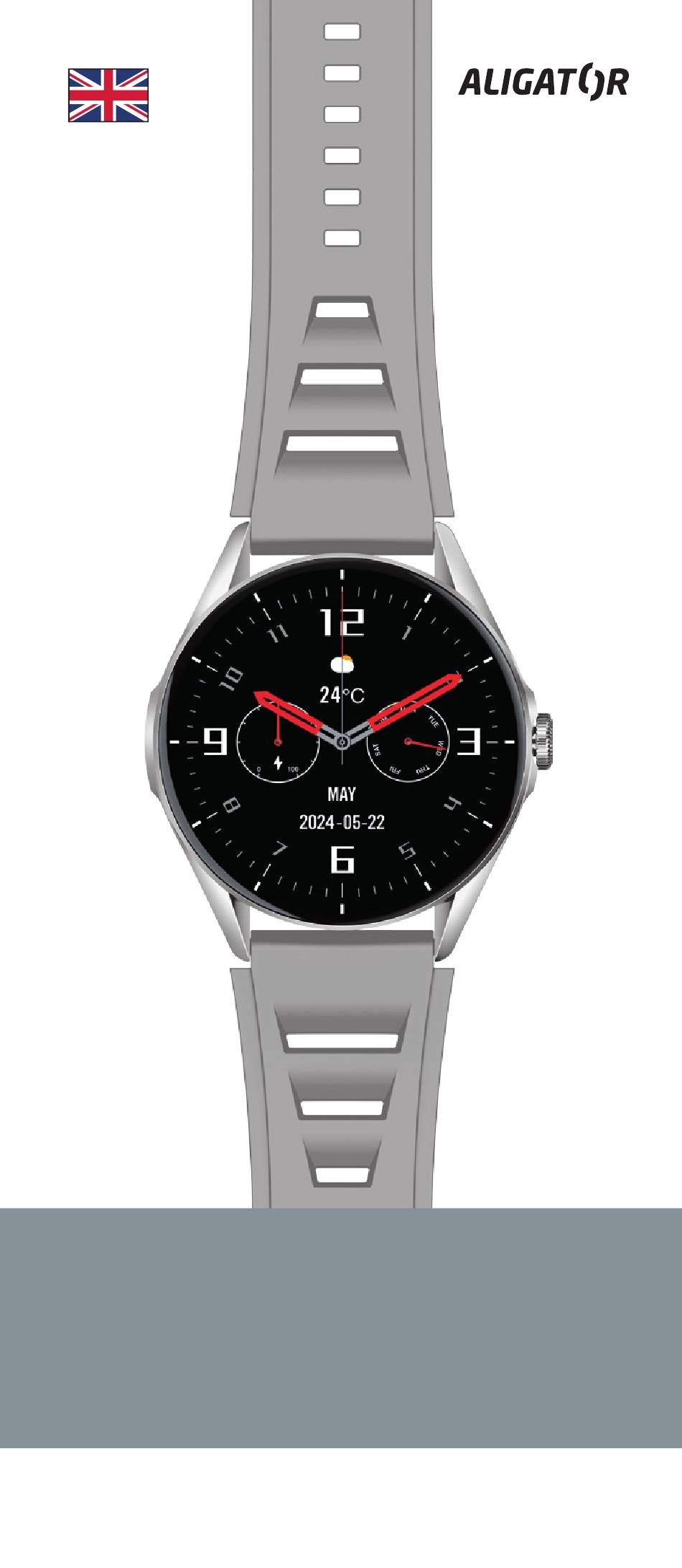

  • Page 1 Aligator Watch AMOLED Instructions for use...
  • Page 2 Basic layout of screens Aligator Watch AMOLED...

  • Page 3: Table Of Contents

    Table of Contents Important instructions ......2 Controls and strap fitting .......4 Wearing a  watch correctly .....4 Charging ..........5 Switching on and off ......5 Control basics .........5 Always ON Display ........6 Menu of functions .........8 Useful features ........12 Information screens ......13 Connecting your watch to your phone ........

  • Page 4: Important Instructions

    Thank you for purchasing an ALIGATOR product. Please read these instructions on how to use your new smartwatch. Important instructions • Handle the product and accessories with care and protect them from mechanical damage and dirt. • Protect the product and accessories from extreme temperatures. • Do not throw the product into fire or expose it to temperatures above +60°C.
  • Page 5 For more information, tutorials and video tutorials on how to set up your smartwatch, visit: http://www.aligator.cz/awamoled...

  • Page 6: Controls And Strap Fitting

    Controls and strap fitting The watch is controlled by a touch screen a button on the side. The strap of the watch can be easily put on or taken off using the lever located on each of the lugs on the underside of the strap. Push the lever and the spring bar will release.

  • Page 7: Charging

    Charging Charge the watch before using it for the first time. To charge, use the included magnetic adapter, which is attached to the contacts on the back of the watch. The magnets will hold the end of the adapter in the correct position. Plug the other end of the adapter into a suitable USB socket.

  • Page 8: Always On Display

    Always ON Display Always ON Display is a feature of the Aligator Watch Amoled that allows you to view information on the display even when the watch is asleep. You can choose from two types of time display – analogue or digital.
  • Page 9 The menu of functions can be accessed by sliding your finger across the display from left to right (the opposite movement takes you back). The bubble menu is displayed by default. To select the selected function, tap the appropriate icon in the menu. Menu style can be toggled in settings.

  • Page 10: Menu Of Functions

    Feature menu By swiping the display from left to right, you can select from the menu of the following functions: Phone The dial pad is used to manually enter the phone number for the call. Favorite List of favorite contacts to contacts call from the watch.
  • Page 11 Sports Measurement of training activity. A variety of sports and activities are available. This menu can be expanded using the application, where you choose the desired sport or activity and add it to the watch (more in the “Adding sports modes to the watch” chapter).
  • Page 12 Display of blood oxygenation – Blood experimental function, the oxygenation measured value may not correspond to reality and cannot be guaranteed in any way, approximation from the heart rate sensor is used for measurement. Cannot be used for medical urposes. Messages History of recent messages received.
  • Page 13 Timer Simple timer (minute). Alarm Possibility to set several clock alarms. The settings are in the app and you can turn the alarm on/off in the watch. Wallet Adding a QR code for incoming payments. Business Allows you to upload card a QR business card for social networks and other communication platforms...

  • Page 14: Useful Features

    Camera Allows you to remotely control the camera shutter on your phone. Requires running the app on your phone. Settings Settings and useful functions. Useful Features In the function menu, select Settings and choose one of the useful functions: Menu style The watch offers 5 menu display styles.

  • Page 15: Information Screens

    Vibration Watch mode settings – mute, and Sound vibrate or vibrate and sound + vibration intensity. Language Selection of the language mutation of the watch from dozens of options. QR code It will display a QR code to download the app. Time Possibility to set the time and setting...
  • Page 16 DAILY Displays a daily summary ACTIVITY of steps walked, calories burned and distance walked. Scroll up from the bottom to view the last 7 days. PULSE Starts measuring the current heart rate. Scroll up from the bottom to see the measurements throughout the day and the average heart rate.

  • Page 17: Connecting Your Watch To Your Phone

    Connecting your watch to your phone For full functionality, you need to connect the smartwatch wirelessly to the app on your phone. Download and install the Fit Cloud Pro app on your phone: Attention! After installation and the first run, you will need to enable all the permissions that you will be asked for several times, otherwise the application will not work properly.

  • Page 26: Display Measured Data On Your Phone

    “Allow”. 2. Bring the watch close to your phone and the app will list the devices found. 3. Select Aligator Amoled and tap “Connect”. 4. You will need to confirm this connection on your watch.

  • Page 27: Watch Settings

    Watch settings The watch is set up using the Fit Cloud Pro app on your phone. Tap the “Devices” icon at the bottom of the app screen. Now you can make all the settings of the watch, (changing the appearance of the face, alarms, notifications and many other functions).
  • Page 28 ATTENTION! When you connect and activate the calling function, the music and audio playback from your phone and the voice assistant control are also redirected to the watch. To activate and deactivate the telephoning function The phone function on your watch will turn on automatically when you pair it.
  • Page 29 • Tap the speaker icon to adjust the volume. • The microphone can be switched on/off using the microphone icon. If the phone call function is active, music and audio from your phone will be transferred to your watch. You can also use the remote control function on your mobile phone player with your watch to enjoy music directly on your watch...

  • Page 30: Setting The Look Of The Dial

    Setting the look of the dial Aligator Watch Amoled offers a wide range of watch face designs. Several looks are pre-installed directly in the watch. Dozens of additional looks are then available through the app, including the ability to set a custom photo or image...
  • Page 31 3. Confirm the selected dial by touching the screen. You can also change the dial in the menu: Settings Dial Change dial or by turning the button on the side of the watch. Select other dial designs in the app 1.

  • Page 32: Record Your Workout On Your Watch Or In The App

    5. You can set the position of the time display or the font colour in the “Colour and Position” subfolders. 6. When you have finished setting up, press the „Set as dial“ button and “Confirm” here. Record your workout on your watch or in the app As mentioned in the Features section, the watch allows you to record workouts...

  • Page 33: Add Sports Modes To Your Watch

    Adding sports modes to your watch As mentioned in the Features Menu chapter, the watch allows you to add several additional sports modes directly to the watch. 1. In the “Devices” tab, select the “Other Sports” tab 2. Wait a moment for all available sports modes to load.

  • Page 34: Find Your Phone With Your Watch And Vice Versa

    Find your phone with your watch and vice versa If the watch is connected to your phone, it can be easily located. Select “Find phone” from the watch‘s function menu. You can then tap the icon on the watch screen to start playing audio on the watch.

  • Page 35: Troubleshooting

    Troubleshooting Notifications do not appear on the watch Please make sure you have enabled Fit Cloud Pro to access notifications as described in this guide (see Setting up notifications on your watch). Alternatively, open your phone’s settings and type “access to notifications” in the search box and check that access is enabled for Fit Cloud Pro.

  • Page 36: Safety And Ecology

    Safety and ecology Built-in battery The product contains a built-in single- cell lithium battery, which does not belong in normal municipal waste and may contain substances harmful to the environment! Once the product has reached the end of its life, the battery can be removed and handed over for further environmentally friendly treatment.

  • Page 37: Declaration Of Conformity

    Declaration of Conformity ADART COMPUTERS s.r.o. hereby declares that the type of radio device Aligator Watch Amoled, L61D, complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available on the following website: www.aligator.cz...
  • Page 38 Aligator Watch AMOLED with many great features on offer! www.aligator.cz...
