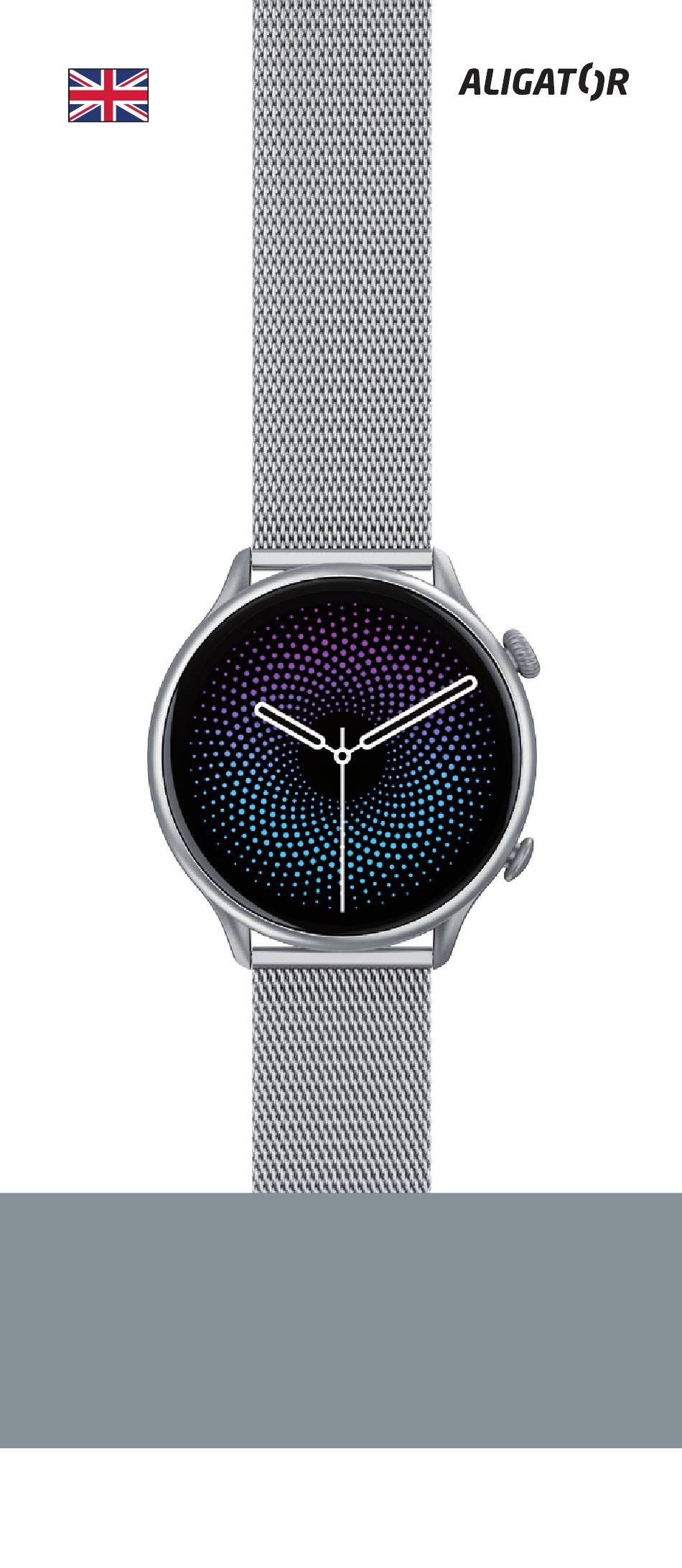

- Page 1 Aligator Watch Lady X Instructions for use...
-
Page 2: Table Of Contents
Table of Contents Important instructions ......4 Controls and strap fitting ......6 Wearing a watch correctly .......6 Charging ..........7 Switching on and off ........7 Control basics ..........7 Feature menu ......... 10 Useful features ........12 Information screens ....... 13 Connecting your watch to your phone ........15 Display measured data on your phone ........16... - Page 3 Basic layout of screens Aligator Watch Lady X...
- Page 4 Lots of useful features on offer...
-
Page 5: Important Instructions
Thank you for purchasing an ALIGATOR product. Please read these instructions on how to use your new smartwatch. Important instructions • Handle the product and accessories with care and protect them from mechanical damage and dirt. • Protect the product and accessories from extreme temperatures. - Page 6 For more information, tutorials and video tutorials on how to set up your smartwatch, visit: www.aligator.cz...
-
Page 7: Controls And Strap Fitting
Controls and strap fitting The watch is equipped with two buttons on the side for basic easy operation. The watch display is fully touch-sensitive, which is used to control other functions of the watch. The watch strap can be easily removed by means of a lever located on each of the lugs on the underside of the strap. -
Page 8: Charging
Charging Charge the watch before using it for the first time. To charge, use the included magnetic adapter, which is attached to the contacts on the back of the watch. The magnets will hold the end of the adapter in the correct position. Plug the other end of the adapter into a suitable USB socket. - Page 9 To view the function menu, slide your finger across the display from left to right (move backwards to go back). A circular menu is displayed by default. To select a function, tap on the corresponding icon in the menu and tap in the middle of the display to activate it. In the settings, the menu style can be switched to a classic line list (Settings...
- Page 10 To go back up a level in the menu either press button , or swipe the display from left to right. To quickly view messages, swipe up from the bottom of the main screen (swipe back the other way to go back). Swipe down from the top of the main screen for quick setup and overview (swipe back to go back).
-
Page 11: Feature Menu
Feature menu Swipe the display from left to right to select from the following functions: Steps Number of steps per day. It is always counted from midnight. The value is approximate and may differ from the number of steps actually walked. Sleep Displays information and statistics on sleep duration... - Page 12 Phone Telephoning function. List of recent calls, dialer option and display of contacts synced with the watch. Pressure Estimated blood pressure – an experimental function, the measured value may not correspond to reality and cannot be guaranteed in any way, an approximation from the heart rate sensor is used for the measurement.
-
Page 13: Useful Features
Breathing Functions of breathing exercises Settings Settings and useful features. You can set the calling function, brightness, vibration, menu style, view technical information, reset data, etc. Also includes other functions (stopwatch, timer and more). Useful features Select Settings from the features menu and choose one of the useful features: Game A game to pass the time... -
Page 14: Information Screens
Timer Simple timer (minute) Application Displays a QR code to easily download the watch app to your phone. Phone When activated, triggers search sound on the phone in the snooze mode, making it easier to find the phone. Information screens When you swipe the screen from right to left, the information screens for the watch functions will gradually appear:... - Page 15 TODAY Displays the number of steps, last sleep time, and time of training activity. Tap each value to view detailed information. HEALTH Displays your last heartbeat, blood pressure and blood oxygenation. Tap each value to start a new measurement. TIME Displays weather information.
-
Page 16: Connecting Your Watch To Your Phone
Connecting your watch to your phone For full functionality, you need to connect the smartwatch wirelessly to the app on your phone. Download and install the Da Fit app on your phone: Attention! After installation and the first run, you will need to enable all the permissions that you will be asked for several times, otherwise the application will not work properly. -
Page 17: Display Measured Data On Your Phone
Connect your watch to your phone: 1. In the app, go to the watch settings screen by tapping the icon in the middle of the bottom of the screen. 2. Hold the watch close to your phone and press the „Add device“ button. 3. -
Page 18: Monitoring The Physiological Cycle
Monitoring the physiological cycle For monitoring the physiological cycle, menstruation and ovulation periods, etc. Follow these steps: 1. In the app, tap the middle icon at the bottom of the screen, then select „Other“. 2. At the bottom of the menu displayed, you can turn „Physiological Cycle Reminder“... -
Page 19: Setting Notifications On Your Watch
Setting notifications on your watch An important function of the watch is notification of incoming calls, SMS messages, social network messages and notifications from other apps. 1. Go to the device screen by tapping the middle icon at the bottom of the app. 2. - Page 20 To activate and deactivate the telephoning function In order to use the phone feature on your watch, you must first enable it on your watch and then pair your phone to your watch using the dual wireless audio connection. 1. On your watch, go to Settings in the features menu, then tap Phone to display it: On –...
- Page 21 Make calls and play music directly on your watch • Tap the red icon to reject an incoming call, and the green icon to accept it. • Tap the phone icon to switch the phone call between your watch and phone. •...
- Page 22 • History – displays a list of recent calls – tap to call the selected number/name again. • Dialpad – used to manually enter a phone number for a call. • Contacts – a list of your favourite contacts to call from your watch. Set up using the app on your phone.
-
Page 23: Setting The Look Of The Dial
Setting the look of the dial The Aligator Watch Lady X offers a wide range of watch face designs. Several looks are pre-installed directly in the watch. - Page 24 2. The dials installed in the watch will be displayed. 3. At the bottom of the screen, select More dials. Wait a moment for all available dials to load (new dials are added gradually). 4. Tap the dial you want to use, then tap the „Download“...
-
Page 25: Record Your Workout On Your Watch Or In The App
Record your workout on your watch or in the app As mentioned in the Features chapter, the watch allows you to record workouts for several sports. However, you can also record your workout directly using the Da Fit app on your phone. In this case, the watch only serves as a step and heart rate sensor and the workout will be recorded directly in the app, including the route obtained from... -
Page 26: Find Your Phone With Your Watch And Vice Versa
Find your phone with your watch and vice versa If your watch is connected to your phone, it can be easily located. Selec Settings Phone search from the watch‘s features menu. You can then tap the icon on the watch screen to start playing audio on the watch. -
Page 27: Troubleshooting
Troubleshooting Notifications do not appear on the watch Please make sure you have enabled the Da Fit app to access notifications as described in this guide (see Setting notifications on your watch). Alternatively, open your phone‘s settings and enter „access to notifications“ in the search box and check that access is enabled for Da Fit. -
Page 28: Safety And Ecology
Safety and ecology Built-in battery The product contains a built-in single-cell lithium battery, which does not belong in normal municipal waste and may contain substances harmful to the environment! Once the product has reached the end of its life, the battery can be removed and handed over for further environmentally friendly treatment. -
Page 29: Declaration Of Conformity
Declaration of Conformity ADART COMPUTERS s.r.o. hereby declares that the type of radio device Aligator Watch Lady X, NK28, complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available on the following website: www.aligator.cz...
