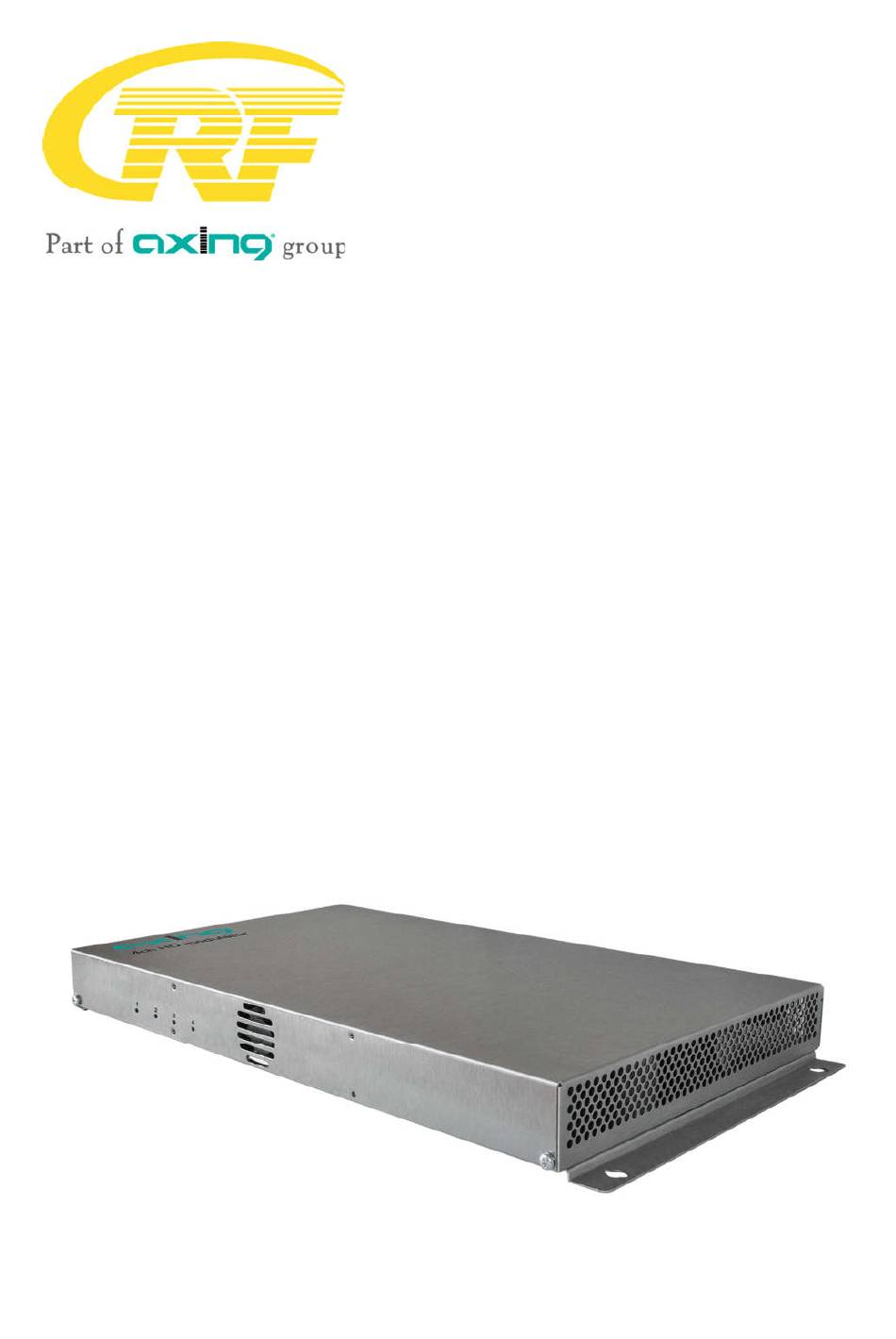

- Page 1 CHP - Compact High Performance Headends HKM-4002H HDMI | DVB-C/T/IPTV encoder/modulator Operation instructions...
-
Page 2: Table Of Contents
Table of contents Product description ................................. 4 1.1. General ..................................4 1.2. Scope of delivery ..............................4 1.3. Input ....................................4 1.4. Output/modulators ..............................5 1.4.1. DVB-C / DVB-T ............................... 5 1.4.2. IPTV ..................................5 1.5. Graphical user interface ............................5 1.6. - Page 3 Use the device only as described in these operating instructions and in particular in accordance with the state of the art. If the device is used for other purposes, no warranty will be assumed! Herewith AXING AG declares that the marked products comply with the valid guidelines.
-
Page 4: Product Description
1. Product description 1.1. General 4 x HDMI into 1 or 2 × DVB-C/T or in IPTV (IPTV with HKS 1-00H) Freely selectable DVB-C/T output channels H.264 Converts the HDMI resolution 1080p@50/60 Hz to DVB-compliant 1080p@30 Hz ... -
Page 5: Output/Modulators
1.4. Output/modulators 1.4.1. DVB-C / DVB-T The HKM 40-02H has four output modulators. Theese will be streamed into one or two output channels. 1.4.2. IPTV The IPTV output of the HKM 40-02H can be activated with the software extension HKS 1-00H. The HDMI signals are then converted into four Single Program Transport Streams (SPTS) and can be distributed via Ethernet using suitable switches. -
Page 6: Display Elements And Connectors
1.6. Display elements and connectors 4 LEDs for the input signal: green HDMI signal ok green flashing low resolution signal no HDMI signal Equipotential bonding connection Mains connection RF output Test port (–30 dB) HDMI inputs RJ-45 Ethernet connector IPTV output RJ-45 Ethernet connector Control... -
Page 7: Mounting And Installation
2. Mounting and Installation Installation must be performed by authorized and skilled electricians only. Before mounting and installation, pull the mains plug (1)! The HKM 40-02H can be mounted on either at the wall or be mounted in a 19 "rack. 2.1. -
Page 8: Mounting In A 19"Rack
RF Output Connect the output of the HKM 40-02H to the existing distribution network. Use shielded coaxial cables with F connectors. You can find suitable cables and connectors in the current AXING catalog or at www.axing.com. If you are using more than one HKM 40-02H, the outputs must be connected with suitable combiner. -
Page 9: Iptv Output
2.6. IPTV output Connect the IPTV output of the device to an IGMP-capable Ethernet switch. Use Cat 7 cable or higher. 2.7. Power supply The HKM 40-02H have a built-in power supply (100 ... 240 VAC / 50 ... 60 Hz). ... -
Page 10: Configuration
3. Configuration The device is configured via the graphical user interface of the integrated web interface. To access the user interface, you need a standard PC/laptop with a network interface and the actual version of the installed web browser. To connect the network interface of the device to the computer, you need a commercially available network cable. -
Page 11: Login
3.1. Login Start your web browser and enter the IP address of the device: 192.168.0.168. The web-based user interface is protected against unauthorized access. When accessing the user interface, the first thing is the password request. Enter the default password: Ramsen8262. Changing the password: ... - Page 12 are displayed for the settings (how to select the modulator type and number is described under on page 13). DVB-C Make a pre-selection using the Country Area menus. Depending on the selection made, the country-specific channels are displayed in the Frequency field. ...
- Page 13 DVB-T Make a pre-selection using the menus. Country Area Depending on the selection made, the country-specific channels are displayed in the Frequency field. If you select in the field, you can enter the frequencies freely. Others Country Select an output level of 90 ... 105 dBµV in the selection field.
-
Page 14: Advanced Rf Settings
3.2.2. Advanced RF settings With RF Output you select whether the signals are transmitted in one (1 Port) or two output channels (2 Ports). In the MOD select field, set whether the signals are modulated in DVB-T or DVB-C ... -
Page 15: Iptv Settings
3.3. IPTV settings The IPTV output of the HKM 40-02H can be activated with the software extension HKS 1-00H. The HKS 1- 00H software extension is installed ex works by our technical support team. The software extension must therefore also be ordered when purchasing the HKM 40-02H. 3.3.1. -
Page 16: Ip Stream Status
3.3.3. IP Stream Status Under IP Stream Status , the status of the IP stream is displayed. 3.4. Video In the main menu, click Video The settings for can be made for each of the four HDMI input ports (1 … 4). Video ... -
Page 17: Audio
Click to save your settings. Safe Settings 3.5. Audio On the main menu, click Audio The settings for the audio source can be made for each of the four input ports. Set the bit rate to 384 Kbps for each audio source in the Encoder Rate field. -
Page 18: Output Streams
3.6. Output streams On the main menu, click Stream Settings can be made for each of the four output streams. 3.6.1. Service In the field, type an ID between 1 and 65535. Service ID The service IDs of all streams in your network must be unique. ... -
Page 19: Lcn
3.6.2. In the LCN fields, enter a logical channel number between 1 and 1023. If the connected TVs support LCN, the respective stream is stored there under the entered program location. Click to save your settings. Safe Settings 3.6.3. -
Page 20: Nit
3.6.4. The NIT setting must only be changed in large networks. Changes should only be carried out by experienced users. Enter the , the , the and the in the OrgNetwork ID Network ID Network Name Network Ver appropriate fields. ... -
Page 21: Transportstream Id
3.6.6. Transportstream ID TS ID (Transportstream ID) must be unique for each transportstream. If further transport streams occur in your DVB-C / T network, you may have to assign a different ID here. Click to save your settings. Safe Settings 3.7. -
Page 22: Retrieve Inventory
The version of the currently installed software can be found in the menu item "Retrieve Inventory". The version of the currently available software can be found on the Internet at https://axing.com/en/downloads/software-and-firmware/ > Software for Encoders A software upgrade will be downloaded directly from the remote server. This requires an existing internet connection of the HKM 40-02H. -
Page 23: Ip Adress
3.7.4. IP Adress Dynamic IP address For Enable DHCP , select enable to include the device in a network with a DHCP server. The headend then receives the IP address, netmask and gateway address from the DHCP server in the network. -
Page 24: Password
3.7.6. Password The factory-set password is: Ramsen8262. After the first commissioning of the cassette, the factory-set password should be changed immediately. Enter a new password with 8 to 10 characters and / or numbers. Re-enter the password. Click to save your settings. -
Page 25: Smartportal
Prerequisite is an internet connection for the device. At State, select enable. Activate, if required, at AXING support the option allowed. In the field Email address, enter the e-mail address with which you are registered at SMARTPortal. -
Page 26: Technical Specifications
4. Technical specifications Type HKM 40-02H Inputs Number 4 × HDMI Supported protocols HDMI 1.3, 1.4a HDCP 1.4 Video resolution 1080p@50 Hz | 1080p@60 Hz Max. bit rate per channel 14 Mbit/s Audio Encoder MPEG-1 audio layer II Video Encoder H.264 (MPEG-4) Output Number of channels... - Page 27 Ethernet standards IEEE 802.3, 100 Base-T Supported configuration HTTP, AXING SMARTPortal** protocols General Operating voltage 100 … 240 VAC/50 … 60 Hz Power consumption 25 W Operating temperature range –10 °C … +50 °C (acc. to EN 60065) Dimensions (W × H × D) appr.
