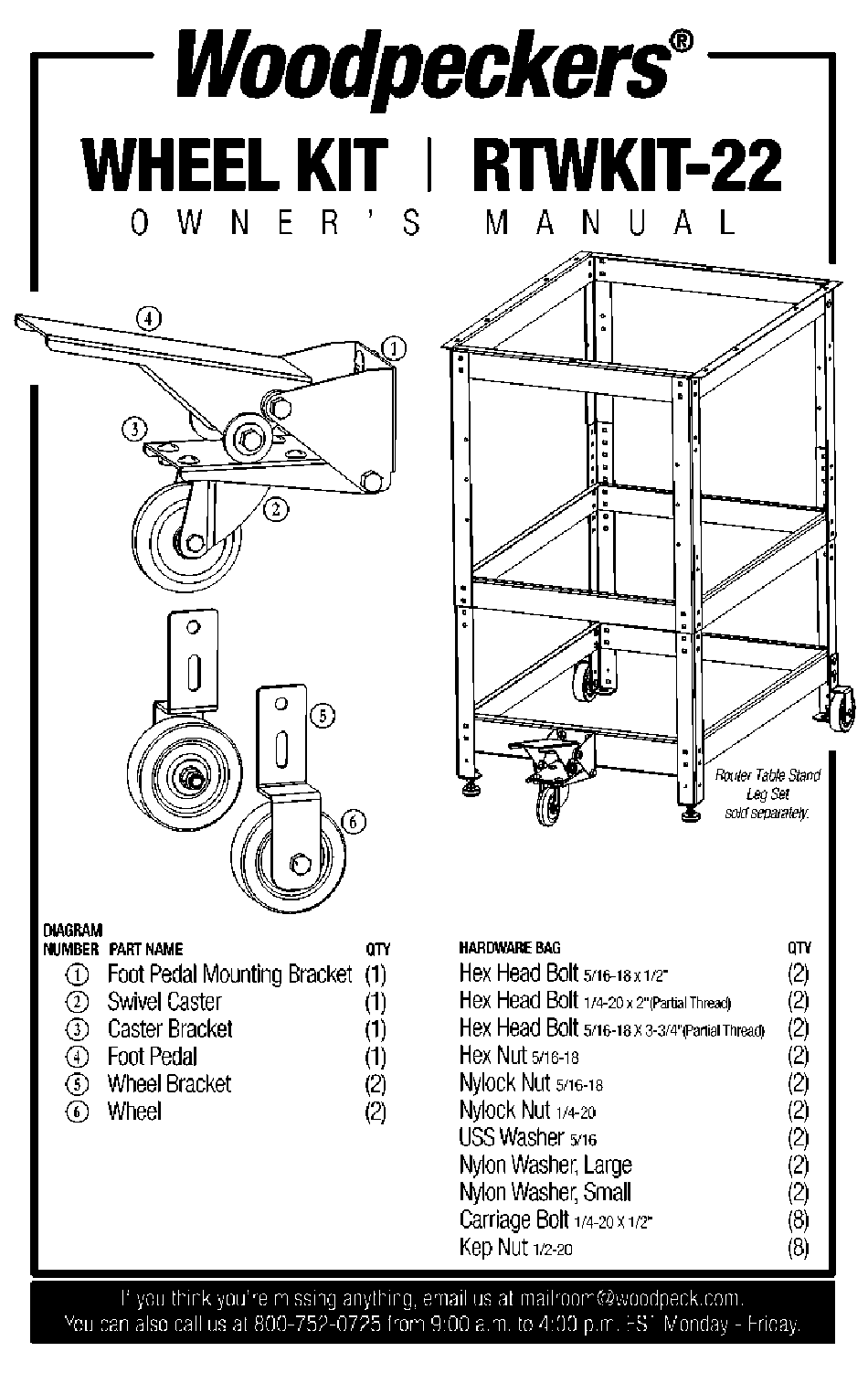

Woodpeckers RTWKIT-22 Owner's Manual

oodpeckers
HEEL KIT
- RT KIT-22
WNER ' S MANUAL
DIAGRAM
NUMBER PART NAME QTY
Foot Pedal Mounting B racket (1)
2
Swivel Caster
(1)
3
Caster Bracket
(1)
4
Foot Pedal
(1)
5
Wheel Bracket
(2)
6
Wheel
(2)
HARD ARE BAG QTY
Hex Head Bolt
5/16-18 x 1/2"
(2)
Hex Head Bolt
1/4-20 x 2"(Partial Thread)
(2)
Hex Head Bolt
5/16-18 x 3-3/4"(Partial Thread)
(2)
Hex Nut
5/16-18
(2)
Nylock Nut
5/16-18
(2)
Nylock Nut
1/4-20
(2)
USS Washer
5/16
(2)
Nylon Washer, Large
(2)
Nylon Washer, Small
(2)
Carriage Bolt
1/4-20 x 1/2"
(8)
Kep Nut
1/2-20
(8)
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
