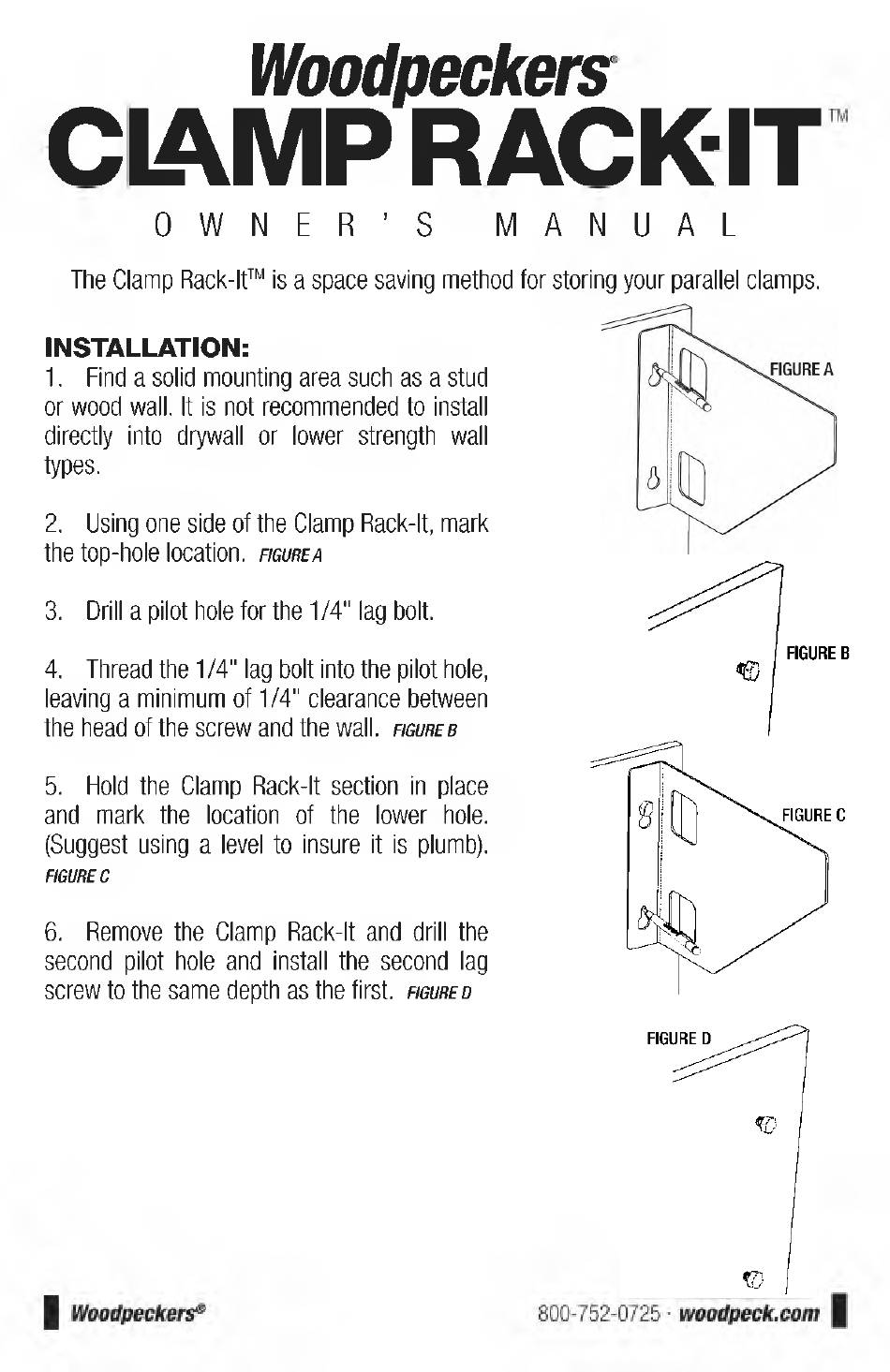

Woodpeckers CIAMP RACK-IT Owner's Manual

oodpeckers
IAMP RA K-IT
WNER ' S MANUAL
The Clamp Rack-lt™ is a space saving method for storing your parallel clamps.
INSTALLATION:
1. Find a solid mounting area such as a stud
or wood wall. It is not recommended to install
directly into drywall or lower strength wall
types.
2. Using one side of the Clamp Rack-lt, mark
the top-hole location .
igure a
.
3. Drill a pilot hole for the 1 /4" lag bolt.
4. Thread the 1/4" lag bolt into the pilot hole,
leaving a minimum of 1/4" clearance between
the head of the screw and the wall .
igure b
.
5. Hold the Clamp Rack-lt section in place
and mark the location of the lower hole.
(Suggest using a level to insure it is plumb).
IGURE C .
6. Remove the Clamp Rack-lt and drill the
second pilot hole and install the second lag
screw to the same depth as the first .
igure d
.
