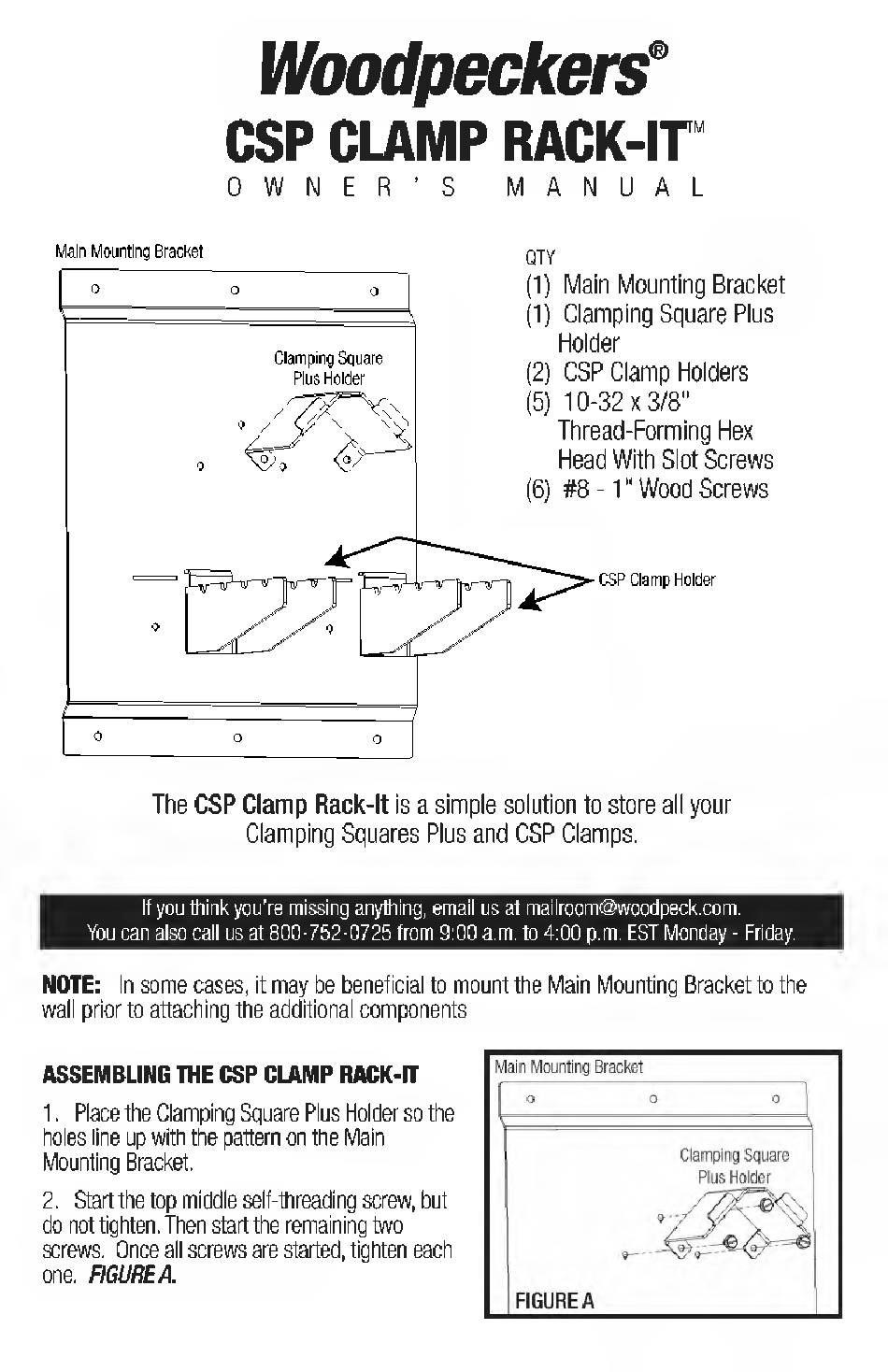

Woodpeckers CSP CLAMP RACK-IT Owner's Manual

oodpeckers®
SP LAMP RA K-IT M
OWNER ' S MANUAL
he SP lamp Rack-It is a simple solution to store all your
Clamping Squares Plus and CSP Clamps.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. ES Monday - Friday.
NOTE: In some cases, it may be beneficial to mount the Main Mounting Bracket to the
wall prior to attaching the additional components
ASSEMBLING THE SP LAMP RA K-IT
1. Plac e the Clamping Square Plus Holder so the
holes l in e up with the pattern on the Main
Mounting Bracket.
2. Start th e top middle self-threading screw, but
do not tighten. hen start th e remainin g two
screws. Once all screws are started, tighten each
one. FIGURE A.
Q Y
Item
(1) Main Mounting Bracket
(1) Clamping Square Plus
Holder
(2) CSP Clamp Holders
(5) 10-32 x 3/8"
hread-Forming Hex
Head With Slot Screws
(6) #8 - 1" Wood Screws
