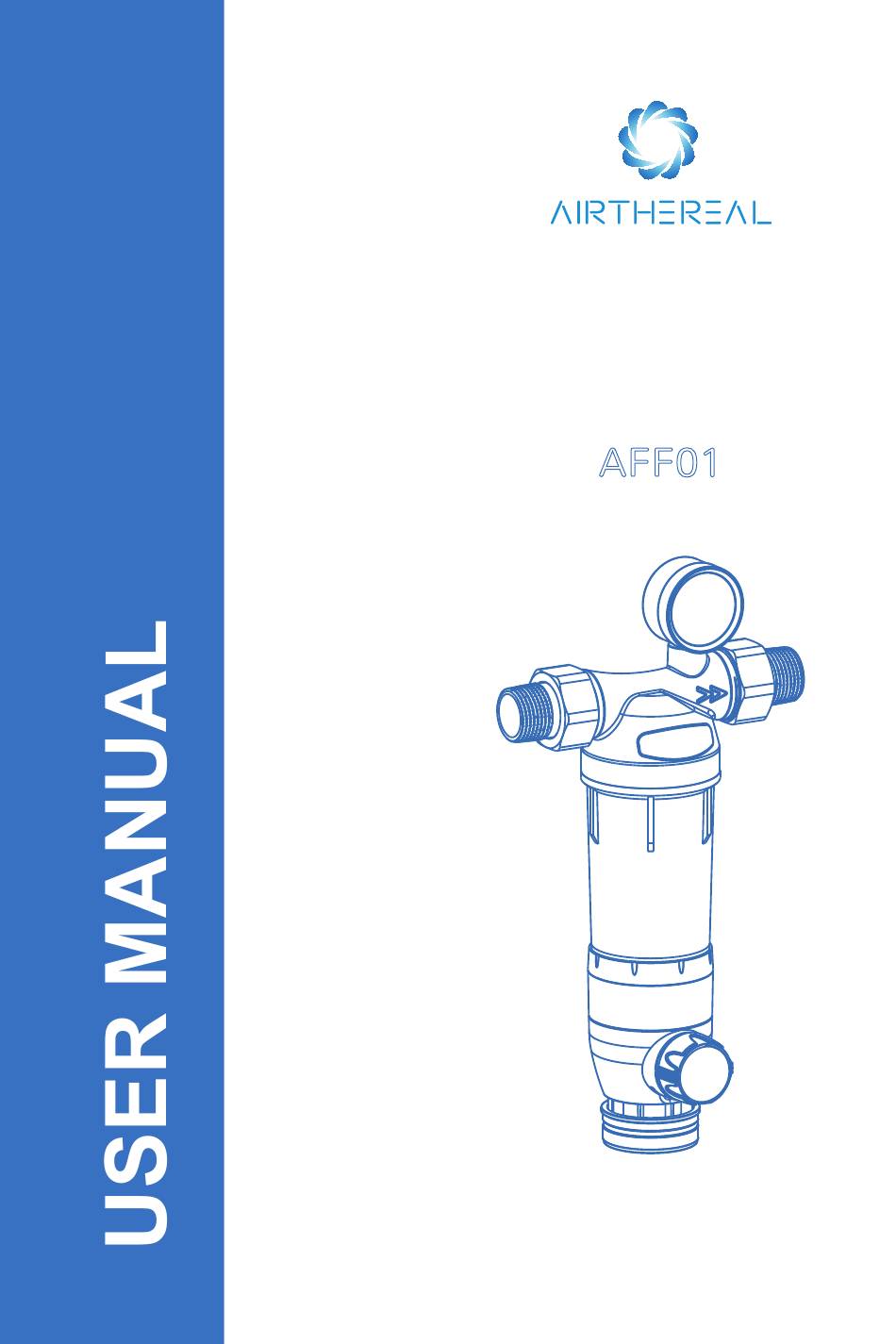

- Page 1 SPIN DOWN SEDIMENT WATER FILTER AFF01 Please read this user manual in its entirety before use and keep it for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ······································································ 02 SPECIFICATIONS ·················································································· 02 COMPONENTS ······················································································ 03 INSTALLATION ······················································································ 03 OPERATION ··························································································· 06 TROUBLESHOOTING ··········································································· 07 LIMITED WARRANTY ············································································ 08... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS: To avoid the risk of serious injury when using your Spin Down Sediment Water Filter, basic safety precautions must be followed, including but not limited to the following. Please check whether the product is damaged after unpacking and whether the accessories are complete. -
Page 4: Components
COMPONENTS Product Pressure Head Component Gauge Hexagon Nut Seal Gasket Lipped Joint O Seal Ring Filter Bottle Integrated Scrape Cleaning Part Filter Screen Part INSTALLATION Note: Please be advised that it is essential to have professional personnel install your water purification equipment. Incorrect installation may result in product leakage, which can potentially cause damage to your property. - Page 5 Step 2: 6.02" According to the size of the Spin Down Sediment Water Filter, cut off the corresponding length of the 2.56" pipe at the installation position of the pipeline. 11.10" 11.81" Step 3: Choose the appropriate connection method. You can connect via PPR pipes or copper pipes, but must use the appropriate joint size.
- Page 6 Step 4: Please pay attention to whether the water flow direction marked on the valve body is consistent with that in the pipeline. Water Meter Water pipe Branch Outlet Main Inlet Valve Pay attention to the flow direction arrow Step 5: Install drain pipe.
-
Page 7: Operation
OPERATION Integrated Scrape Cleaning And Screen Washing Part Ball valve switch Scrape cleaning part After installation, open the main water inlet valve and conduct a flushing. Before flushing, please ensure a reliable drainage system. You can also use a suitable container to hold the water. -
Page 8: Troubleshooting
Install the scraping assembly and screen assembly 1. Install the scraping assembly, taking care that when loading the scraping assembly into the filter bottle, the rounded quadrilateral hole on the assembly is against the quadrilateral column on the bottom of the filter bottle, and install it to the end. -
Page 9: Limited Warranty
This limited warranty is only effective for the original purchaser. It is non-transferable. • How to request warranty services? To obtain the benefit of this warranty, please email support@airthereal.com. Our customer service team will address your issue as soon as possible! - Page 10 Always here to help you www.airthereal.com WARNING Cancer and Reproductive Harm www.p65warnings.ca.gov Produced for: West Ryder Technology LLC 2330 Paseo Del Prado STE C304 Las Vegas, NV 89102 V 202401...
