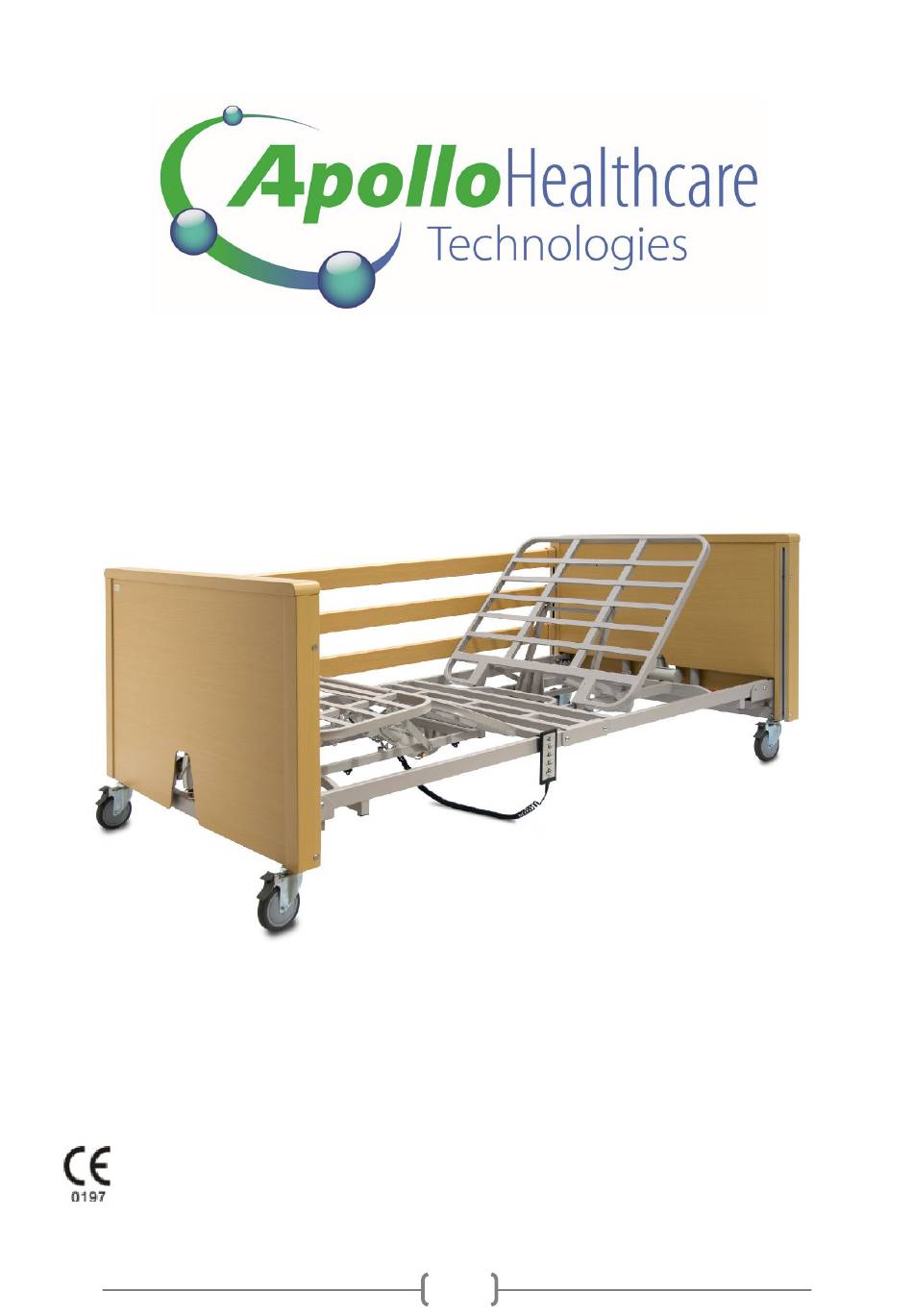

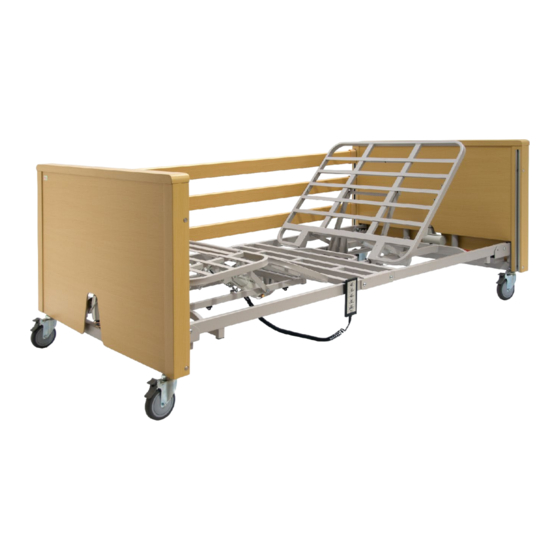

- Page 1 Olympus Bariatric Folding Bed APH100 USER’S MANUAL First Issue (14/02/2024) This product conforms to the standards of the Medical Directive 93/42/EEC as implemented by Legislative Decree 46/97 and s.m.e.i.
- Page 2 1- HEAD PANEL 2- METAL 3-BAR BED RAILS 3- HAND CONTROL 4- BED RAIL RELEASE LEVER 5- FOOT PANEL 6- WHEELS WITH BRAKE 7- BED FOLDING LOCKING LEVER...
-
Page 3: Table Of Contents
INDEX 1. INTRODUCTION Pg.4 2. GENERAL INFORMATION Pg.5 2.1 Groups of people mentioned in this manual Pg.5 2.2 Safety warnings Pg.6 2.2.1Safety symbols used Pg.6 2.2.2 Safety warnings for the owner Pg.6 2.2.3 Safety instructions for the user Pg.7 2.3 Product description Pg.8 2.3.1 Proper use Pg.8... -
Page 4: Introduction
1. INTRODUCTION Dear customer, Apollo Healthcare Technologies wishes to thank you for purchasing one of our nursing beds and for the trust shown in our products. The electrical safety and functionality of each bed have been tested by the manufacturer in order to avoid any faults. -
Page 5: General Information
2. GENERAL INFORMATION Before using the bed: Read through this whole manual in order to avoid causing damages to • the bed due to improper use. Before using the nursing bed, the user must verify its perfect status and complete efficiency. This bed conforms to all the requirements of Directive 93/42/EEC for medical products and it is classified as a Class I medical device. -
Page 6: Safety Warnings
2.2 Safety warnings The nursing bed is a high technology product, therefore make sure to read the complete manual when delivered. Make sure to use the nursing bed only if it is in good condition. The goal of the safety warnings is to avoid injuries to people. 2.2.1 Safety symbols used The following symbols appear in this manual: Warnings against injuries... -
Page 7: Safety Instructions For The User
• Make sure that any possible substitute personnel are also sufficiently trained on how to use the bed correctly. • In case any additional electric accessories are used such as air compressors for overlay mattresses, make sure they are properly installed and work correctly. In particular pay attention to the following: ... -
Page 8: Product Description
2.3 Product description 2.3.1 Proper use • The nursing bed, hereinafter simply called “bed”, is designed for disabled or ill people and is suitable also for home care. • The bed was not specifically designed for hospital use. • This bed can be used for treatment with a doctor’s prescription and it can be used for diagnosis, care or observation of the patient. -
Page 9: Frame
2.3.4 Frame • The bed is supplied fully assembled (except the side rails) to be easily transported by one person into the care facility/house. It is folded up into the transport mode with all motors already attached. The two three-bar metal bed rails and one lifting pole with grab bar (accessory NOT included with the bed) will be supplied separately. -
Page 10: Assembly And Operations
3. ASSEMBLY AND OPERATION • The bed is supplied part assembled. • The bed is assembled on location by the retailer’s personnel. • The installation must be carried out by a minimum of one person. Packaging units: Carton 1: Complete bed frame consisting of the mattress platform and head and foot end panels. - Page 11 Never attempt to unfold the bed automatically before unhooking the transport securing arm. Once the bed frame is in the flat position and the backrest actuator has ceased moving, the bed is ready to be used. Located at the head end of the bed, in the centre of the backrest mattress platform there is a metal pin illustrated in the image above left.
-
Page 12: Use Of Accessories
In case of replacement of any individual components, always make sure that the electric plugs are then properly inserted into the controller. Only in this way the bed will function properly. 3.1.1 Use of accessories Apollo Healthcare Technologies can supply various accessories for use with this bed including side rails, lifting pole, bed lever and dynamic mattress systems. -
Page 13: Operations
During the installation of the bed you must take the following issues into serious consideration to minimize potential fire hazards due to external influences. Inform the user and the personnel about these issues! If possible, use only non-flammable mattresses and linens. •... -
Page 14: Hand Control
As with all electrical appliances, despite the compliance with prescribed values, it is not possible to totally exclude the possibility of interferences from other electrical devices which might be nearby (for ex. the “buzz” of a radio). In such a rare case, increase the distance of the bed from the interfering device, do not use the same socket or temporarily disconnect such device. -
Page 15: Swivel Wheels
4.3 Swivel wheels The nursing bed has four swivelling castors which can be blocked individually. • Bring the mattress base into its lowest position. • Before each operation of the bed, make sure the power cable is not stretched, crushed or damaged in any way. How to apply the brake: Press the lower lever down with your foot until it clicks. -
Page 16: Dynamic Mattress
The Apollo bed lever is designed to not restrict any moving part of the bed including the side rails and backrest mattress platform. Do not install any third party bed lever as it may restrict the moving parts of the bed, especially the backrest mattress platform. - Page 17 All mechanical elements that attach to the bed including the side rails should be • checked regularly to make sure there are no signs of damage. This must be done not only before applying the bed rails, but also during use within short intervals (at least before any new use).
-
Page 18: Cleaning And Disinfecting
5. CLEANING AND DISINFECTING 5.1 General information Clearing is fundamental as well as a proper chemical disinfection. In general, regular cleaning of the bed when used by a single patient is sufficient in terms of hygiene. It is necessary to disinfect the bed frame only in case of a visible contamination with contagious or potentially contagious materials (ex. -
Page 19: Training Of Users
5.3 Training of users and specialized personnel To ensure a proper cleaning and disinfecting procedure, we recommend you to appropriately train all users and specialized personnel involved. The following points must be respected: Make sure the bed does not get soiled or contaminated during transport to the patient’s •... -
Page 20: 1How To Use Disinfectants
corrosive effect on metals, plastics, rubber or other materials in case of a prolonged contact or in high concentrations. In addition, these products can be irritating for mucous membranes and do not have a great environmental resistance. 5.4.1 How to use disinfectants •... -
Page 21: By The User
6.1 By the user In addition to regular checks by the specialized staff, even the normal users (such as nurses, assistants, etc.) must perform both a visual and a functional inspection before each new use at regular intervals. Recommendation: check all mechanical and electrical components once a month. In addition check the power cord and the hand control cable after each mechanical stress and after each change of position. -
Page 22: By The Owner
Accessories Fixing, possible damages Inspector’s signature: Control result: Date: • If you think that there might be damage or a functional problem, the bed must not be used at all and it must be disconnected from the power supply until the damaged components have been totally replaced or repaired! •... - Page 23 The pages below can be used as an inspection protocol. Sheet 1 of 2 Client/ Medical Centre/ Surgery: Address: Task carried out: Testing of the bed Testing before the first use of the bed _____________________________________________ Testing after repair / maintenance Device type: Protection class: Nursing Bed...
- Page 24 Knobs Correct fixing Worn out parts, such as the hinged Damages points II. Electrical measurement in accordance with VDE 0751-1:2001-10 (power from the device, direct ) Problem Proceed as follows: description 1. Insert the power cord of the bed into the testing outlet of the measuring device.
-
Page 25: Spare Parts
The test was passed: If the test was not passed: defective, do not use the bed! => Maintenance defective, do not use the bed!! => Elimination The bed does not meet the safety requirements Mark test applied: This inspection protocol included: Notes: Tested on: Examiner:... -
Page 26: Manufacturer's Address
6.4 Manufacturer’s address To obtain a proper functioning and warranty replacements it is necessary to use only original spare parts Apollo Healthcare Technologies Ltd! To order spare parts, for any requests or assistance and for further information please contact: Apollo Healthcare Technologies Ltd Unit A1 Gildersome Spur Leeds West Yorkshire... -
Page 27: Eliminating Defects
7. ELIMINATING DEFECTS Should any anomalies occur during use, it is necessary to contact the owner’s qualified personnel trained for the maintenance and repair of the bed. The user shall in no case try to eliminate any malfunctions that might occur in the electrical equipment! Dangerous for your life, life threat, due to electric shock! Any interventions to the electrical equipment must be carried out only by... -
Page 28: Technical Data
8. TECHNICAL DATA 8.1 Size and weight Bed fitted with rails: Apollo – Folding Bed Mattress base 120 x 215 cm Overall dimensions 136 x 229 cm Weight capacity 350 kg 8.2 Electrical data Operating device (Main Control Unit): Type Linak C40 Series Control Unit Input voltage AC 230 V, ±... -
Page 29: Norms And Applied Guidelines
8.4 Norms and applied guidelines • Directive CE 93/ 42 Medical Devices Directive • VDE 0751-1:2001-10 Safety verification for electrical devices • EN 12182:1999-11 Technical aids for disabled persons • DIN 32977-1:1992-07 Appropriate design for disabled persons • EN 14971: 2001 Application of risk management to medical devices •... -
Page 30: Declaration Of Comformity
10. DECLARATION OF CONFORMITY The Company Apollo Healthcare Technologies Ltd Unit A1 Gildersome Spur Leeds LS27 7JZ Declares that The articles which it sells, called …………… and related accessories, are classified as Class I non-invasive Medical Devices according to Medical Directive 93/42/EEC and to national law no.
