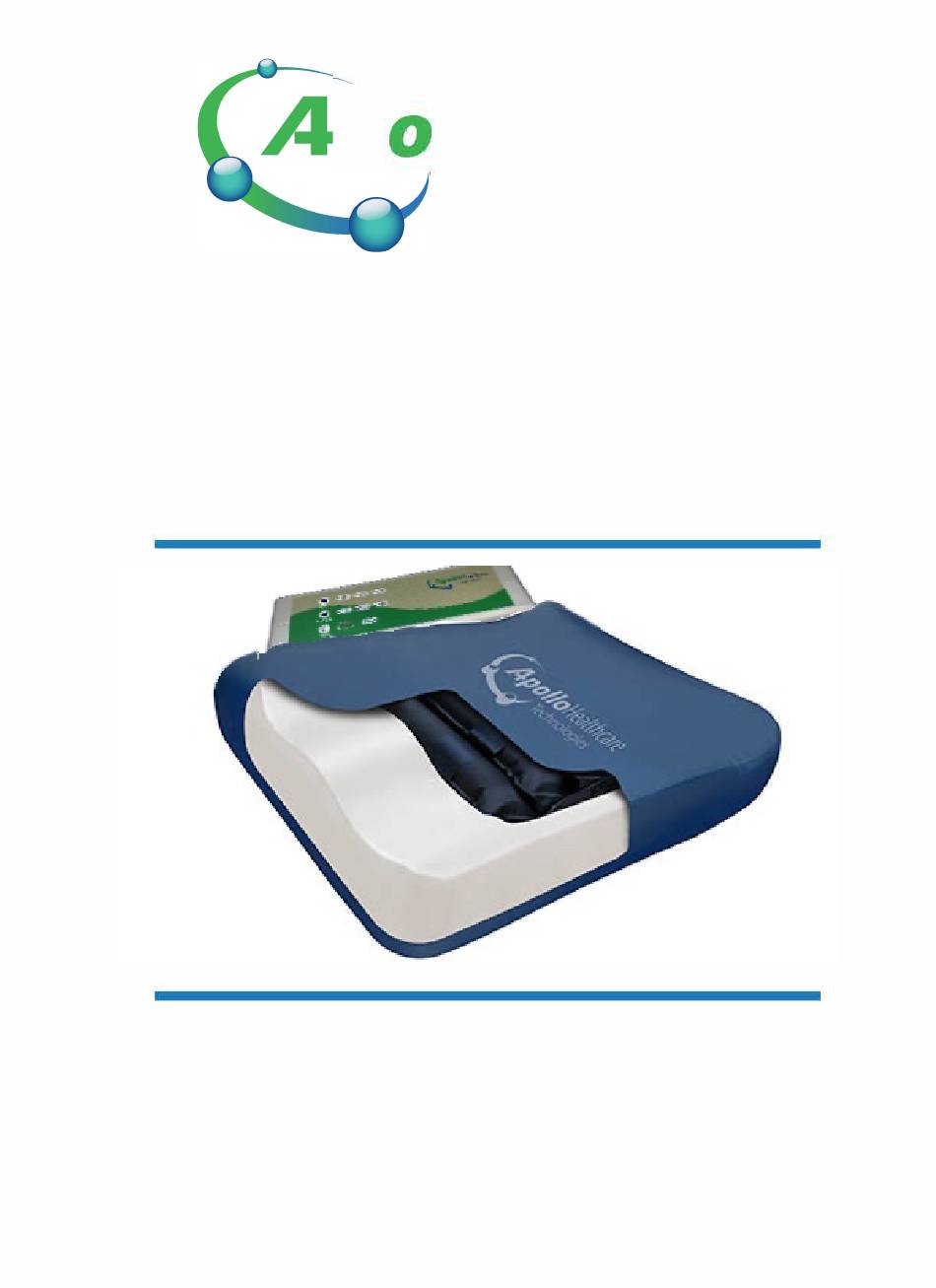

- Page 1 //oHealthcare Technologies Apollo 4 APH055 ™ Plus USER MANUAL AHSM-027_V 2.0_15.06.2023 www.apollo-ht.co.uk...
- Page 2 INTRODUCTION Congratulations on the purchase of your Apollo 4 Plus alternating pressure cushion. The durable, high quality material used in the manufacturing of these products will ensure that you experience long-lasting and uninterrupted performance. Intended Use This product is intended to help and reduce the incidence of pressure ulcers while optimising patient comfort.
-
Page 3: Table Of Contents
Table of Contents Symbol definition﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒1 Products Feature﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒3 Safety Precaution﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒4 Confirm before fixing﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒7 Parts name﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒7 User instructions﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒9 Maintenance﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒11 Storage and disposal methods﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒12 Troubleshooting﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒13 Warranty and after-sales service﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒14 Specification list﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒16 EMC Declaration﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒17... -
Page 4: Symbol Definition﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒1
Symbol definition CE Mark European representative information Product production batch Product serial number Manufacturer information II type equipment symbol Mandatory reading of instructions BF device symbol Protected against solid foreign objects of 12.5mm and greater; protection against vertically falling water drops. When the end user intends to discard this product, the product must be sent to the appropriate facility for recycling and recycling. - Page 5 Maximum weight of the cushion load. Do not wash the cushion. Do not bleach the cushion. Do not tumble dry. Do not iron. Do not dry clean.
-
Page 6: Products Feature﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒3

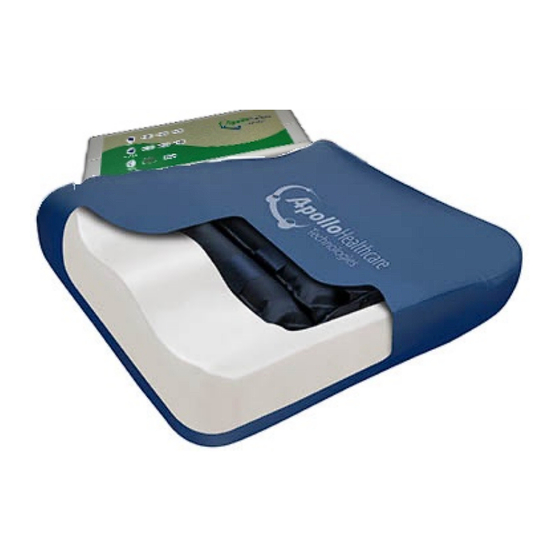

Products Features 1. The product consists of an alternating pressure air pump powered by an internal lithium battery and a moulded visco foam cushion base with 6 alternating cells. It is generally installed on a wheelchair and used as a cushion. -
Page 7: Safety Precaution﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒4
Safety Precautions In order to use this product safely, please read this IFU carefully and understand it. Please be sure to follow the instructions in this manual. In order to avoid a disaster when using this product, you must know in advance the factors that may be dangerous. - Page 8 Warning 3 When you move to a stand position or get out of cushion, be sure to ask someone else for assistance, otherwise there is a danger of falling. Warning 4 Smoking is not allowed on the cushion and may cause a fire.
- Page 9 Warning 8 If you do not use the air pump for a long time or need to clean the air pump, be sure to unplug the power cord from the outlet. If not it may cause accidents, electric shocks, and malfunctions. Warning 9 Please do not pull on the power cord of the air pump, do not damage the power cord, and do not clip the power cord to...
- Page 10 Confirm before using Before using, please confirm whether the accessories are complete and whether you understand the contents and precautions of the manual. Packing list confirmation 1 Air pump for cushion……………………………………x1 2 Power cord ………………………………………………….x1 3 Power Adapt…………………………………………………x1 4 User manual…………………………………………………x1 5 Cushion ………………………………………………………x1...
-
Page 12: User Instructions﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒9
User instructions Step1: Place the cushion on the chair N.B. Actual cushion may look different to that shown in the image Step2: Hang the hooks of the air pump on the chair frame or put on a nearby platform if the chair is not moving Connect the air pipes using the quick connector to the side of the pump ... - Page 13 Power: Press this button to turn the pump on and off. Pressure: Press this button to cycle through the 3 pressure settings LOW = 20mmHg MEDIUM = 40mmHg HIGH = 60mmHg Static: Press this button to cycle through the Static & Alternate settings: Default setting is 6 min alternating cycle.
-
Page 14: Maintenance﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒11
Battery Charge Please use the adapter provided by the manufacturer to charge the battery, otherwise it may cause the battery affect the life of the battery, or cause the battery to overcharge, or cause fire and other hazards. Maintenance Warning：Do not carry out maintenance when the product is in use. Air pump output pressure check In the case of air pumps and air cushions, please check the pressure once a ... -
Page 15: Storage And Disposal Methods﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒12
Air pump cleaning Turn off the power switch and unplug the power cord. Usually use a dry cloth to clean the air pump. Storage and disposal methods If you are no longer using this product, please follow the steps below. 1. -
Page 16: Troubleshooting﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒13
Troubleshooting Trouble Possible reason Pump does not start, no light on The battery is flat or the power plug is power button not plugged into the power outlet, the power supply does not work. Air cushion is too soft Valve does not work Connector is off Air pipes kinked Damaged cell inside... -
Page 17: Warranty And After-Sales Service﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒14
Warranty and after-sales service(Please read carefully) Service life and Shelf life EXPECTED SERVICE LIFE OF the pump is 5 years EXPECTED SERVICE LIFE OF the cushion is 2 years Warranty Item Warranty Pump 24 months Cushion 12 months About the repair request First, look at the possible causes (see page 14). - Page 18 Service personnel requirements Should have a certain understanding of the product. Should be able to understand the circuit schematic. Should be able to use screwdriver, soldering iron, and multimeter, etc. We (manufacturer) will provide the technical instructions, the ...
-
Page 19: Specification List﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒16
Specification list Specifications Adapt Power Supply Input: AC 100-240Vac 50/60Hz 1.6A Output: 28Vdc 2.0A Adapt dimension(LxWxH) 12x13.5x5.5 cm Internal Li-Battery 22.2Vdc 2000mAH Work time when the battery is fully 8 hours charged Cycle time 6 mins, Fixed, non-adjustable (*Customization) Dimension(LxWxH) 27.5x14x9.5 cm Weight 1.8Kg... -
Page 20: Emc Declaration﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒﹒17
EMC Declaration EMC information Guidance and manufacturer’s declaration-electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that they are used in such an environment. Emissions test Compliance Electromagnetic environment - guidance RF emissions... - Page 21 Guidance and Declaration-electromagnetic immunity The model P08M device intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that they are used in such an environment. Immunity test IEC 60601 Compliance Electromagnetic environment test level level...
- Page 22 IMMUNITY to RF IMMUNITY to RF recommended separation distance in meters wireless communication wireless (m). equipment (Refer to communication Field strengths from fixed RF transmitters, as table 9 of IEC 60601- equipment (Refer to determined by an electromagnetic site survey, 1-2:2014) table 9 of IEC a should be less than the compliance level in...
- Page 23 Recommended separation distances between portable and mobile RF communications equipment and the models P08M The model P08M are intended for use in electromagnetic environment in which radiated RF disturbances is controlled. The customer or the user of the model P08M can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model P08M are recommended below, according to the maximum output power of the communications equipment.
- Page 24 CHANGE HISTORY Version Description Date First release version 2022-03-29 Update Apollo address and EU REP details 2023-06-15 Apollo Healthcare Technologies Limited Unit A1 Gildersome Spur, Morley, Leeds, West Yorkshire, LS27 7JZ. Tel: +44 (0) 1924 614567 Email: sales@apollo-ht.co.uk www.apollo-ht.co.uk PaMed Consulting Karol Pawelec Address: ul.
