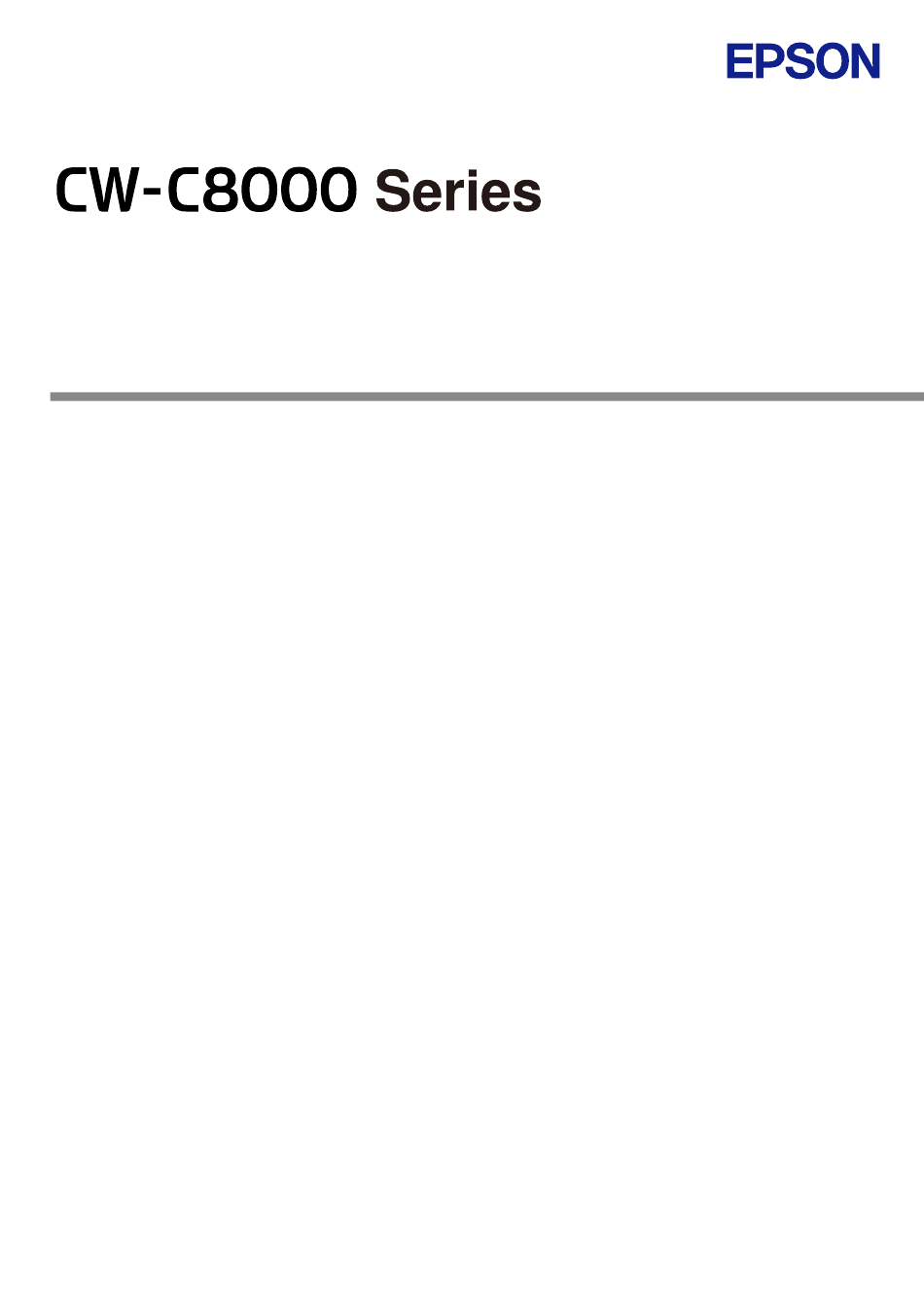

- Page 1 Paper Feeder/Paper Rewinder Designer's Guide M00163100 Rev.A...
- Page 2 Seiko Epson Corporation's operating and maintenance instructions. 7. Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any options or any consumable products other than those designated as Original EPSON Products or EPSON Approved Products by Seiko Epson Corporation.
-
Page 3: Table Of Contents
Contents ■ Contents............................3 ■ Paper Feeder/Paper Rewinder Designer's Guide ..............4 Paper Specification................................4 Preparation before Use ..............................4 Print Speed Setting................................5 Paper Load.................................... 5 Paper Curl....................................6 Paper Angle for Feeding and Ejecting........................6 Position of Paper Feeder and Paper Rewinder ......................7 Locations of Holes and Shafts on the Bottom Case.................... -
Page 4: Paper Feeder/Paper Rewinder Designer's Guide

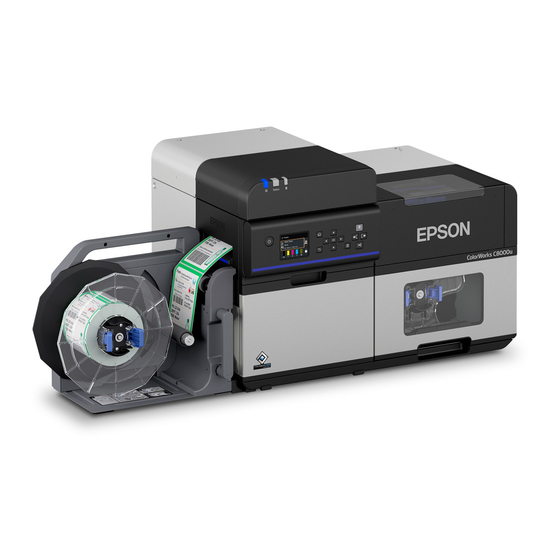

Paper Feeder/Paper Rewinder Designer's Guide The CW-C8000 Series is designed to print with paper fed from inside (roll paper) or fed from outside the printer (roll paper or fanfold paper) or while connected to the optional paper rewinder (TU-RC8000). If you use an external roll paper feeder and/or paper rewinder with the printer, read this section carefully to know required settings and requirements for using the external devices, and perform adequate verification before starting actual printing. -
Page 5: Print Speed Setting
Print Speed Setting The following table shows the print speeds of this printer. Print speed Example of Use 300 mm/s {11.82 in/s} During printing, performing paper feeding (when the Feed or Back Feed button is operated), moving to the standby-by position, and automatically ejecting paper (at the end of paper) 150mm /s {5.91 in/s} During printing, performing pre-print movement, and moving to the paper removal... -
Page 6: Paper Curl
Paper Curl When using a roll paper feeder, follow the guidelines below to prevent paper from curling. When leaving the printer and the roll paper feeder unused for a long term, take measures so that paper is not curled in the direction opposite to the roll winding direction. In addition, avoid letting the paper curl with a radius of 1.5 inches or less even if the paper is curled in the roll winding direction. -
Page 7: Position Of Paper Feeder And Paper Rewinder
Position of Paper Feeder and Paper Rewinder Place external devices (roll paper feeder and/or paper rewinder) so that the printer's paper path (feeding direction and ejection direction) remains straight. If you find that paper is skewed before it reaches the printer or rewinder, adjust the position of the paper feeder or the paper rewinder. -
Page 8: Locations Of Holes And Shafts On The Bottom Case
Locations of Holes and Shafts on the Bottom Case There are holes and shafts in the bottom case of the printer as shown in the figures below. They can be used as necessary for positioning the printer, etc. Note that the dimensions shown in the figures are for reference only. Unit: [mm] Printer Front (Shaft)
