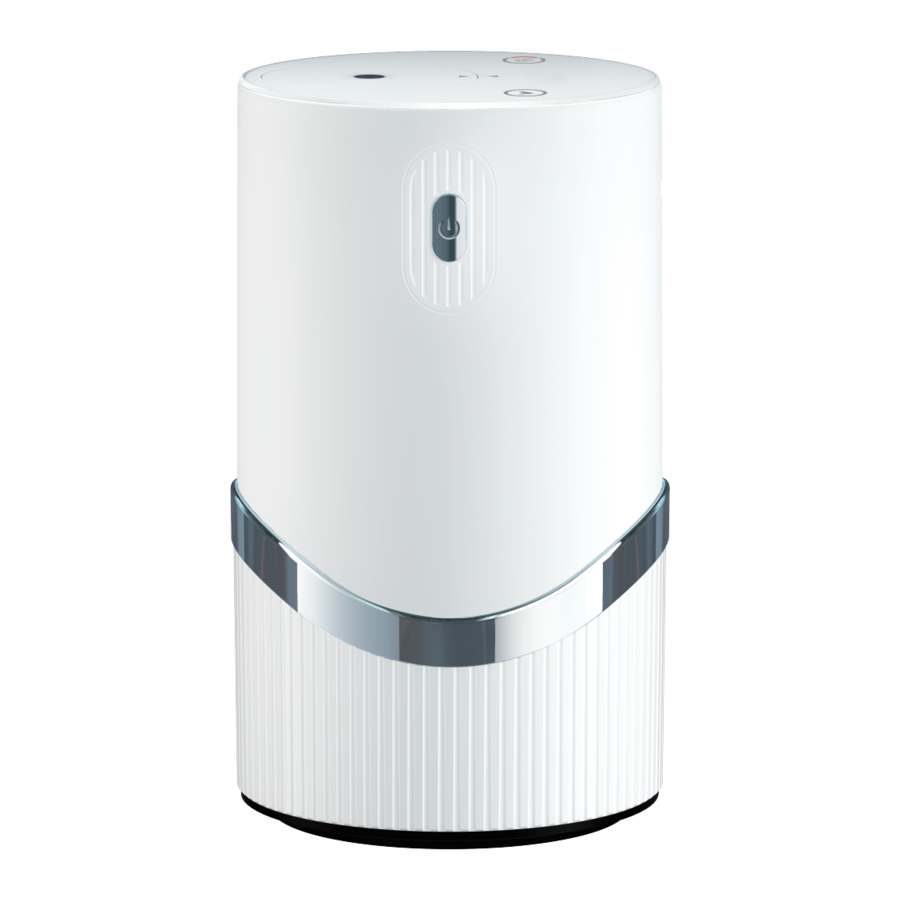

Airversa SCENTA - Aroma Diffuser Manual

Overview

With the latest cold diffusion technology, our waterless essential oil aroma diffuser converts essential oil into nano vapor to approximately 1-3 microns without using heat or water. The diffusing process does not damage the molecular structure, therefore maintaining its therapeutic properties for easier absorption into the body. It is easier, more hygienic and safer. We make it compact enough for you to fit it into your car cup holders so that you may take it with you wherever you go.

As it is compatible with the majority of essential oil bottles available, it gives you the freedom to choose from a wide range of fragrances that soothe you, relax you, or refresh you in a variety of situations. Using it with sanitizing essential oils can improve unpleasant odors and help purify the air around it.

What's in the Box

Touch Button and Info Display

• The display will turn off after 30s if no buttons are touched. You may tap any button to wake up the display.

1. Nozzle
2. Battery indicator
3. 3-Level Mist Control
   • Tap: set mist level
   • Press & hold: turn on/off ambient light
4. Ambient light indicator
5. Orange ambient light
6. Timer settings:
   • 1/2/4/6H
   • Tap: choose timer
   • When the time is finished, the diffuser will turn off. Press & hold power button to turn it on.

Mist Level Explained

Level 1
15 seconds of diffusing, then a pause of 165s

Level 2
1 minute of diffusing, then a pause for 2 min

Level 3
2 minutes of diffusing, then a pause for 1 min

Ambient light on

Battery running normally
Stays green

Low battery alert
Blinks 10 times and then shuts down

Bottle Installation

• This device is compatible with 5/10/15/20ml bottles.

Removal:
Push from the top and lift your finger until you hear a "tick" sound. The nozzle will stick out. You may simply pull it out to change / install a bottle of essential oil.

Installation:
Screw the bottle to the nozzle, and then push the nozzle until you hear a "tick" sound. In order to install properly, look for the "" sign before you push the nozzle.

Charging

Normal charging time: 3-5 hours. If the charging current is below 1A, it will take longer to fully charge the device.

Fully charge this diffuser before using it the first time.

As charging cycles increase, battery life will decrease.

• You may charge from a 5V adapter, PC/MAC USB port, or USB interface within your vehicle. Please ensure the use of safety-certified charging accessories.

Specifications

Max. Oil Capacity: 20ml

Input: DC-5V/1A

Rated Power: 1.5W

Size: 70*125mm

Battery Capacity: 2000mAh

Net Weight: 300g

FAQ

Q1: How to select the right essential oil?
Use 100% pure essential oils. Resin and thick oil are not recommended. Camphor tree, eaglewood and dried orange peel oils are prohibited.

Q2: When I change to a new oil, there is mixed smell coming from my previous oil. How do I clean the nozzle and the bottle?
Fill the empty bottle with 5ml of 99% ethyl/ethanol alcohol. Shake to fully rinse the inner surface of the bottle and then empty it. Refill with another 5ml of ethyl/ethanol alcohol, and then run the device until the alcohol runs out.

Q3: I feel like it stops running sometimes, what has happened?
Please refer to section 4 for 'mist level explained'. The device is able to automatically optimize atomizing/pausing according to mist level.

Q4: How long does it take to fully charge the device?
Normally 3-5 hours.

CUSTOMER SUPPORT

support@airversa.com
www.airversa.com

If you have any questions or concerns about your new product, please feel free to contact our Customer Service Team.

Warning

Improper placement of the diffuser when an essential oil bottle is installed might cause oil leakage (eg. when the unit is tilted at an angle).

• DO NOT invert or tilt the device once the oil bottle is installed.
• DO NOT use it with camphor tree, eaglewood and dried orange peel oils.
• DO NOT attempt to disassemble the device.
• For more quiet use, ensure the unit is 3 feet away.
• Keep the device away from children and pets.
• The more concentrated the oil, the less diffusing capability. If you do not plan to use this device for an extended period of time, please store the device and the nozzle separately.
• Working Temperature: 4°–104°F / 0 – 40°C
• Suggested room size: 300-500 sq. ft.
