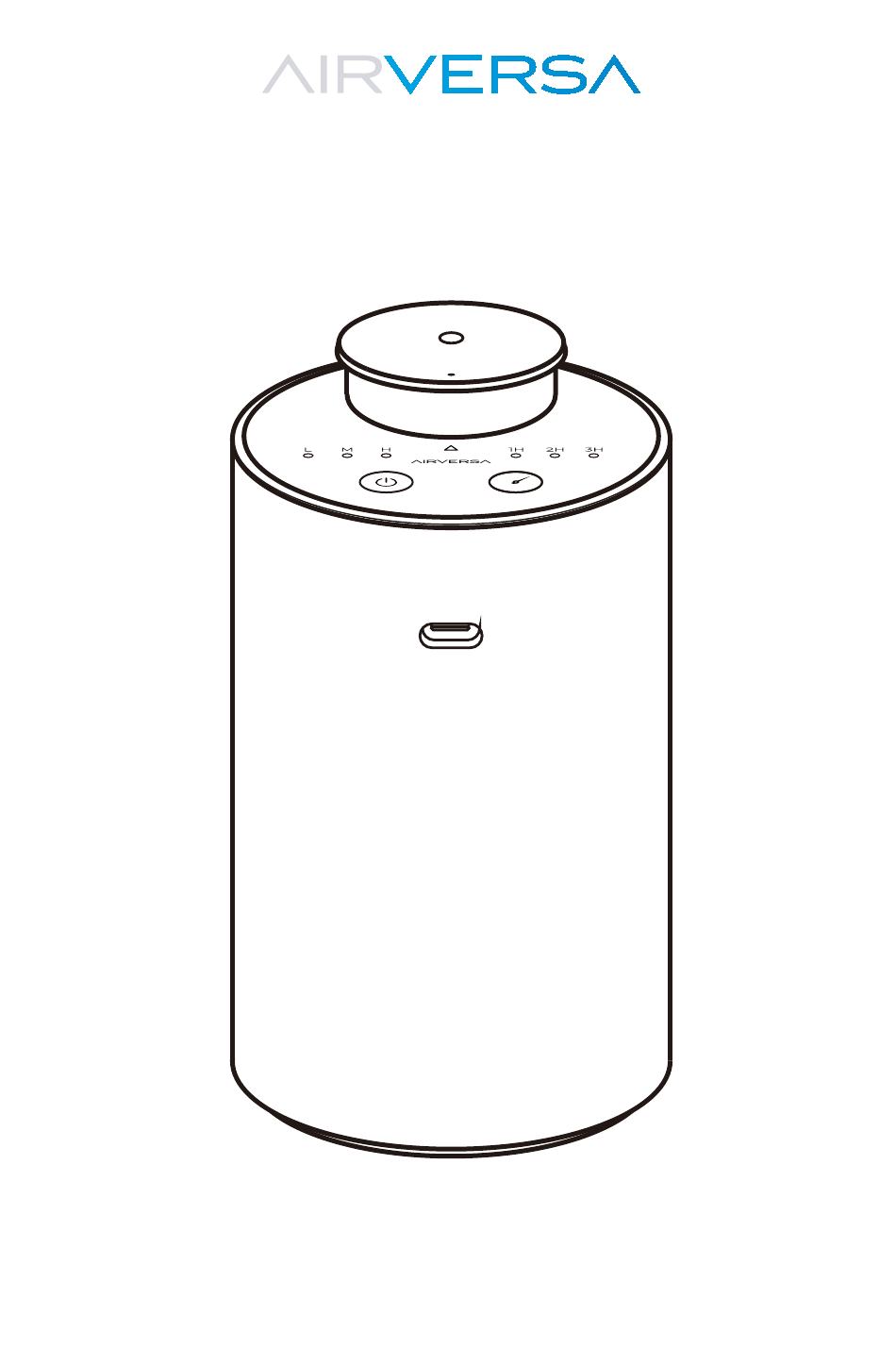

- Page 1 SCENTA BASIC USER MANUAL...
- Page 2 Overview Thank you for choosing our waterless essential oil aroma diffuser. With the latest cold diffusion technology, it converts essential oil into nano vapor to approximately 1-3 microns without using heat or water. The diffusing process does not damage the molecular structure, therefore maintaining its therapeutic properties for easier absorption into the body.
- Page 3 Cautions DO NOT invert or tilt the device once the oil bottle is installed. DO NOT use it with agarwood, camphor tree, dried orange peel, eaglewood oils. DO NOT mix your 100% essential oil with water when the device is in use. This will cause failing to atomize (mist not visible).
-
Page 4: What's In The Box
What’s in the Box Diffuser Spare Oil Tube Cleaning Syringe Charging Cable (USB-C,1M) - Page 5 Touch Button and Info Display Press & Hold the power button to turn on the device. Tap power button to adjust mist level. Timer Indicator Nozzle - In Timer-off Mode the timer Mist Indicator indicator remains off, and the device stays on until it runs out Power Button of battery.
- Page 6 Mist Level Explained Level L 5 seconds of diffusing, then a pause of 180s Level M 15 seconds of diffusing, then a pause of 150s Level H 30 seconds of diffusing, then a pause of 120s The green LED remains on when the device is diffusing the oil, and flashes when diffusing is paused.
-
Page 7: Bottle Installation
Bottle Installation The capacity of the essential oil bottle is max. 20 ml. This device is compatible with 5-20 ml USA standard oil bottles. Removal: 1. Lift the nozzle from the diffuser; 2. Turn the bottle clockwise to remove the bottle, and then fill in the essential oil. - Page 8 Charging Normal charging time: approx. 4.5 hours. If the charging current is below 1A, it will take longer to fully charge the device. Fully charge this diffuser before using it the first time. As charging cycles increase, battery capacity will decrease. Charging Charging completed You may charge from a 5V adapter ONLY, PC/MAC USB...
-
Page 9: Specifications
Specifications 69.5 mm Max. Oil Capacity: 20 ml Input: DC-5 V / 1 A Battery Capacity: 2000 mAh Rated Power: 5 W Size: 69.5 x 128 mm | 2.7 x 5.0 in Net Weight: 266 g | 9.38 oz... - Page 10 Q1: How to select the right essential oil? Use 100% pure essential oils. Resin and thick oil are not recommended. Agarwood, camphor tree, dried orange peel, eaglewood oils are prohibited. Q2: When I change to a new oil, there is mixed smell coming from my previous oil.
- Page 11 Warning Improper placement of the diffuser when an essential oil bottle is installed might cause oil leakage (eg. when the unit is tilted at an angle larger than 45°). Inverted Tilted...
- Page 12 Cleaning Scenta Diffusers STEP 1 STEP 2 1. Draw 90% ethyl/ethanol alchohol into the cleaning syringe until it's half full (approx. 3-5 ML); 2. Inject it into the atomizer; 3. Wipe the diffuser and table dry.
- Page 13 If you have any questions or concerns about your new product, please feel free to contact our Customer Service Team.
