ELEGRP SPN10 - Smart Switch Manual

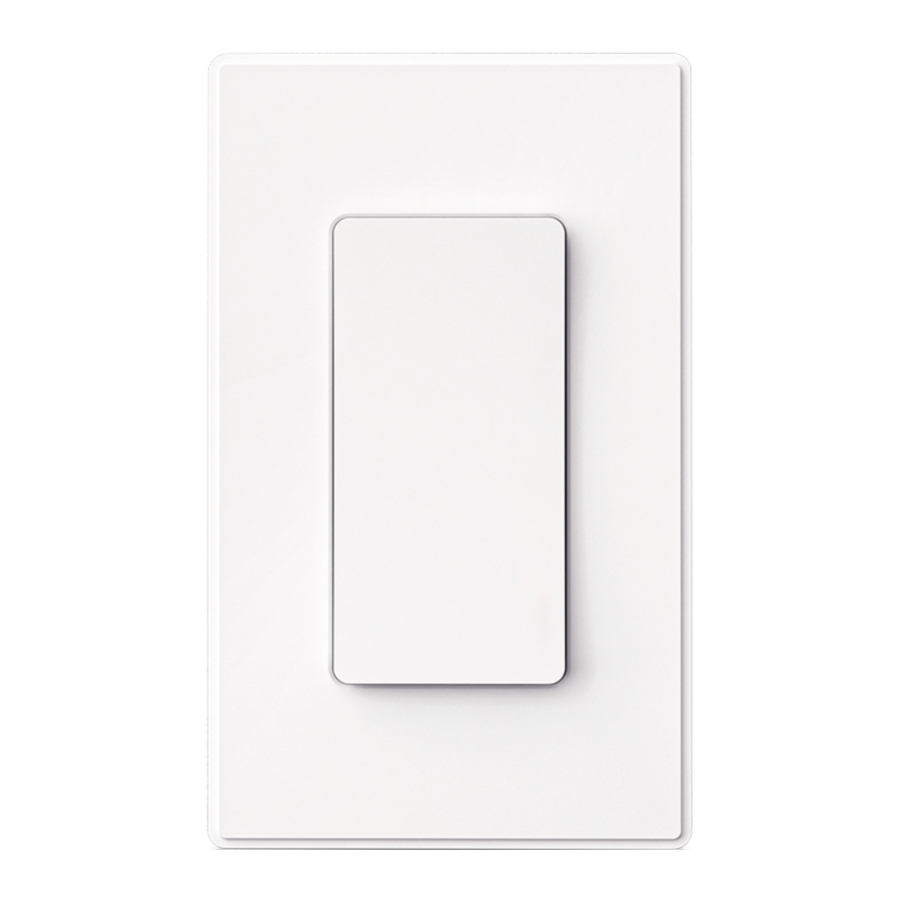

PRODUCT INTRODUCTION

LED INDICATOR

WHAT'S IN THE BOX

TOOLS NEEDED

CHECK COMPATIBILITY

Compatible Bulb Types

Max Load for Each Bulb Type

Rating: 120VAC, 60Hz
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~85℃(-40℉~185℉)
Wiring Type: Single Pole
Type of Action: Type 1.B Action
Pollution Degree: 2
Rated Impulse Voltage: 2500 V
Purpose of Control: Wall Mounted Switch Control
Construction of Control: Independently Mounted for Flush Mounting
The white neutral wire is required to connect. The device will not function if the neutral wire is not connected.

BEFORE WE START

To avoid fire, shock, or death, turn off power at circuit breaker or fuse and test that the power is off before wiring!

To reduce the risk of overheating and possible damage to other equipment, DO NOT install to control a receptacle, a motor operated appliance, a fluorescent lighting fixture, or a transformer-supplied appliance.
Consult a qualified electrician if you are unfamiliar with electrical codes and regulations, or are uncomfortable performing the installation.

REMOVE OLD SWITCH

After power is turned off, remove wall plate and switch mounting screws. Carefully pull out the old switch from the wall box (do not remove wires).

Turn Off Power
Before removing, turn off power at circuit breaker or fuse and use a test pencil to confirm whether power is off before wiring or servicing fixture!

IDENTIFY & LABEL WIRES

1. Identify and Label Neutral & Ground
   Neutral wires are usually white and Ground wires are usually green / bare copper.
2. Identify and Label Line & Load
   Turn on power and test the remaining wires with a test pencil. When the test pencil glows, then that wire is line wire, but when the pencil does not glow at all, then that is load wire. Turn off the power at the circuit breaker before labelling the wires.

Be Safe
To prevent severe shock or electrocution, make sure your fingers do not touch the wall box, wires or the screw terminals when power is restored!

STRIP WIRES

Disconnect wires from the switches, make sure that the ends of the wires from the wall box are straight (cut if necessary). Remove 0.6" (15mm) of insulation from each wire in the wall box.

CONNECT SWITCH

Use provided wire connectors to connect wires in the wall box to the wires of the smart switch.

FINISH WIRING

Form all wires carefully into wall box, and mount switch with mounting screws supplied.

MOUNT WALL PLATE

Push a flat-head screwdriver into the slot at the bottom of the faceplate. Gently pry apart the two pieces.
Use the short screws to mount the fixing plate.
Push faceplate onto the fixing plate and snap it into place.

TROUBLESHOOTING

After installation, the switch does not turn on?

• Check that the bulb is properly installed and has not failed.
• Check if the circuit breaker or fuse is connected properly.
• Try swapping your Line and Load wires.

Difficulty in connecting smart switch to a WiFi network?

• Make sure the WiFi network is a 2.4 GHz network.
• The WiFi connection may not have good coverage. Try moving your WiFi router closer to the smart switch.

Refer to help center in the app for additional troubleshooting suggestions.

Contact Us
Website: www.elegrp.com
Email: support@elegrp.com
Search ELEGRP on social media
Call us on: 866-267-3272 Mon-Fri 9:00-17:00 EST (US)
