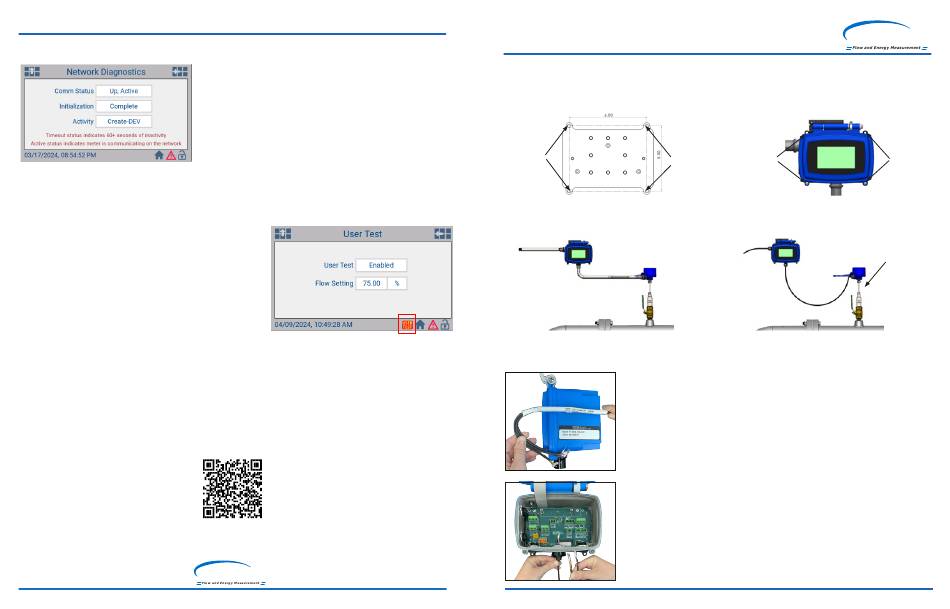

FT-3500 Transmitter Quick Start Guide
CHECKING NETWORK STATUS
FLOW SIMULATION
1. To enter a flow simulation mode, select "Diagnostics" from the
main menu screen, then "User Test."
Set User Test to "Enabled" and then set the simulated Flow Setting
2.
to desired percentage of full scale.
WARNINGS, ALARMS, AND ERRORS
Does the main screen show an alarm message?
Active warnings, alarms, and errors can be found by selecting "Alerts" on the main menu screen. Please reference the
FT-3500 user manual for more information on these alerts.
ONICON
11451 Belcher Road South • Largo, FL 33773 • USA • +1 (727) 447-6140
www.onicon.com • sales@onicon.com
Network Diagnostics:
The user can verify their communication status via the Network
Diagnostics screen.
Comm Status:
Down: No traffic has been seen in 60 seconds
Up, Active: Traffic has been seen in the last 60 seconds, and the
meter is talking to the network.
Up, Inactive: Traffic has been seen in the last 60 seconds, and
the meter is not talking to the network.
Scan for Manual
Quick Start Guide
FT-3500 Transmitter
MOUNTING INSTRUCTIONS
The mounting surface must be structurally sound and capable of withstanding a minimum weight of 40lbs (18kg). Use the
following screws for mounting: (4) Machine screws - HHMS .25-20 x 1.5"; (4) Wood screws - FHLS .25 x 1.5"; (4) Concrete
screws - HHCS .25 x 1.5"
Mounting Mounting
Hole
Hole
1/2" NPT Weathertight Conduit Adapters
CONNECTING SENSOR CABLE TO THE FT-3500 TRANSMITTER
Before getting started, ensure that the serial numbers located on the transmitter, remote
electronics enclosure, and cable all match.
When connecting the cable to the transmitter, feed one sensor cable (out of the three)
through the conduit adapter/ strain relief at a time. Once all three cables are through
the connector, tighten the internal/ strain relief cable grip.
DOC-0006267
ONICON
Mounting
Mounting
Hole
Hole
Strain Relief Cable Grips
Refer to the
meter tag for
flow sensor
installation
steps.
Rev.C
