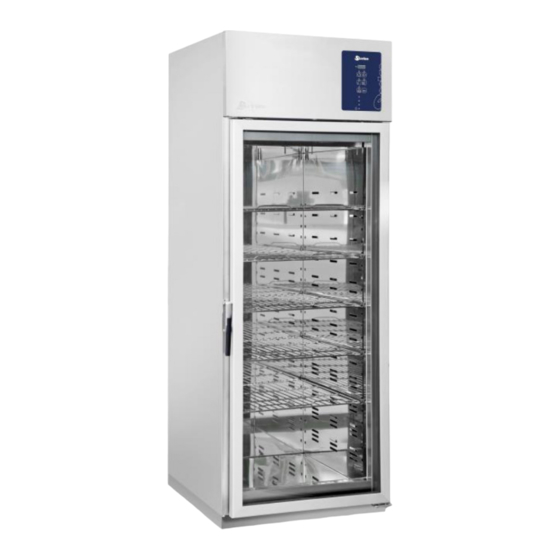

STEELCO ID 300
Quick Guide
2023
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steelco ID 300

  • Page 1 Version: 16062023-1 STEELCO ID 300 Quick Guide 2023...
  • Page 2 Version: 16062023-1 Contents Daily Routine Checks Daily Routine Monitoring Front Panel Controls Cycle Selection Door Operation Loading the Drying Cabinet • Baskets • CPC Connection Alarm Reset Emergency Door Release Troubleshooting...
  • Page 3 Version: 16062023-1 Daily Routine Checks & Monitoring Cleaning the external structure Cleaning the internal stucture Remove the shelves inside the cabinet letting Use mild detergents only, do not use abrasive them slide on the rails. detergents or solvents and/or thinners of any kind.
  • Page 4: Front Panel Controls

    Version: 16062023-1 Front Panel Controls Display LED • Displays the various programmes, temperatures and any machine faults. • During STAND-BY status, the type of programme selected is displayed. • After pressing START, the display indicates the temperature of the air inside the chamber and when pressing the PRG button the temperature in the heater.
  • Page 5 Version: 16062023-1 Front Panel Controls Button Possible cause(s) • Press the button to select the program “Pr1”. • STAND-BY CONDITION: the button is used in the menu to increase the numerical values, scroll through the list of operator parameters and the list of Inputs/Outputs.
  • Page 6: Cycle Selection

    Version: 16062023-1 Cycle Selection Action C, D, E • Press to select the program “Pr1. Pr2. Pr3”. • Press the button to scroll through the programs. • Keep the button pressed for 5 seconds to enter the menu. • Press the button to begin a selected phase. •...
  • Page 7: Door Operation

    Version: 16062023-1 Door Operation The machine is equipped witha door lock system. • The Cycle STOP Button must be pressed in order to open the door. • The doors cannot be opened simultaneously. • If the door is not re closed within a set time the machine will display a warning message “OPn”...
  • Page 8 Version: 16062023-1 Loading the Drying Cabinet Baskets CPC Connection • Place the DIN baskets with instruments to be • In case of hollow instruments, it is possible dried inside the cabinet. to use the dedicated channels connected through CPC connectors to the drying circuit •...
  • Page 9: Alarm Reset

    Version: 16062023-1 Alarm Reset Once the alarm has be reset you will need to In case of the alarm occurring you enter the cycle mode. will need to perform a procedure on Cycle mode is entered by pressing the START the touch pad which consists of the key, this command is only accepted if the sequence below, to reset the alarm.
  • Page 10: Emergency Door Release

    Version: 16062023-1 Emergency Door Release In case of emergency and/or the door has locked due to a power cut, it is possible to open the door manually as described below. 1. Remove the cap. 2. Insert the screwdriver into the hole on the closing panel of the cabinet.
  • Page 11: Troubleshooting

    Version: 16062023-1 Trouble Shooting Alarm/Error Code Possible cause(s) • This occurs when there is an electrical power failure during a work Power Failure cycle. Free Free Uv Lamp Fault • UV lamp fault for more than the time set by parameter P24. •...
  • Page 12 Version: 16062023-1 Trouble Shooting Alarm/Error Code Possible cause(s) Free Limit °C Heater • This occurs when during the cycle, the temperature inside the Probe (Probe N°2) heater is over the value set by parameter P20. Problems Blower 1 • Pressure switch fault(17SP2), fan failure. (Compressor) Problem Blower 2 •...
