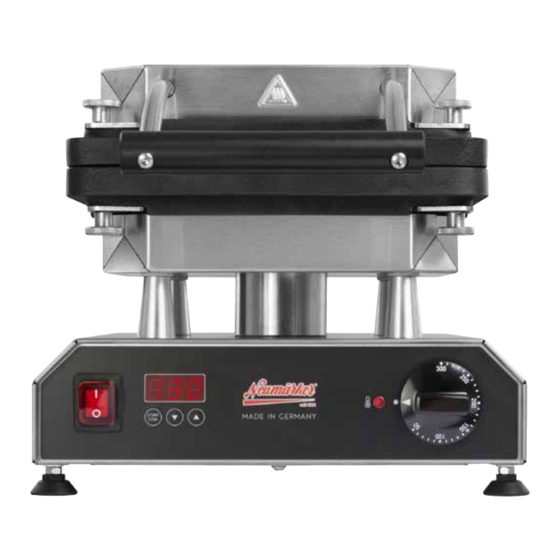

EMGA Neumarker THERMOCOOK 308.072 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

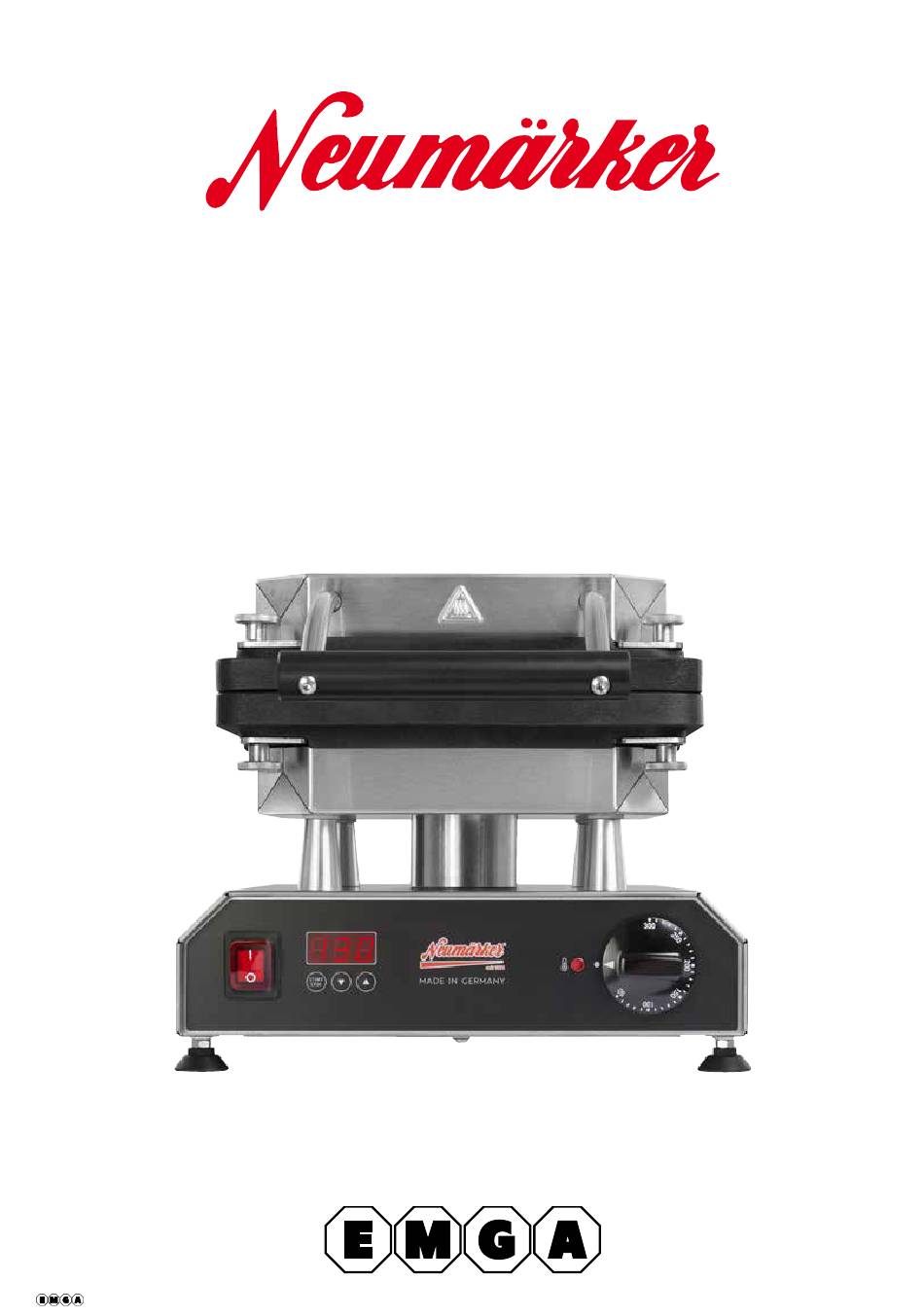

OPERATING MANUAL
THERMOCOOK
*308.072 (12-40801)
308072 G24E
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Neumarker THERMOCOOK 308.072 and is the answer not in the manual?

Questions and answers

Related Manuals for EMGA Neumarker THERMOCOOK 308.072

Summary of Contents for EMGA Neumarker THERMOCOOK 308.072

  • Page 1 OPERATING MANUAL THERMOCOOK *308.072 (12-40801) 308072 G24E...

  • Page 2: Table Of Contents

    Table of contents 1. Copyright protection ....................4 2. Technical data ......................4 2.1 Thermocook ......................... 5 3. Essential basic information ................... 6 3.1 Includedindelivery ....................... 6 3.2 Responsibilities ......................6 3.2.1 Manufacturer’s responsibilities ....................6 3.2.2 Operator responsibilities ....................... 6 3.3 Environmental advice ....................
  • Page 3 8.1 Safety...........................17 8.2 Installation plan & total space requirement .............18 8.2.1 Thermocook ......................18 8.2.2 Thermocook Twin .........................19 8.3 Dimensions and weights....................19 8.4 Environmental conditions..................20 8.5 Supply connections....................20 8.6 Customer-side safety precautions ................20 9. Assembly and installation, initial start-up ............20 9.1 Safety.

  • Page 4: Copyright Protection

    1. Copyright protection The operating instructions and the texts, drawings, images and other illustrations contained therein are protected by copyright. Reproduction in any form - including extracts - as well as the utilization and/or communication of the content is not permitted without a written declaration of approval from the manufacturer. Infringements will result in compensation for damages.

  • Page 5: Thermocook

    2.1 Thermocook The Thermocook is Neumärker's universal baking device with interchangeable plates. The interchangeable plates are not included in the scope of delivery. Please note: not all interchangeable plates are compatible with the Thermocook Twin. Description Thermocook Thermocook Twin Number of interchangeable plate sets Material Stainless steel housing...

  • Page 6: Essential Basic Information

    3. Essential basic information 3.1 Included in delivery Included in delivery: 1 Thermocook device, including fastening screws for interchangeable plates, transport fastening and these operating instructions in German and English. 3.2 Responsibilities 3.2.1 Manufacturer's responsibilities The device has been developed according to the current state of the art. Nevertheless, this device may present hazards if it is used improperly or not as intended.

  • Page 7: Environmental Advice

    5. For all care and maintenance work, the device must first be disconnected from the mains by switching off the main switch and disconnecting the supply cable from the mains. 6. do not leave the device unattended during operation, do not leave the device switched on for an unnecessarily long time after use, do not use the devices as a room heater.

  • Page 8: Background Information On Content And Structure

    3.6 Background information on content and structure 3.6.1 Content and structure In the illustration in chapter 5 of these instructions, important components of your appliance are labelled with position numbers. You can use these position numbers to reliably identify the displays and operating elements whose meaning and use we explain in these instructions.

  • Page 9: Safety

    4. Safety 4.1 Convention for safety information This device is designed for professional commercial use as well as for responsible use in private kitchens. Use is only authorised by qualified personnel, the informed user or instructed persons. Only use your Thermocook to bake food that is intended for the appliance.

  • Page 10: Behaviour In Case Of Emergency

    4.2 Behaviour in case of emergency Keep calm, help others out of the danger zone, disconnect the appliance from the mains. Pull the plug out of the socket or remove the fuse. Never extinguish fires on and around electrical devices with water. Use a fire blanket, for example, to cover the device in the event of a fire and smother the flame.

  • Page 11: Safety-Relevant Environmental Conditions

    4.3.3 Safety-relevant environmental conditions Only run the appliance in closed, semi-closed and dry rooms. Do not cover the device. 4.3.4 Safety-relevant information for certain phases of life Installation conditions The device must be set up so that the electrical connection is accessible and maintenance can be carried out.

  • Page 12: Possible Misuse

    Disassembly Disconnect the mains plug before opening the device. Before carrying out any work, disconnect the power supply and secure it against being switched on again, wait until the device has cooled down. Disposal Devices must be rendered inoperable before disposal by removing the mains cable. Ensure that the device is disposed of properly and in an environmentally friendly manner.

  • Page 13: Structureandfunction

    5. Structure and function 5.1 Structure 5.1.1 Main components 1) Heat-insulated bonnet 2) Main power switch 3) Digital timer 4) Control indicator light 5) Temperature regulator 6) Grip 7) Height-adjustable device feet 8) Interchangeable plates* (not included in the scope of delivery) 9) Locking screws for interchangeable plates * Specifications may vary depending on the version (see technical data).

  • Page 14: Operator Workstations

    5.1.2 Operator workstations - Keep your workplace clean - Keep a safe distance from flammable materials - Comply with local regulations - Keep ignition sources away from the work area - Place the device in a stable and level position - Always remove dirt and dough residues immediately - Do not smoke in the work area - Do not use water to extinguish the fire...
  • Page 15 6) Grip The device becomes hotter than 60°C during operation, therefore only use the handle to open and close the device, do not touch any other parts of the device. 7) Height-adjustable device feet The height-adjustable device feet allow you to ensure a firm and secure stand. 8) Interchangeable plates* (not included in the scope of delivery) The interchangeable plates become very hot during operation.

  • Page 16: Delivery, Internal Transport, Unpacking

    6. Delivery, internal transport, unpacking 6.1 Safety When handling this device and all electrical devices, rules for your own safety must always be observed. In particular, these are: - Do not expose the device to weather conditions such as rain - This device can be used by children aged 12 and over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe...

  • Page 17: Unpacking

    6.4 Unpacking After unpacking, check the device for any damage. Remove the protective film completely before commissioning. If any adhesive residue remains, remove it with a soft cloth and mild detergent. Check that all screw connections are tight. Electrical protective measures have been implemented and checked for functionality. The information on the rating plate must match the information provided by the local utility company.

  • Page 18: Installation Plan & Total Space Requirement

    8.2 Installation plan & total space requirement 8.2.1 Thermocook Never cover the device! Distance to the walls min. 0.2m Distance to neighbouring Thermocook devices not necessary 308072 G24E...

  • Page 19: Thermocook Twin

    8.2.2 Thermocook Twin 8.3 Dimensions and weights see technical data 308072 G24E...

  • Page 20: Environmental Conditions

    8.4 Environmental conditions Protect the device from the weather. Only use the device in closed and dry rooms. 8.5 Supply connections Distributors or multiple sockets must not be used. 8.6 Customer-side safety precautions - Do not place the device on flammable surfaces. - Maintain the minimum distance.

  • Page 21: Initial Start-Up

    Type H07RN-F and can be connected to conventional sockets. Two separate sockets are required for special versions of the double waffle irons; distributors and/or multiple sockets must not be used. Ensure that the maximum power of the circuit is not exceeded. Have this checked by a specialist.

  • Page 22: Displays (Timer(3)

    10.3 Displays (Timer (3) All models are equipped with a digital timer. Display with minutes and seconds Button Time - Button Time + Button Start/Stop The timer can be set from one second to 9 minutes and 59 seconds in increments of seconds up and down.

  • Page 23: Initial Start-Up Of Devices With Uncoated Interchangeable Cast Plates

    The interchangeable plate becomes very hot during operation. Never touch it directly and never lean on it. RISK OF BURNS When heating up for the first time, smoke and odours will occur. Please refer to the Homepage of Neumärker the different baking tins to find out which material the appliance's removable plate is made of, as these must be treated differently depending on the material.

  • Page 24: Initial Start-Up Of Devices With Non-Stick Coated Interchangeable Plates

    10.4.2 Initial start-up of devices with non-stick coated interchangeable plates Non-stick coated interchangeable plates are made of non-stick coated aluminium in the standard versions. There are special versions that are made of non-stick coated cast iron. These are handled in the same way as devices with non-stick coated aluminium plates.
  • Page 25 The following table gives you information on which removable plates can be used with which temperature and time: Use precise doses of dough quantities, otherwise the excess liquid dough will be squeezed out of the sides and stain the device. We recommend our optional dough collecting tray.

  • Page 26: Handling Devices With Uncoated Interchangeable Plates

    Do not remove the hot waffle with your fingers. Remove the baking residue immediately with a damp cotton cloth, heat-resistant brush, suitable brush or wooden tool. Crumbs, excess fat and other residues should be removed from the interchangeable plates after each baking process. If these remain on the removable plate, they can burn in and prevent the non-stick effect of the removable plate.

  • Page 27: Cleaning Of Uncoated Interchangeable Plates

    Clean the housing with a soft cotton cloth and mild detergent. CAUTION Do not use chemical cleaners. Disconnect the device from the power supply before carrying out any maintenance work. - Wait until the device has cooled down completely before carrying out any maintenance work.

  • Page 28: Shutdown

    With non-stick coated interchangeable plates, it is particularly important to remove excess grease and other residues from the interchangeable plates after each baking process, as they cannot be cleaned aggressively with a wire brush or cleaning agents. If these remain on the interchangeable plate, they can burn in and prevent the non-stick effect of the interchangeable plate.
  • Page 29 Loosening the interchangeable plates Close the device with the interchangeable plates and loosen the 8 knurled screws on the back of the interchangeable plates. CAUTION: After use, you must wait until the device has cooled down completely (At least one hour), as the bonnets and screws can become very hot! 1.

  • Page 30: Troubleshooting

    fix the interchangeable plates with the 8 knurled screws on the back of the interchangeable plates. Only tighten the screws hand-tight. CAUTION: Overtightening can damage the threads and mean that the screws cannot be loosened again. 11. Troubleshooting Dear customer, Unfortunately, approx.
