*450.010
INSTRUCTION MANUAL
1
450010 en ma 2015.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVOLUTION MIX *450.010 and is the answer not in the manual?

Questions and answers

Related Manuals for EMGA EVOLUTION MIX *450.010

Summary of Contents for EMGA EVOLUTION MIX *450.010

  • Page 1 *450.010 INSTRUCTION MANUAL 450010 en ma 2015.01...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS AND WARNINGS ................3 PARTS AND DESCRIPTION OF THE FOOD PROCESSOR .............5 CONTROL PANEL ..........................7 LCD SCREEN .............................8 MAIN PARTS OF THE FOOD PROCESSOR ................11 HOW THE FOOD PROCESSOR WORKS ................. 15 STARTING TO USE THE FOOD PROCESSOR ................ 16 MAINTENANCE ..........................

  • Page 3: Safety Instructions And Warnings

    SAFETY INSTRUCTIONS AND WARNINGS - Before using the appliance for the first time, read this manual carefully and keep it for future reference. - The safety of this product is guaranteed when it is connected to a socket with a grounding plug that meets the required electrical standards.
  • Page 4 - The food processor has a safety feature that does not allow it to turn on if the bowl is not placed correctly on the main unit. - Do not surpass the 2 liter maximum indicated on the interior of the bowl. - Do not use the food processor to cook at speeds higher than 1 or 2, in case the ingredients in the bowl reach 2 liters, even when only trying to boil water.

  • Page 5: Parts And Description Of The Food Processor

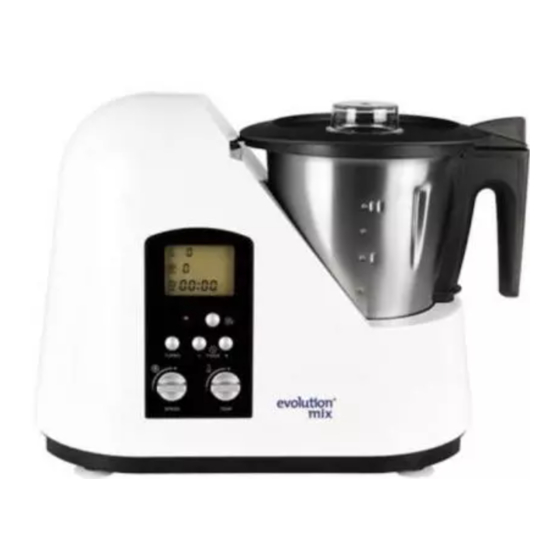

    PARTS AND DESCRIPTION OF THE FOOD PROCESSOR The food processor contains the following parts: 1. Central unit 2. Control panel 3. Stainless steel 2 liter capacity bowl 4. Ventilation 5. ON/OFF Switch and power connection 450010 en ma 2015.01...

  • Page 6: Control Panel

    MAIN UNIT CONTROL PANEL 1. Pilot light: When the light is red, it is on standby and when it is blue, it is in operation. 2. On/Off button: Regulates the start and finish of the cooking process. 3. Turbo: Sets the motor to maximum speed.

  • Page 7: Control Panel

    CONTROL PANEL 1. Pilot light When the appliance is connected, the red pilot light will turn on. A sound will also confirm that the appliance has been turned on. After being turned on, all indicators will be at 0. Once the user has decided what speed to use, as well as the time and temperature, the ON/OFF button must be pressed again and the pilot light will change to blue.

  • Page 8: Lcd Screen

    When cooking at a particular temperature level, extreme caution must be used not to touch the bowl in order to avoid being burned. Be careful when removing the measuring cup from the lid as steam is released through the hole in the lid and may cause burns. Do not put your hands or face in or near the hole of the lid where the measuring cup goes as this may cause burns from the steam coming out.
  • Page 9 established: temperature (TEMP), speed (SPEED) and time (TIME). If the lid and the bowl are not assembled properly as previously described, the appliance will not function. Selecting the TIME In order to select the time, locate the clock symbol on the bottom part of the screen where the word TIME is.
  • Page 10 This message is accompanied by a sound and indicates that the pre-established temperature has been reached on the control panel. This signal is purely informative and does not require the user to take any action. This message appears when an electronic error has occurred or the motor has overheated.

  • Page 11: Main Parts Of The Food Processor

    MAIN PARTS OF THE FOOD PROCESSOR The bowl’s capacity is 2 liters. On the inside and outside of the bowl there are measurements of 0.5 liters, 1 liter, 1.5 liters and 2 liters. To ensure safe use of the appliance, ingredients in the bowl must not exceed the 2 liter limit.
  • Page 12 The graduated measuring cup allows for certain ingredients to be added to the bowl through the hole in the lid. The measuring cup has a maximum capacity of 100ml, increasing from 20ml, in order to control the amount of ingredients added to the bowl. The measuring cup is made to fit into the lid and will not come loose when the lid is vibrating, especially at high speeds.
  • Page 13 The steamer consists of 4 parts: 2. DEEP TRAY: This part fits over the base of the steamer and is for placing food to be steamed. 3. FLAT TRAY: This part is a shallower tray that may be used for steaming different types of food than the tray described above.
  • Page 14 The mixing utensil is an ideal accessory for kneading, and mixing egg whites and cream. Speeds 1, 2 or 3 should be used for these activities and never higher speeds. When kneading with the mixing utensil, only speed 3 should be used. The mixing utensil fits on the upper part of the blades.

  • Page 15: How The Food Processor Works

    The Recipe Book has 101 recipes and 8 explanations of the main basic cooking functions of the food processor. HOW THE FOOD PROCESSOR WORKS 1. Placing the blades: Due to the design of the bowl, this is easy to do. a.

  • Page 16: Starting To Use The Food Processor

    b. Place the bowl on the central unit and press down lightly so that it fits in correctly. In the event that the bowl is not placed correctly, the lid of the bowl will not fit on the locking slot of the central unit, and in this case, the symbol that indicates that the lid is not on properly will appear on the screen (the bowl symbol with an exclamation mark).

  • Page 17: Maintenance

    MAINTENANCE 1. If the food processor will not be used for any length of time, disconnect it from the power source. 2. To avoid overheating the motor, do not cover the air vents or refrigeration of the central unit. 3. Do not exceed the 2 liter maximum capacity of the bowl. 4.

  • Page 18: The Environment And Recycling

    THE ENVIRONMENT AND RECYCLING The packaging materials for this appliance are part of a collecting, sorting and recycling system. If you would like to dispose of them, use the appropriate public recycling bins for each type of material. The product is free from concentrations of substances that are considered harmful to the environment.
  • Page 19 KEEP THE FOLLOWING IN MIND WHEN USING THE FOOD PROCESSOR FOR THE FIRST COUPLE OF TIMES Before the food processors are put on the market, they are all tested. For this, we fill the bowl with water and The bowl boil it to check that it is functioning Clean the light markings appears to be...

  • Page 20: Technical Specifications

    TECHNICAL SPECIFICATIONS Voltage/Frequency 220V / 230V~ 50Hz Consumption 500W for spinning the blades, 1000W for heating Bowl capacity 2 liters Speeds 10 speeds + 1 turbo speed Minimum temperature 37ºC Maximum temperature 130ºC Removable cord 1.1m long Speed range From 100rpm to 10,000rpm 450010 en ma 2015.01...
