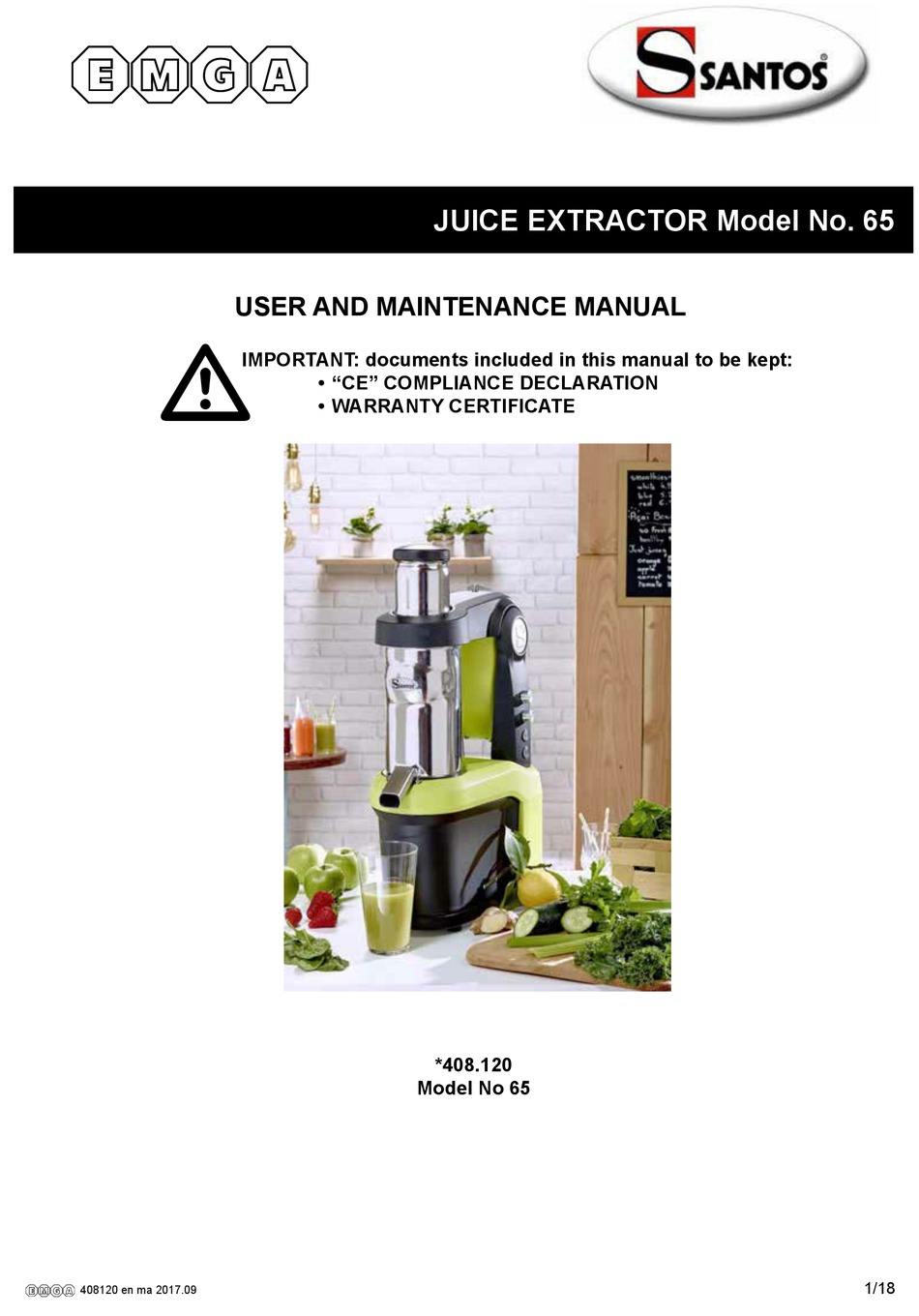

- Page 1 JUICE EXTRACTOR Model No. 65 USER AND MAINTENANCE MANUAL IMPORTANT: documents included in this manual to be kept: • “CE” COMPLIANCE DECLARATION • WARRANTY CERTIFICATE *408.120 Model No 65 1/18 408120 en ma 2017.09...
- Page 2 ELECTRICAL CONNECTION: ..................5 USING FOR THE 1st TIME: ................... 5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE ......6 COLD PRESS JUICER # 65 ....................7 USING THE APPLIANCE ....................7 STARTING UP: ......................7 Assembly and preparation: ..................7 Use: ..........................
-
Page 3: Ce" Compliance Declaration
European directives and regulations: o No. 2014/35/EU (Low voltage directive) o No. 2014/30/EU (EMC directive) o No. 2011/65/EU (RoHS directive) o No. 2012/19/EU (WEEE directive) o N° 1935/2004/EC (Regulation) relating to materials and articles intended to come into contact with food o N°... -
Page 4: Important Safeguards
SANTOS: User and maintenance manual IMPORTANT SAFEGUARDS When using, maintaining or disposing of the machine, always follow these basic instructions. Read all instructions Note: you will find it easier to understand the next few paragraphs if you refer to the diagrams at the end of this manual. INSTALLATION AND HANDLING During unpacking in particular, you are advised to have 2 people to handle the machine. -
Page 5: Electrical Connection
SANTOS: User and maintenance manual 14. Never connect several appliances to the same power socket. 15. Never use the appliance outdoors. 16. Never place the appliance close to or on a source of heat. 17. This appliance is a professional machine designed exclusively for professional use. -
Page 6: Recycling The Product At The End Of Its Service Life
SANTOS: User and maintenance manual sieve (13/14), the scrapers (15), the discharge cone (17), the seal (18), the ring (19) and the pulp container (5). Fig.5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE This equipment is marked with the selective sorting symbol relating to waste from electrical and electronic equipment. -
Page 7: Cold Press Juicer # 65
SANTOS: User and maintenance manual COLD PRESS JUICER # 65 Robust and very well-constructed (components made of cast stainless steel and aluminium, engineered plastic and stainless steel plate), this cold press juicer is particularly suitable for extracting juice and coulis from fruit, vegetables and herbs,... -
Page 8: Sieve
SANTOS: User and maintenance manual Sieve: The appliance comes with 2 sieves (13/14): fig.8 One sieve with small holes to obtain juice (13). One sieve with big holes to obtain coulis (14). How to stop the machine: The appliance is stopped: 1. -
Page 9: Precautions And Risks
SANTOS: User and maintenance manual PRECAUTIONS AND RISKS: Do not place any objects other than food in the machine. During preparation, the level in the pulp container (5) should be monitored to prevent the pulp outlet from clogging. Such clogging could result in a machine dysfunction. -
Page 10: Maintenance
SANTOS: User and maintenance manual MAINTENANCE Before carrying out any work on the cold press juicer, it must in all cases be unplugged from the mains power supply and wait 20 seconds for the capacitor of the electronic board to discharge: Spare parts: IMPORTANT: The use of spare parts other than certified original SANTOS parts is prohibited. -
Page 11: The Machine Stops Because The Motor Has Overheated
SANTOS: User and maintenance manual Check: the presence of the feed channel (3) and the locking of the cover (2) in the lowered position Fig.13 THE MACHINE STOPS BECAUSE THE MOTOR HAS OVERHEATED: (the casings around the motor units are hot) - Remove the plug from the power supply socket and follow the instructions in the section “motor overheat safety feature". -
Page 12: Reference To Standards
SANTOS: User and maintenance manual REFERENCE TO STANDARDS CE (Europe) TECHNICAL SPECIFICATIONS Mains: Power supply voltage (V) 220-240 100-120 Frequency (Hz) 50 / 60 50 / 60 Motor: Rating (kW) Power requirement (A) High motor speed (rpm) 5 to 10 5 to 10 Low motor speed (rpm) 35 to 70... -
Page 13: Electrical Wiring Diagram 100 - 120V 50/60Hz
SANTOS: User and maintenance manual ELECTRICAL WIRING DIAGRAM 100 - 120V 50/60Hz Micro switch Black Black White Green/yellow Green / yellow Electronic board Yellow Orange Black Black Blue White Green/yellow White Black 13/18 408120 en ma 2017.09... -
Page 14: Electrical Wiring Diagram 220 - 240V 50/60Hz
SANTOS: User and maintenance manual ELECTRICAL WIRING DIAGRAM 220 - 240V 50/60Hz Micro switch Black Black White Green/yellow Green/ yellow Electronic card Yellow Orange Black Black Blue White Green/yello White Black Interference filter 14/18 408120 en ma 2017.09... -
Page 15: Translation Table Of Machine Components
SANTOS: User and maintenance manual TRANSLATION TABLE OF MACHINE COMPONENTS item F Stainless steel bowl Cover Feed channel Plunger Pulp container Safety lock Top screw speed knob Bottom screw speed knob ‘’On/off’’ button ‘’Backward operation’’ button Top screw Bottom screw Sieve for juice Sieve for coulis Scraper... -
Page 16: Figures
SANTOS: User and maintenance manual FIGURES Figure 3 Figure 1 Figure 2 Figure 4 Figure 6 Push turn Figure 5 13/14 Figure 7 13/14 z une citation Figure 8 prise dans document , ou la synthèse d’un passage intéressan t. Vous pouvez 16/18 placer la... - Page 17 SANTOS: User and maintenance manual Figure 9 Figure 10 Figure 11 Figure 12 Figure 13 Cover not locked Figure 14 Figure 15 Cover locked Figure 16 Figure 17 Figure 18 Figure 19 Figure 20 Figure 21 Figure 22 Figure 23 17/18 408079 en ma 2014.04...
-
Page 18: Warranty Certificate
SANTOS: User and maintenance manual WARRANTY CERTIFICATE WARRANTY Since 01.01.95, all our appliances comply with the EC standards and possess the CE label. Our warranty is for twenty-four months from the date mentioned on the descriptive plate, except for asynchronous motors (consisting of a rotor and a stator) which are guaranteed for 5 years from the manufacturing date.
