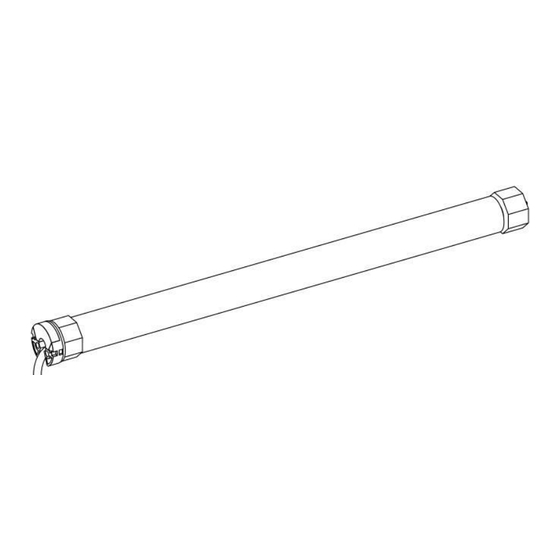

TUBULAR MOTOR
BUILT-IN RECEIVER WITH ELECTRONIC LIMIT SETTING
TECHNICAL SPECIFICATIONS:
Part no:
3416600112
Torque:
6 Nm
Speed:
28 RPM
Voltage:
230V~ AC – 50Hz
Power/Wattage:
121 Watt
IP Rating:
IP44
Max. running time:
4 minutes
IMPORTANT
•

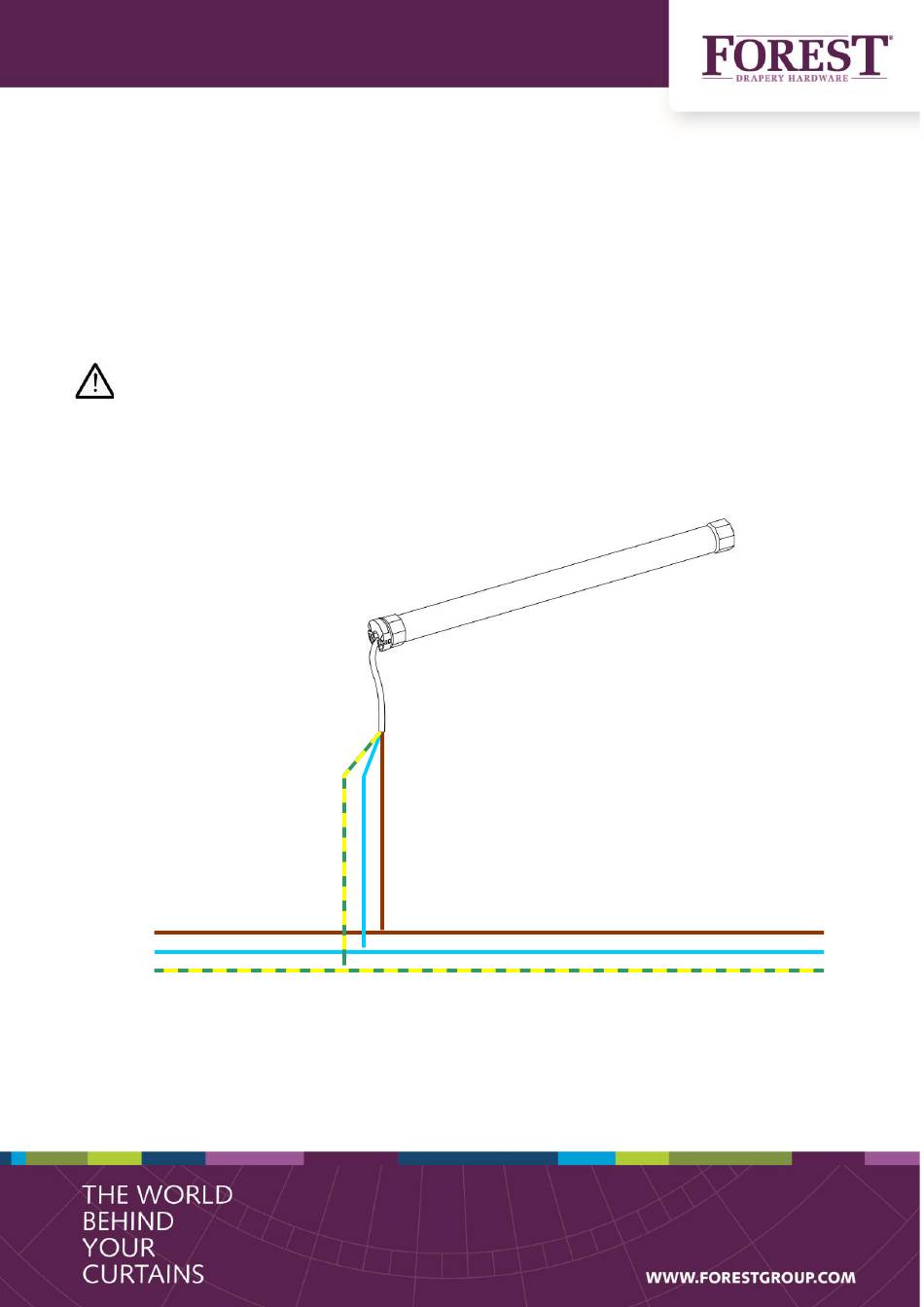

230V~ AC Connection uses BROWN (phase), BLUE (neutral) and GREEN/YELLOW (earth).
•
The black and red wire can be used to connect an optional obstruction sensor.
o
Do not connect the red and black wires together or to the 230V~ power lines.
230V~ AC
Brown
PHASE L
Blue
NEUTRAL
Yellow/Green
EARTH
3416600116
3416600117
13 Nm
6 Nm
14 RPM
20 RPM
230V~ AC – 50Hz
230V~ AC – 50Hz
121 Watt
133 Watt
IP44
IP44
4 minutes
4 minutes
Advertisement
Related Manuals for Forest 3416600112
Summary of Contents for Forest 3416600112
- Page 1 TUBULAR MOTOR BUILT-IN RECEIVER WITH ELECTRONIC LIMIT SETTING TECHNICAL SPECIFICATIONS: Part no: 3416600112 3416600116 3416600117 Torque: 6 Nm 13 Nm 6 Nm Speed: 28 RPM 14 RPM 20 RPM Voltage: 230V~ AC – 50Hz 230V~ AC – 50Hz 230V~ AC – 50Hz...
- Page 2 TUBULAR MOTOR BUILT-IN RECEIVER WITH ELECTRONIC LIMIT SETTING PROGRAMMING REMOTE ADD MORE REMOTES OR TO TUBULAR MOTOR: CHANNELS TO TUBULAR MOTOR DELETE ALL REMOTES Press button on motor, motor ①st remote: Press P twice Press P once turns to acknowledge ①...
- Page 3 TUBULAR MOTOR BUILT-IN RECEIVER WITH ELECTRONIC LIMIT SETTING ADJUSTING UPPER AND LOWER END LIMITS: IMPORTANT: - When multiple motors are programmed to one channel, end limits of all motors will be adjusted - During programming, keep the remote within 2 meter (6,5 ft) from the motor Press P button once Press OPEN button once Press P button once...
- Page 4 TUBULAR MOTOR BUILT-IN RECEIVER WITH ELECTRONIC LIMIT SETTING ERASING UPPER AND LOWER END LIMITS: IMPORTANT: When erasing end limits, the limits of all motors programmed to selected channel will be cancelled Press P button once Press CLOSE button once Press P button once 1x CLOSE 1x P 1x P...
